Description

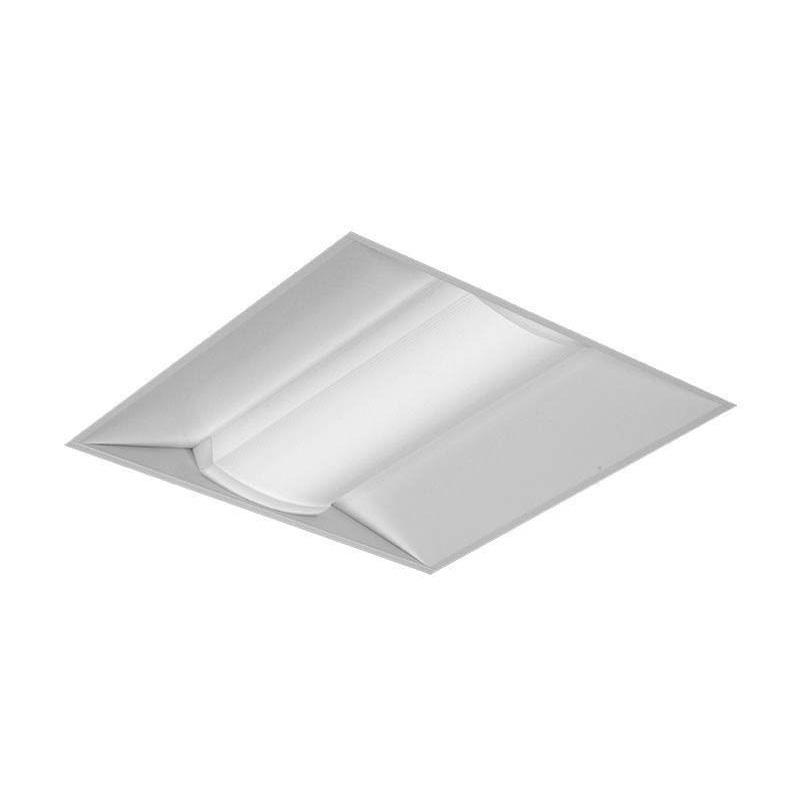

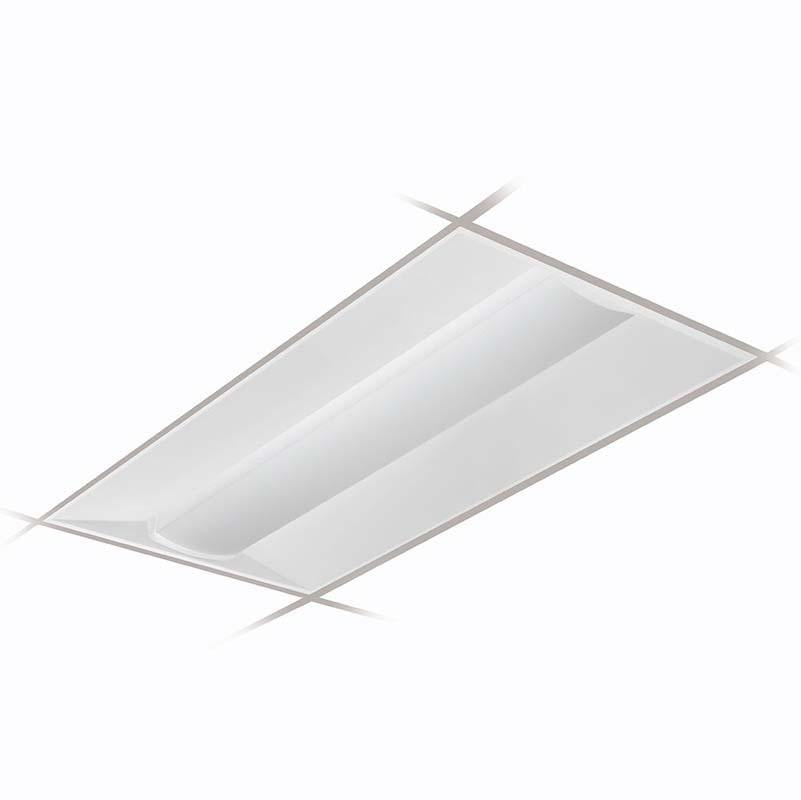

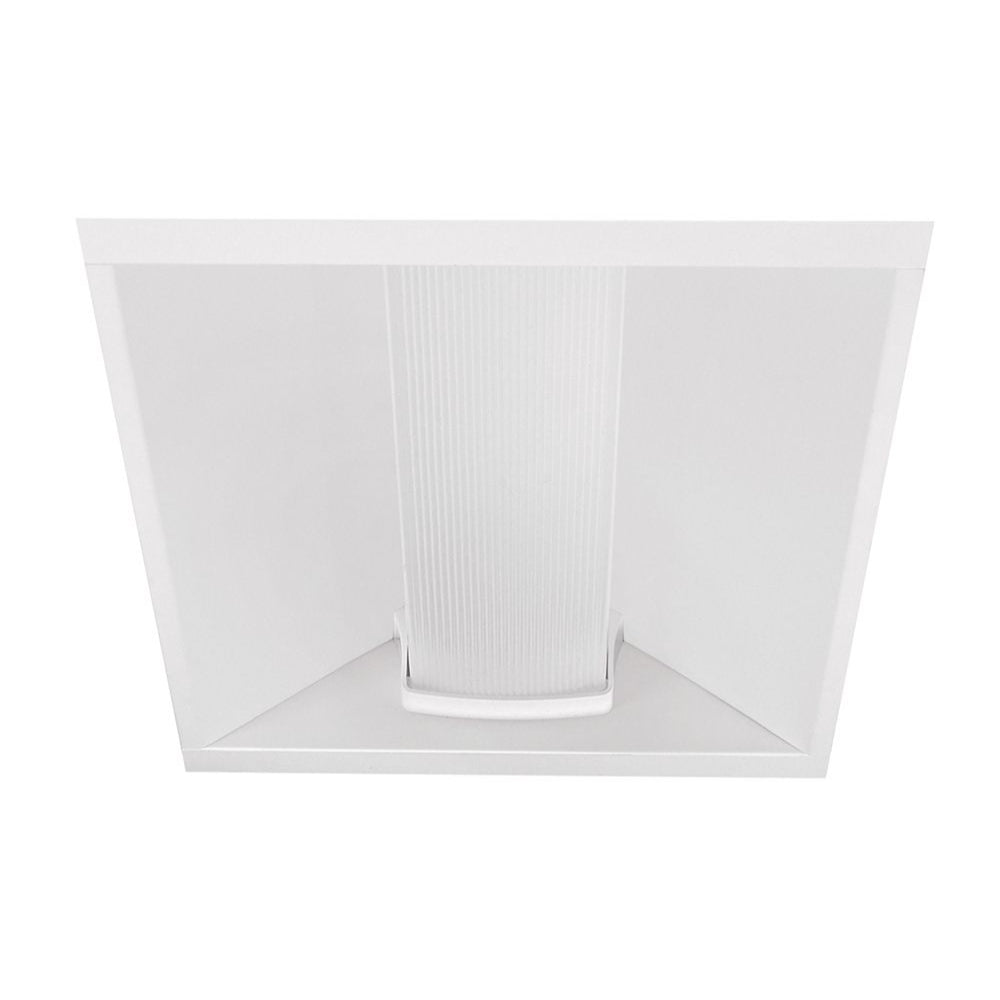

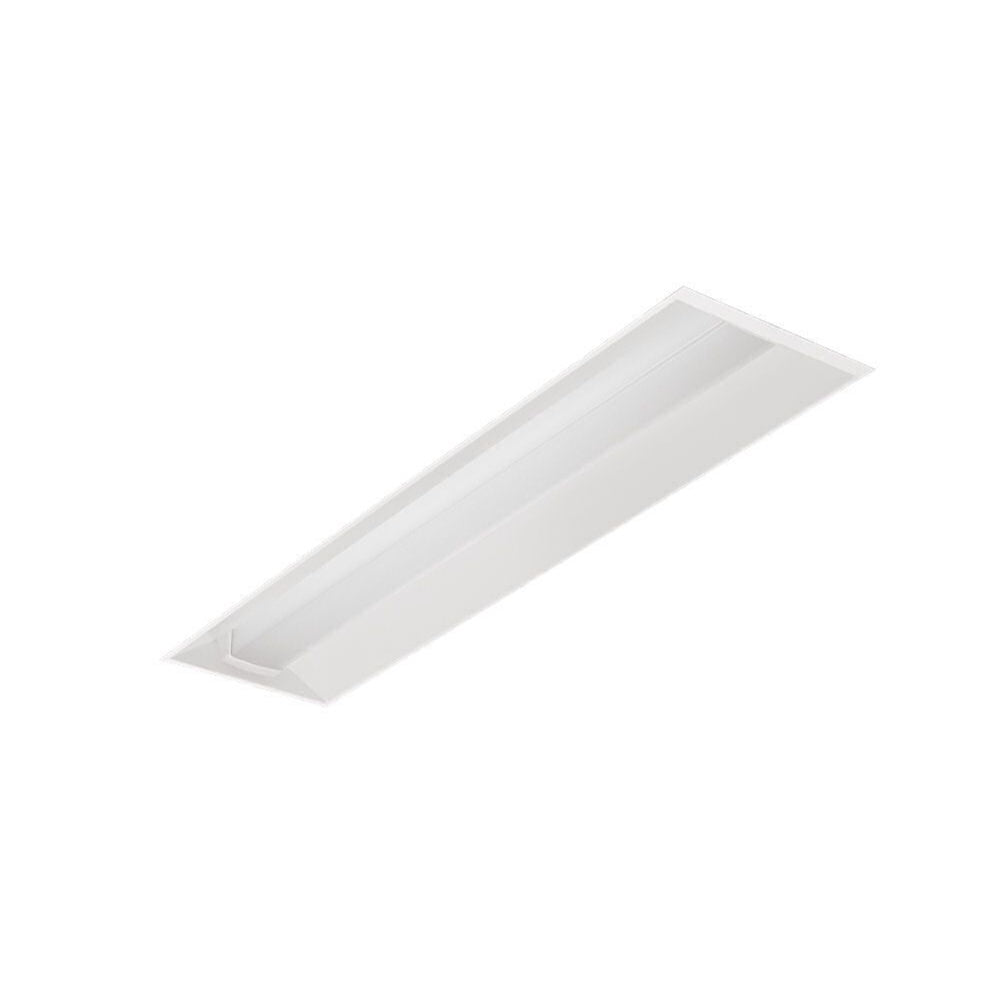

Day Brite Lighting EvoGrid Recessed LED
Product Information
| Product Name | SKU | Watts | Lumens | Kelvin |
|---|---|---|---|---|
| 1x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 119 lm/W | 1EVG38L840-4-D-UNV-DIM | 32 | 3800 | 4000 |
| 1x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 119 lm/W | 1EVG38L835-4-D-UNV-DIM | 32 | 3800 | 4000 |
| 1x4 Tunable White, 3700 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 1EVG37L8TW-4-D-UNV-DTW | 35 | 3700 | 6500 |
| 1x4 Tunable White, 4500 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 1EVG45L8TW-4-D-UNV-DTW | 4500 | 6500 | |
| 1x4 Tunable White, 5000 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 1EVG50L8TW-4-D-UNV-DTW | 5000 | 6500 | |
| 1x4, 3000 Nominal Delivered Lumens, 80 CRI, 4000K, Round Diffuse - 135 lm/W | 1EVG30L840-4-R-UNV-DIM | 22 | 3000 | 4000 |
| 1x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Round Diffuse - 135 lm/W | 1EVG38L840-4-R-UNV-DIM | 29 | 3800 | 4000 |
| 1x4, 4500 Nominal Delivered Lumens, 80 CRI, 4000K, Round Diffuse - 134 lm/W | 1EVG45L840-4-R-UNV-DIM | 34 | 4500 | 4000 |
| 2x2, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Emergency Battery Backup | 2EVG38L835-2-D-UNV-DIM-EMLED | 40 | 3800 | 3500 |
| 2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Emergency Battery Backup | 2EVG38L840-2-D-UNV-DIM-EMLED | 40 | 3800 | 4000 |
| 2x2, 4500 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Emergency Battery Backup | 2EVG45L835-2-D-UNV-DIM-EMLED | 47 | 4500 | 3500 |
| 2x2, 4500 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Emergency Battery Backup | 2EVG45L840-2-D-UNV-DIM-EMLED | 47 | 4500 | 4000 |
| 2x2, 3000 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse | 2EVG30L835-2-D-UNV-DIM | 30 | 3000 | 3500 |
| 2x2, 3000 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse | 2EVG30L840-2-D-UNV-DIM | 30 | 3000 | 4000 |
| 2x2, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse | 2EVG38L835-2-D-UNV-DIM | 40 | 3800 | 3500 |
| 2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse | 2EVG38L840-2-D-UNV-DIM | 40 | 3800 | 4000 |
| 2x2, 4500 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse | 2EVG45L835-2-D-UNV-DIM | 47 | 4500 | 3500 |
| 2x2, 4500 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse | 2EVG45L840-2-D-UNV-DIM | 47 | 4500 | 4000 |
| 2x2 Tunable White, 3900 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 2EVG39L8TW-2-D-UNV-DTW | 43 | 3900 | 6500 |
| 2x2 Tunable White, 4300 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 2EVG43L8TW-2-D-UNV-DTW | 48 | 4300 | 6500 |
| 2x2, 3000 Nominal Delivered Lumens, 80 CRI, 4000K, Round Diffuse - 127 lm/W | 2EVG30L840-2-R-UNV-DIM | 24 | 3000 | 4000 |
| 2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Round Diffuse - 126 lm/W | 2EVG38L840-2-R-UNV-DIM | 31 | 3800 | 4000 |
| 2x2, 4500 Nominal Delivered Lumens, 80 CRI, 4000K, Round Diffuse - 125 lm/W | 2EVG45L840-2-R-UNV-DIM | 37 | 4500 | 4000 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy, Emergency Battery Backup | 2EVG38L835-4-D-UNV-DIM-EMLED | 36 | 3800 | 3500 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy, Emergency Battery Backup | 2EVG38L840-4-D-UNV-DIM-EMLED | 36 | 3800 | 4000 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy, Emergency Battery Backup | 2EVG38LH835-4-D-UNV-DIM-EMLED | 31 | 3800 | 3500 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy, Emergency Battery Backup | 2EVG38LH840-4-D-UNV-DIM-EMLED | 31 | 3800 | 4000 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy, Emergency Battery Backup | 2EVG48L835-4-D-UNV-DIM-EMLED | 47 | 4800 | 3500 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy, Emergency Battery Backup | 2EVG48L840-4-D-UNV-DIM-EMLED | 47 | 4800 | 4000 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy, Emergency Battery Backup | 2EVG48LH835-4-D-UNV-DIM-EMLED | 39 | 4800 | 3500 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy, Emergency Battery Backup | 2EVG48LH840-4-D-UNV-DIM-EMLED | 39 | 4800 | 4000 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy, Emergency Battery Backup | 2EVG54L835-4-D-UNV-DIM-EMLED | 55 | 5400 | 3500 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy, Emergency Battery Backup | 2EVG54L840-4-D-UNV-DIM-EMLED | 55 | 5400 | 4000 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy, Emergency Battery Backup | 2EVG54LH835-4-D-UNV-DIM-EMLED | 45 | 5400 | 3500 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy, Emergency Battery Backup | 2EVG54LH840-4-D-UNV-DIM-EMLED | 45 | 5400 | 4000 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy, Emergency Battery Backup | 2EVG74L835-4-D-UNV-DIM-EMLED | 82 | 7400 | 3500 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy, Emergency Battery Backup | 2EVG74L840-4-D-UNV-DIM-EMLED | 82 | 7400 | 4000 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy, Emergency Battery Backup | 2EVG74LH835-4-D-UNV-DIM-EMLED | 63 | 7400 | 3500 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy, Emergency Battery Backup | 2EVG74LH840-4-D-UNV-DIM-EMLED | 63 | 7400 | 4000 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy | 2EVG38L835-4-D-UNV-DIM | 36 | 3800 | 3500 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy | 2EVG38L840-4-D-UNV-DIM | 36 | 3800 | 4000 |
| 2x4, 4300 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy | 2EVG43L835-4-D-UNV-DIM | 40 | 4300 | 3500 |
| 2x4, 4300 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy | 2EVG43L840-4-D-UNV-DIM | 40 | 4300 | 4000 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy | 2EVG48L835-4-D-UNV-DIM | 47 | 4800 | 3500 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy | 2EVG48L840-4-D-UNV-DIM | 47 | 4800 | 4000 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy | 2EVG54L835-4-D-UNV-DIM | 55 | 5400 | 3500 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy | 2EVG54L840-4-D-UNV-DIM | 55 | 5400 | 4000 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, Standard Efficacy | 2EVG74L835-4-D-UNV-DIM | 82 | 7400 | 3500 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy | 2EVG74L840-4-D-UNV-DIM | 82 | 7400 | 4000 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy | 2EVG38LH835-4-D-UNV-DIM | 31 | 3800 | 3500 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy | 2EVG38LH840-4-D-UNV-DIM | 31 | 3800 | 4000 |
| 2x4, 4300 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy | 2EVG43LH835-4-D-UNV-DIM | 34 | 4300 | 3500 |
| 2x4, 4300 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy | 2EVG43LH840-4-D-UNV-DIM | 34 | 4300 | 4000 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy | 2EVG48LH835-4-D-UNV-DIM | 39 | 4800 | 3500 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy | 2EVG48LH840-4-D-UNV-DIM | 39 | 4800 | 4000 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy | 2EVG54LH835-4-D-UNV-DIM | 45 | 5400 | 3500 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy | 2EVG54LH840-4-D-UNV-DIM | 45 | 5400 | 4000 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, High Efficacy | 2EVG74LH835-4-D-UNV-DIM | 63 | 7400 | 3500 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, High Efficacy | 2EVG74LH840-4-D-UNV-DIM | 63 | 7400 | 4000 |
| 2x4 Tunable White, 3900 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 2EVG39L8TW-4-D-UNV-DTW | 3900 | 6500 | |
| 2x4 Tunable White, 4300 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 2EVG43L8TW-4-D-UNV-DTW | 41 | 4300 | 6500 |
| 2x4 Tunable White, 4900 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 2EVG49L8TW-4-D-UNV-DTW | 46 | 4900 | 6500 |
| 2x4 Tunable White, 5600 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 2EVG56L8TW-4-D-UNV-DTW | 55 | 5600 | 6500 |
| 2x4 Tunable White, 6500 Nominal Delivered Lumens, 80 CRI, 2700-6500K, Diffuse (Smooth) | 2EVG65L8TW-4-D-UNV-DTW | 65 | 6500 | 6500 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, Standard Efficacy - 125 lm/W | 2EVG38L840-4-R-UNV-DIM | 31 | 3800 | 4000 |
| 2x4, 4300 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, Standard Efficacy - 124 lm/W | 2EVG43L840-4-R-UNV-DIM | 35 | 4300 | 4000 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, Standard Efficacy - 122 lm/W | 2EVG48L840-4-R-UNV-DIM | 40 | 4800 | 4000 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, Standard Efficacy - 121 lm/W | 2EVG54L840-4-R-UNV-DIM | 46 | 5400 | 4000 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, Standard Efficacy - 111 lm/W | 2EVG74L840-4-R-UNV-DIM | 67 | 7400 | 4000 |
| 2x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, High Efficacy - 142 lm/W | 2EVG38LH840-4-R-UNV-DIM | 26 | 3800 | 4000 |
| 2x4, 4300 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, High Efficacy - 143 lm/W | 2EVG43LH840-4-R-UNV-DIM | 30 | 4300 | 4000 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, High Efficacy - 144 lm/W | 2EVG48LH840-4-R-UNV-DIM | 34 | 4800 | 4000 |
| 2x4, 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, High Efficacy - 144 lm/W | 2EVG54LH840-4-R-UNV-DIM | 39 | 5400 | 4000 |
| 2x4, 7400 Nominal Delivered Lumens, 80 CRI, 4000K, Round DIffuse, High Efficacy - 141 lm/W | 2EVG74LH840-4-R-UNV-DIM | 53 | 7400 | 4000 |
| 1x2, 3000 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse | 1EVG30L840-2-D-UNV-DIM | 28 | 3000 | 4000 |
| 2x2, 3000 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, SpaceWise Gen 2 | 2EVG30L835-2-D-UNV-DIM-SWZG2 | 30 | 3000 | 3500 |
| 2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, Standard Efficacy | 2EVG48L840-4-D-UNV-DIM-IAP | 47 | 4800 | 4000 |
Product Family Details
EvoGrid Recessed Architectural LED provides general lighting perfect for a wide variety of applications. Its soft opal diffuser with large luminous area minimizes apparent brightness compared to other based luminaires.
Benefits
- EvoGrid provides architectural appeal and affordability and energy reduction
- Excellent aesthetics and light distribution
- Ease of maintenance
- Optional SpaceWise integral controls
Features
- Performance up to 139 LPW
- Standard 0-10V dimming
- Optional occupancy and daylighting sensors
- Architectural appeal
- Extended energy savings with SpaceWise
Applications

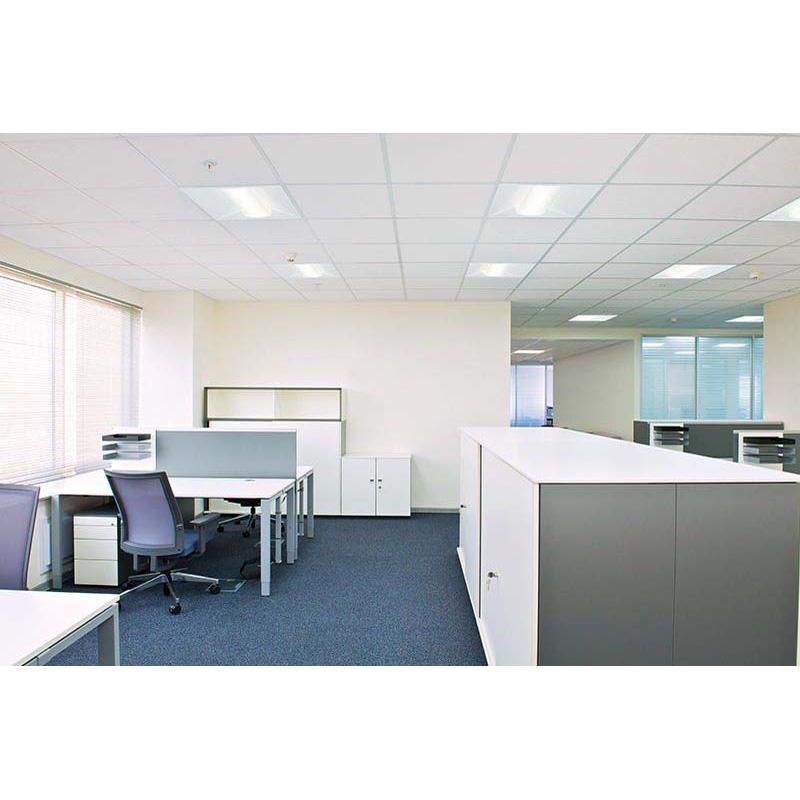

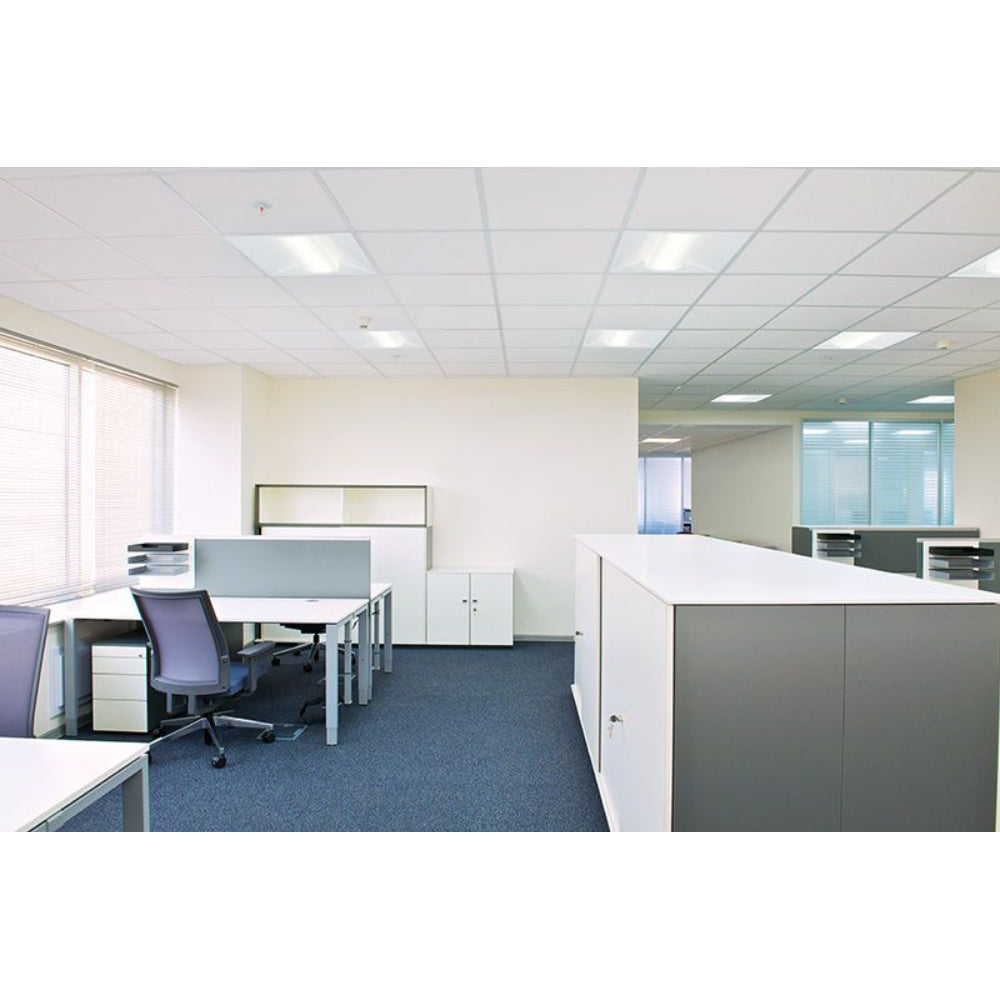

- Office
- Banks
- Hospitality
- Fashion
- Education
- Hospitals and Care Centers
Product Files
Click for EvoGrid Recessed LED 1x4 Spec Sheet
Click for EvoGrid Tunable White 2x2 Spec Sheet
Click for EvoGrid Recessed LED 2x2 Spec Sheet
Click for EvoGrid Recessed LED 2x4 Spec Sheet
Click for EvoGrid Tunable White 1x4 Spec Sheet
Click for EvoGrid Tunable White 2x4 Spec Sheet
Click for EvoGrid Recessed LED 1x2 Spec Sheet
Click for EvoGrid Recessed LED DLC
