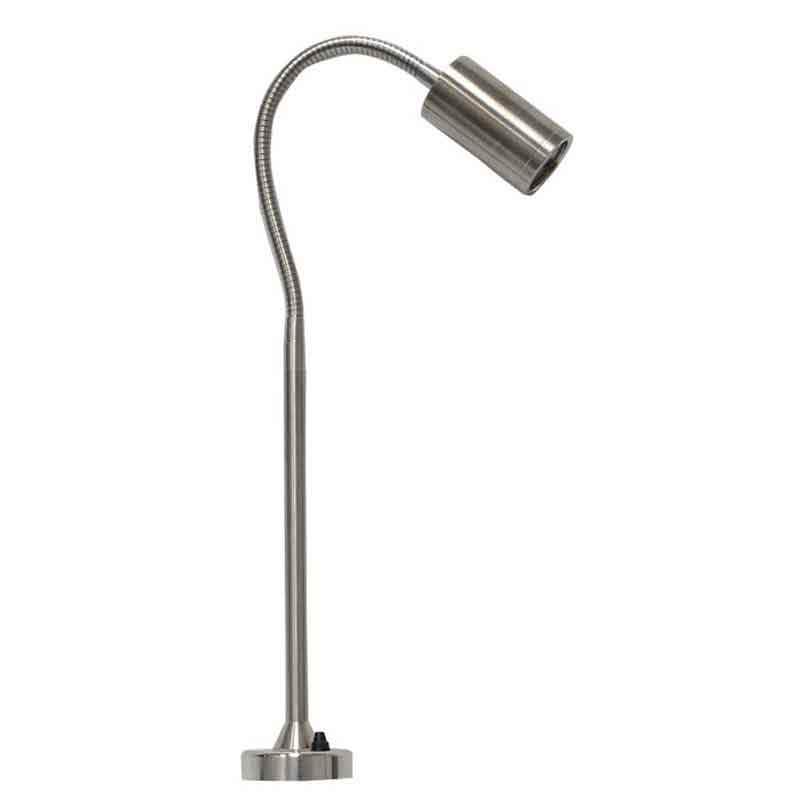

Focus Industries BQ-FC03 7W LED Clamp Series Threaded Cylinder Stainless Steel Barbecue Light
Specifications:
- Construction: 316 stainless steel housing
- Arm: 12 inch tall 316 stainless steel rigid stem with a 16 inch stainless steel flex arm on top and clear weatherproof polyolefin cover over flex arm

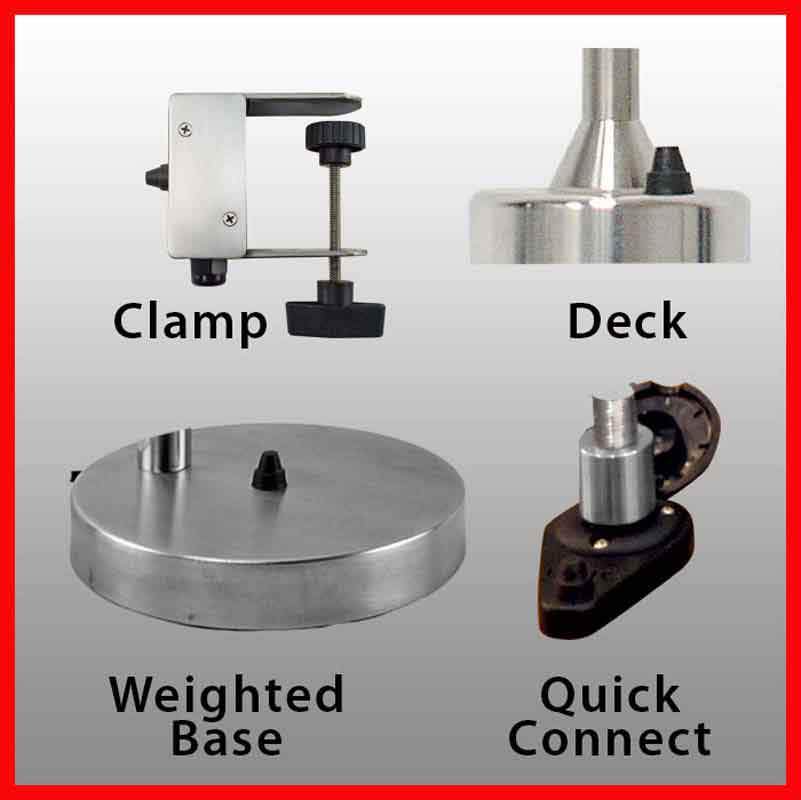

- Mount: 3" (max opening 2") or 5" (max opening 3.5") stainless steel clamp
- Finish: Stainless Steel- Brushed
- Lens: High impact clear tempered flat glass
- O-Ring: High temperature red silicone, 70 durometer
- Switch: On/Off push button with weatherproof rubber boot cover
-
12V Electrical specifications:
- LED Supplied: 7w MR16 GU5.3 Super Saver (L-48) 40,000 hours average rating
- Socket: High temperature ceramic GU5.3 bi-pin, 250°C silicone insulated lead wires
- Wiring: Black 10 foot 18/2 zip cord from base of fixture (12v only)
- For 25 foot 16/2 wire add-25F to catalogue number
-
120V Electrical specifications:
- LED Supplied: 7w ARROW PAR16 (L-134) 40,000 hours average rating
- Socket: High temperature ceramic Base (E26/27) medium base, 250°C silicone insulated lead wires
- Wiring: 9 foot grounded 120v power cord
Product Files
Click for BQ-FC03 Specification Sheet
Click for BQ-FC03 12V Installation Instruction
