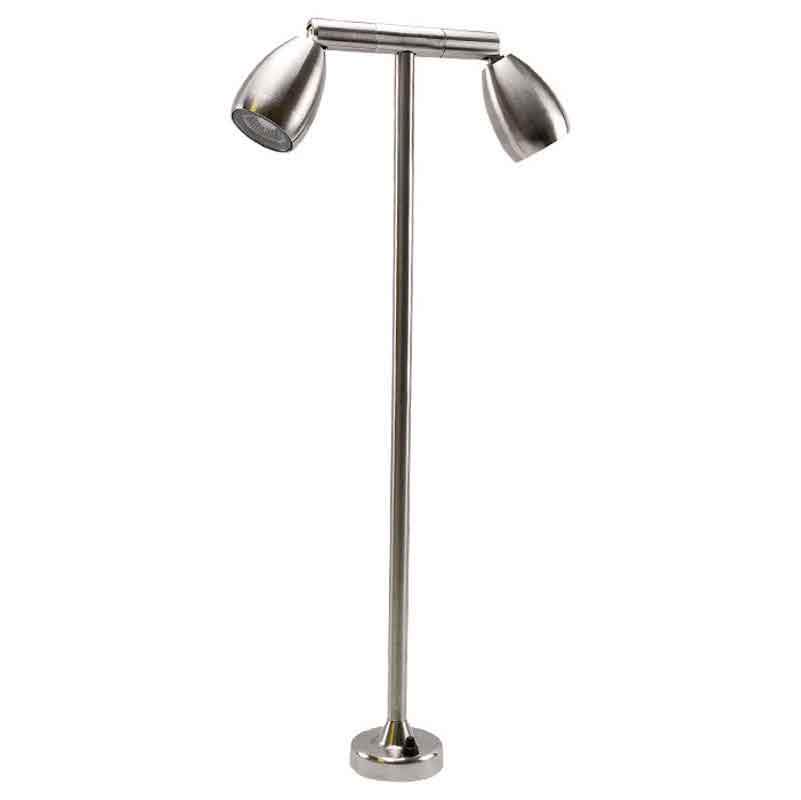

Focus Industries BQ-TCD01 2X 7W LED Commercial Deck Mount Series Barbecue Light with Twin Heads
Specifications:
-
Construction: 316 stainless steel housing
-
Arm: 24 inch tall 316 stainless steel ridged stem with 2.5" twin arm on top and 335° x 90° rotating swivels
-
Mount: 316 stainless steel deck mount canopy
-
Finish: Stainless Steel- Brushed
-
Lens: High impact clear tempered flat glass
-
O-Ring: High temperature red silicone, 70 durometer
-
Switch: On/Off push button with weatherproof rubber boot cover
-
12V Electrical specifications:
-
LED Supplied: 7w MR16 GU5.3 Super Saver (L-48) 40,000 hours average rating
-
Socket: High temperature ceramic GU5.3 bi-pin, 250°C silicone insulated lead wires
-
Wiring: Black 10 foot 18/2 zip cord from base of fixture (12v only)
- For 25 foot 16/2 wire add-25F to catalogue number
-
120V Electrical specifications:
-
LED Supplied: 7w ARROW PAR16 (L-134) 40,000 hours average rating
-
Socket: High temperature ceramic Base (E26/27) medium base, 250°C silicone insulated lead wires
-
Wiring: Standard Three Wire 16 inch lead wires from base of fixture
Product Files
Click for BQ-TCD01 Specification Sheet
Click for BQ-TCD01 12V Installation Instruction
Click for BQ-TCD01 120V installation Instructions
Click for Focus Finish Options
