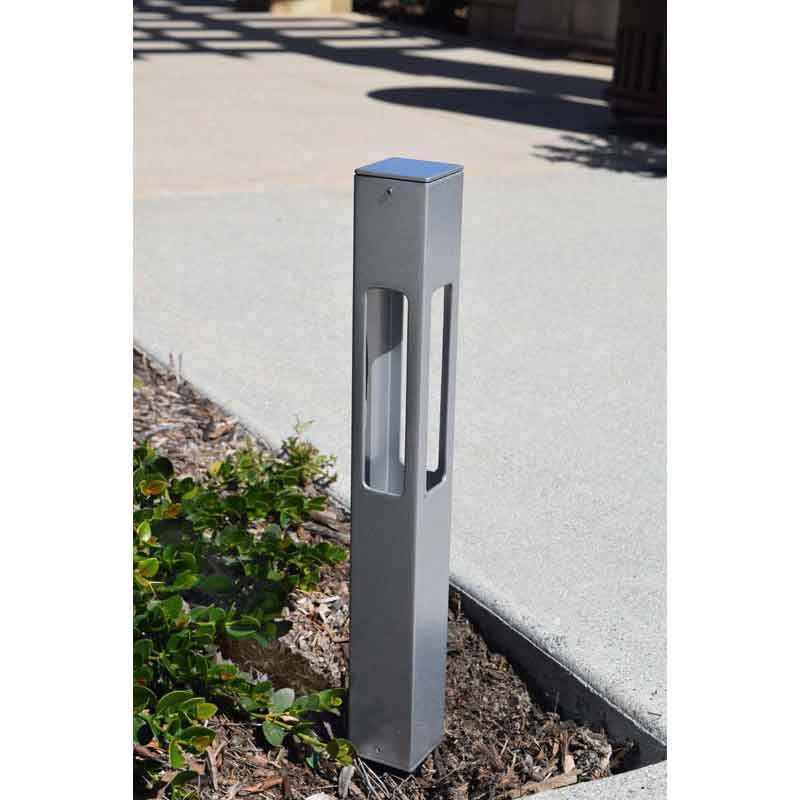

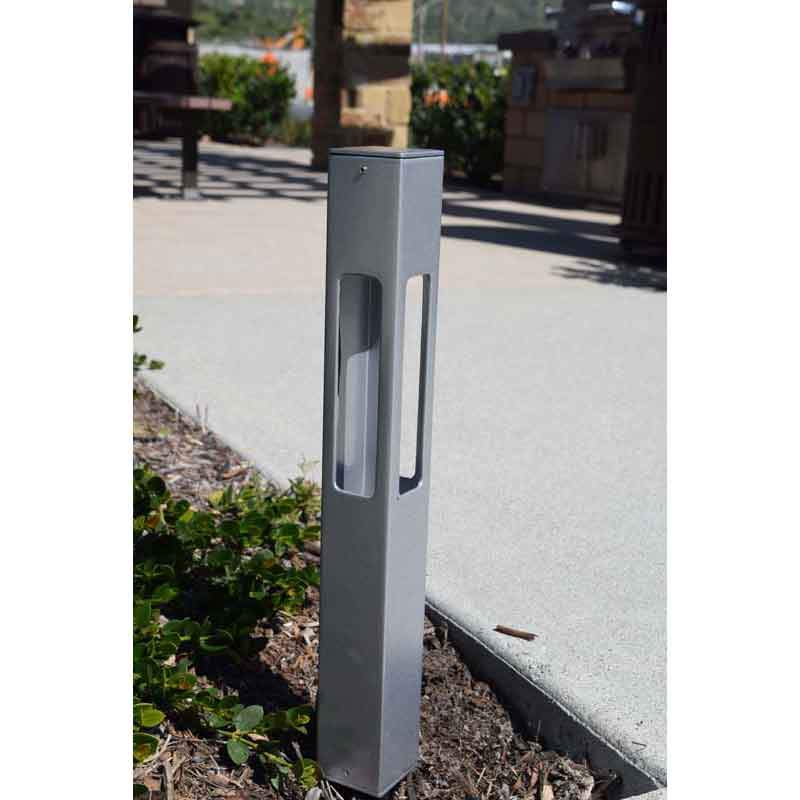

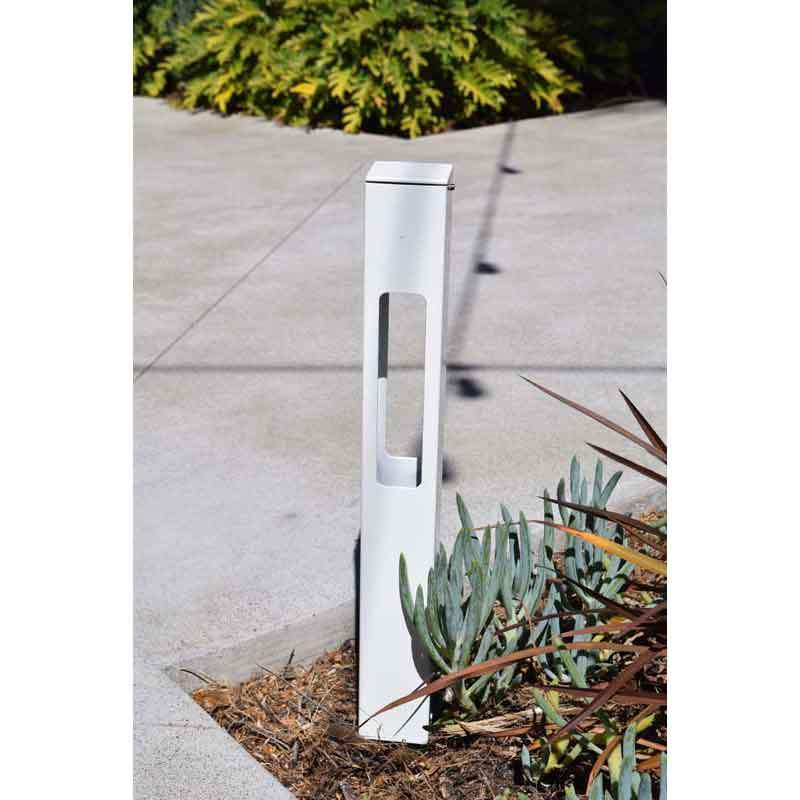

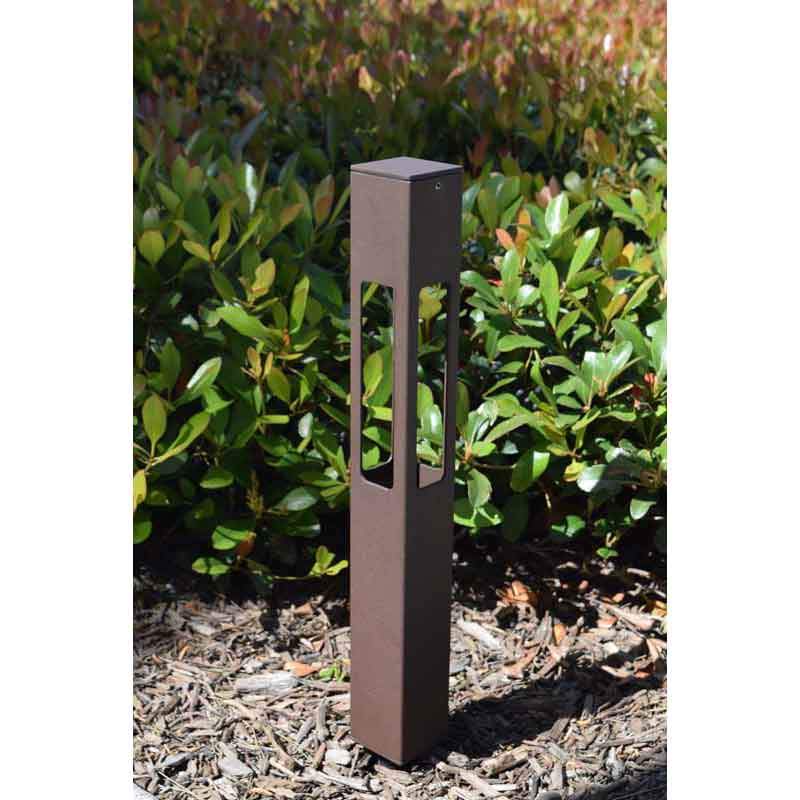

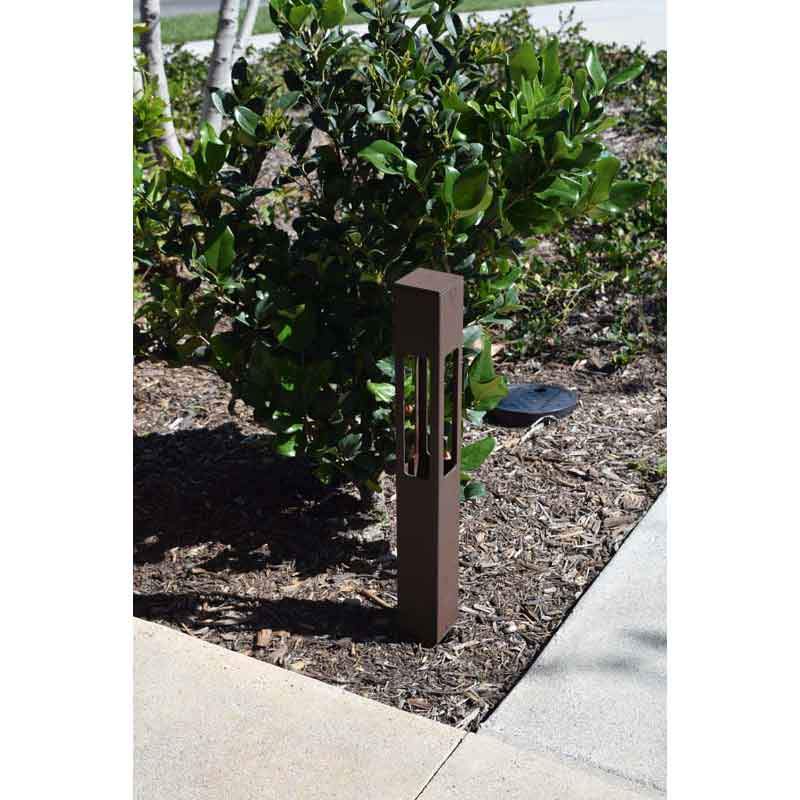

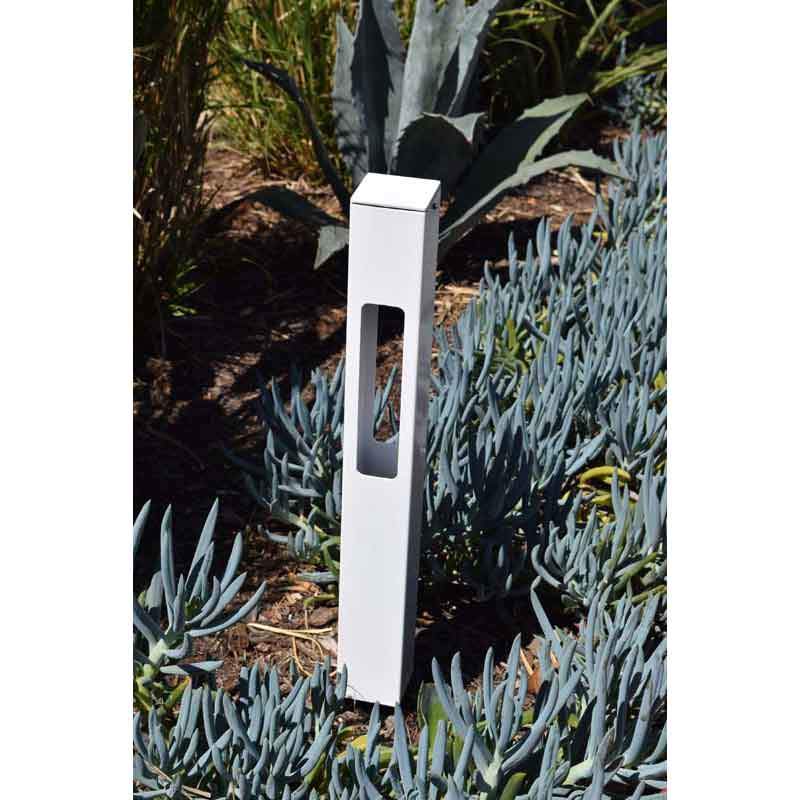

Focus Industries PL-23-SWDM-LEDP Series 4W LED 3000K Bollard Light 12V
Specifications:
-
Construction: Extruded 2.25 inch square aluminum or brass.
-S2 models have 2, 6 inch light openings
-S3 models have 3, 6 inch light openings
-S4 models have 4, 6 inch light openings - LED Panel: 4w, 300 lumen integrated LED flat panel, warm white 3000K; optional cool white 5200K 320 lumen available
- LED Lifetime Rating: 50,000 Hours
- LED Internal Driver: 5w 350mA output, 12v AC input. Voltage range of 10 to 15 volts. For use with magnetic transformers only.
- Wiring: Black 3 foot 18/2 zip cord from base of fixture (12v only) For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
- Connection: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)
- Mounting: FA-03-LG black 9 inch ABS stake, tapped 1/2 inch NPS

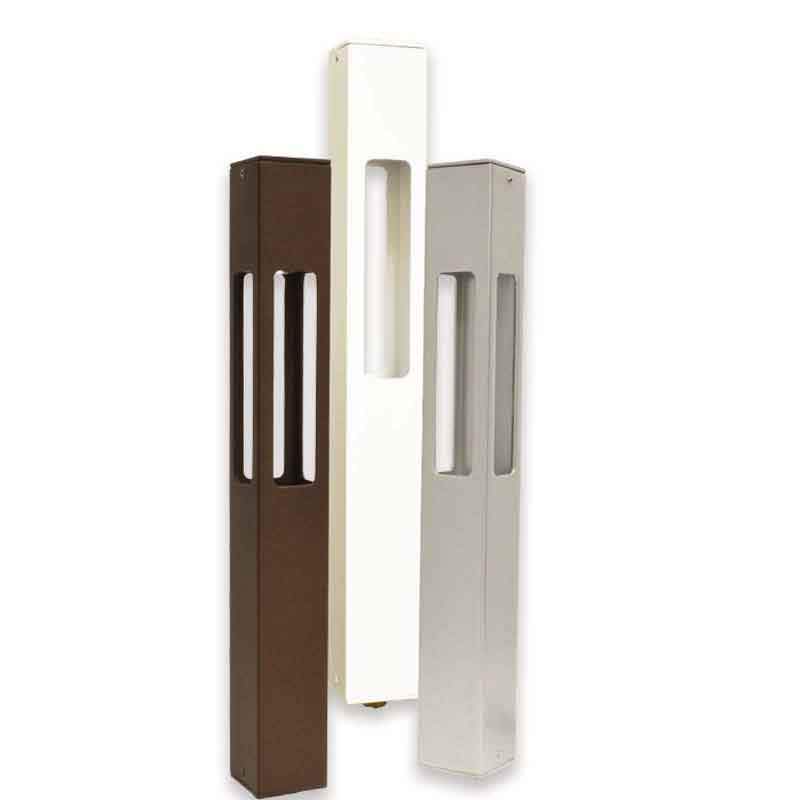

- Finish: Aluminum- Black texture polyester powder coat. Optional finishes available, Brass- Unfinished brass. Optional finishes available
- Note: Optional External 120v LED available.
Product Files
Click for PL-23-s2wdM-LEDP Specification Sheet
