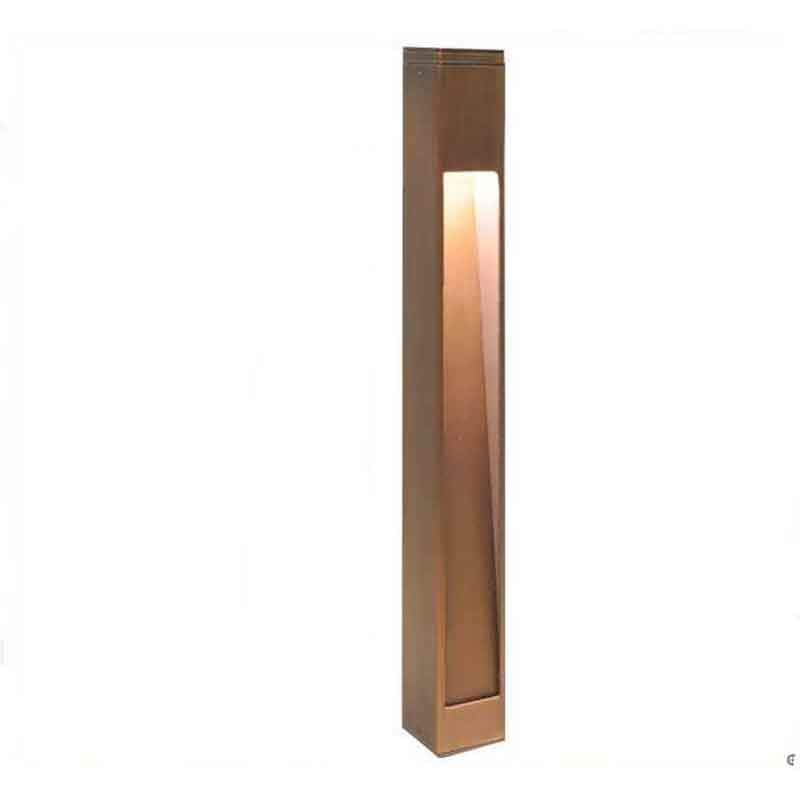

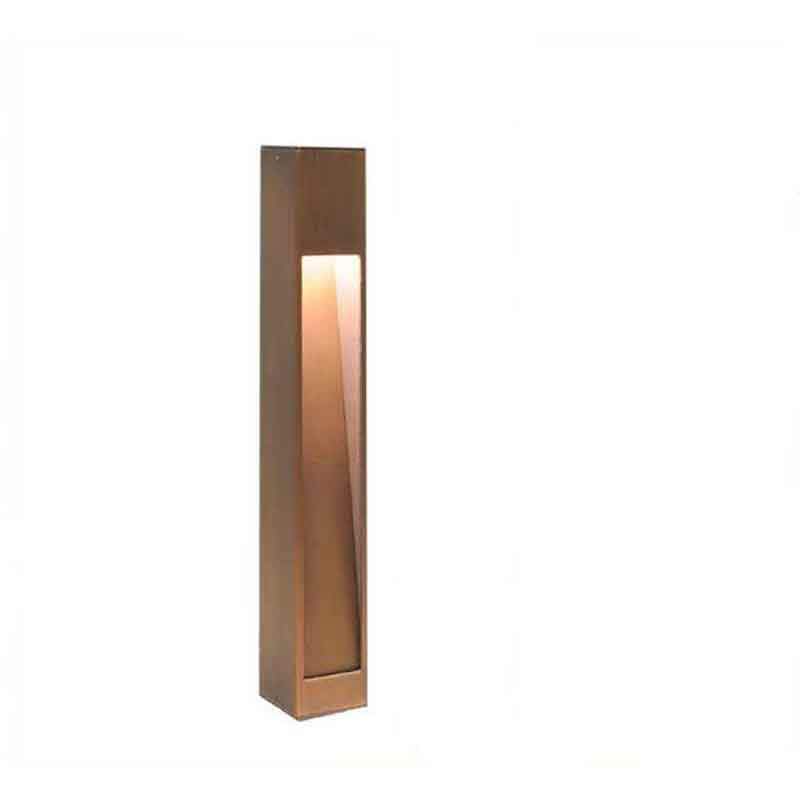

Focus Industries PL-23DM-LEDP Series Square LED Inch Bollard Light
Specifications:
- Construction: Extruded 2.25 inch square aluminum or brass.
- Lamp Supplied: 18w S8; 1200 hours average rating (25w max.)
- Lamp Options: We recommend 50,000 hours average rating OMNI-3 LED
- Socket:Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200° C silicone lead wires. No socket for LED Panel models
- LEDP Option: 12v, 4w, 300 lumen integrated LED flat panel, warm white 3000K (-LEDP); optional cool white 5200K 320 lumen available (modify part number to -LEDP52)
- LEDP Lifetime Rating: 50,000 Hours
- LEDP Internal Driver: 4w 350mA output, 12v AC input. Voltage range of 9 to 18 volts with optimum operating range of 10 to 15 volts for consistent performance and brightness. For use with magnetic transformers only.
- Wiring: Black 3 foot 18/2 zip cord from base of fixture. For 25 foot 16/2 fixture lead wire add -25F to catalogue number. 120v standard wiring
- Connection: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
- Mounting: Standard model. None, angle cut post Deck Mount model (DM)- FA-03-LG black 9 inch ABS stake, tapped 1/2 inch NPS (PL-23-DM)
- Finish: Aluminum- Black texture polyester powder coat. Optional finishes available; Brass- Unfinished brass. Optional finishes available
- Note: Optional 120v LED drivers available
