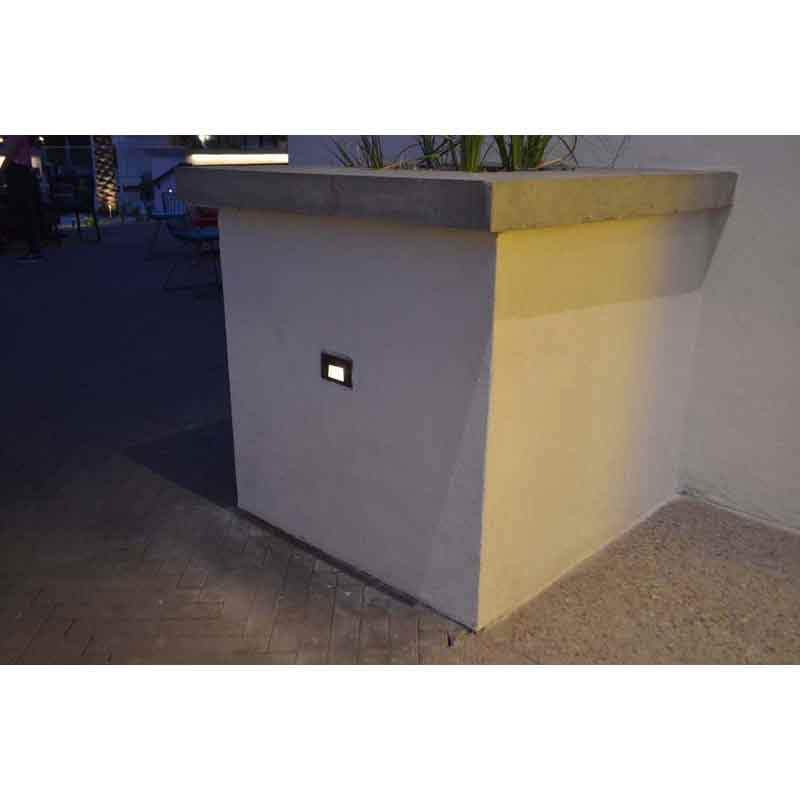

Focus Industries SL60-LED Series LED Step Light
Specifications:
- Construction: Die Cast Aluminum, Brass or Stainless Steel step light; Stamped Stainless Steel mounting bracket for single gang box
- Gasket: Black neosponge closed cell; .190 inch thickness
- Light Source: Integrated 12v or 120v input 3w LED module with on board driver, 200 Lumen LED, warm white 3000K
- Lifetime Rating: 50,000 hours
- Socket: None
-
Single Gang Box: Focus FA-SG-BOX fiberglass box included. Fixture insert only without Back Box is available (SL60NB) if box is already installed or supplied by others.
NOTE: Box supplied by others must have minimum inside dimensions of 3 inch (l) x 2 inch (w) x 2.5 inch (d) and plate mounting holes 3.22 inch to 3.30 inch apart on center. - Mounting: Stainless Steel bracket and hardware for mounting in single gang junction box; Face plate attaches to bracket with two provided screws
- Finish: Aluminum- Black texture polyester powder coat; optional finishes available; Brass- Unfinished; optional finishes available; Stainless Steel-Brushed
Product Files
Click for SL60-LED Specification Sheet
Click for SL60-LED 12V Installation Instruction
