FSC Lighting FL-AOK Series - Adjustable LED Flood Light
FSC Lighting FL-AOK Series - Adjustable LED Flood Light
Roll over image to zoom in Click on image to zoom
FSC Lighting FL-AOK Series - Adjustable LED Flood LightFSC Lighting FL-AOK Series - Adjustable LED Flood Light

FSC Lighting FL-AOK Series - Adjustable LED Flood Light

FSC LightingSKU: FL-S-3L-AOK-15W-3000K-AK
Select Wattage: 15W
Select Color Temperature: 3000K
Select Size: Small
Select Mounting: Adjustable Knuckle
Select Finish: Standard Dark Bronze
Price:
$0.00 USD

Fast & Easy Quote Request For FSC Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

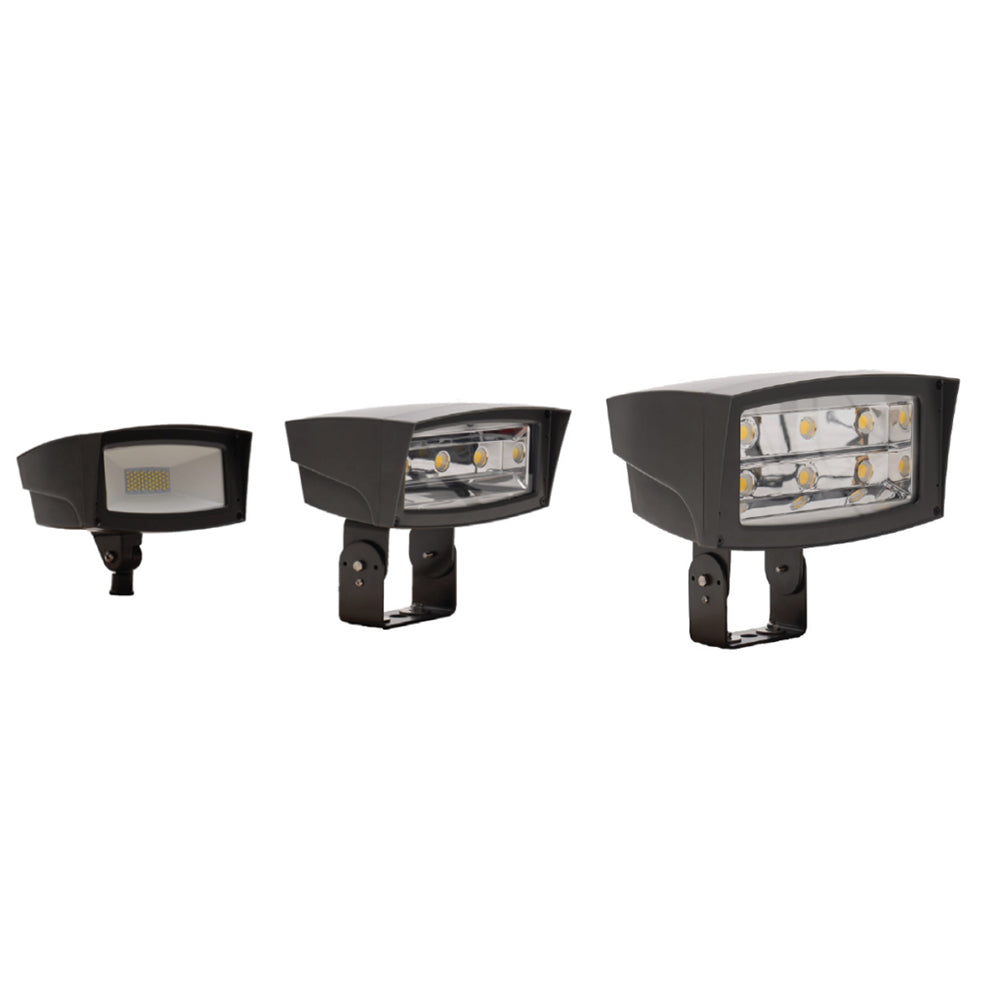

FSC Lighting FL-AOK Series - Adjustable LED Flood Light

Features

  • Applications: Ideal for use in exterior commercial and industrial building facades.
  • Construction: Housing made from die-cast aluminum. Tempered glass lens.
  • Mounting: Slip-fitter, trunnion and adjustable knuckle mounting options available
  • Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency. 5KV Surge Protection.
  • Operating Temperature: Suitable for -40°C - 40°C Ambient
  • CRI: 70+
  • Lumen Maintenance: L70 rating of 54,000
  • Warranty: Five-year warranty. Terms and Conditions Apply.
  • Certification: UL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 Premium listed1 . IP65 Rated.
FL-S-3L-AOK-15W-3000K-AK FL-S-3L-AOK-15W-3000K-TR FL-S-3L-AOK-15W-3000K-SF FL-S-3L-AOK-15W-3000K-AK-B FL-S-3L-AOK-15W-3000K-TR-B FL-S-3L-AOK-15W-3000K-SF-B
FL-S-3L-AOK-15W-3000K-AK-W FL-S-3L-AOK-15W-3000K-TR-W FL-S-3L-AOK-15W-3000K-SF-W FL-S-3L-AOK-15W-4000K-AK FL-S-3L-AOK-15W-4000K-TR FL-S-3L-AOK-15W-4000K-SF
FL-S-3L-AOK-15W-4000K-AK-B FL-S-3L-AOK-15W-4000K-TR-B FL-S-3L-AOK-15W-4000K-SF-B FL-S-3L-AOK-15W-4000K-AK-W FL-S-3L-AOK-15W-4000K-TR-W FL-S-3L-AOK-15W-4000K-SF-W
FL-S-3L-AOK-15W-5000K-AK FL-S-3L-AOK-15W-5000K-TR FL-S-3L-AOK-15W-5000K-SF FL-S-3L-AOK-15W-5000K-AK-B FL-S-3L-AOK-15W-5000K-TR-B FL-S-3L-AOK-15W-5000K-SF-B
FL-S-3L-AOK-15W-5000K-AK-W FL-S-3L-AOK-15W-5000K-TR-W FL-S-3L-AOK-15W-5000K-SF-W FL-S-3L-AOK-22W-3000K-AK FL-S-3L-AOK-22W-3000K-TR FL-S-3L-AOK-22W-3000K-SF
FL-S-3L-AOK-22W-3000K-AK-B FL-S-3L-AOK-22W-3000K-TR-B FL-S-3L-AOK-22W-3000K-SF-B FL-S-3L-AOK-22W-3000K-AK-W FL-S-3L-AOK-22W-3000K-TR-W FL-S-3L-AOK-22W-3000K-SF-W
FL-S-3L-AOK-22W-4000K-AK FL-S-3L-AOK-22W-4000K-TR FL-S-3L-AOK-22W-4000K-SF FL-S-3L-AOK-22W-4000K-AK-B FL-S-3L-AOK-22W-4000K-TR-B FL-S-3L-AOK-22W-4000K-SF-B
FL-S-3L-AOK-22W-4000K-AK-W FL-S-3L-AOK-22W-4000K-TR-W FL-S-3L-AOK-22W-4000K-SF-W FL-S-3L-AOK-22W-5000K-AK FL-S-3L-AOK-22W-5000K-TR FL-S-3L-AOK-22W-5000K-SF
FL-S-3L-AOK-22W-5000K-AK-B FL-S-3L-AOK-22W-5000K-TR-B FL-S-3L-AOK-22W-5000K-SF-B FL-S-3L-AOK-22W-5000K-AK-W FL-S-3L-AOK-22W-5000K-TR-W FL-S-3L-AOK-22W-5000K-SF-W
FL-S-3L-AOK-28W-3000K-AK FL-S-3L-AOK-28W-3000K-TR FL-S-3L-AOK-28W-3000K-SF FL-S-3L-AOK-28W-3000K-AK-B FL-S-3L-AOK-28W-3000K-TR-B FL-S-3L-AOK-28W-3000K-SF-B
FL-S-3L-AOK-28W-3000K-AK-W FL-S-3L-AOK-28W-3000K-TR-W FL-S-3L-AOK-28W-3000K-SF-W FL-S-3L-AOK-28W-4000K-AK FL-S-3L-AOK-28W-4000K-TR FL-S-3L-AOK-28W-4000K-SF
FL-S-3L-AOK-28W-4000K-AK-B FL-S-3L-AOK-28W-4000K-TR-B FL-S-3L-AOK-28W-4000K-SF-B FL-S-3L-AOK-28W-4000K-AK-W FL-S-3L-AOK-28W-4000K-TR-W FL-S-3L-AOK-28W-4000K-SF-W
FL-S-3L-AOK-28W-5000K-AK FL-S-3L-AOK-28W-5000K-TR FL-S-3L-AOK-28W-5000K-SF FL-S-3L-AOK-28W-5000K-AK-B FL-S-3L-AOK-28W-5000K-TR-B FL-S-3L-AOK-28W-5000K-SF-B
FL-S-3L-AOK-28W-5000K-AK-W FL-S-3L-AOK-28W-5000K-TR-W FL-S-3L-AOK-28W-5000K-SF-W FL-M-10L-AOK-40W-3000K-AK FL-M-10L-AOK-40W-3000K-TR FL-M-10L-AOK-40W-3000K-SF
FL-M-10L-AOK-40W-3000K-AK-B FL-M-10L-AOK-40W-3000K-TR-B FL-M-10L-AOK-40W-3000K-SF-B FL-M-10L-AOK-40W-3000K-AK-W FL-M-10L-AOK-40W-3000K-TR-W FL-M-10L-AOK-40W-3000K-SF-W
FL-M-10L-AOK-40W-4000K-AK FL-M-10L-AOK-40W-4000K-TR FL-M-10L-AOK-40W-4000K-SF FL-M-10L-AOK-40W-4000K-AK-B FL-M-10L-AOK-40W-4000K-TR-B FL-M-10L-AOK-40W-4000K-SF-B
FL-M-10L-AOK-40W-4000K-AK-W FL-M-10L-AOK-40W-4000K-TR-W FL-M-10L-AOK-40W-4000K-SF-W FL-M-10L-AOK-40W-5000K-AK FL-M-10L-AOK-40W-5000K-TR FL-M-10L-AOK-40W-5000K-SF
FL-M-10L-AOK-40W-5000K-AK-B FL-M-10L-AOK-40W-5000K-TR-B FL-M-10L-AOK-40W-5000K-SF-B FL-M-10L-AOK-40W-5000K-AK-W FL-M-10L-AOK-40W-5000K-TR-W FL-M-10L-AOK-40W-5000K-SF-W
FL-M-10L-AOK-60W-3000K-AK FL-M-10L-AOK-60W-3000K-TR FL-M-10L-AOK-60W-3000K-SF FL-M-10L-AOK-60W-3000K-AK-B FL-M-10L-AOK-60W-3000K-TR-B FL-M-10L-AOK-60W-3000K-SF-B
FL-M-10L-AOK-60W-3000K-AK-W FL-M-10L-AOK-60W-3000K-TR-W FL-M-10L-AOK-60W-3000K-SF-W FL-M-10L-AOK-60W-4000K-AK FL-M-10L-AOK-60W-4000K-TR FL-M-10L-AOK-60W-4000K-SF
FL-M-10L-AOK-60W-4000K-AK-B FL-M-10L-AOK-60W-4000K-TR-B FL-M-10L-AOK-60W-4000K-SF-B FL-M-10L-AOK-60W-4000K-AK-W FL-M-10L-AOK-60W-4000K-TR-W FL-M-10L-AOK-60W-4000K-SF-W
FL-M-10L-AOK-60W-5000K-AK FL-M-10L-AOK-60W-5000K-TR FL-M-10L-AOK-60W-5000K-SF FL-M-10L-AOK-60W-5000K-AK-B FL-M-10L-AOK-60W-5000K-TR-B FL-M-10L-AOK-60W-5000K-SF-B
FL-M-10L-AOK-60W-5000K-AK-W FL-M-10L-AOK-60W-5000K-TR-W FL-M-10L-AOK-60W-5000K-SF-W FL-M-10L-AOK-80W-3000K-AK FL-M-10L-AOK-80W-3000K-TR FL-M-10L-AOK-80W-3000K-SF
FL-M-10L-AOK-80W-3000K-AK-B FL-M-10L-AOK-80W-3000K-TR-B FL-M-10L-AOK-80W-3000K-SF-B FL-M-10L-AOK-80W-3000K-AK-W FL-M-10L-AOK-80W-3000K-TR-W FL-M-10L-AOK-80W-3000K-SF-W
FL-M-10L-AOK-80W-4000K-AK FL-M-10L-AOK-80W-4000K-TR FL-M-10L-AOK-80W-4000K-SF FL-M-10L-AOK-80W-4000K-AK-B FL-M-10L-AOK-80W-4000K-TR-B FL-M-10L-AOK-80W-4000K-SF-B
FL-M-10L-AOK-80W-4000K-AK-W FL-M-10L-AOK-80W-4000K-TR-W FL-M-10L-AOK-80W-4000K-SF-W FL-M-10L-AOK-80W-5000K-AK FL-M-10L-AOK-80W-5000K-TR FL-M-10L-AOK-80W-5000K-SF
FL-M-10L-AOK-80W-5000K-AK-B FL-M-10L-AOK-80W-5000K-TR-B FL-M-10L-AOK-80W-5000K-SF-B FL-M-10L-AOK-80W-5000K-AK-W FL-M-10L-AOK-80W-5000K-TR-W FL-M-10L-AOK-80W-5000K-SF-W
FL-L-18L-AOK-100W-3000K-AK FL-L-18L-AOK-100W-3000K-TR FL-L-18L-AOK-100W-3000K-SF FL-L-18L-AOK-100W-3000K-AK-B FL-L-18L-AOK-100W-3000K-TR-B FL-L-18L-AOK-100W-3000K-SF-B
FL-L-18L-AOK-100W-3000K-AK-W FL-L-18L-AOK-100W-3000K-TR-W FL-L-18L-AOK-100W-3000K-SF-W FL-L-18L-AOK-100W-4000K-AK FL-L-18L-AOK-100W-4000K-TR FL-L-18L-AOK-100W-4000K-SF
FL-L-18L-AOK-100W-4000K-AK-B FL-L-18L-AOK-100W-4000K-TR-B FL-L-18L-AOK-100W-4000K-SF-B FL-L-18L-AOK-100W-4000K-AK-W FL-L-18L-AOK-100W-4000K-TR-W FL-L-18L-AOK-100W-4000K-SF-W
FL-L-18L-AOK-100W-5000K-AK FL-L-18L-AOK-100W-5000K-TR FL-L-18L-AOK-100W-5000K-SF FL-L-18L-AOK-100W-5000K-AK-B FL-L-18L-AOK-100W-5000K-TR-B FL-L-18L-AOK-100W-5000K-SF-B
FL-L-18L-AOK-100W-5000K-AK-W FL-L-18L-AOK-100W-5000K-TR-W FL-L-18L-AOK-100W-5000K-SF-W FL-L-18L-AOK-120W-3000K-AK FL-L-18L-AOK-120W-3000K-TR FL-L-18L-AOK-120W-3000K-SF
FL-L-18L-AOK-120W-3000K-AK-B FL-L-18L-AOK-120W-3000K-TR-B FL-L-18L-AOK-120W-3000K-SF-B FL-L-18L-AOK-120W-3000K-AK-W FL-L-18L-AOK-120W-3000K-TR-W FL-L-18L-AOK-120W-3000K-SF-W
FL-L-18L-AOK-120W-4000K-AK FL-L-18L-AOK-120W-4000K-TR FL-L-18L-AOK-120W-4000K-SF FL-L-18L-AOK-120W-4000K-AK-B FL-L-18L-AOK-120W-4000K-TR-B FL-L-18L-AOK-120W-4000K-SF-B
FL-L-18L-AOK-120W-4000K-AK-W FL-L-18L-AOK-120W-4000K-TR-W FL-L-18L-AOK-120W-4000K-SF-W FL-L-18L-AOK-120W-5000K-AK FL-L-18L-AOK-120W-5000K-TR FL-L-18L-AOK-120W-5000K-SF
FL-L-18L-AOK-120W-5000K-AK-B FL-L-18L-AOK-120W-5000K-TR-B FL-L-18L-AOK-120W-5000K-SF-B FL-L-18L-AOK-120W-5000K-AK-W FL-L-18L-AOK-120W-5000K-TR-W FL-L-18L-AOK-120W-5000K-SF-W
FL-L-18L-AOK-150W-3000K-AK FL-L-18L-AOK-150W-3000K-TR FL-L-18L-AOK-150W-3000K-SF FL-L-18L-AOK-150W-3000K-AK-B FL-L-18L-AOK-150W-3000K-TR-B FL-L-18L-AOK-150W-3000K-SF-B
FL-L-18L-AOK-150W-3000K-AK-W FL-L-18L-AOK-150W-3000K-TR-W FL-L-18L-AOK-150W-3000K-SF-W FL-L-18L-AOK-150W-4000K-AK FL-L-18L-AOK-150W-4000K-TR FL-L-18L-AOK-150W-4000K-SF
FL-L-18L-AOK-150W-4000K-AK-B FL-L-18L-AOK-150W-4000K-TR-B FL-L-18L-AOK-150W-4000K-SF-B FL-L-18L-AOK-150W-4000K-AK-W FL-L-18L-AOK-150W-4000K-TR-W FL-L-18L-AOK-150W-4000K-SF-W
FL-L-18L-AOK-150W-5000K-AK FL-L-18L-AOK-150W-5000K-TR FL-L-18L-AOK-150W-5000K-SF FL-L-18L-AOK-150W-5000K-AK-B FL-L-18L-AOK-150W-5000K-TR-B FL-L-18L-AOK-150W-5000K-SF-B
FL-L-18L-AOK-150W-5000K-AK-W FL-L-18L-AOK-150W-5000K-TR-W FL-L-18L-AOK-150W-5000K-SF-W

Dimensions

Version Depth Length Width Weight
Small 6.5" 4.5" 8.5" 5.25lbs
Medium 8.375" 11.00" 6.00" 12lbs
Large 10.5" 7.75" 14" 19lbs

Notes

  • Not all versions of this product may be DLC Premium qualified or DLC qualified.
  • Adjustable knuckle is only available in the small and medium size.
  • Trunnion and Slip-fitter only available in the medium and large sizes.
  • Finish Standard in dark bronze. Black and white available on special request.
  • Option only available for FL-M fixture.
  • Option only available for FL-L fixture.
Product Files

Click for Spec Sheet

Small Flood Light Install Instructions

Medium Flood Light Install Instructions

Large Flood Light Install Instrucitons
