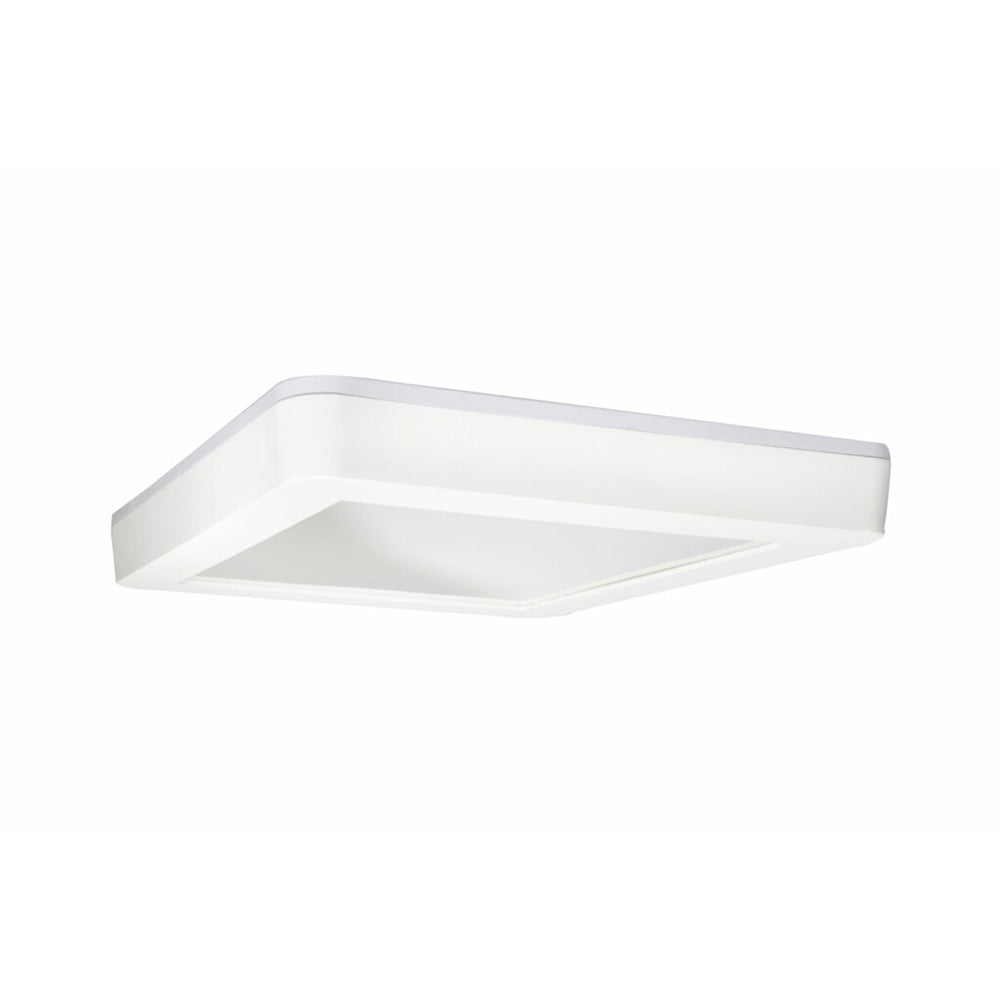

FSC Lighting L1515 Series LED Square Canopy Fixture
The L1515 Series is a square shaped fixture that utilizes a light guide lens for soft, glare-free illumination. Suitable for surface mount and ideal for parking garages, canopies or any low bay applications.
Features
- Applications: Ideal for use in canopies, corridors, stairwells, strip malls, hospitality, multi-family, K-12 and higher education.
- Construction: Housing made from die formed heavy gauge cold rolled steel and is finished with a post- production baked white anti-rust coat. Highefficiency, visual-comfort diffused lens.
- Mounting: Housing made from die formed heavy gauge cold rolled steel and is finished with a post- production baked white anti-rust coat. Highefficiency, visual-comfort diffused lens.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency.
- Operating Temperature: Suitable for -40°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 246,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: ETL Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) qualified 1 . RoHS Compliant. IP65 & IP66 Rated.
L1515-14W-8-3000K-MQ |
L1515-14W-8-4000K-MQ |
L1515-14W-8-5000K-MQ |
L1515-14W-8-3000K-WQ |
L1515-14W-8-4000K-WQ |
L1515-14W-8-5000K-WQ |
L1515-27W-8-3000K-MQ |
L1515-27W-8-4000K-MQ |
L1515-27W-8-5000K-MQ |
L1515-27W-8-3000K-WQ |
L1515-27W-8-4000K-WQ |
L1515-27W-8-5000K-WQ |
L1515-34W-8-3000K-MQ |
L1515-34W-8-4000K-MQ |
L1515-34W-8-5000K-MQ |
L1515-34W-8-3000K-WQ |
L1515-34W-8-4000K-WQ |
L1515-34W-8-5000K-WQ |

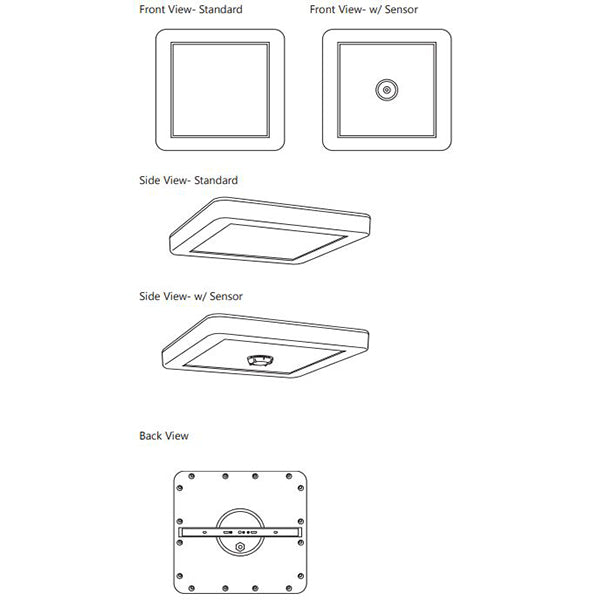

Dimensions
Version |
Depth |
Length |
Width |
Weight |
15" Square |
1.89" |
15.04" |
15.04" |
9lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Medium Light Distribution available on special request.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Electrical Extension box will be needed to accomodate PowerPlus module.
