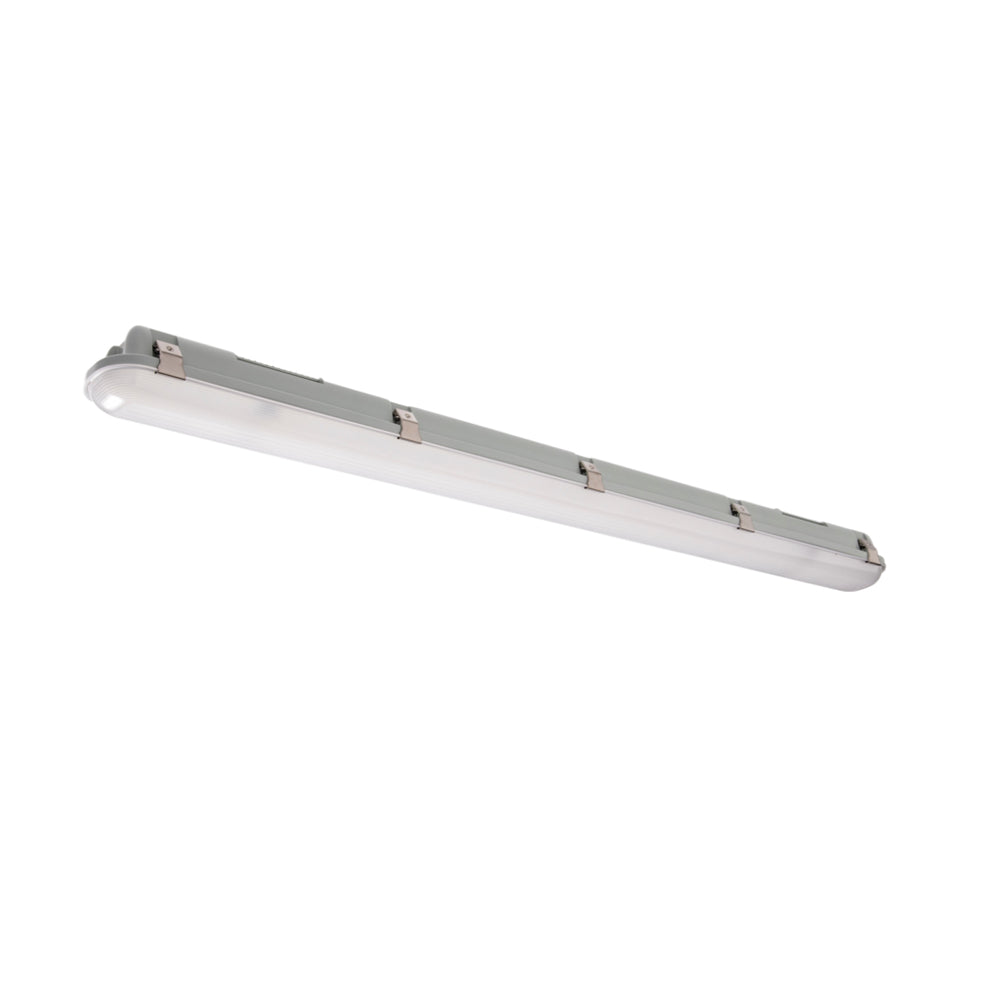

FSC Lighting L27600 Series LED Vaportite
The L27600 LED Vaportite is designed to minimize horizontal surfaces and latch pockets prone to retaining debris. Perfect for applications requiring wash-ability and hose down.
Features
- Applications: Ideal for use in food processing facilities, cold & freezer storage, car washes, canopies, manufacturing, health clubs, laundry and distribution centers.
- Construction: Polycarbonate diffused lens and polycarbonate enclosure. Stainless steel latches and continuous poured-in-place gasket seal to protect from most hostile environments
- Mounting: Stainless steel mounting brackets included. Various mounting options available including suspension, pendant, and surface mount. Cord and plug options offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency.
- Operating Temperature: Suitable for -40°C - 40°C Ambient when fixture is surface mounted or up to 45°C when fixture is suspended at least 18" from ceiling.
- Lumen Maintenance: L70 rating of 100,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 listed1 . RoHS compliant, NSF and IP65 rated. Lenses are IK08 Rated.
| L27648-25W-3500K |
L27648-25W-4000K |
L27648-25W-5000K |
L27648-38W-3500K |
L27648-38W-4000K |
L27648-38W-5000K |
| L27648-52W-3500K |
L27648-52W-4000K |
L27648-52W-5000K |
L27696-46W-3500K |
L27696-46W-4000K |
L27696-46W-5000K |
| L27696-75W-3500K |
L27696-75W-4000K |
L27696-75W-5000K |

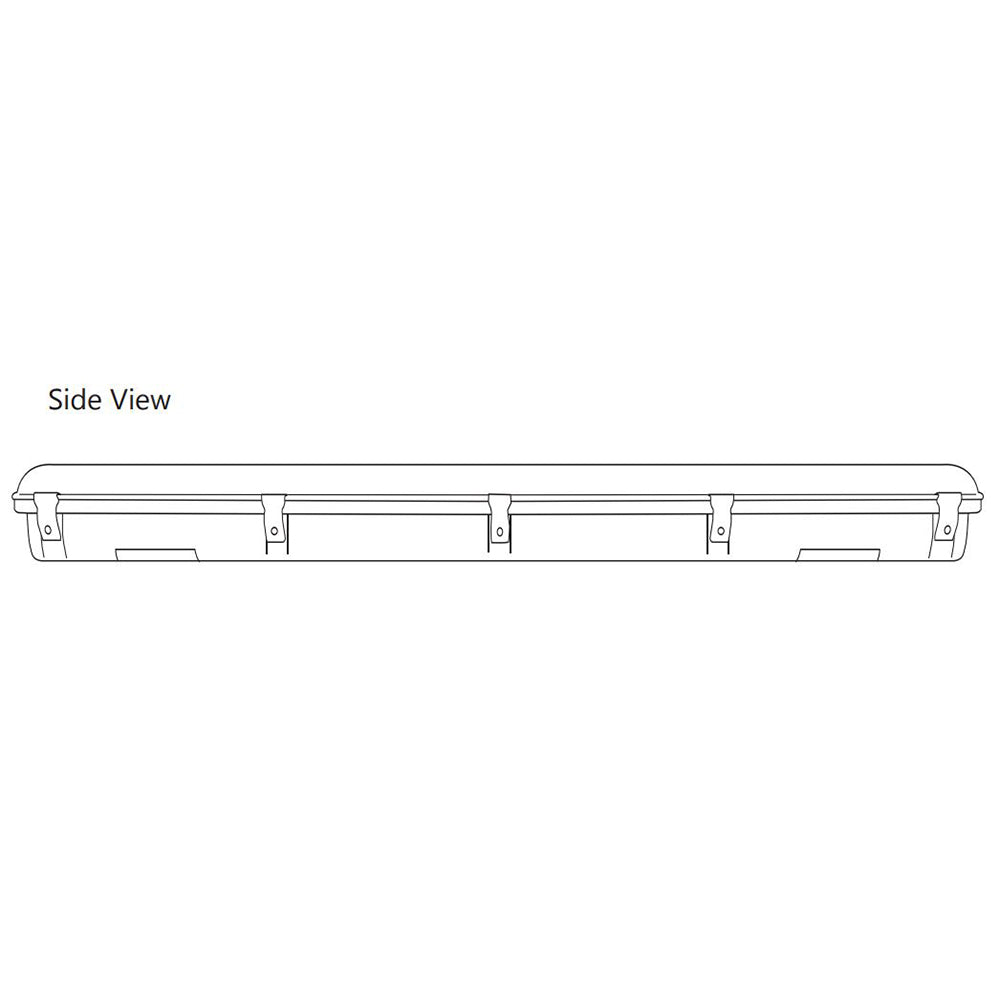

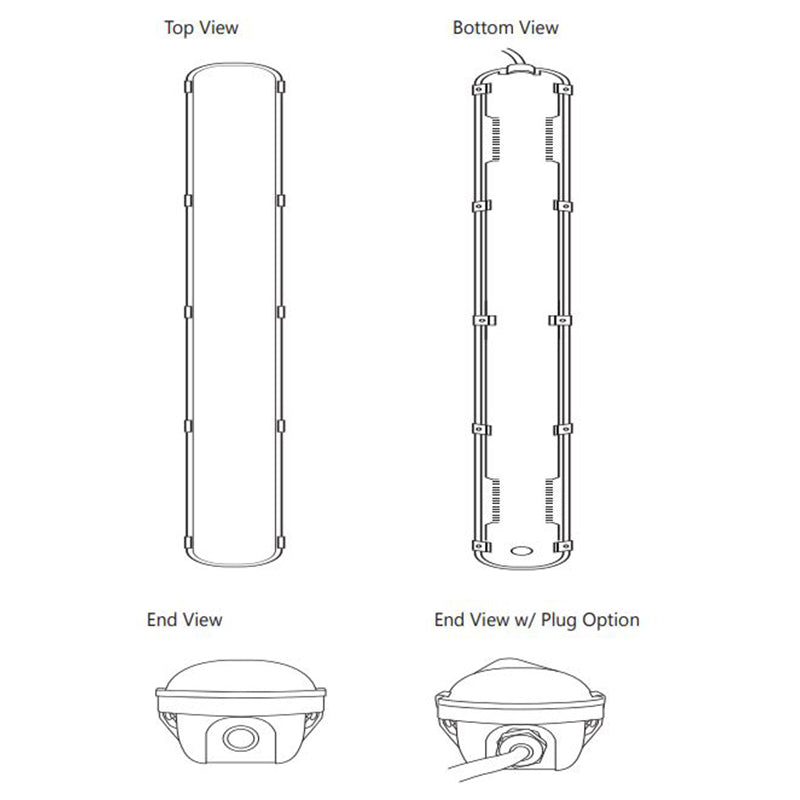

Dimensions
| Version |
Depth |
Length |
Width |
Weight |
| 4FT |
3.1" |
47.2" |
3.5" |
5lbs |
| 8FT |
3.1" |
94.5" |
3.5" |
8lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Hanging kit manufactured by Gripple Inc.
