Description

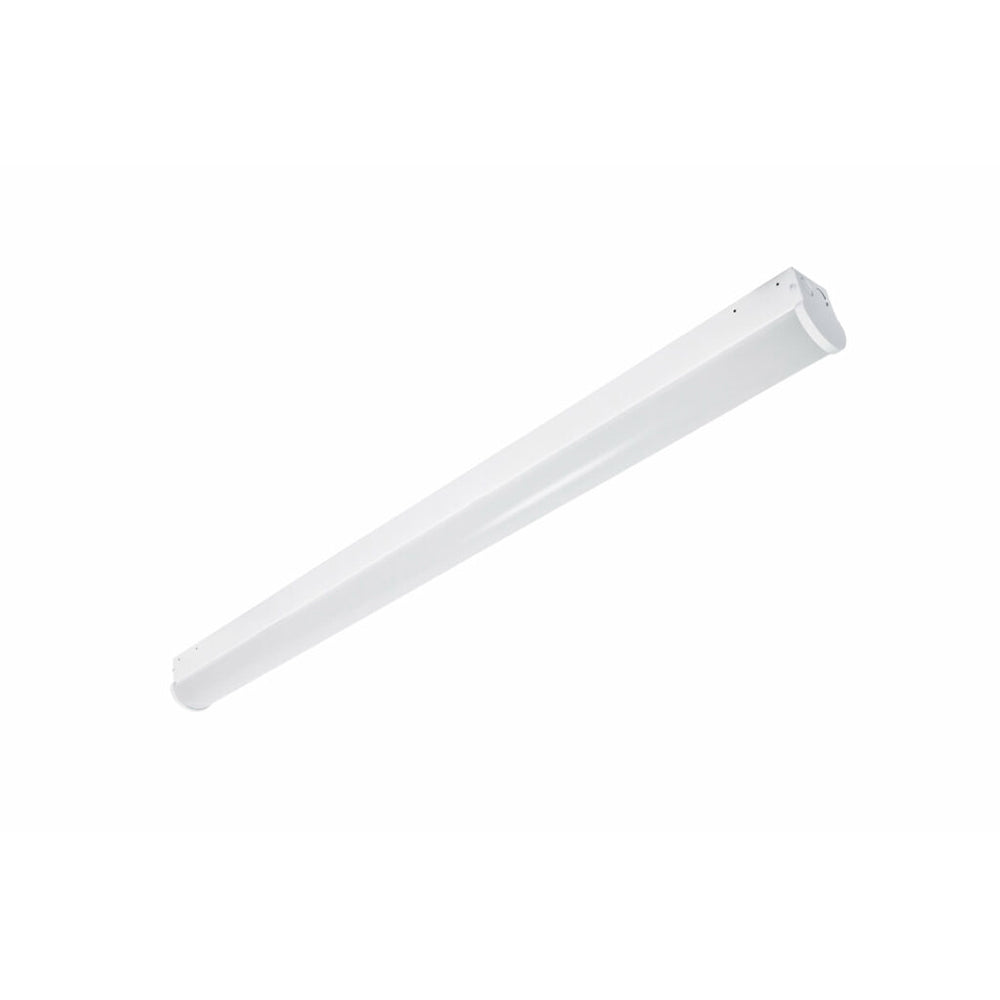

FSC Lighting L285-AOK Series Adjustable Output LED Lensed Strip
The L285-AOK Series LED Strip is a functional multi-purpose lighting solution that incorporates premium performance and construction durability. This series can be installed using various mounting methods and numerous options and accessories are available. Precision designed optics and a choice of lumen outputs, lengths and color temperatures make the L285-AOK Series the perfect illumination solution in commercial and industrial applications.
Ideal for warehouses, garages, cove lighting, display cases, shop and task lighting, utility and storage rooms, general area lighting, and production lines; it's narrow width makes the L28500 the perfect choice for size restricted applications. LED technology allows power and light levels to be customized to meet both energy and design needs.
Features
- Applications: Ideal for use in warehouses, distribution centers, parking garages, covered parking, shops, utility rooms, stairwells, corridors, canopies and general lighting.
- Construction: Housing made from die formed heavy gauge cold rolled steel and is finished with a post- production baked white powder coat. Frosted lens.
- Mounting: Surface mount. Chain and cable mount ready. Cord and plug options offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency.
- Operating Temperature: Suitable for -40°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 100,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 listed1 . RoHS Compliant.
| L28548-AOK-S5-3500K-18W | L28548-AOK-S5-4000K-18W | L28548-AOK-S5-5000K-18W | L28548-AOK-S5-3500K-25W | L28548-AOK-S5-4000K-25W | L28548-AOK-S5-5000K-25W |
| L28548-AOK-S5-3500K-30W | L28548-AOK-S5-4000K-30W | L28548-AOK-S5-5000K-30W | L28548-AOK-S5-3500K-22W | L28548-AOK-S5-4000K-22W | L28548-AOK-S5-5000K-22W |
| L28548-AOK-S5-3500K-28W | L28548-AOK-S5-4000K-28W | L28548-AOK-S5-5000K-28W | L28548-AOK-S5-3500K-40W | L28548-AOK-S5-4000K-40W | L28548-AOK-S5-5000K-40W |
| L28548-AOK-S5-3500K-35W | L28548-AOK-S5-4000K-35W | L28548-AOK-S5-5000K-35W | L28548-AOK-S5-3500K-45W | L28548-AOK-S5-4000K-45W | L28548-AOK-S5-5000K-45W |
| L28596-AOK-S5-3500K-38W | L28596-AOK-S5-4000K-38W | L28596-AOK-S5-5000K-38W | L28596-AOK-S5-3500K-54W | L28596-AOK-S5-4000K-54W | L28596-AOK-S5-5000K-54W |
| L28596-AOK-S5-3500K-65W | L28596-AOK-S5-4000K-65W | L28596-AOK-S5-5000K-65W | L28596-AOK-S5-3500K-75W | L28596-AOK-S5-4000K-75W | L28596-AOK-S5-5000K-75W |
| L28596-AOK-S5-3500K-90W | L28596-AOK-S5-4000K-90W | L28596-AOK-S5-5000K-90W |

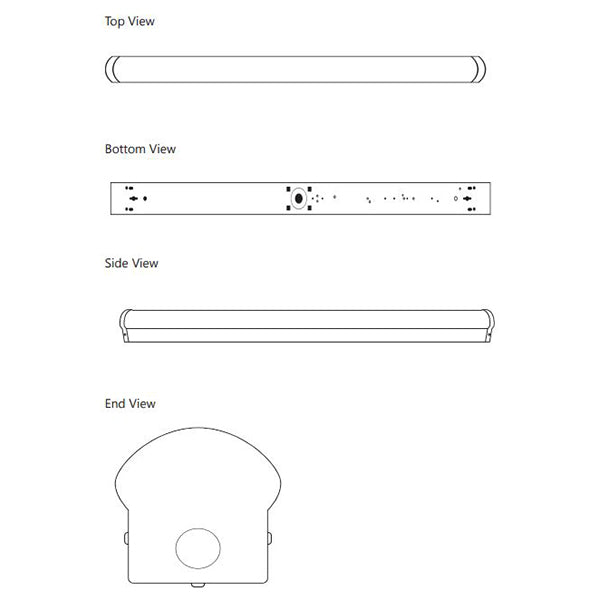

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 4FT | 3.56" | 48.0" | 3.35" | 7lbs |
| 8FT | 3.56" | 96.0" | 3.35" | 14lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Mounting kit is manufactured by Gripple Inc.
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
Product Files
Click for FSC Lighting L285-AOK Series Spec Sheet
Click for FSC Lighting L285-AOK Series Installation Instructions
