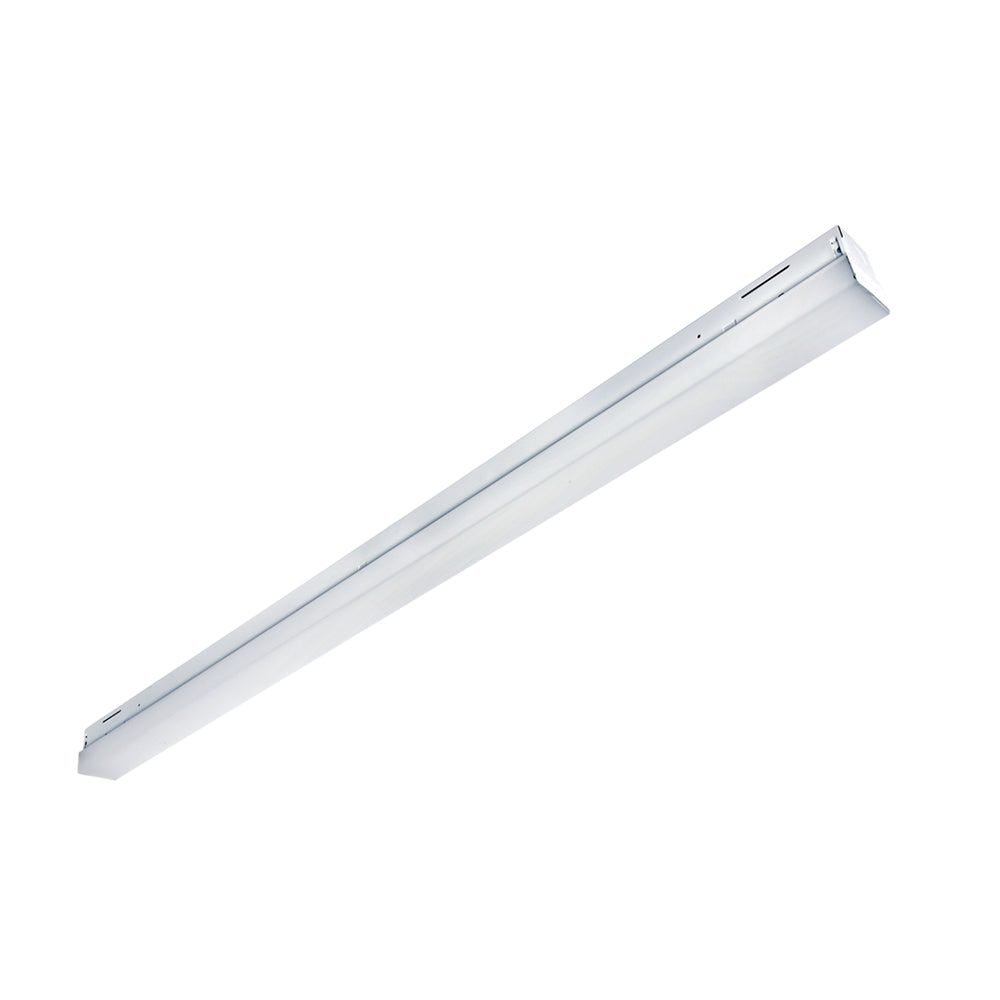

FSC Lighting L286-AOK Series Adjustable Output LED Square-Lensed Strip
The L286-AOK Series is a functional multi-purpose LED square lensed strip that incorporates premium performance and construction durability
Features
- Applications: Ideal for use in warehouses, distribution centers, parking garages, covered parking, shops, utility rooms, stairwells, corridors, canopies and general lighting.
- Construction: Housing made from die formed heavy gauge cold rolled steel and is finished with a post- production baked white powder coat. Frosted lens.
- Mounting: Surface mount. Chain and cable mount ready. Cord and plug options offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency.
- Operating Temperature: Suitable for -20°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 189,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 listed1 . RoHS Compliant.
| L28648-AOK-S5-3500K-22W | L28648-AOK-S5-4000K-22W | L28648-AOK-S5-5000K-22W | L28648-AOK-S5-3500K-28W | L28648-AOK-S5-4000K-28W | L28648-AOK-S5-5000K-28W |
| L28648-AOK-S5-3500K-40W | L28648-AOK-S5-4000K-40W | L28648-AOK-S5-5000K-40W | L28696-AOK-S5-3500K-38W | L28696-AOK-S5-4000K-38W | L28696-AOK-S5-5000K-38W |
| L28696-AOK-S5-3500K-46W | L28696-AOK-S5-4000K-46W | L28696-AOK-S5-5000K-46W | L28696-AOK-S5-3500K-54W | L28696-AOK-S5-4000K-54W | L28696-AOK-S5-5000K-54W |
| L28696-AOK-S5-3500K-65W | L28696-AOK-S5-4000K-65W | L28696-AOK-S5-5000K-65W | L28696-AOK-S5-3500K-75W | L28696-AOK-S5-4000K-75W | L28696-AOK-S5-5000K-75W |
| L28696-AOK-S5-3500K-90W | L28696-AOK-S5-4000K-90W | L28696-AOK-S5-5000K-90W |

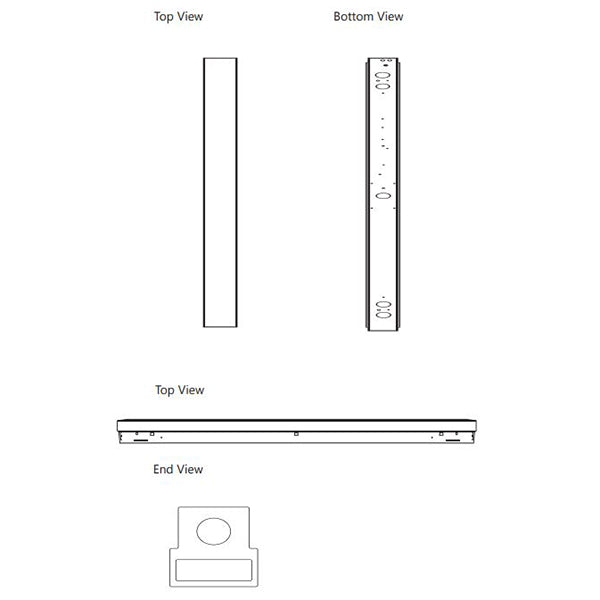

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 4FT | 2.75" | 48.0" | 2.35" | 7lbs |
| 8FT | 2.75" | 96.0" | 2.35" | 14lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Mounting kit is manufactured by Gripple Inc.
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
