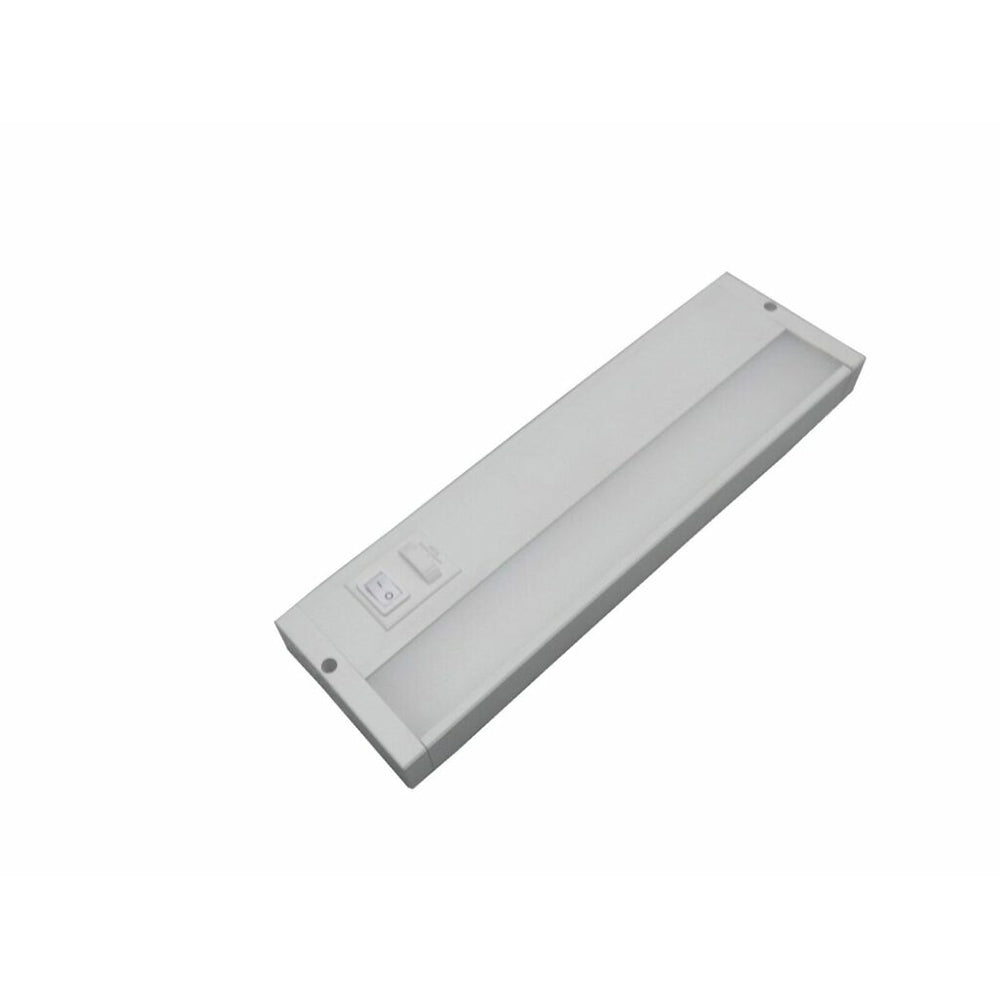

FSC Lighting L31-DIM Series LED Under-Cabinet w/ Dimming
The L3100 series is a thin profile LED under-cabinet fixture designed for applications where space is limited.
Features
- Applications: Ideal for use under kitchen cabinets, display cases, shelves, desks, college dorms, clinics, hospitals, lab rooms or any work area requiring task lighting.
- Construction: Aluminum housing finished with a post- production baked white powder coat. Frosted polycarbonate diffuser.
- Mounting: Surface mount. Cord and plug included. Linkable up-to 150 watts

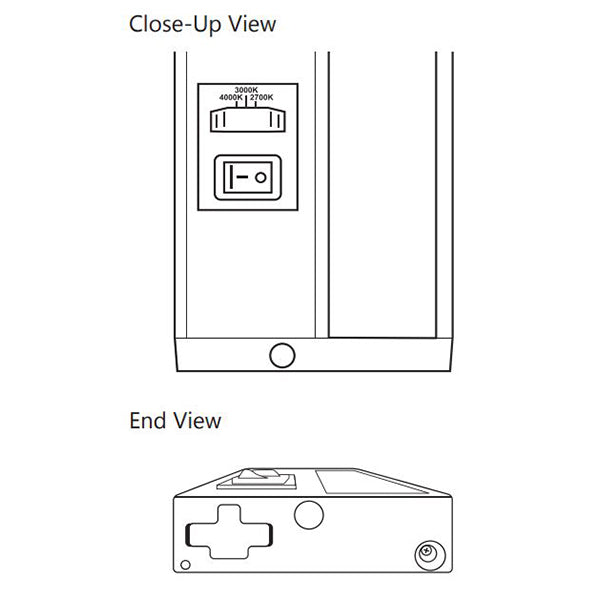

- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120VAC standard. Triac Dimming. Multi-color switch (27K,30K & 40K)
- Operating Temperature: Suitable for -10°C - 40°C Ambient
- Lumen Maintenance: L70 rating of 50,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: ETL Listed. Adheres to LM79, LM80 and TM21 industry standards. RoHS Compliant. Energy Star Compliant. California JA8 Title 24 Compliant
| L31-DIM-9-5W-MCT |
L31-DIM-12-6W-MCT |
L31-DIM-18-9W-MCT |
L31-DIM-24-11W-MCT |
L31-DIM-33-13W-MCT |
L31-DIM-42-16W-MCT |

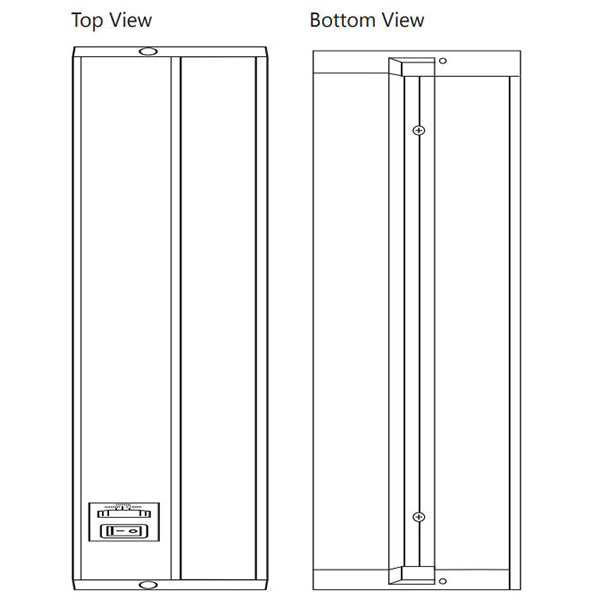

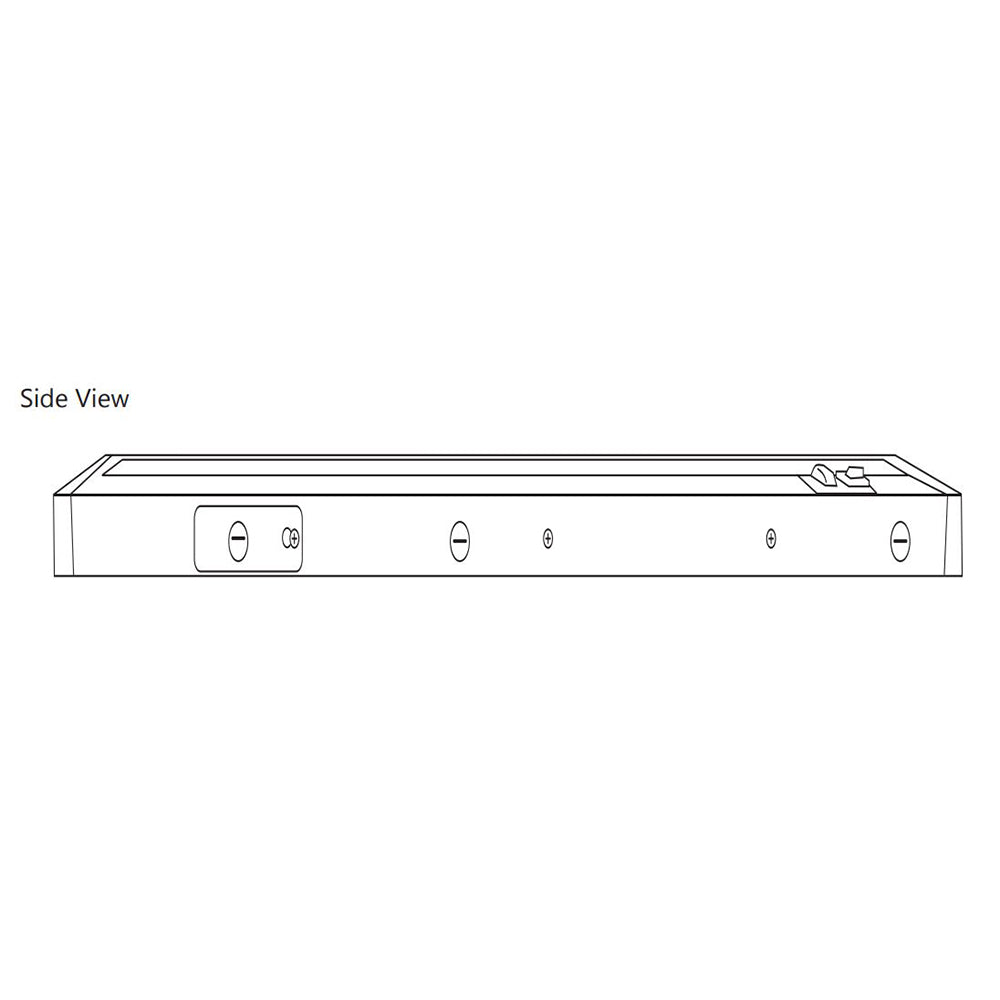

Dimensions
| Version |
Depth |
Length |
Width |
Weight |
| 5WT |
1.25" |
9.0" |
3.50" |
1.8lbs |
| 6WT |
1.25" |
12.0" |
3.50" |
2.2lbs |
| 9WT |
1.25" |
18.0" |
3.50" |
2.6lbs |
| 11WT |
1.25" |
24.0" |
3.50" |
3lbs |
| 13WT |
1.25" |
33.0" |
3.50" |
4lbs |
| 16WT |
1.25" |
42.0" |
3.50" |
5lbs |
