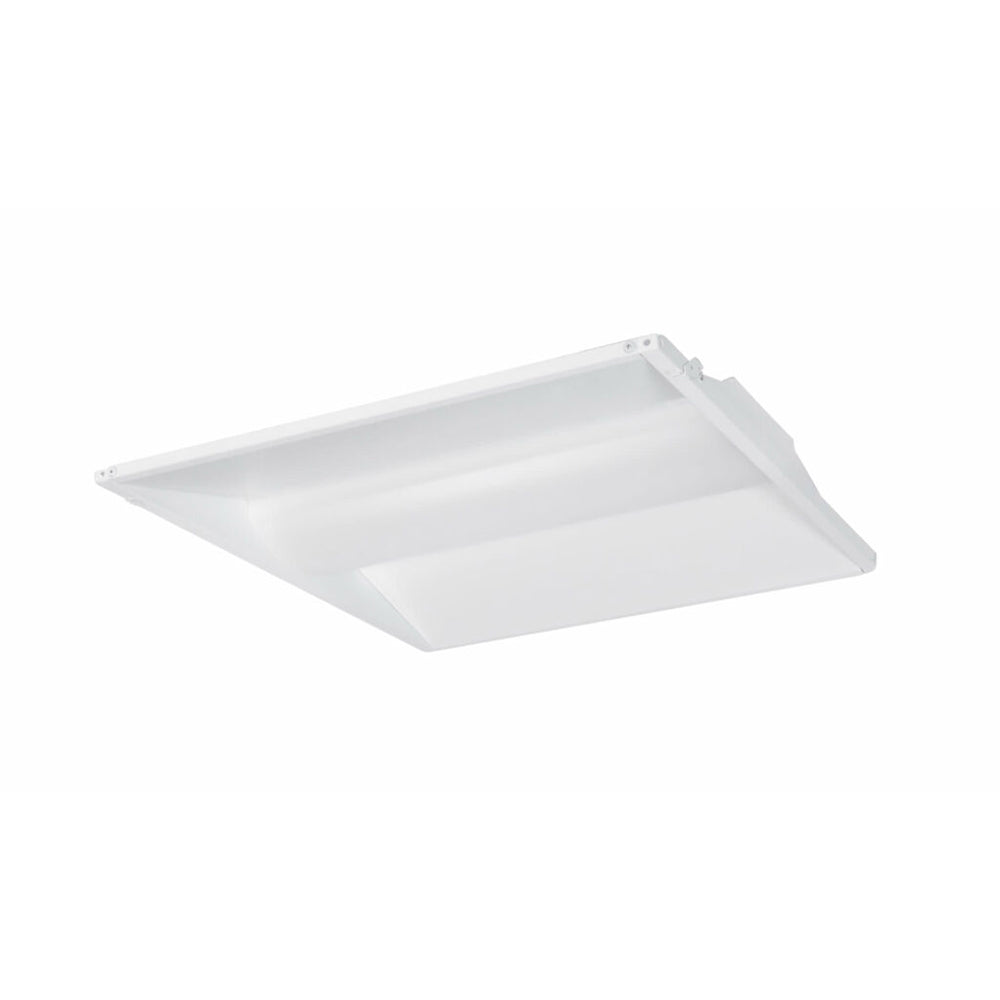

FSC Lighting L74-AOK-RFKW-SL Series Adjustable Output LED Slim Troffer Kit
FSC Lighting L74-AOK-RFKW-SL Series Adjustable Output LED Slim Troffer Kit
Roll over image to zoom in Click on image to zoom
FSC Lighting L74-AOK-RFKW-SL Series Adjustable Output LED Slim Troffer KitFSC Lighting L74-AOK-RFKW-SL Series Adjustable Output LED Slim Troffer Kit

FSC Lighting L74-AOK-RFKW-SL Series Adjustable Output LED Slim Troffer Kit

FSC LightingSKU: L7414-AOK-RFKW-SL-20W-4000K
Select Wattage: 20W
Select Dimension: 1x4 Foot
Price:
$0.00 USD

Fast & Easy Quote Request For FSC Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

FSC Lighting L74-AOK-RFKW-SL Series Adjustable Output LED Slim Troffer Kit

The L74-AOK-RFKW-SL Series field adjustable low profile LED kit is a cost-effective alternative to full troffer fixture replacement. The center-basket design includes a diffused lens that delivers soft, even ambient light.

Features

  • Applications: Ideal for use in offices, retail, schools, offices, hallways, multi-purpose rooms and hospitality areas.
  • Construction: Housing made from cold rolled steel and is finished with a postproduction baked white powder coat. Frosted diffuser.
  • Mounting: Recessed mount
  • Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency.
  • Operating Temperature: Suitable for -20°C - 50°C Ambient
  • Lumen Maintenance: L70 rating of 100,000 hours
  • Warranty: Five-year warranty. Terms and Conditions Apply.
  • Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) Pending. RoHS Compliant.
L7414-AOK-RFKW-SL-20W-3500K L7414-AOK-RFKW-SL-20W-4000K L7414-AOK-RFKW-SL-20W-5000K L7414-AOK-RFKW-SL-25W-3500K L7414-AOK-RFKW-SL-25W-4000K L7414-AOK-RFKW-SL-25W-5000K
L7414-AOK-RFKW-SL-30W-3500K L7414-AOK-RFKW-SL-30W-4000K L7414-AOK-RFKW-SL-30W-5000K L7422-AOK-RFKW-SL-20W-3500K L7422-AOK-RFKW-SL-20W-4000K L7422-AOK-RFKW-SL-20W-5000K
L7422-AOK-RFKW-SL-25W-3500K L7422-AOK-RFKW-SL-25W-4000K L7422-AOK-RFKW-SL-25W-5000K L7422-AOK-RFKW-SL-30W-3500K L7422-AOK-RFKW-SL-30W-4000K L7422-AOK-RFKW-SL-30W-5000K
L7422-AOK-RFKW-SL-35W-3500K L7422-AOK-RFKW-SL-35W-4000K L7422-AOK-RFKW-SL-35W-5000K L7422-AOK-RFKW-SL-40W-3500K L7422-AOK-RFKW-SL-40W-4000K L7422-AOK-RFKW-SL-40W-5000K
L7424-AOK-RFKW-SL-25W-3500K L7424-AOK-RFKW-SL-25W-4000K L7424-AOK-RFKW-SL-25W-5000K L7424-AOK-RFKW-SL-30W-3500K L7424-AOK-RFKW-SL-30W-4000K L7424-AOK-RFKW-SL-30W-5000K
L7424-AOK-RFKW-SL-35W-3500K L7424-AOK-RFKW-SL-35W-4000K L7424-AOK-RFKW-SL-35W-5000K L7424-AOK-RFKW-SL-34W-3500K L7424-AOK-RFKW-SL-34W-4000K L7424-AOK-RFKW-SL-34W-5000K
L7424-AOK-RFKW-SL-38W-3500K L7424-AOK-RFKW-SL-38W-4000K L7424-AOK-RFKW-SL-38W-5000K L7424-AOK-RFKW-SL-45W-3500K L7424-AOK-RFKW-SL-45W-4000K L7424-AOK-RFKW-SL-45W-5000K

Dimensions

Version Depth Length Width Weight
2x2 3.1" 23.8" 23.9" 8.66lbs
2x4 3.1" 47.8" 23.9" 14.02lbs
1x4 3.1" 47.8" 11.9" 8.05lbs

Notes

  • Not all versions of this product may be DLC Premium qualified or DLC qualified.
  • Lumens will change based on fixture selection. Consult with factory for additional options.
Product Files

Click for Spec Sheet

Click for Installation Instructions
