FSC Lighting L7600 Series LED Vaportite

FSC LightingSKU: L7624-25W-4000K

Share this product

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

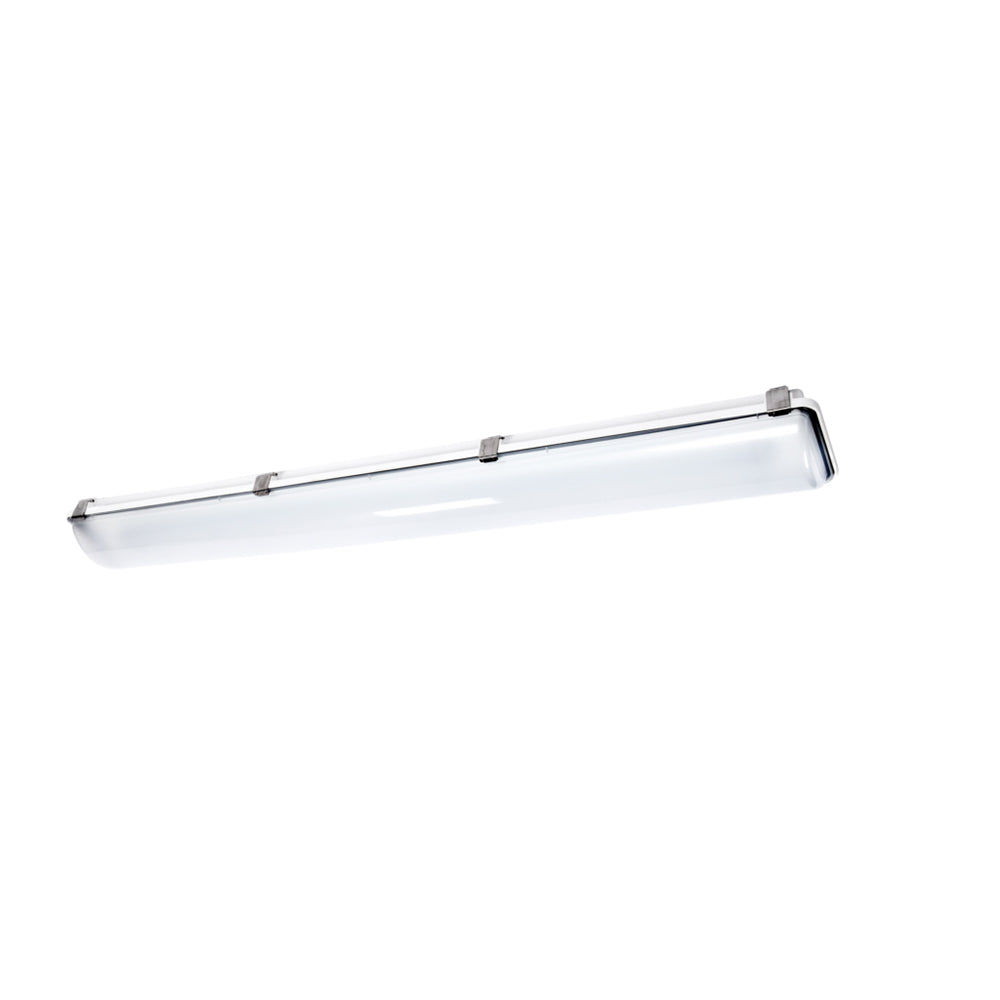

FSC Lighting L7600 Series LED Vaportite

The L7600 LED Vaportite is designed to minimize horizontal surfaces and latch pockets prone to retaining debris. Perfect for applications requiring wash-ability and hose down.

Features

Applications: Ideal for use in food processing facilities, cold & freezer storage, car washes, canopies, manufacturing, health clubs, laundry and distribution centers.
Construction: Lenses are made of 100% impact resistant acrylic for maximum light transmission and longevity (.080" thick). Clear polycarbonate latches; stainless steel option available. UL 5VA fiberglass housing and continuous poured-in-place gasket seal to protect from most hostile environments.
Mounting: Stainless steel mounting brackets included. Various mounting options available including suspension, pendant, and surface mount. Cord and plug options offered.
Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency.
Operating Temperature: Suitable for -40°C - 45°C Ambient
Lumen Maintenance: L70 rating of 184,000 hours
Warranty: Five-year warranty. Terms and Conditions Apply.
Certification: ETL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) qualified 1 . RoHS Compliant, NSF and NEMA 4X rated. IP65, IP66, IP67 & IP69 Rated. Buy American Act Compliant.

L7624-25W-4000K	L7624-25W-5000K	L7648-25W-4000K	L7648-25W-5000K	L7648-40W-4000K	L7648-40W-5000K
L7648-60W-4000K	L7648-60W-5000K	L7696-50W-4000K	L7696-50W-5000K	L7696-80W-4000K	L7696-80W-5000K
L7696-120W-4000K	L7696-120W-5000K

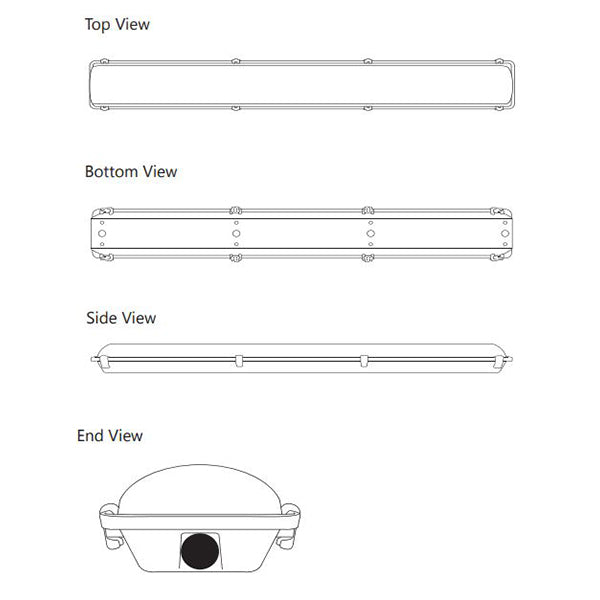

Dimensions

Version	Depth	Length	Width	Weight
2FT	4.19"	27.69"	6.77"	6lbs
4FT	4.19"	51.81"	6.77"	12lbs
8FT	4.19"	100.00"	6.77"	23lbs

Notes

Not all versions of this product may be DLC Premium qualified or DLC qualified.
Lumens will change based on fixture selection. Consult with factory for additional options.
Hanging kit manufactured by Gripple Inc.
Not Available in 8FT
