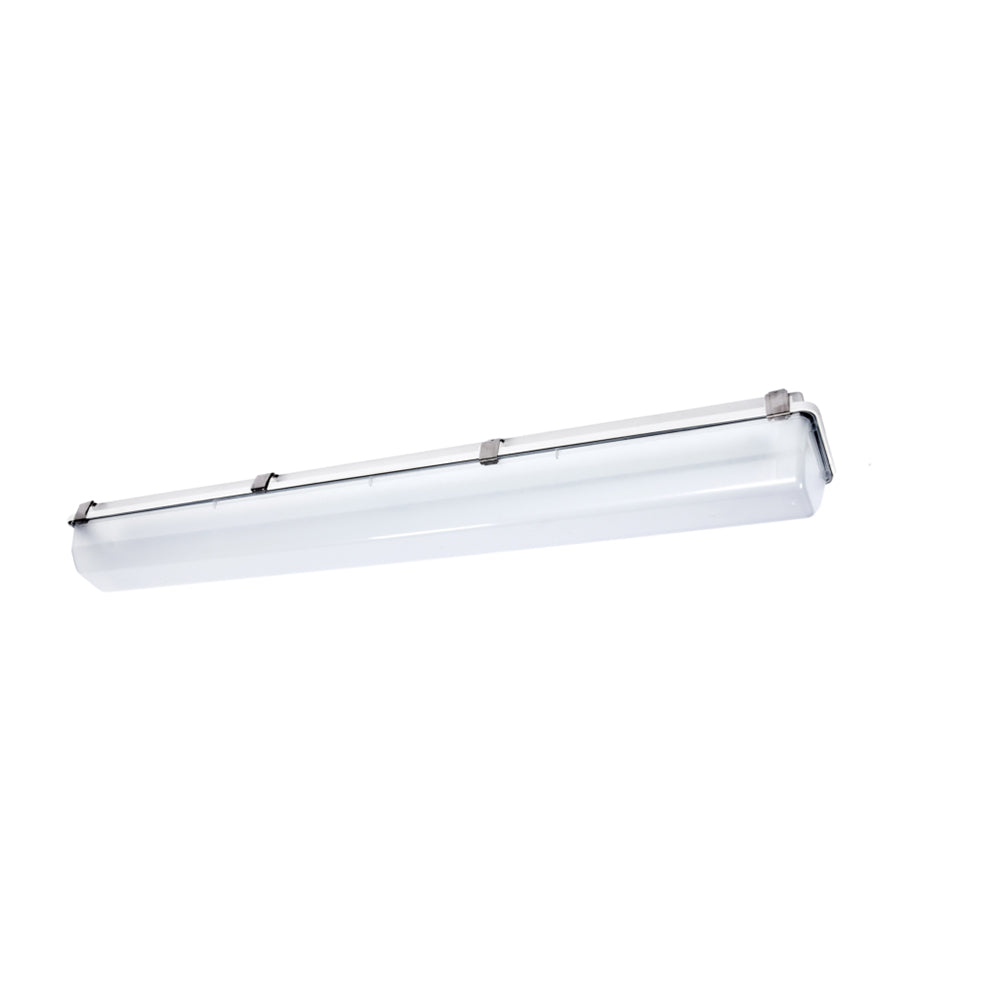

FSC Lighting L7600P Series LED Peaked Vaportite
The L7600P LED Peaked Vaportite is designed to minimize horizontal surfaces and latch pockets prone to retaining debris. Perfect for applications requiring wash-ability and hose down.
Features
- Applications: Ideal for use in food processing facilities, cold & freezer storage, car washes, canopies, manufacturing, health clubs, laundry and distribution centers.
- Construction: Lenses are made of 100% impact resistant acrylic for maximum light transmission and longevity (.080" thick). Deep lens comes standard to accomodate peaked geartray. Clear polycarbonate latches; stainless steel option available. UL 5VA fiberglass housing and continuous poured-in-place gasket seal to protect from most hostile environments.
- Mounting: Stainless steel mounting brackets included. Various mounting options available including suspension, pendant, and surface mount. Cord and plug options offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency
- Operating Temperature: Suitable for -40°C - 45°C Ambient
- Lumen Maintenance: L70 rating of 266,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: ETL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) qualified 1 . RoHS Compliant, NSF and NEMA 4X rated. IP65, IP66, IP67 & IP69 Rated. Buy American Act Compliant.
| L7624P-35W-4000K | L7624P-35W-5000K | L7648P-35W-4000K | L7648P-35W-5000K | L7648P-65W-4000K | L7648P-65W-5000K |
| L7696P-70W-4000K | L7696P-70W-5000K | L7696P-130W-4000K | L7696P-130W-5000K |

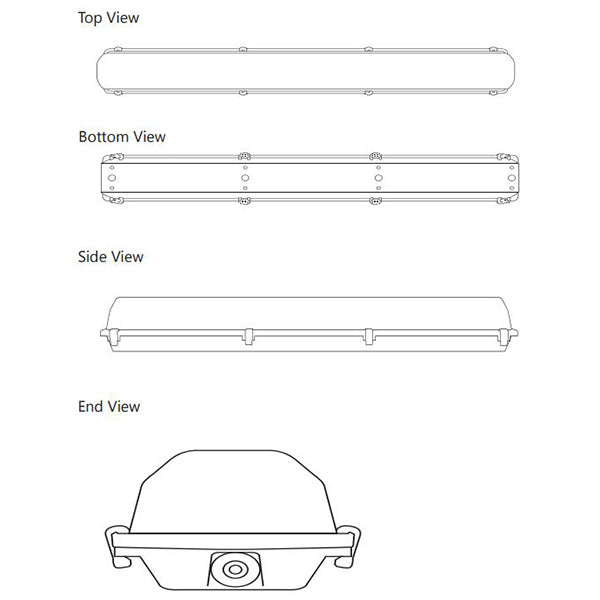

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 2FT | 5.72" | 27.69" | 6.77" | 6lbs |
| 4FT | 5.72" | 51.81" | 6.77" | 12lbs |
| 8FT | 5.72" | 100.00" | 6.77" | 23lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Hanging kit manufactured by Gripple Inc
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
