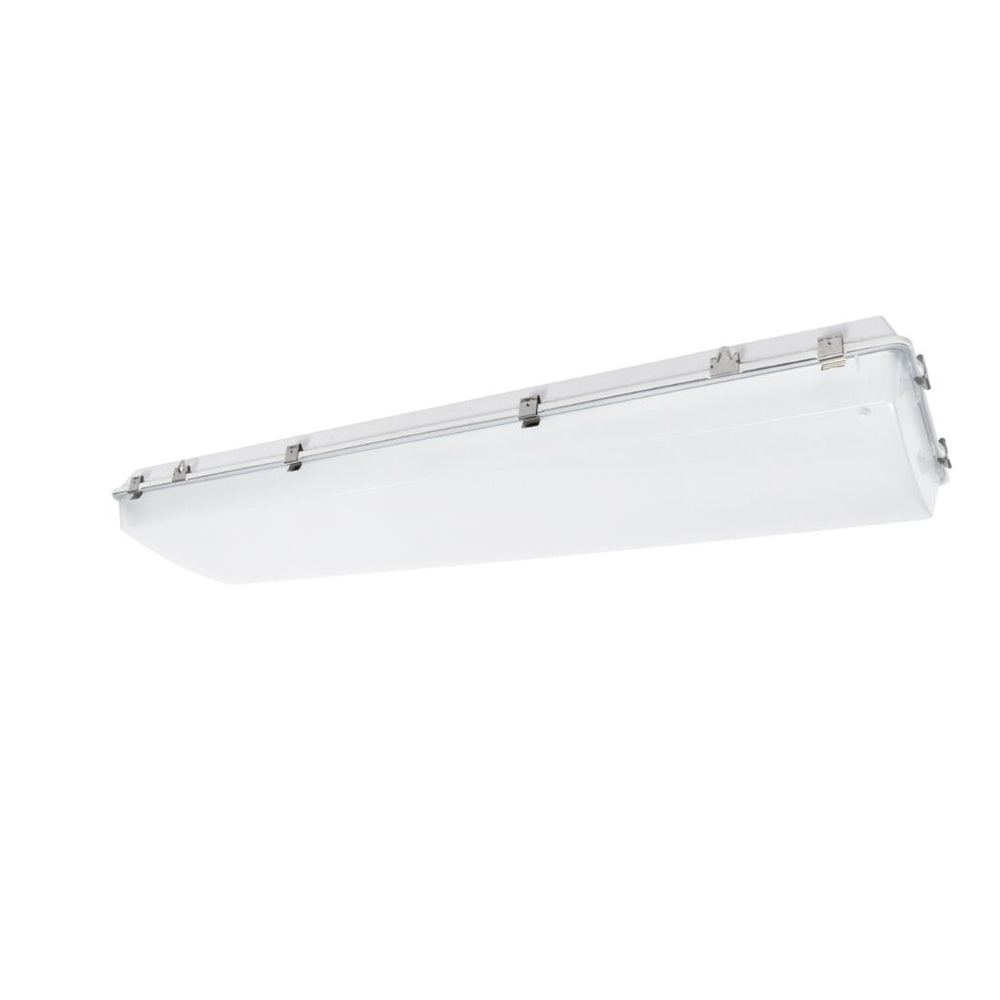

FSC Lighting L7900 Series - LED Wide Body Vaportite
The L7900 LED Wide Body Vaportite is designed to minimize horizontal surfaces and latch pockets prone to retaining debris. Perfect for applications requiring wash-ability and hose down.
Features
- Applications: Ideal for use in food processing facilities, cold & freezer storage, car washes, canopies, manufacturing, health clubs, laundry and distribution centers.
- Construction: Lenses are made of 100% impact resistant acrylic for maximum light transmission and longevity (.080"thick). Stainless steel latches provide durability and chemical resistance. Standard with stainless steal V-hooks that are UL rated for 4 times fixture weight. UL 5VA fiberglass housing and continuous poured-in-place gasket seal to protect from most hostile environments.
- Mounting: V-Hooks included. Various mounting options available including suspension, pendant, and surface mount. Cord and plug options offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency.
- Operating Temperature: Suitable for -40°C - 45°C Ambient
- Lumen Maintenance: Suitable for -40°C - 45°C Ambient
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: ETL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 Premium rated1 . RoHS Compliant, NSF, NEMA 4X and IK10 rated. IP65, IP66, IP67 & IP69 Rated.2 Buy American Act Compliant.
| L7924-60W-4000K | L7924-60W-5000K | L7924-80W-4000K | L7924-80W-5000K | L7948-120W-4000K | L7948-120W-5000K |
| L7948-170W-4000K | L7948-170W-5000K | L7948-215W-4000K | L7948-215W-5000K |

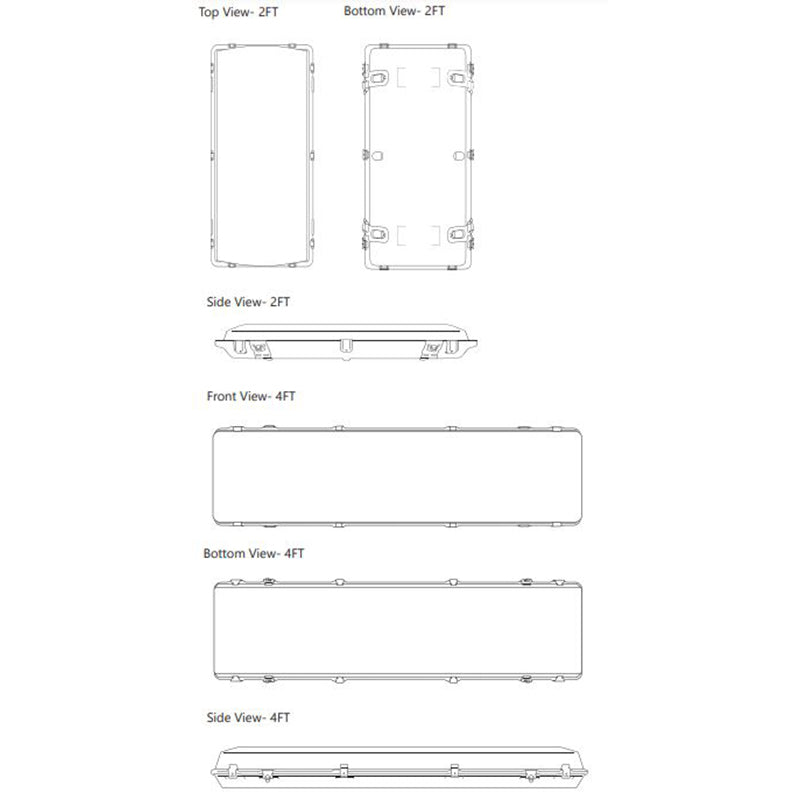

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 2FT | 5.85" | 26.63" | 14.55" | 13lbs |
| 4FT | 5.92" | 51.91" | 14.61" | 24lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Only two-foot form factor is IP69 Rated
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Hanging kit manufactured by Gripple Inc.
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
