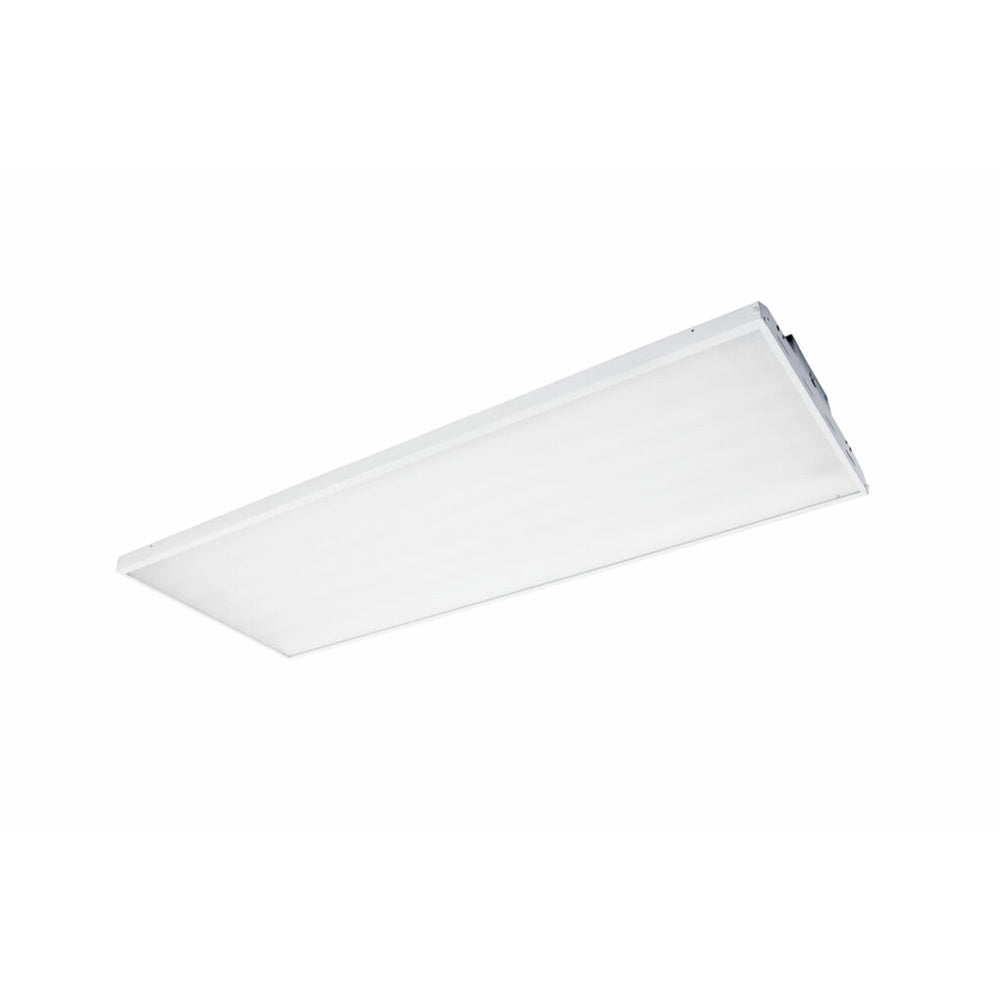

FSC Lighting LECB-AOK Series Adjustable Output LED High Bay Light
The LECB Series is the perfect lighting solution for a wide variety of applications. LED technology allows power and light levels to be customized to meet both energy and design needs.
Features
- Applications: Ideal for use in warehouses, distribution centers, retail, gymnasiums, commercial and industrial applications.
- Construction: Housing made 24 gauge cold rolled steel and is finished with a postproduction baked white powder coat. Frosted lens.
- Mounting: V- Hooks included for suspension mount. Chain and cable mount ready. Surface mount available. Cord and plug options offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency.
- Operating Temperature: Suitable for -40°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 122,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) qualified. DLC 5.1 Premium listed1 . RoHS Compliant.
| LECB-22-105W-AOK-4000K | LECB-22-105W-AOK-5000K | LECB-22-130W-AOK-4000K | LECB-22-130W-AOK-5000K | LECB-22-155W-AOK-4000K | LECB-22-155W-AOK-5000K |
| LECB-2-2-155W-AOK-4000K | LECB-2-2-155W-AOK-5000K | LECB-22-170W-AOK-4000K | LECB-22-170W-AOK-5000K | LECB-22-210W-AOK-4000K | LECB-22-210W-AOK-5000K |
| LECB-24-210W-AOK-4000K | LECB-24-210W-AOK-5000K | LECB-24-255W-AOK-4000K | LECB-24-255W-AOK-5000K | LECB-24-300W-AOK-4000K | LECB-24-300W-AOK-5000K |

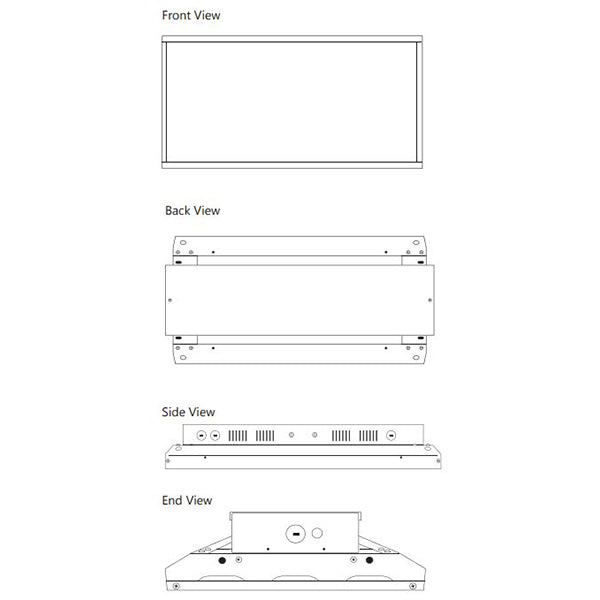

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 105W/ 130W/ 155W | 3.62" | 23.8" | 13.0" | 10lbs |
| 155W/ 170W/ 210W | 3.62" | 23.8" | 17.3" | 14lbs |
| 210W/ 255W/ 300W | 3.62" | 45.9" | 13.0" | 18lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Mounting kit is manufactured by Gripple Inc.
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
