Fast & Easy Quote Request For FSC Lighting
Description

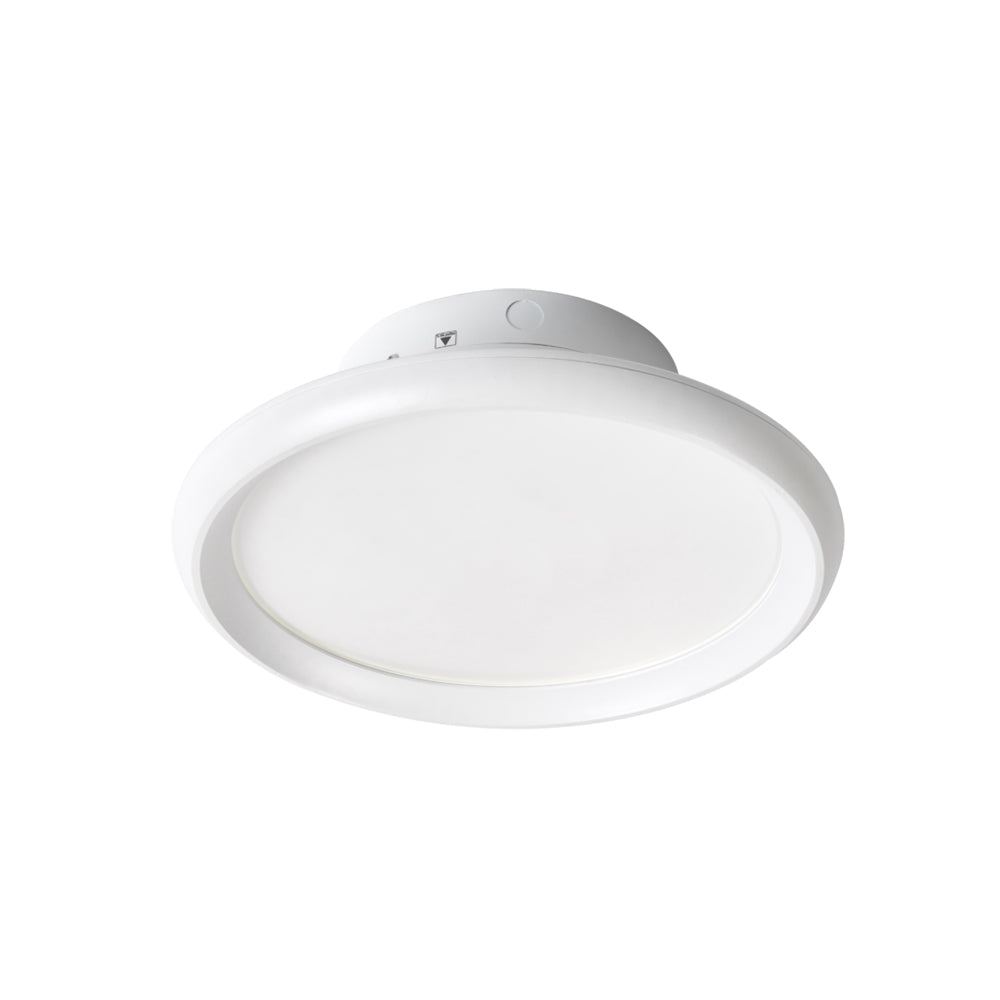

FSC Lighting Orbis Series LED Round Parking Garage Fixture
Features
- Applications: Ideal for use in parking garages, covered parking, low bay and canopies.
- Construction: Housing made from die formed heavy gauge cold rolled steel and is finished with a post- production baked white anti-rust coat. High efficient visual comfort diffused lens. Quarter turns for easy installation.
- Mounting: Surface mount. Pendant mount available. Cord and plug options offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V Dimming standard. 347/480V option. 50/60HZ input frequency.
- Operating Temperature: Suitable for -40°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 156,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: ETL Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) qualified 1 . RoHS Compliant. IP65 & IP66 Rated.
| OBRIS-16-40W-8-4000K | ORBIS-16-40W-8-5000K | ORBIS-16-60W-8-4000K | ORBIS-16-60W-8-5000K | ORBIS-16-80W-8-4000K | ORBIS-16-80W-8-5000K |

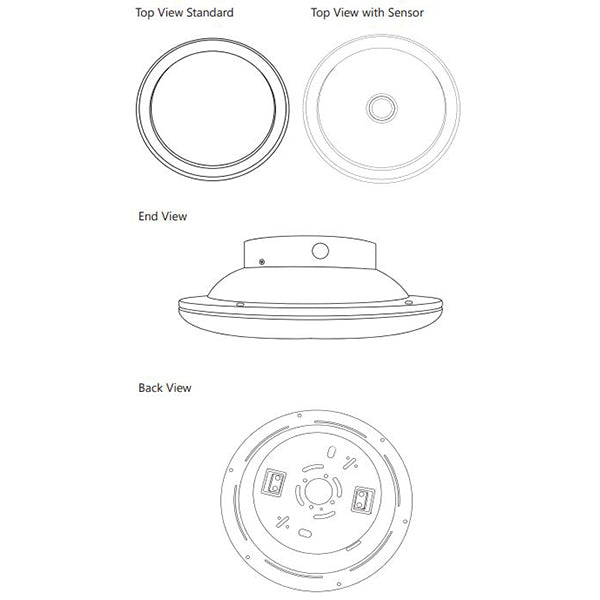

Dimensions
| Version | Depth | Diameter | Weight |
|---|---|---|---|
| 16" Round | 4.82" | 15.94" | 15lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Finish Standard in dark bronze. Black and white available on special request.
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
Product Files
