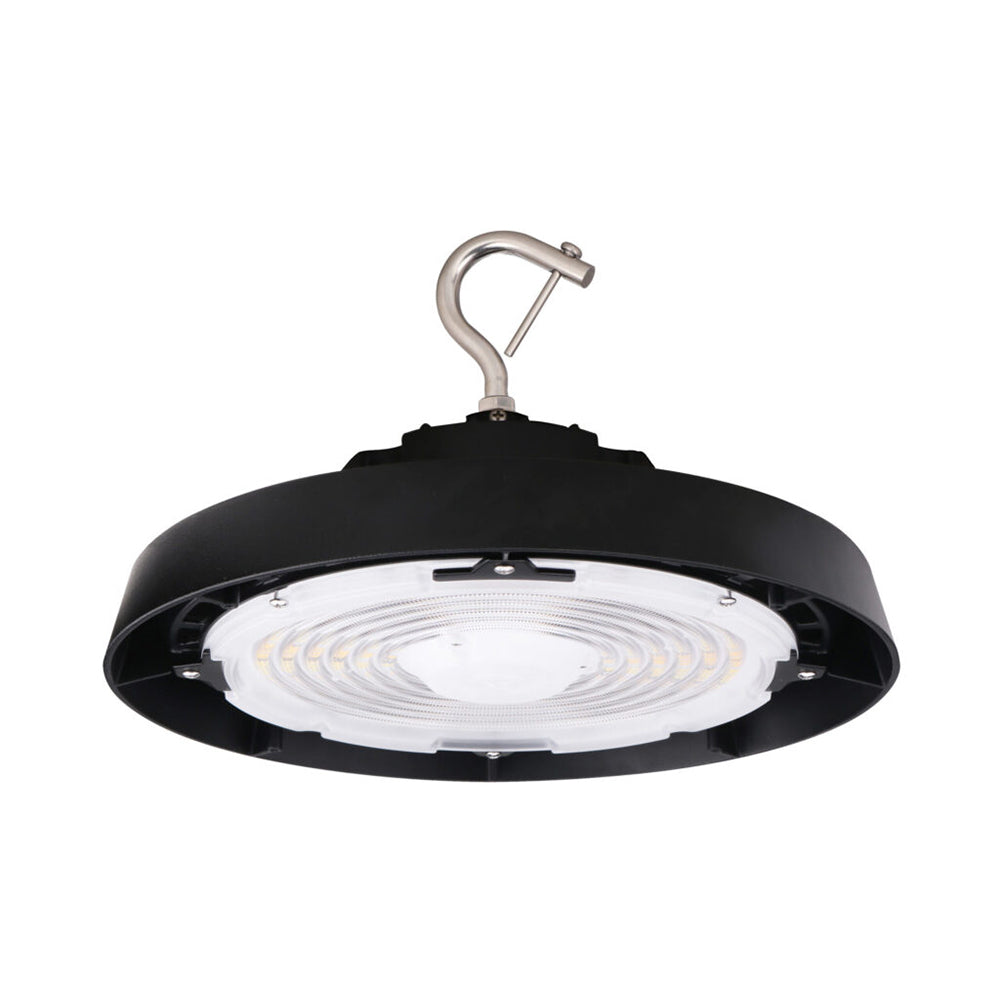

FSC Lighting RHB AOK Series Adjustable Output & Kelvin LED Round High Bay Light
The RHB-AOK round LED high bay delivers bright light and energy savings. Made with a durable die cast aluminum housing and polycarbonate lens that provides uniform, glare-free light distribution. It’s compact design with single point mounting allows for easy installation.
Features
- Applications: Ideal for use in warehouses, distribution centers, retail, gymnasiums, commercial and industrial applications.
- Construction: Housing made of die-cast aluminum and is finished with a postproduction baked powder coat. Polycarbonate lens.
- Mounting: J- Hook included for suspension mount. Chain and cable mount
ready. Surface mount available. Cord and plug options offered. - Electrical: Utilizes high-efficiency LED power supply and circuit boards.
120-277V & 0-10V dimming standard. 480V option. 50/60HZ input
frequency - Operating Temperature: Suitable for -40°C – 50°C ambient without sensor and -30°C – 50°C ambient with sensor
- Lumen Maintenance: L70 rating of 54,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply. See warranty
documentation for more information. - Certification: UL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) pending. RoHS Compliant. IP65
RHB-29L-AOK-100W-3000K | RHB-29L-AOK-100W-3000K-AL | RHB-29L-AOK-100W-3000K-AC | RHB-29L-AOK-100W-3000K-AD | RHB-29L-AOK-100W-3000K-WG | RHB-29L-AOK-100W-3000K-WGA |
RHB-29L-AOK-100W-4000K | RHB-29L-AOK-100W-4000K-AL | RHB-29L-AOK-100W-4000K-AC | RHB-29L-AOK-100W-4000K-AD | RHB-29L-AOK-100W-4000K-WG | RHB-29L-AOK-100W-4000K-WGA |
RHB-29L-AOK-100W-5000K | RHB-29L-AOK-100W-5000K-AL | RHB-29L-AOK-100W-5000K-AC | RHB-29L-AOK-100W-5000K-AD | RHB-29L-AOK-100W-5000K-WG | RHB-29L-AOK-100W-5000K-WGA |
RHB-29L-AOK-150W-3000K | RHB-29L-AOK-150W-3000K-AL | RHB-29L-AOK-150W-3000K-AC | RHB-29L-AOK-150W-3000K-AD | RHB-29L-AOK-150W-3000K-WG | RHB-29L-AOK-150W-3000K-WGA |
RHB-29L-AOK-150W-4000K | RHB-29L-AOK-150W-4000K-AL | RHB-29L-AOK-150W-4000K-AC | RHB-29L-AOK-150W-4000K-AD | RHB-29L-AOK-150W-4000K-WG | RHB-29L-AOK-150W-4000K-WGA |
RHB-29L-AOK-150W-5000K | RHB-29L-AOK-150W-5000K-AL | RHB-29L-AOK-150W-5000K-AC | RHB-29L-AOK-150W-5000K-AD | RHB-29L-AOK-150W-5000K-WG | RHB-29L-AOK-150W-5000K-WGA |
RHB-29L-AOK-200W-3000K | RHB-29L-AOK-200W-3000K-AL | RHB-29L-AOK-200W-3000K-AC | RHB-29L-AOK-200W-3000K-AD | RHB-29L-AOK-200W-3000K-WG | RHB-29L-AOK-200W-3000K-WGA |
RHB-29L-AOK-200W-4000K | RHB-29L-AOK-200W-4000K-AL | RHB-29L-AOK-200W-4000K-AC | RHB-29L-AOK-200W-4000K-AD | RHB-29L-AOK-200W-4000K-WG | RHB-29L-AOK-200W-4000K-WGA |
RHB-29L-AOK-200W-5000K | RHB-29L-AOK-200W-5000K-AL | RHB-29L-AOK-200W-5000K-AC | RHB-29L-AOK-200W-5000K-AD | RHB-29L-AOK-200W-5000K-WG | RHB-29L-AOK-200W-5000K-WGA |
RHB-29L-AOK-100W-3000K-WH | RHB-29L-AOK-100W-3000K-AL-WH | RHB-29L-AOK-100W-3000K-AC-WH | RHB-29L-AOK-100W-3000K-AD-WH | RHB-29L-AOK-100W-3000K-WG-WH | RHB-29L-AOK-100W-3000K-WGA-WH |
RHB-29L-AOK-100W-4000K-WH | RHB-29L-AOK-100W-4000K-AL-WH | RHB-29L-AOK-100W-4000K-AC-WH | RHB-29L-AOK-100W-4000K-AD-WH | RHB-29L-AOK-100W-4000K-WG-WH | RHB-29L-AOK-100W-4000K-WGA-WH |
RHB-29L-AOK-100W-5000K-WH | RHB-29L-AOK-100W-5000K-AL-WH | RHB-29L-AOK-100W-5000K-AC-WH | RHB-29L-AOK-100W-5000K-AD-WH | RHB-29L-AOK-100W-5000K-WG-WH | RHB-29L-AOK-100W-5000K-WGA-WH |
RHB-29L-AOK-150W-3000K-WH | RHB-29L-AOK-150W-3000K-AL-WH | RHB-29L-AOK-150W-3000K-AC-WH | RHB-29L-AOK-150W-3000K-AD-WH | RHB-29L-AOK-150W-3000K-WG-WH | RHB-29L-AOK-150W-3000K-WGA-WH |
RHB-29L-AOK-150W-4000K-WH | RHB-29L-AOK-150W-4000K-AL-WH | RHB-29L-AOK-150W-4000K-AC-WH | RHB-29L-AOK-150W-4000K-AD-WH | RHB-29L-AOK-150W-4000K-WG-WH | RHB-29L-AOK-150W-4000K-WGA-WH |
RHB-29L-AOK-150W-5000K-WH | RHB-29L-AOK-150W-5000K-AL-WH | RHB-29L-AOK-150W-5000K-AC-WH | RHB-29L-AOK-150W-5000K-AD-WH | RHB-29L-AOK-150W-5000K-WG-WH | RHB-29L-AOK-150W-5000K-WGA-WH |
RHB-29L-AOK-200W-3000K-WH | RHB-29L-AOK-200W-3000K-AL-WH | RHB-29L-AOK-200W-3000K-AC-WH | RHB-29L-AOK-200W-3000K-AD-WH | RHB-29L-AOK-200W-3000K-WG-WH | RHB-29L-AOK-200W-3000K-WGA-WH |
RHB-29L-AOK-200W-4000K-WH | RHB-29L-AOK-200W-4000K-AL-WH | RHB-29L-AOK-200W-4000K-AC-WH | RHB-29L-AOK-200W-4000K-AD-WH | RHB-29L-AOK-200W-4000K-WG-WH | RHB-29L-AOK-200W-4000K-WGA-WH |
RHB-29L-AOK-200W-5000K-WH | RHB-29L-AOK-200W-5000K-AL-WH | RHB-29L-AOK-200W-5000K-AC-WH | RHB-29L-AOK-200W-5000K-AD-WH | RHB-29L-AOK-200W-5000K-WG-WH | RHB-29L-AOK-200W-5000K-WGA-WH |
RHB-29L-AOK-100W-3000K-UB | RHB-29L-AOK-100W-3000K-AL-UB | RHB-29L-AOK-100W-3000K-AC-UB | RHB-29L-AOK-100W-3000K-AD-UB | RHB-29L-AOK-100W-3000K-WG-UB | RHB-29L-AOK-100W-3000K-WGA-UB |
RHB-29L-AOK-100W-4000K-UB | RHB-29L-AOK-100W-4000K-AL-UB | RHB-29L-AOK-100W-4000K-AC-UB | RHB-29L-AOK-100W-4000K-AD-UB | RHB-29L-AOK-100W-4000K-WG-UB | RHB-29L-AOK-100W-4000K-WGA-UB |
RHB-29L-AOK-100W-5000K-UB | RHB-29L-AOK-100W-5000K-AL-UB | RHB-29L-AOK-100W-5000K-AC-UB | RHB-29L-AOK-100W-5000K-AD-UB | RHB-29L-AOK-100W-5000K-WG-UB | RHB-29L-AOK-100W-5000K-WGA-UB |
RHB-29L-AOK-150W-3000K-UB | RHB-29L-AOK-150W-3000K-AL-UB | RHB-29L-AOK-150W-3000K-AC-UB | RHB-29L-AOK-150W-3000K-AD-UB | RHB-29L-AOK-150W-3000K-WG-UB | RHB-29L-AOK-150W-3000K-WGA-UB |
RHB-29L-AOK-150W-4000K-UB | RHB-29L-AOK-150W-4000K-AL-UB | RHB-29L-AOK-150W-4000K-AC-UB | RHB-29L-AOK-150W-4000K-AD-UB | RHB-29L-AOK-150W-4000K-WG-UB | RHB-29L-AOK-150W-4000K-WGA-UB |
RHB-29L-AOK-150W-5000K-UB | RHB-29L-AOK-150W-5000K-AL-UB | RHB-29L-AOK-150W-5000K-AC-UB | RHB-29L-AOK-150W-5000K-AD-UB | RHB-29L-AOK-150W-5000K-WG-UB | RHB-29L-AOK-150W-5000K-WGA-UB |
RHB-29L-AOK-200W-3000K-UB | RHB-29L-AOK-200W-3000K-AL-UB | RHB-29L-AOK-200W-3000K-AC-UB | RHB-29L-AOK-200W-3000K-AD-UB | RHB-29L-AOK-200W-3000K-WG-UB | RHB-29L-AOK-200W-3000K-WGA-UB |
RHB-29L-AOK-200W-4000K-UB | RHB-29L-AOK-200W-4000K-AL-UB | RHB-29L-AOK-200W-4000K-AC-UB | RHB-29L-AOK-200W-4000K-AD-UB | RHB-29L-AOK-200W-4000K-WG-UB | RHB-29L-AOK-200W-4000K-WGA-UB |
RHB-29L-AOK-200W-5000K-UB | RHB-29L-AOK-200W-5000K-AL-UB | RHB-29L-AOK-200W-5000K-AC-UB | RHB-29L-AOK-200W-5000K-AD-UB | RHB-29L-AOK-200W-5000K-WG-UB | RHB-29L-AOK-200W-5000K-WGA-UB |
RHB-29L-AOK-100W-3000K-WH-UB | RHB-29L-AOK-100W-3000K-AL-WH-UB | RHB-29L-AOK-100W-3000K-AC-WH-UB | RHB-29L-AOK-100W-3000K-AD-WH-UB | RHB-29L-AOK-100W-3000K-WG-WH-UB | RHB-29L-AOK-100W-3000K-WGA-WH-UB |
RHB-29L-AOK-100W-4000K-WH-UB | RHB-29L-AOK-100W-4000K-AL-WH-UB | RHB-29L-AOK-100W-4000K-AC-WH-UB | RHB-29L-AOK-100W-4000K-AD-WH-UB | RHB-29L-AOK-100W-4000K-WG-WH-UB | RHB-29L-AOK-100W-4000K-WGA-WH-UB |
RHB-29L-AOK-100W-5000K-WH-UB | RHB-29L-AOK-100W-5000K-AL-WH-UB | RHB-29L-AOK-100W-5000K-AC-WH-UB | RHB-29L-AOK-100W-5000K-AD-WH-UB | RHB-29L-AOK-100W-5000K-WG-WH-UB | RHB-29L-AOK-100W-5000K-WGA-WH-UB |
RHB-29L-AOK-150W-3000K-WH-UB | RHB-29L-AOK-150W-3000K-AL-WH-UB | RHB-29L-AOK-150W-3000K-AC-WH-UB | RHB-29L-AOK-150W-3000K-AD-WH-UB | RHB-29L-AOK-150W-3000K-WG-WH-UB | RHB-29L-AOK-150W-3000K-WGA-WH-UB |
RHB-29L-AOK-150W-4000K-WH-UB | RHB-29L-AOK-150W-4000K-AL-WH-UB | RHB-29L-AOK-150W-4000K-AC-WH-UB | RHB-29L-AOK-150W-4000K-AD-WH-UB | RHB-29L-AOK-150W-4000K-WG-WH-UB | RHB-29L-AOK-150W-4000K-WGA-WH-UB |
RHB-29L-AOK-150W-5000K-WH-UB | RHB-29L-AOK-150W-5000K-AL-WH-UB | RHB-29L-AOK-150W-5000K-AC-WH-UB | RHB-29L-AOK-150W-5000K-AD-WH-UB | RHB-29L-AOK-150W-5000K-WG-WH-UB | RHB-29L-AOK-150W-5000K-WGA-WH-UB |
RHB-29L-AOK-200W-3000K-WH-UB | RHB-29L-AOK-200W-3000K-AL-WH-UB | RHB-29L-AOK-200W-3000K-AC-WH-UB | RHB-29L-AOK-200W-3000K-AD-WH-UB | RHB-29L-AOK-200W-3000K-WG-WH-UB | RHB-29L-AOK-200W-3000K-WGA-WH-UB |
RHB-29L-AOK-200W-4000K-WH-UB | RHB-29L-AOK-200W-4000K-AL-WH-UB | RHB-29L-AOK-200W-4000K-AC-WH-UB | RHB-29L-AOK-200W-4000K-AD-WH-UB | RHB-29L-AOK-200W-4000K-WG-WH-UB | RHB-29L-AOK-200W-4000K-WGA-WH-UB |
RHB-29L-AOK-200W-5000K-WH-UB | RHB-29L-AOK-200W-5000K-AL-WH-UB | RHB-29L-AOK-200W-5000K-AC-WH-UB | RHB-29L-AOK-200W-5000K-AD-WH-UB | RHB-29L-AOK-200W-5000K-WG-WH-UB | RHB-29L-AOK-200W-5000K-WGA-WH-UB |

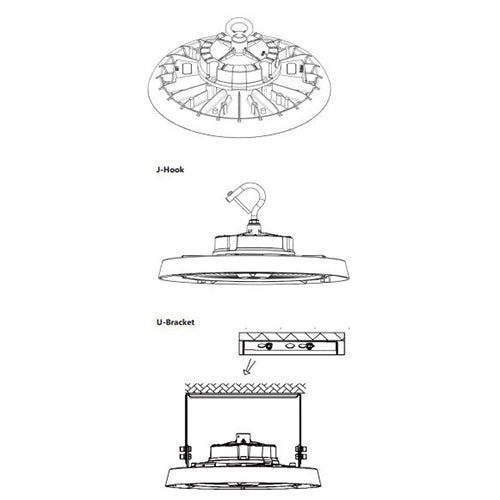

Dimensions
Version | Depth | Diameter | Weight |
---|---|---|---|
RHB-29L-AOK w/ J-Hook | 5.7” | 13.4” | 7lbs |
RHB-29L-AOK w/ U-Bracket | 6.6” | 13.4” | 8.5lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- White Finish available on special request.
- Lumens will change based on fixture selection. Consult with factory for additional options.
