Fast & Easy Quote Request For FSC Lighting
Description

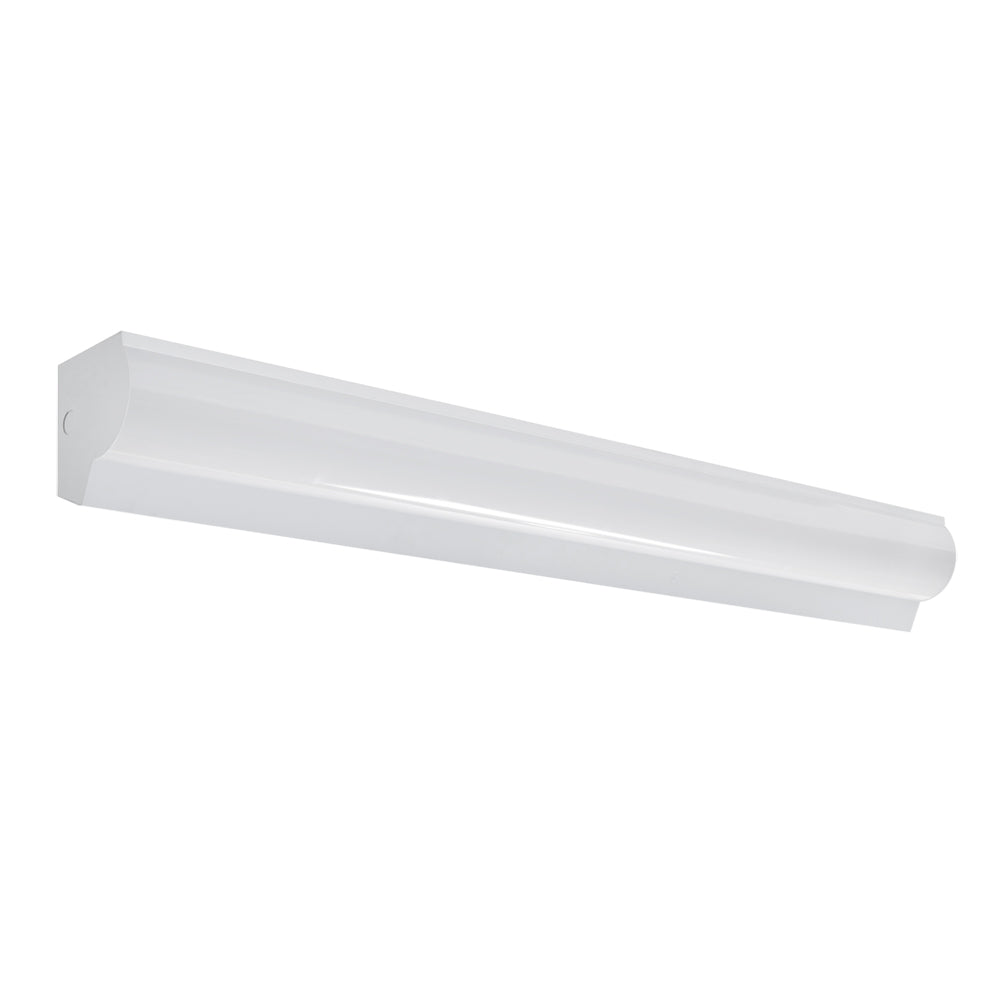

FSC Lighting WCR- AOK Series Adjustable Output LED Wrap Corner Radial
Features
- Applications: Ideal for use in stairwells, parking garages, covered parking, shops, utility rooms, corridors, canopies and general lighting.
- Construction: Housing made from die formed heavy gauge cold rolled steel and is finished with a post- production baked white powder coat. Frosted lens.
- Mounting: Surface mount. Cord and plug options offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency.
- Operating Temperature: Suitable for -20°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 100,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) qualified. DLC 5.1 Premium listed.1 RoHS Compliant.
| WCR-2-3500L-AOK-20W-3500K | WCR-2-3500L-AOK-20W-4000K | WCR-2-3500L-AOK-20W-5000K | WCR-2-3500L-AOK-25W-3500K | WCR-2-3500L-AOK-25W-4000K | WCR-2-3500L-AOK-25W-5000K |
| WCR-2-3500L-AOK-30W-3500K | WCR-2-3500L-AOK-30W-4000K | WCR-2-3500L-AOK-30W-5000K | WCR-4-5500L-AOK-30W-3500K | WCR-4-5500L-AOK-30W-4000K | WCR-4-5500L-AOK-30W-5000K |
| WCR-4-5500L-AOK-35W-3500K | WCR-4-5500L-AOK-35W-4000K | WCR-4-5500L-AOK-35W-5000K | WCR-4-5500L-AOK-45W-3500K | WCR-4-5500L-AOK-45W-4000K | WCR-4-5500L-AOK-45W-5000K |

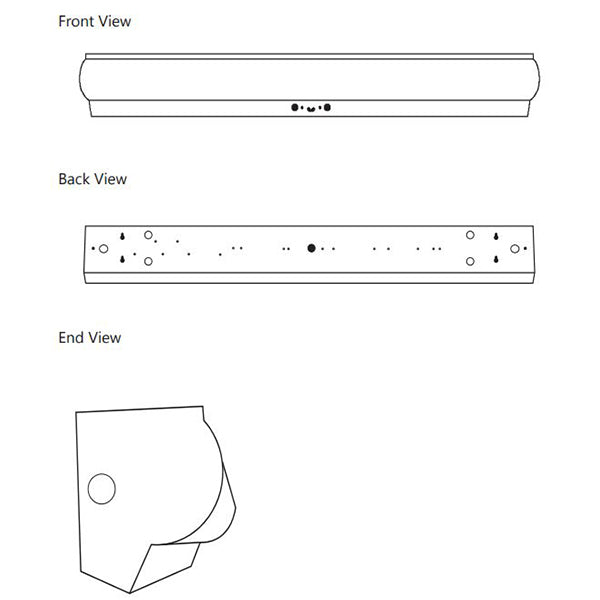

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 2FT | 4.9" | 23.9" | 5.6" | 4lbs |
| 4FT | 4.9" | 47.7" | 5.6" | 8lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified. .
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Mounting kit is manufactured by Gripple Inc
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
Product Files
