Fast & Easy Quote Request For FSC Lighting
Description

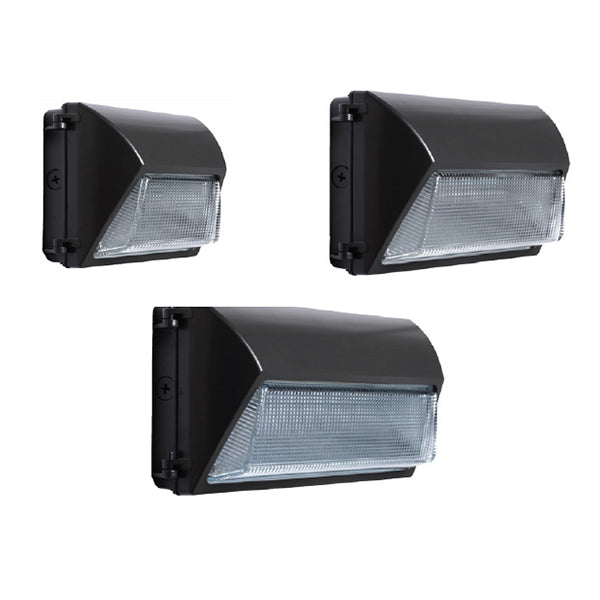

FSC Lighting WP-AOK Series Adjustable LED Wall Pack
Features
- Applications: Ideal for use in exterior commercial and industrial building perimeters
- Construction: Housing made from die-cast aluminum. Tempered glass lens.
- Mounting: Wall Mount.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency. 5KV Surge Protection
- Operating Temperature: Suitable for -40°C - 40°C Ambient
- CRI: 70+
- Lumen Maintenance: L70 rating of 54,000
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 Premium listed1 .
| WP-S-5L-AOK-20W-3000K | WP-S-5L-AOK-20W-4000K | WP-S-5L-AOK-20W-5000K | WP-S-5L-AOK-30W-3000K | WP-S-5L-AOK-30W-4000K | WP-S-5L-AOK-30W-5000K |
| WP-S-5L-AOK-40W-3000K | WP-S-5L-AOK-40W-4000K | WP-S-5L-AOK-40W-5000K | WP-M-10L-AOK-50W-3000K | WP-M-10L-AOK-50W-4000K | WP-M-10L-AOK-50W-5000K |
| WP-M-10L-AOK-70W-3000K | WP-M-10L-AOK-70W-4000K | WP-M-10L-AOK-70W-5000K | WP-M-10L-AOK-90W-3000K | WP-M-10L-AOK-90W-4000K | WP-M-10L-AOK-90W-5000K |
| WP-L-15L-AOK-80W-3000K | WP-L-15L-AOK-80W-4000K | WP-L-15L-AOK-80W-5000K | WP-L-15L-AOK-100W-3000K | WP-L-15L-AOK-100W-4000K | WP-L-15L-AOK-100W-5000K |
| WP-L-15L-AOK-120W-3000K | WP-L-15L-AOK-120W-4000K | WP-L-15L-AOK-120W-5000K | WP-S-5L-AOK-20W-3000K-B | WP-S-5L-AOK-20W-4000K-B | WP-S-5L-AOK-20W-5000K-B |
| WP-S-5L-AOK-30W-3000K-B | WP-S-5L-AOK-30W-4000K-B | WP-S-5L-AOK-30W-5000K-B | WP-S-5L-AOK-40W-3000K-B | WP-S-5L-AOK-40W-4000K-B | WP-S-5L-AOK-40W-5000K-B |
| WP-M-10L-AOK-50W-3000K-B | WP-M-10L-AOK-50W-4000K-B | WP-M-10L-AOK-50W-5000K-B | WP-M-10L-AOK-70W-3000K-B | WP-M-10L-AOK-70W-4000K-B | WP-M-10L-AOK-70W-5000K-B |
| WP-M-10L-AOK-90W-3000K-B | WP-M-10L-AOK-90W-4000K-B | WP-M-10L-AOK-90W-5000K-B | WP-L-15L-AOK-80W-3000K-B | WP-L-15L-AOK-80W-4000K-B | WP-L-15L-AOK-80W-5000K-B |
| WP-L-15L-AOK-100W-3000K-B | WP-L-15L-AOK-100W-4000K-B | WP-L-15L-AOK-100W-5000K-B | WP-L-15L-AOK-120W-3000K-B | WP-L-15L-AOK-120W-4000K-B | WP-L-15L-AOK-120W-5000K-B |
| WP-S-5L-AOK-20W-3000K-W | WP-S-5L-AOK-20W-4000K-W | WP-S-5L-AOK-20W-5000K-W | WP-S-5L-AOK-30W-3000K-W | WP-S-5L-AOK-30W-4000K-W | WP-S-5L-AOK-30W-5000K-W |
| WP-S-5L-AOK-40W-3000K-W | WP-S-5L-AOK-40W-4000K-W | WP-S-5L-AOK-40W-5000K-W | WP-M-10L-AOK-50W-3000K-W | WP-M-10L-AOK-50W-4000K-W | WP-M-10L-AOK-50W-5000K-W |
| WP-M-10L-AOK-70W-3000K-W | WP-M-10L-AOK-70W-4000K-W | WP-M-10L-AOK-70W-5000K-W | WP-M-10L-AOK-90W-3000K-W | WP-M-10L-AOK-90W-4000K-W | WP-M-10L-AOK-90W-5000K-W |
| WP-L-15L-AOK-80W-3000K-W | WP-L-15L-AOK-80W-4000K-W | WP-L-15L-AOK-80W-5000K-W | WP-L-15L-AOK-100W-3000K-W | WP-L-15L-AOK-100W-4000K-W | WP-L-15L-AOK-100W-5000K-W |
| WP-L-15L-AOK-120W-3000K-W | WP-L-15L-AOK-120W-4000K-W | WP-L-15L-AOK-120W-5000K-W |

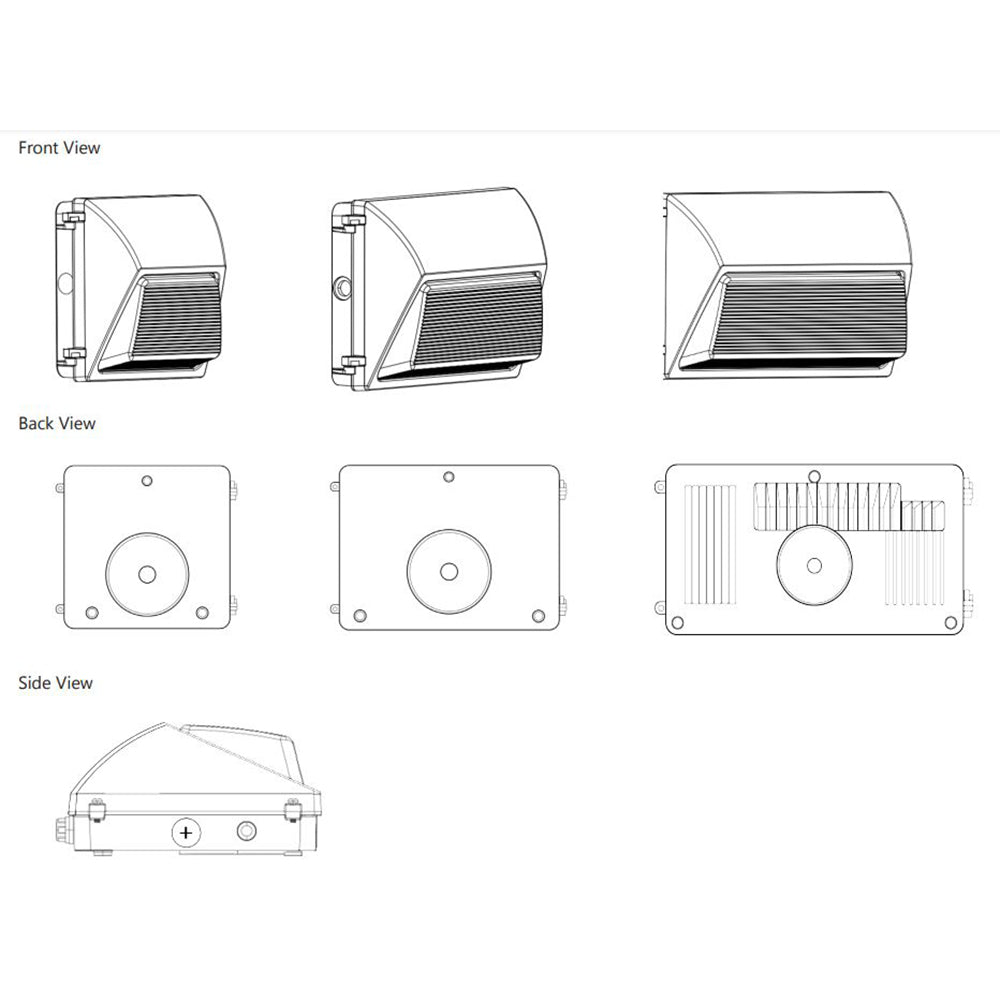

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| Small | 4.75" | 9.00" | 9.00" | 5.3lbs |
| Medium | 4.75" | 9.00" | 13.00" | 7.6lbs |
| Large | 4.75" | 9.00" | 17.00" | 11.8lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Finish Standard in dark bronze. Black and white available on special request.
- Option only available for WP-M fixture.
- Option only available for WP-L fixture.
Product Files
Small Wall Pack Install Instructions
