Description

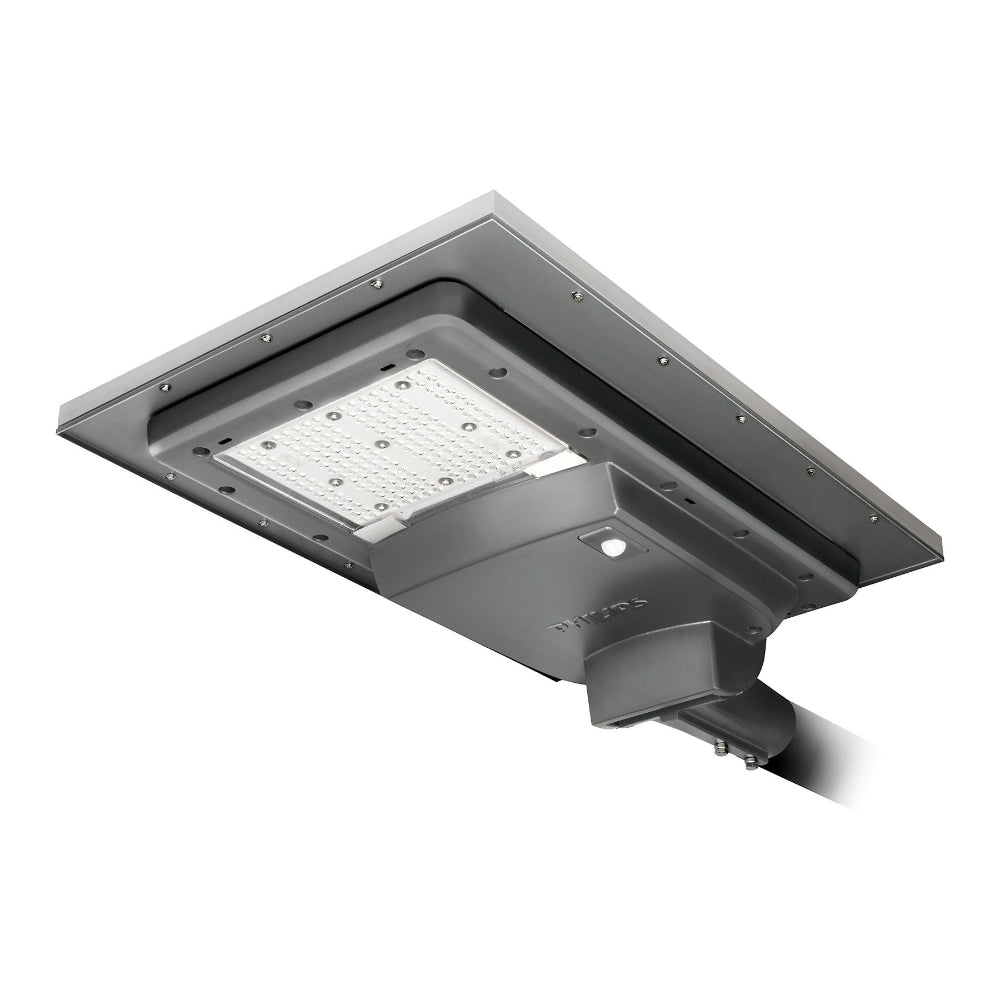

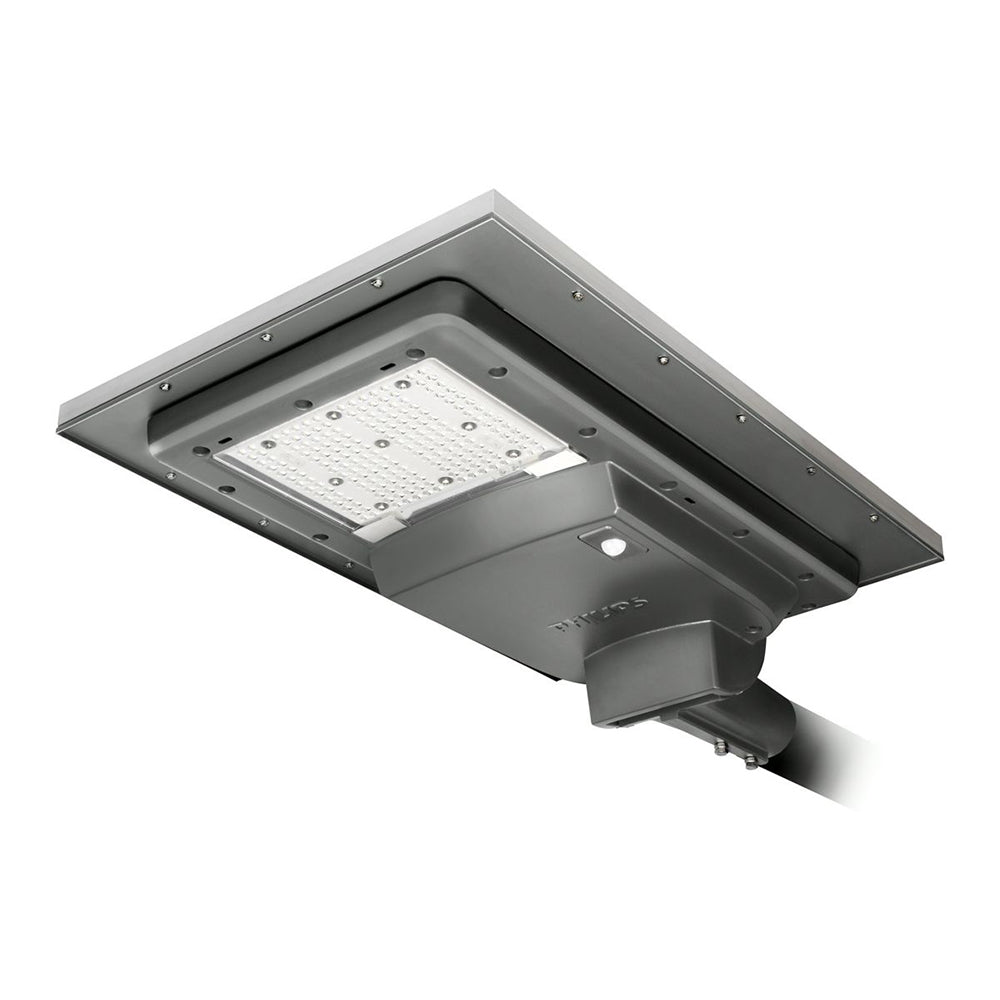

Gardco Lighting SolarForm Gen2 Large
Gardco SolarForm Gen2 off-grid luminaire is an advanced all in one integrated cost-effective solar solution with a high quality of light and reliable performance consisting of a LED light with a solar photovoltaic panel, a battery, and a Bluetooth programmable controller, making it easy to specify, sell, install and maintain. It can be be programmed before or after installation with the desired dimming profile using an app giving you the flexibility to set and update the dimming profiles easily according to the seasons or changing requirements. Adapted to night activities and expected solar energy performance ready to be turned-on for customers to have a lighting solution in areas where electricity is not available (inc. temporary), and/or more expensive.
Benefits
- Brings light to areas without access to electric grid
- Preserves landscape as no trenching for cabling required
- Sturdy construction for long life
- Saves energy
- Environment friendly
- Programmable dimming profiles through Bluetooth for maximum flexibility
Features
- High luminous efficacy above 175 lm/Watt to maximize battery performance
- MPPT and charge controller for maximum efficiency
- Specially designed pole mounting bracket with adjustable tilt angles of 0 to 15 degrees, which can also be used in post top & lateral mounting positions
- Replaceable Lithium Iron Phosphate battery for long life and hassle free operations
- Pressure die-cast aluminum housing for sturdiness and excellent heat dissipation
- PIR sensor, BLE controller and advanced RTE (run time extension) technology for run time maximization
- Self diagnostic feature along with battery charging, discharging & cut-off LED Indicators
- Up to 4,500 lumens
- Five standard housing colors
Applications

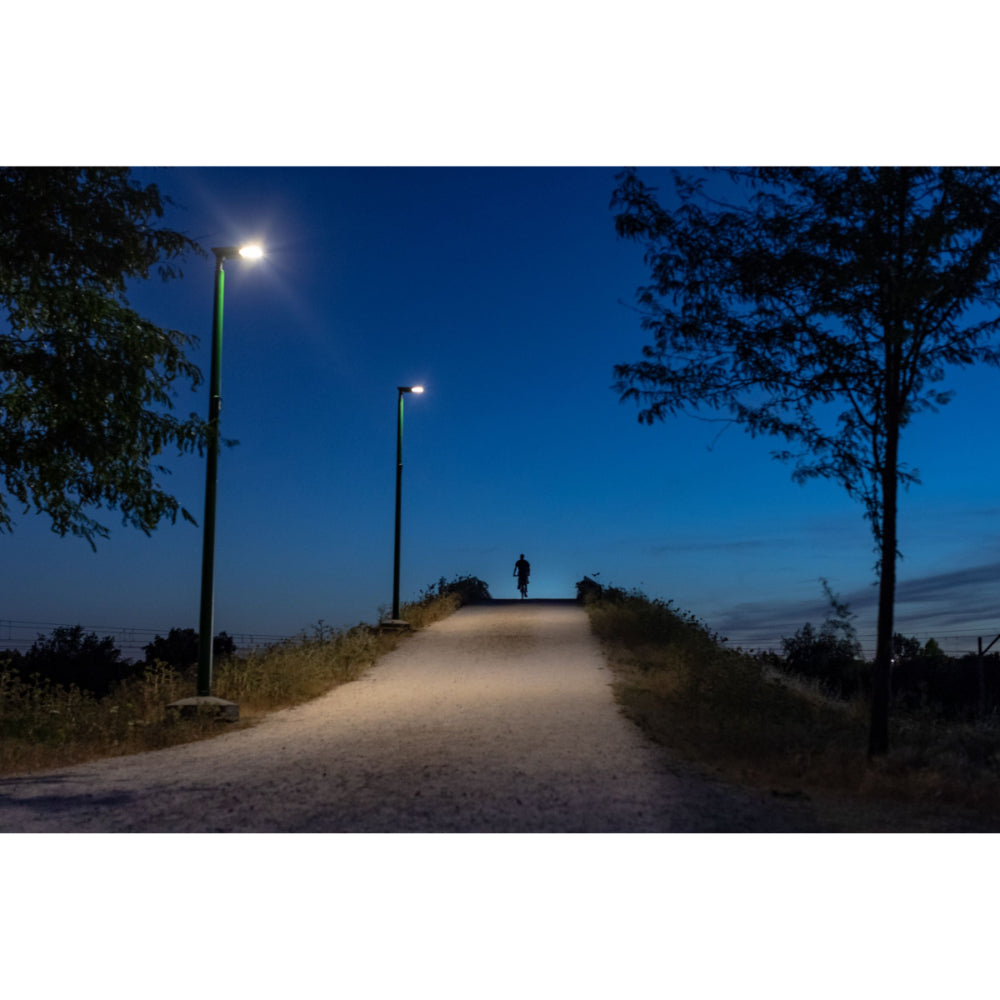

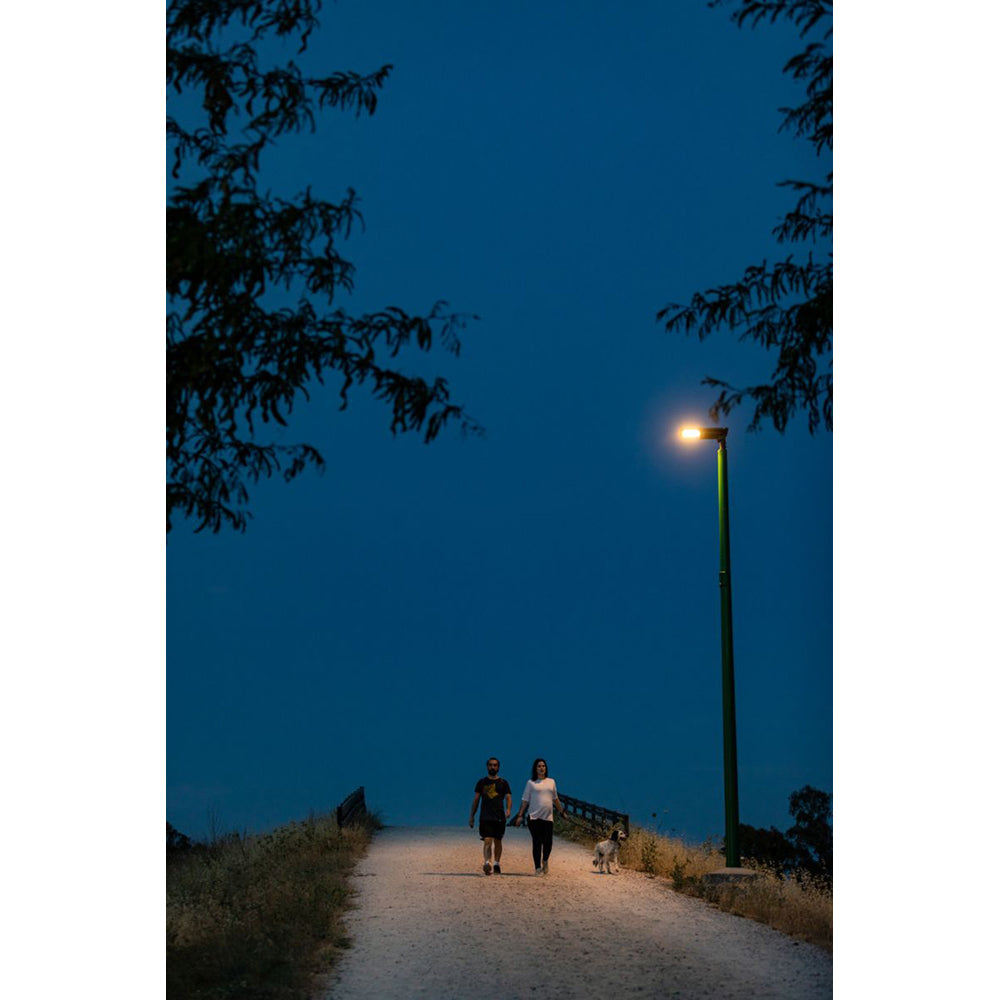

- Parks, pedestrian path lighting
- Shopping centers, campuses, plazas
- Rural areas
- Industries, office, schools
Product List
| Compare Product Name | Compare Product Sku | Wattage (W): | Lumens (lm): | CCT (K): |
| SolarForm Gen2 Large, 3000lm, 70CRI 3000K, Type II Optic, with Motion sensor | SOF-L-LED30-730-T2-MR | 17 | 3100 | 3000 |
| SolarForm Gen2 Large, 3000lm, 70CRI 4000K, Type II Optic, with Motion sensor | SOF-L-LED30-740-T2-MR | 17 | 3270 | 4000 |
| SolarForm Gen2 Large, 3000lm, 70CRI 3000K, Type II Optic | SOF-L-LED30-730-T2 | 17 | 3100 | 3000 |
| SolarForm Gen2 Large, 3000lm, 70CRI 4000K, Type II Optic | SOF-L-LED30-740-T2 | 17 | 3270 | 4000 |
| SolarForm Gen2 Large, 4500lm, 70CRI 3000K, Type II Optic, with Motion sensor | SOF-L-LED45-730-T2-MR | 26 | 4500 | 3000 |
| SolarForm Gen2 Large, 4500lm, 70CRI 4000K, Type II Optic, with Motion sensor | SOF-L-LED45-740-T2-MR | 26 | 4700 | 4000 |
| SolarForm Gen2 Large, 4500lm, 70CRI 3000K, Type II Optic | SOF-L-LED45-730-T2 | 26 | 4500 | 3000 |
| SolarForm Gen2 Large, 4500lm, 70CRI 4000K, Type II Optic | SOF-L-LED45-740-T2 | 26 | 4700 | 4000 |
Product Files
Click for SolarForm_Gen2_Large_CST.pdf
