Hadco DB30 LED Lighting Bollard

Description
Product Files
Hadco Warranty
Hadco Return Terms

Description

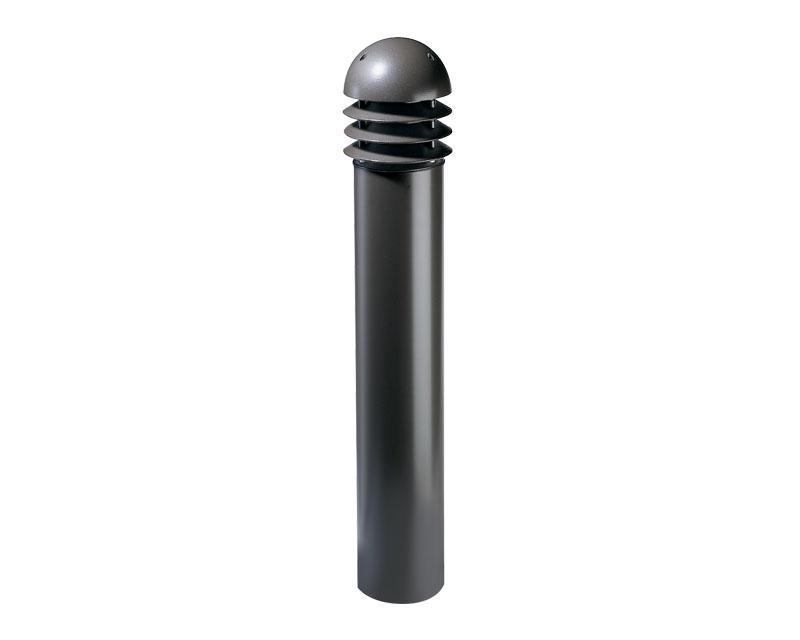

The DB Series is a line voltage Bollard available in incandescent, CFL, HID and LED sources. This versatile luminaire features a dome roof with die-cast aluminum louvers, and in a variety of heights. Optics include a symmetric, die-cast aluminum louvers with underside painted with highly reflective white powdercoat and a tempered glass globe. The LED sources features a 9.5W Philips LED EnduraLED lamp, LED 4Kv medium base porcelain socket A19. The 2700K warm white delivers 800 lumens and the lamp life is rated at 25,000 hours.

HOUSING:

360 low-copper die-cast aluminumalloy. Dome roof with die-cast aluminum louvers. Easy access to lamp. 5a dia. extruded aluminum with a wall thickness of 0.125a. All non-ferrous fasteners prevent corrosion and ensure longer life.

FINISH: Thermoset polyester powder coat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting Laboratory tested for superior weatherability and fade resistance in accordance with ASTMB117 specifications. For larger projects where a custom color is required, contact the factory formore information.

OPTICAL ASSEMBLY:

Symmetric.Die-cast aluminum louvers with underside painted with highly reflective white powdercoat. Tempered glass globe.

LAMPING:

9.5W Philips LED EnduraLED lamp, LED 4Kv medium base porcelain socket A19. 2700K warm white delivers 800 lumens. Lamp life is rated at 25,000 hours. 120 volt only.

ELECTRICAL ASSEMBLY:

Ballast assembly is mounted to an aluminum plate, which is mounted inside the base. Quick disconnects for easy installation and removal.

INSTALLATION & MOUNTING:

Tube is mounted to the baseplate with three (3 )5/16-18 flathead allen key stainless steel tamper-resistant screws.

WARRANTY:

Five-year limited warranty.

CERTIFICATIONS:

ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations.Manufactured to ISO9001:2008 Standards.

Height: 313/4"(80.65cm) Width:6"(15cm)

BoltCircle:3"(8cm)

Anchor Rods:

Internal (3) 3/8"dia. x 8"long (1cmx20cm)

BaseDiameter: 5"(13cm)

Max. Weight:

Powdercoat: 15 lbs

Product Files

Click for product spec sheeta

Hadco Warranty

Signify North America Corporation (“Signify”) warrants to the original purchaser (“Purchaser”) that the Signify branded outdoor professional luminaires identified on Schedule 1 (“Products”) will be free from defects in material and workmanship which cause the Product to fail to operate in accordance with the performance specifications set forth in documentation published for or provided with the Product (“Specifications”) for the applicable period and subject to the additional terms and conditions set forth on Schedule 1 from the date of purchase (as set forth in the applicable invoice) (“Warranty Period”).
Product Line
Product Line	LED	Non-LED	Special Conditions
Hadco Landscape and Residential	5 Years	3 Years	Landscape Products: Warranty Period for all grade mounted composite luminaires, copper luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast bronze and stainless steel housing. Residential Products: Lifetime warranty offered on the finish to all original Purchasers on residential lighting fixtures and posts.

Hadco Return Terms

Hadco Lighting Returns And Cancellations:

There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.

Returnable Hadco Items

BL5016-HS7

B9DW-H

BL9DW-HS7

IL9DW-A

TSS354-15

Please click here to go to the Returns & Cancellations page for the complete terms.
