Hadco IL9D 12V 9W LED Flex Scape In-ground

Description
Product Files
Hadco Warranty
Hadco Return Terms

Description

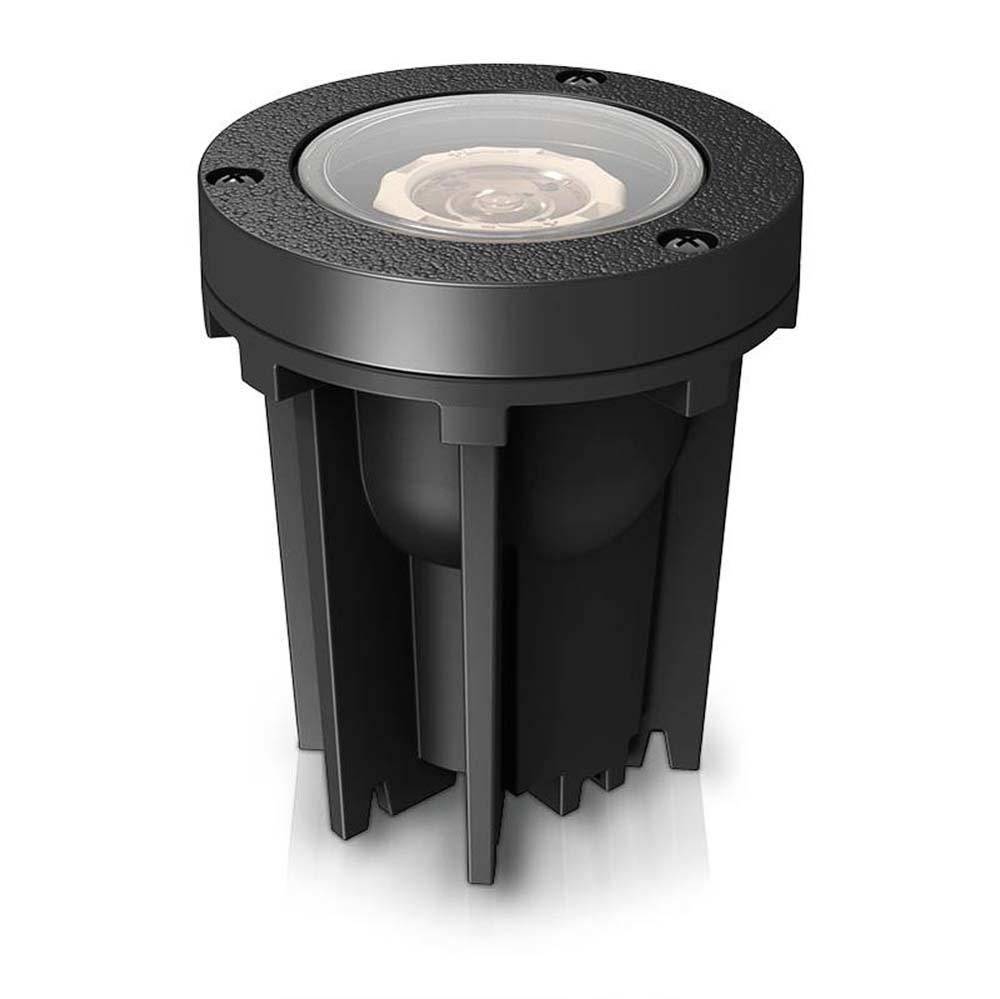

Philips Hadco FlexScape LED inground luminaire IL9 opens new horizons for low-voltage landscape lighting. It is designed for optimal LED performance and superior flexibility. The luminaire creates visual interest for pathways, walls, columns and foliage. Its rugged housing installs directly into the soil. In addition to low-energy outdoor lighting, it features convenient on-site beam adjustability. This allweather luminaire comes with 100% molded silicone gaskets.

Features

Ultimate design flexibility
Ability to change light outputs in the field as needs change
Ensures lasting durability
50,000 hour lifetime
Timeless modern look complements any landscape
Zoomable LED optics
Adjustable light output
Rugged Construction
Effective thermal management
Sleek design

Details

Housing/Construction	Black Injection molded, glass filled polyester, molded-in fins for thermal performance as well as to discourage heaving and twisting after installation. Molded-in brass inserts for repeatable opening / closing. Lens ring secured with three (3) screws that clamp lens and gasket into place, flush for ADA compliance and repeatable sealing.
Electrical	10W (on high setting) Input voltage range (VAC): 10-14. Pre-wired with a 3-ft. pigtail for easy hookup to the low voltage supply cable. Driver housed in injected molded case with electronics encapsulated. 12V class 2 driver with integral switch for 4 preset light levels.
Optical Systems	Low irontempered clear glass, molded gasket slips onto lens without tools or RTV. Zoomable optic / Injection molded acrylic (PMMA) clear, highly polished molded with select surfaces textured. Inter-changeable lens provides Narrow 15a° to Medium 35a° beam pattern depending on the position, Inter-changeable lens provides Wide 60a° flood output. Limited Aiming: Heatsink doubles as an aiming apparatus, providing a range of 30a° (15a° from center both ways). Aiming can be adjusted after easy removal of three screws on lens ring.
Lamping	Integral LED module.

Specifications

IP-Rating: Dust-tight and sealed againstdirect jets of water and against continuous immersion up to a depth of 1 meter
LED Boards: Single Luxeon M LED
Certifications: ETL Listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations.Manufactured toISO 9001:2008 Standards
Warranty: Five-year limited warranty.

Product Files

Click for product spec sheet

Hadco Warranty

Signify North America Corporation (“Signify”) warrants to the original purchaser (“Purchaser”) that the Signify branded outdoor professional luminaires identified on Schedule 1 (“Products”) will be free from defects in material and workmanship which cause the Product to fail to operate in accordance with the performance specifications set forth in documentation published for or provided with the Product (“Specifications”) for the applicable period and subject to the additional terms and conditions set forth on Schedule 1 from the date of purchase (as set forth in the applicable invoice) (“Warranty Period”).
Product Line
Product Line	LED	Non-LED	Special Conditions
Hadco Landscape and Residential	5 Years	3 Years	Landscape Products: Warranty Period for all grade mounted composite luminaires, copper luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast bronze and stainless steel housing. Residential Products: Lifetime warranty offered on the finish to all original Purchasers on residential lighting fixtures and posts.

Hadco Return Terms

Hadco Lighting Returns And Cancellations:

There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.

Returnable Hadco Items

BL5016-HS7

B9DW-H

BL9DW-HS7

IL9DW-A
