Description

Lamp Included

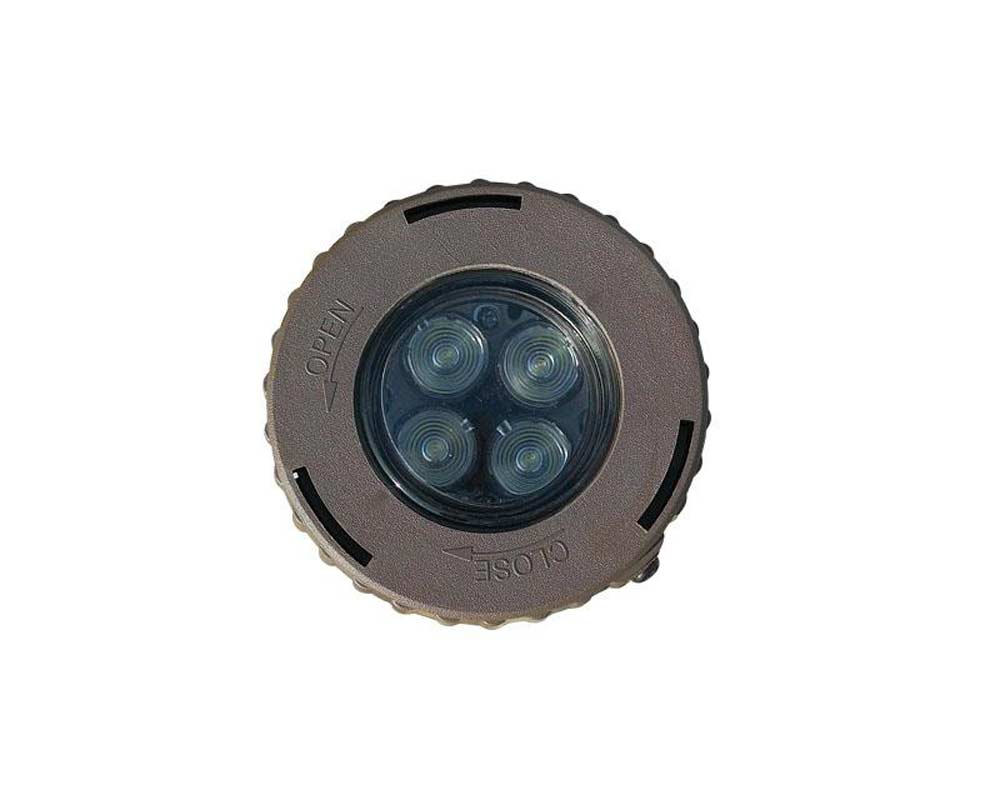

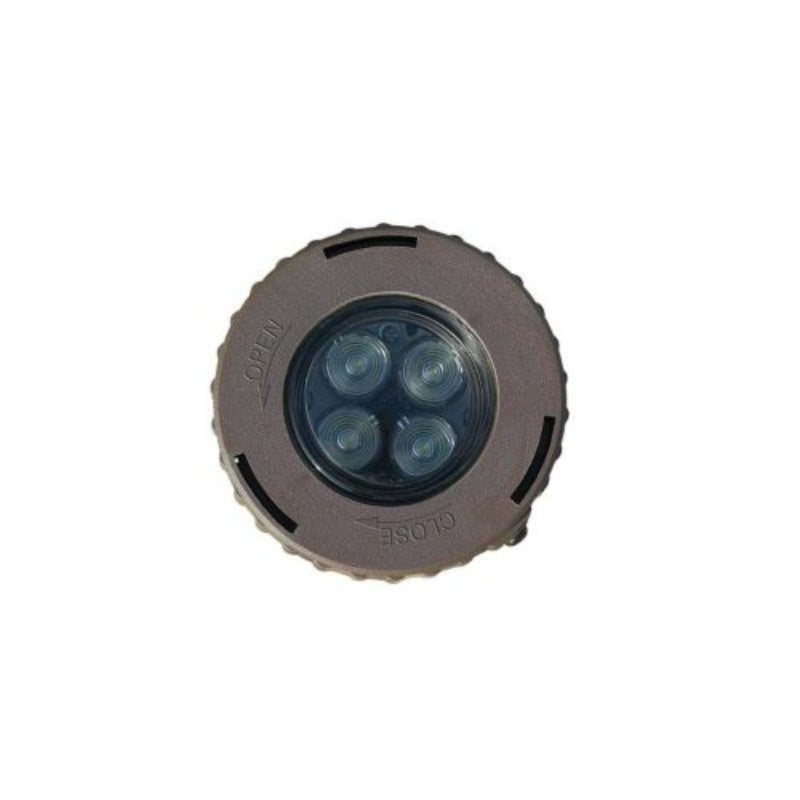

Hadcos IUL516 is a compact low voltage composite landscape luminaire for inground applications. Lamping sources include 35W maximum MR16 bi-pin lamp. Construction includes a one-piece injection molded ULTEMa® High Performance Polymer composite body with a single piece injected lens ring and gasketed lens. Twist-off operation for ease of maintenance.

Features

Specifications

Housing: One-piece injection molded ULTEM High Performance Polymer composite. Lens ring is a Single-piece injection molded ULTEM High Performance Polymer with gasketed lens. Twist-off operation for ease of maintenance.
Height: 4.37 Inch
Width: 4.12 Inch
Max. Weight:1.24 lb
Electrical Assembly: Bi-pin socket type (GU5.3) with 250 C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a°C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
Certifications: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
Lamping for Non LED: 35W maximum MR16 bi-pin lamp. Lower wattage lamps are acceptable. Covered MR16 are recommended to protect lamps inner capsule.
Lamping for LED: 7W lamp with 25a° or 35a° beam spread, 25,000 hours life. Color temperature (CCT): Warm White (3,000K nominal). No Mercury. Dimmable. Approximately 460 lumens.
Optical Assembly: Clear convex, tempered glass furnished with silicone O-ring for watertight seal.
Warranty: Ten-year limited warranty

Product Files

Click for Non LED spec sheet

Click for LED spec sheet

Hadco Warranty

Signify North America Corporation (“Signify”) warrants to the original purchaser (“Purchaser”) that the Signify branded outdoor professional luminaires identified on Schedule 1 (“Products”) will be free from defects in material and workmanship which cause the Product to fail to operate in accordance with the performance specifications set forth in documentation published for or provided with the Product (“Specifications”) for the applicable period and subject to the additional terms and conditions set forth on Schedule 1 from the date of purchase (as set forth in the applicable invoice) (“Warranty Period”).
Product Line
Product Line	LED	Non-LED	Special Conditions
Hadco Landscape and Residential	5 Years	3 Years	Landscape Products: Warranty Period for all grade mounted composite luminaires, copper luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast bronze and stainless steel housing. Residential Products: Lifetime warranty offered on the finish to all original Purchasers on residential lighting fixtures and posts.

Hadco Return Terms

Hadco Lighting Returns And Cancellations:

There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.

Returnable Hadco Items

BL5016-HS7

B9DW-H

BL9DW-HS7

IL9DW-A

TSS354-15

Please click here to go to the Returns & Cancellations page for the complete terms.
