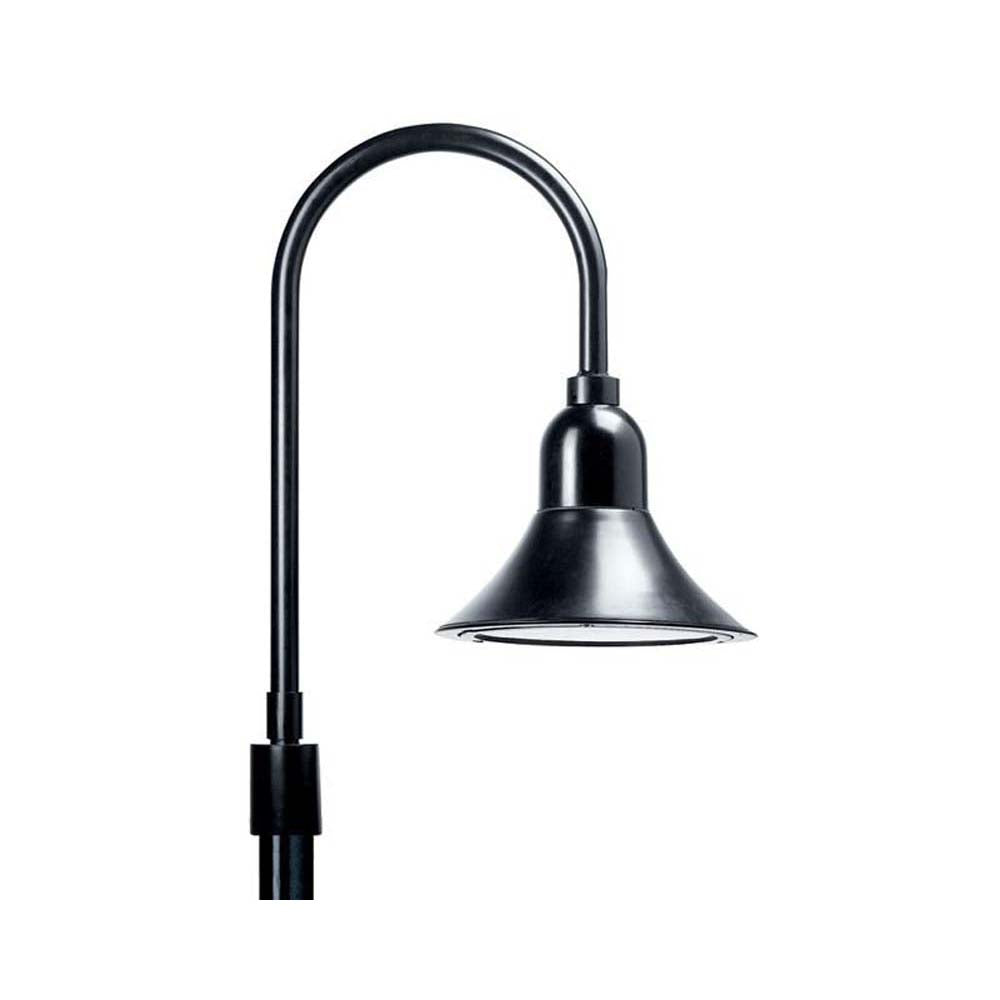

Hadco Urban Swan LED Pendant Comfort (CXF4C)

Hadco UrbanSKU: HADCO-CXF4C

Price:
Sale price$0.00 USD

Description

Hadco Urban Swan LED Pendant Comfort (CXF4C)

Product Family Details

The Hadco Swan pendant family offers a simple modern take on the traditional pendant lantern, providing style and elegance to downtown areas, commercial developments, parks and residential communities. These pendants are now available with comfort optics,providing a low glare, comfortable solution.

Benefits

  • Comfort optics provide low glare solution to improve visual comfort
  • Offers a variety of optical distributions suitable for several applications
  • Ensures lasting durability and reliability
  • Significant energy savings over HID
  • Dimming controls available for additional energy savings during off-peak hours

Features

  • Comfort optics reduce glare
  • Multiple lumen packages
  • Side arm, top arm and wall mounting options available
  • Cast aluminum housing
  • IP66 rated optical chamber and LED driver

Applications

  • Road and Streets
  • Bridges, Monuments, Facades
Product Name SKU Watts Lumens Kelvin
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 1, 3000K - 106.19 lm/W CXF4C-140-G1-1-730-4 21.2 2230
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 1, 3000K - 104 lm/W CXF4C-140-G1-1-730-6 30.4 3120
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 1, 3000K - 102.1 lm/W CXF4C-140-G1-1-730-11 52.2 5309
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 1, 3000K - 97.23 lm/W CXF4C-140-G1-1-730-16 75 7292
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 1, 3000K - 94.12 lm/W CXF4C-140-G1-1-730-21 94 8847
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 2, 3000K - 106 lm/W CXF4C-140-G1-2-730-4 21.2 2226
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 2, 3000K - 96.87 lm/W CXF4C-140-G1-2-730-6 30.4 2906
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 2, 3000K - 95.12 lm/W CXF4C-140-G1-2-730-11 52.2 4946
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 2, 3000K - 90.56 lm/W CXF4C-140-G1-2-730-16 75 6792
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 2, 3000K - 87.68 lm/W CXF4C-140-G1-2-730-21 94 8242
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 3, 3000K - 108.81 lm/W CXF4C-140-G1-3-730-4 21.2 2285
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 3, 3000K - 99.43 lm/W CXF4C-140-G1-3-730-6 30.4 2983
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 3, 3000K - 97.63 lm/W CXF4C-140-G1-3-730-11 52.2 5077
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 3, 3000K - 92.96 lm/W CXF4C-140-G1-3-730-16 75 6972
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 3, 3000K - 90 lm/W CXF4C-140-G1-3-730-21 94 8460
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 4, 3000K - 117.48 lm/W CXF4C-140-G1-4-730-4 21.2 2467
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 4, 3000K - 107.37 lm/W CXF4C-140-G1-4-730-6 30.4 3221
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 4, 3000K - 105.4 lm/W CXF4C-140-G1-4-730-11 52.2 5481
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 4, 3000K - 100.37 lm/W CXF4C-140-G1-4-730-16 75 7528
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 4, 3000K - 97.17 lm/W CXF4C-140-G1-4-730-21 94 9134
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 5, 3000K - 106.81 lm/W CXF4C-140-G1-5-730-4 21.2 2243
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 5, 3000K - 104.6 lm/W CXF4C-140-G1-5-730-6 30.4 3138
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 5, 3000K - 102.69 lm/W CXF4C-140-G1-5-730-11 52.2 5340
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 5, 3000K - 97.79 lm/W CXF4C-140-G1-5-730-16 75 7334
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 5, 3000K - 94.67 lm/W CXF4C-140-G1-5-730-21 94 8899
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 1, 4000K - 106.19 lm/W CXF4C-140-G1-1-740-4 21.2 2230
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 1, 4000K - 104 lm/W CXF4C-140-G1-1-740-6 30.4 3120
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 1, 4000K - 102.1 lm/W CXF4C-140-G1-1-740-11 52.2 5309
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 1, 4000K - 97.23 lm/W CXF4C-140-G1-1-740-16 75 7292
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 1, 4000K - 94.12 lm/W CXF4C-140-G1-1-740-21 94 8847
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 2, 4000K - 106 lm/W CXF4C-140-G1-2-740-4 21.2 2226
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 2, 4000K - 96.87 lm/W CXF4C-140-G1-2-740-6 30.4 2906
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 2, 4000K - 95.12 lm/W CXF4C-140-G1-2-740-11 52.2 4946
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 2, 4000K - 90.56 lm/W CXF4C-140-G1-2-740-16 75 6792
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 2, 4000K - 87.68 lm/W CXF4C-140-G1-2-740-21 94 8242
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 3, 4000K - 108.81 lm/W CXF4C-140-G1-3-740-4 21.2 2285
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 3, 4000K - 99.43 lm/W CXF4C-140-G1-3-740-6 30.4 2983
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 3, 4000K - 97.63 lm/W CXF4C-140-G1-3-740-11 52.2 5077
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 3, 4000K - 92.96 lm/W CXF4C-140-G1-3-740-16 75 6972
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 3, 4000K - 90 lm/W CXF4C-140-G1-3-740-21 94 8460
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 4, 4000K - 117.48 lm/W CXF4C-140-G1-4-740-4 21.2 2467
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 4, 4000K - 107.37 lm/W CXF4C-140-G1-4-740-6 30.4 3221
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 4, 4000K - 105.4 lm/W CXF4C-140-G1-4-740-11 52.2 5481
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 4, 4000K - 100.37 lm/W CXF4C-140-G1-4-740-16 75 7528
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 4, 4000K - 97.17 lm/W CXF4C-140-G1-4-740-21 94 9134
Swan LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 5, 4000K - 106.81 lm/W CXF4C-140-G1-5-740-4 21.2 2243
Swan LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 5, 4000K - 104.6 lm/W CXF4C-140-G1-5-740-6 30.4 3138
Swan LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 5, 4000K - 102.69 lm/W CXF4C-140-G1-5-740-11 52.2 5340
Swan LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 5, 4000K - 97.79 lm/W CXF4C-140-G1-5-740-16 75 7334
Swan LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 5, 4000K - 94.67 lm/W CXF4C-140-G1-5-740-21 94 8899

Hadco Urban Optic Types

Hadco Lighting Returns And Cancellations:

There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.

Returnable Hadco Items
BL5016-HS7
B9DW-H
BL9DW-HS7
IL9DW-A

TSS354-15

Please click here to go to the Returns & Cancellations page for the complete terms.

  • March 2024 - Most of Hadco HID items have been delisted or upgraded to LED.

Signify North America Corporation (“Signify”) warrants to the original purchaser (“Purchaser”) that the Signify branded outdoor professional luminaires identified on Schedule 1 (“Products”) will be free from defects in material and workmanship which cause the Product to fail to operate in accordance with the performance specifications set forth in documentation published for or provided with the Product (“Specifications”) for the applicable period and subject to the additional terms and conditions set forth on Schedule 1 from the date of purchase (as set forth in the applicable invoice) (“Warranty Period”)

Unless otherwise noted on Schedule 1, Signify warrants that any standard finish on a Product will be free of cracking, peeling, excessive fading, and corrosion defects during the applicable Warranty Period. To the extent that an authorized Signify distributor is the Purchaser of the Products, such distributor may transfer this limited warranty to subsequent purchasers of the Products, provided that such Products are resold in new condition and in their original packaging. For LED Products, the Product shall be considered defective only if 10% or more of the LED components fail for such Product.

Photocells (standard issue NEMA and button type), occupancy sensors, low voltage indicators, fuses, surge suppressors and other third party accessories that are not manufactured by Signify are excluded from this warranty, but may be covered by a third party manufacturer. Such third party manufacturer shall be solely responsible for the costs related to any claims associated with any such accessories. Extended life photocells carry a 10-year limited warranty from the third party manufacturer. Emergency battery packs and polycarbonate lenses (used on vandal resistant products or as vandal resistant covers or options) have a Warranty Period of 1 year. If any Product covered by this limited warranty is returned by Purchaser in accordance with Signify Terms and Conditions of Sale (available at www.Signify.com/warranties) within the Warranty Period, and Signify determines to its satisfaction that such Product failed to satisfy this warranty, Signify will, at its option, repair or replace the Product or the defective part thereof, or reimburse Purchaser for the purchase price, subject to the terms and conditions set forth herein. For purposes of clarity, "repair or replace the Product or the defective part thereof" does not include any removal or reinstallation costs or expenses, including, without limitation, any labor costs or expenses, shipping costs to return non-conforming Products or any damages that may occur during the return of Product to Signify. If Signify chooses to replace the Product and is not able to do so because it has been discontinued or is not available, Signify may replace it with a comparable product. Signify reserves the right to use new, reconditioned, refurbished, repaired or remanufactured products or parts in the repair or replacement of any Product covered by this limited warranty.

This limited warranty is subject to these additional conditions: • The Products have been properly handled, stored, wired, transported, installed, operated and maintained in accordance with the applicable Specifications. • A Signify representative will have access to the failed Products and the fixtures used to operate them. If the fixture or other parts become suspect, the representative shall have the right to invite other manufacturers’ representatives to evaluate the lighting system components. • The Product has been purchased directly from an authorized Signify distributor/dealer for use in regions that are within the jurisdiction of the United States or Canada. • Purchase receipt for the Product is available for inspection by Signify. This limited warranty does not apply to damage or failure to perform arising as a result of any acts of God or from any abuse, misuse, abnormal use, improper power supply, powers surges or fluctuations, corrosive environments, neglect, exposure or any use or installation in violation of the instructions or restrictions prescribed by Signify or any applicable standard or code, including those contained in the latest National Electrical Code, Standards for Safety of Underwriters Laboratory, Inc. (UL), the American National Standards Institute (ANSI), or, in Canada, the Canadian Standards Association (CSA).

LED: 5 years

Non LED: 1 year

Standard finishes: 5 year warranty on finish for LED products and 1 year warranty on all other products. Custom finishes: 1 year warranty on finish.

Poles & Brackets**

Aluminum: 5 Years

Steel: 3 years

Special Conditions: Custom finishes: 1 year warranty (unless otherwise noted). Anodized finishes: Are not warranted with regard to finish consistency and color uniformity due to the inherent nature of the anodizing process. Buy American: For Poles & Brackets coded with the "BAC" suffix, consult factory for warranty details
