Description

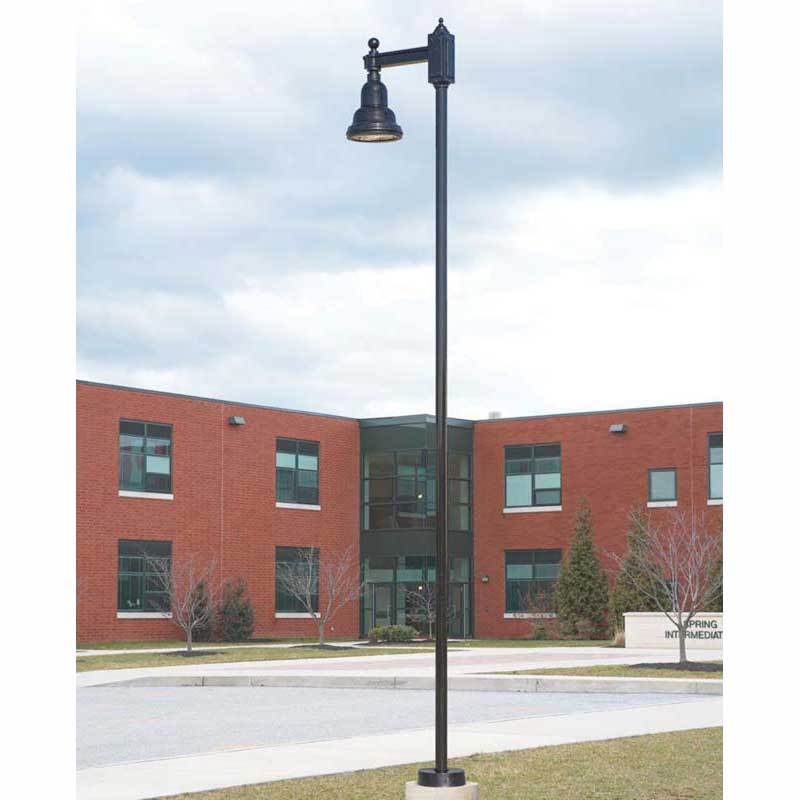

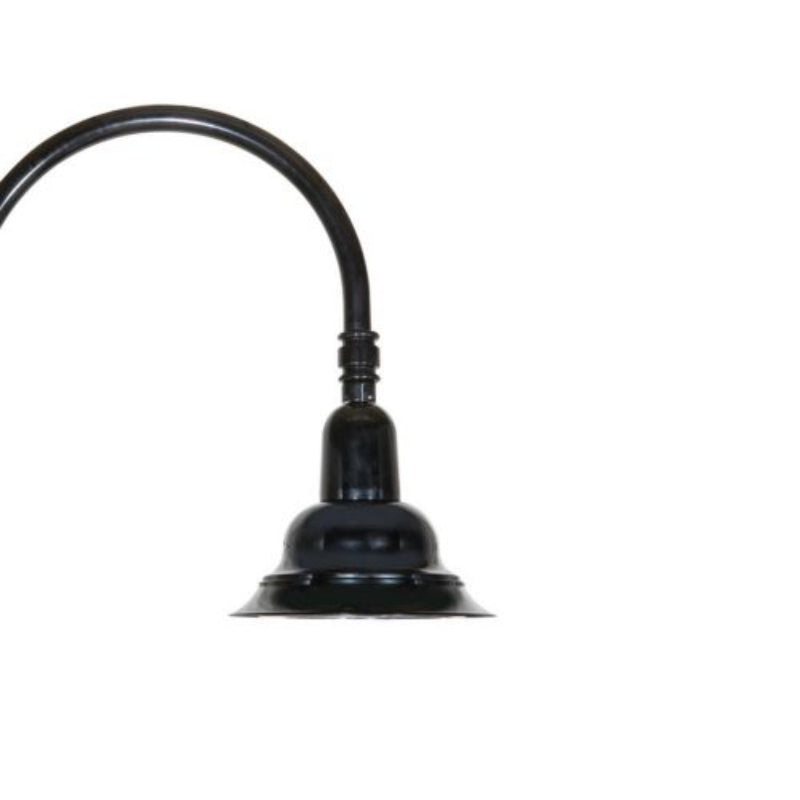

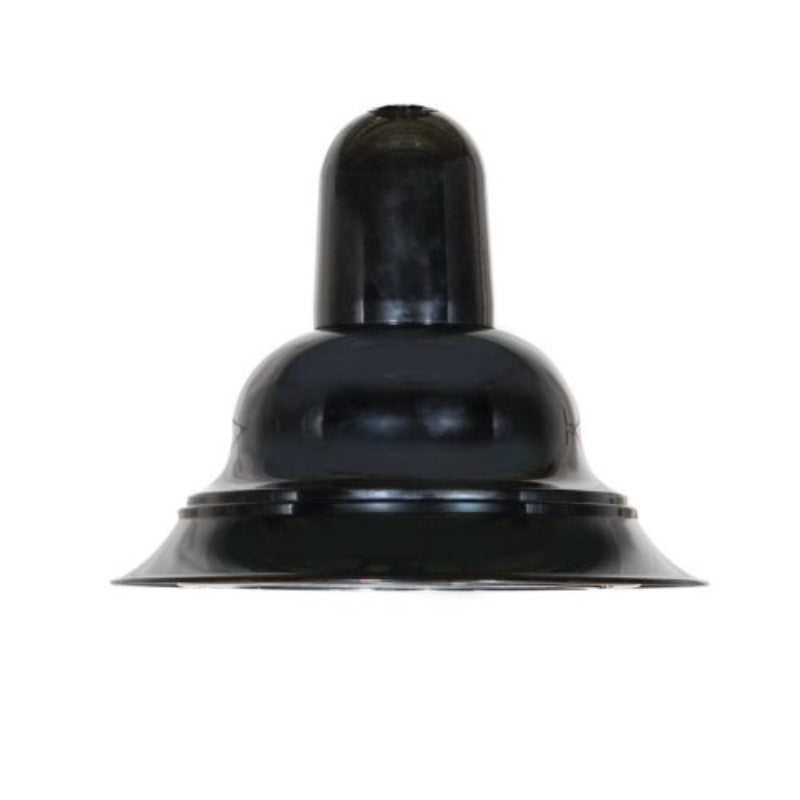

Hadco Urban Westbrooke LED pendant (CXF15) Post Light
Product Family Details
The Hadco Westbrook pendant luminaires offer a simple and modern look but still traditional, providing style and performance to work in several urban applications including residential streets, city streets, campuses, parking lots and retail centers. These pendants use the latest LED technology which maximizes energy savings and provides uniform and comfortable light. The Swan is a great solution for new installations or replacing a variety of HID sources.
Benefits
- Multiple distribution options and lumen packages suitable for several applications
- Maximizes energy savings to minimize total cost of ownership
- Significant energy savings over HID
- Dimming controls available for additional energy savings during off-peak hours
Features
- Multiple lumen packages

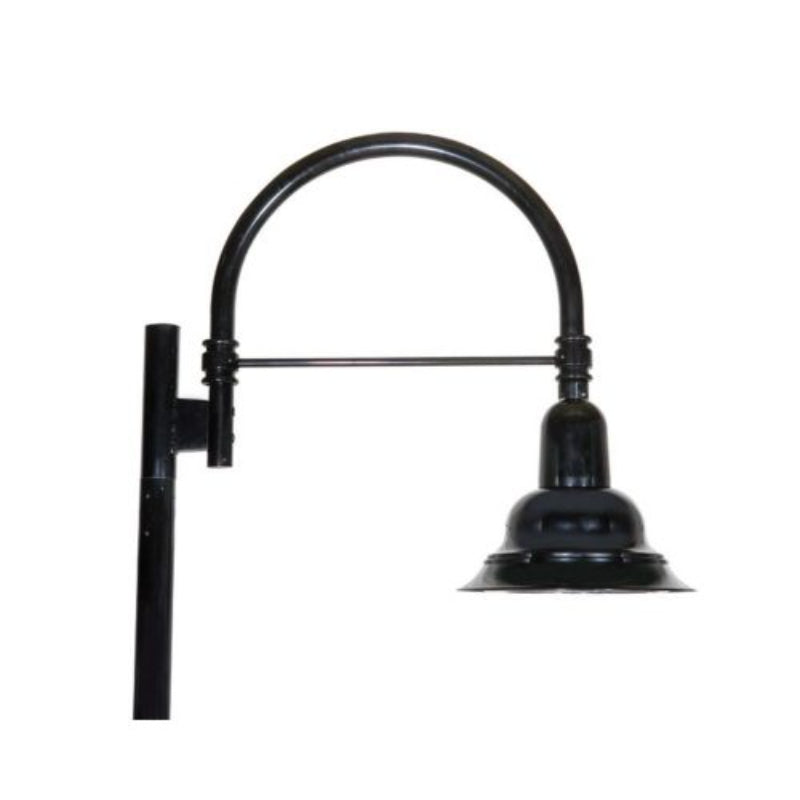

- Top arm mounting options available
- Cast aluminum housing
- IP66 rated optical chamber and LED driver
Applications
- Road and Street
| Product Name | SKU | Watts | Lumens | Kelvin |
|---|---|---|---|---|
| Pendant, 32 LED, Type II, Flat Glass - 117 lm/W | CXF1532-G2-2N3-16 | 35 | 4134 | 4000 |
| Pendant, 32 LED, Type III, Flat Glass - 114 lm/W | CXF1532-G2-3N3-16 | 35 | 4012 | 4000 |
| Pendant, 32 LED, Type IV, Flat Glass - 111 lm/W | CXF1532-G2-4N3-16 | 35 | 3913 | 4000 |
| Pendant, 32 LED, Type V, Flat Glass - 108 lm/W | CXF1532-G2-5N3-16 | 35 | 3803 | 4000 |
| Pendant, 32 LED, Type II, Flat Glass - 114 lm/W | CXF1532-G2-2N5-16 | 51 | 5850 | 4000 |
| Pendant, 32 LED, Type II, Flat Glass - 109 lm/W | CXF1532-G2-2N7-16 | 71 | 7671 | 4000 |
| Pendant, 32 LED, Type III, Flat Glass - 111 lm/W | CXF1532-G2-3N5-16 | 51 | 5678 | 4000 |
| Pendant, 32 LED, Type III, Flat Glass - 106 lm/W | CXF1532-G2-3N7-16 | 71 | 7445 | 4000 |
| Pendant, 32 LED, Type IV, Flat Glass - 108 lm/W | CXF1532-G2-4N5-16 | 51 | 5537 | 4000 |
| Pendant, 32 LED, Type IV, Flat Glass - 103 lm/W | CXF1532-G2-4N7-16 | 71 | 7260 | 4000 |
| Pendant, 32 LED, Type V, Flat Glass - 105 lm/W | CXF1532-G2-5N5-16 | 51 | 5381 | 4000 |
| Pendant, 32 LED, Type V, Flat Glass - 100 lm/W | CXF1532-G2-5N7-16 | 71 | 7055 | 4000 |
| Pendant, 48 LED, Type II, Flat Glass - 116 lm/W | CXF1548-G2-2N3-16 | 52 | 5994 | 4000 |
| Pendant, 48 LED, Type II, Flat Glass - 113 lm/W | CXF1548-G2-2N5-16 | 75 | 8483 | 4000 |
| Pendant, 48 LED, Type II, Flat Glass - 107 lm/W | CXF1548-G2-2N7-16 | 103 | 11122 | 4000 |
| Pendant, 48 LED, Type III, Flat Glass - 112 lm/W | CXF1548-G2-3N3-16 | 52 | 5818 | 4000 |
| Pendant, 48 LED, Type III, Flat Glass - 109 lm/W | CXF1548-G2-3N5-16 | 75 | 8232 | 4000 |
| Pendant, 48 LED, Type III, Flat Glass - 104 lm/W | CXF1548-G2-3N7-16 | 103 | 10794 | 4000 |
| Pendant, 48 LED, Type IV, Flat Glass - 109 lm/W | CXF1548-G2-4N3-16 | 52 | 5673 | 4000 |
| Pendant, 48 LED, Type IV, Flat Glass - 107 lm/W | CXF1548-G2-4N5-16 | 75 | 8028 | 4000 |
| Pendant, 48 LED, Type IV, Flat Glass - 101 lm/W | CXF1548-G2-4N7-16 | 103 | 10526 | 4000 |
| Pendant, 48 LED, Type V, Flat Glass - 106 lm/W | CXF1548-G2-5N3-16 | 52 | 5514 | 4000 |
| Pendant, 48 LED, Type V, Flat Glass - 103 lm/W | CXF1548-G2-5N5-16 | 75 | 7802 | 4000 |
| Pendant, 48 LED, Type V, Flat Glass - 99 lm/W | CXF1548-G2-5N7-16 | 103 | 10230 | 4000 |
| Pendant, 64 LED, Type II, Flat Glass - 111 lm/W | CXF1564-G2-2N3-16 | 68 | 7602 | 4000 |
| Pendant, 64 LED, Type II, Flat Glass - 108 lm/W | CXF1564-G2-2N5-16 | 99 | 10758 | 4000 |
| Pendant, 64 LED, Type II, Flat Glass - 103 lm/W | CXF1564-G2-2N7-16 | 137 | 14106 | 4000 |
| Pendant, 64 LED, Type III, Flat Glass - 108 lm/W | CXF1564-G2-3N3-16 | 68 | 7378 | 4000 |
| Pendant, 64 LED, Type III, Flat Glass - 105 lm/W | CXF1564-G2-3N5-16 | 99 | 10441 | 4000 |
| Pendant, 64 LED, Type III, Flat Glass - 100 lm/W | CXF1564-G2-3N7-16 | 137 | 13690 | 4000 |
| Pendant, 64 LED, Type IV, Flat Glass - 105 lm/W | CXF1564-G2-4N3-16 | 68 | 7195 | 4000 |
| Pendant, 64 LED, Type IV, Flat Glass - 102 lm/W | CXF1564-G2-4N5-16 | 99 | 10182 | 4000 |
| Pendant, 64 LED, Type IV, Flat Glass - 97 lm/W | CXF1564-G2-4N7-16 | 137 | 13350 | 4000 |
| Pendant, 64 LED, Type V, Flat Glass - 102 lm/W | CXF1564-G2-5N3-16 | 68 | 6993 | 4000 |
| Pendant, 64 LED, Type V, Flat Glass - 99 lm/W | CXF1564-G2-5N5-16 | 99 | 9895 | 4000 |
| Pendant, 64 LED, Type V, Flat Glass - 95 lm/W | CXF1564-G2-5N7-16 | 137 | 12974 | 4000 |
| Pendant, 80 LED, Type II, Flat Glass - 117 lm/W | CXF1580-G2-2N3-16 | 87 | 10214 | 4000 |
| Pendant, 80 LED, Type II, Flat Glass - 114 lm/W | CXF1580-G2-2N5-16 | 127 | 14453 | 4000 |
| Pendant, 80 LED, Type III, Flat Glass - 113 lm/W | CXF1580-G2-3N3-16 | 87 | 9913 | 4000 |
| Pendant, 80 LED, Type III, Flat Glass - 110 lm/W | CXF1580-G2-3N5-16 | 127 | 14027 | 4000 |
| Pendant, 80 LED, Type IV, Flat Glass - 110 lm/W | CXF1580-G2-4N3-16 | 87 | 9667 | 4000 |
| Pendant, 80 LED, Type IV, Flat Glass - 107 lm/W | CXF1580-G2-4N5-16 | 127 | 13679 | 4000 |
| Pendant, 80 LED, Type V, Flat Glass - 107 lm/W | CXF1580-G2-5N3-16 | 87 | 9394 | 4000 |
| Pendant, 80 LED, Type V, Flat Glass - 104 lm/W | CXF1580-G2-5N5-16 | 127 | 13294 | 4000 |
| Pendant, 32 LED, Type II, Flat Glass - 94 lm/W | CXF1532-G2-2N3-H-16 | 35 | 3337 | 4000 |
| Pendant, 32 LED, Type II, Flat Glass - 92 lm/W | CXF1532-G2-2N5-H-16 | 51 | 4722 | 4000 |
| Pendant, 32 LED, Type II, Flat Glass - 87 lm/W | CXF1532-G2-2N7-H-16 | 71 | 6191 | 4000 |
| Pendant, 32 LED, Type III, Flat Glass - 94 lm/W | CXF1532-G2-3N3-H-16 | 35 | 3319 | 4000 |
| Pendant, 32 LED, Type III, Flat Glass - 91 lm/W | CXF1532-G2-3N5-H-16 | 51 | 4697 | 4000 |
| Pendant, 32 LED, Type III, Flat Glass - 87 lm/W | CXF1532-G2-3N7-H-16 | 71 | 6158 | 4000 |
| Pendant, 32 LED, Type IV, Flat Glass - 91 lm/W | CXF1532-G2-4N3-H-16 | 35 | 3205 | 4000 |
| Pendant, 32 LED, Type IV, Flat Glass - 88 lm/W | CXF1532-G2-4N5-H-16 | 51 | 4536 | 4000 |
| Pendant, 32 LED, Type IV, Flat Glass - 84 lm/W | CXF1532-G2-4N7-H-16 | 71 | 5947 | 4000 |
| Pendant, 48 LED, Type II, Flat Glass - 93 lm/W | CXF1548-G2-2N3-H-16 | 52 | 4838 | 4000 |
| Pendant, 48 LED, Type II, Flat Glass - 91 lm/W | CXF1548-G2-2N5-H-16 | 75 | 6846 | 4000 |
| Pendant, 48 LED, Type II, Flat Glass - 86 lm/W | CXF1548-G2-2N7-H-16 | 103 | 8977 | 4000 |
| Pendant, 48 LED, Type III, Flat Glass - 93 lm/W | CXF1548-G2-3N3-H-16 | 52 | 4812 | 4000 |
| Pendant, 48 LED, Type III, Flat Glass - 90 lm/W | CXF1548-G2-3N5-H-16 | 75 | 6810 | 4000 |
| Pendant, 48 LED, Type III, Flat Glass - 86 lm/W | CXF1548-G2-3N7-H-16 | 103 | 8929 | 4000 |
| Pendant, 48 LED, Type IV, Flat Glass - 90 lm/W | CXF1548-G2-4N3-H-16 | 52 | 4648 | 4000 |
| Pendant, 48 LED, Type IV, Flat Glass - 87 lm/W | CXF1548-G2-4N5-H-16 | 75 | 6577 | 4000 |
| Pendant, 48 LED, Type IV, Flat Glass - 83 lm/W | CXF1548-G2-4N7-H-16 | 103 | 8623 | 4000 |
| Pendant, 64 LED, Type II, Flat Glass - 90 lm/W | CXF1564-G2-2N3-H-16 | 68 | 6136 | 4000 |
| Pendant, 64 LED, Type II, Flat Glass - 87 lm/W | CXF1564-G2-2N5-H-16 | 99 | 8683 | 4000 |
| Pendant, 64 LED, Type II, Flat Glass - 83 lm/W | CXF1564-G2-2N7-H-16 | 137 | 11385 | 4000 |
| Pendant, 64 LED, Type III, Flat Glass - 89 lm/W | CXF1564-G2-3N3-H-16 | 68 | 6103 | 4000 |
| Pendant, 64 LED, Type III, Flat Glass - 87 lm/W | CXF1564-G2-3N5-H-16 | 99 | 8637 | 4000 |
| Pendant, 64 LED, Type III, Flat Glass - 82 lm/W | CXF1564-G2-3N7-H-16 | 137 | 11324 | 4000 |
| Pendant, 64 LED, Type IV, Flat Glass - 86 lm/W | CXF1564-G2-4N3-H-16 | 68 | 5894 | 4000 |
| Pendant, 64 LED, Type IV, Flat Glass - 84 lm/W | CXF1564-G2-4N5-H-16 | 99 | 8341 | 4000 |
| Pendant, 64 LED, Type IV, Flat Glass - 80 lm/W | CXF1564-G2-4N7-H-16 | 137 | 10937 | 4000 |
| Pendant, 80 LED, Type II, Flat Glass - 94 lm/W | CXF1580-G2-2N3-H-16 | 87 | 8243 | 4000 |
| Pendant, 80 LED, Type II, Flat Glass - 92 lm/W | CXF1580-G2-2N5-H-16 | 127 | 11665 | 4000 |
| Pendant, 80 LED, Type III, Flat Glass - 94 lm/W | CXF1580-G2-3N3-H-16 | 87 | 8200 | 4000 |
| Pendant, 80 LED, Type III, Flat Glass - 91 lm/W | CXF1580-G2-3N5-H-16 | 127 | 11603 | 4000 |
| Pendant, 80 LED, Type IV, Flat Glass - 90 lm/W | CXF1580-G2-4N3-H-16 | 87 | 7919 | 4000 |
| Pendant, 80 LED, Type IV, Flat Glass - 88 lm/W | CXF1580-G2-4N5-H-16 | 127 | 11206 | 4000 |
| Pendant, 32 LED, Type II, Flat Glass - 102 lm/W | CXF1532-G2-2W3-16 | 35 | 3618 | 3000 |
| Pendant, 32 LED, Type II, Flat Glass - 99 lm/W | CXF1532-G2-2W5-16 | 51 | 5119 | 3000 |
| Pendant, 32 LED, Type II, Flat Glass - 95 lm/W | CXF1532-G2-2W7-16 | 71 | 6712 | 3000 |
| Pendant, 32 LED, Type III, Flat Glass - 99 lm/W | CXF1532-G2-3W3-16 | 35 | 3511 | 3000 |
| Pendant, 32 LED, Type III, Flat Glass - 97 lm/W | CXF1532-G2-3W5-16 | 51 | 4968 | 3000 |
| Pendant, 32 LED, Type III, Flat Glass - 92 lm/W | CXF1532-G2-3W7-16 | 71 | 6514 | 3000 |
| Pendant, 32 LED, Type IV, Flat Glass - 97 lm/W | CXF1532-G2-4W3-16 | 35 | 3424 | 3000 |
| Pendant, 32 LED, Type IV, Flat Glass - 94 lm/W | CXF1532-G2-4W5-16 | 51 | 4845 | 3000 |
| Pendant, 32 LED, Type IV, Flat Glass - 90 lm/W | CXF1532-G2-4W7-16 | 71 | 6352 | 3000 |
| Pendant, 32 LED, Type V, Flat Glass - 96 lm/W | CXF1532-G2-5W3-16 | 35 | 3395 | 3000 |
| Pendant, 32 LED, Type V, Flat Glass - 91 lm/W | CXF1532-G2-5W5-16 | 51 | 4708 | 3000 |
| Pendant, 32 LED, Type V, Flat Glass - 87 lm/W | CXF1532-G2-5W7-16 | 71 | 6176 | 3000 |
| Pendant, 48 LED, Type II, Flat Glass - 101 lm/W | CXF1548-G2-2W3-16 | 52 | 5245 | 3000 |
| Pendant, 48 LED, Type II, Flat Glass - 98 lm/W | CXF1548-G2-2W5-16 | 75 | 7422 | 3000 |
| Pendant, 48 LED, Type II, Flat Glass - 94 lm/W | CXF1548-G2-2W7-16 | 103 | 9732 | 3000 |
| Pendant, 48 LED, Type III, Flat Glass - 98 lm/W | CXF1548-G2-3W3-16 | 52 | 5090 | 3000 |
| Pendant, 48 LED, Type III, Flat Glass - 96 lm/W | CXF1548-G2-3W5-16 | 75 | 7203 | 3000 |
| Pendant, 48 LED, Type III, Flat Glass - 91 lm/W | CXF1548-G2-3W7-16 | 103 | 9445 | 3000 |
| Pendant, 48 LED, Type IV, Flat Glass - 96 lm/W | CXF1548-G2-4W3-16 | 52 | 4964 | 3000 |
| Pendant, 48 LED, Type IV, Flat Glass - 93 lm/W | CXF1548-G2-4W5-16 | 75 | 7025 | 3000 |
| Pendant, 48 LED, Type IV, Flat Glass - 89 lm/W | CXF1548-G2-4W7-16 | 103 | 9210 | 3000 |
| Pendant, 48 LED, Type V, Flat Glass - 93 lm/W | CXF1548-G2-5W3-16 | 52 | 4824 | 3000 |
| Pendant, 48 LED, Type V, Flat Glass - 91 lm/W | CXF1548-G2-5W5-16 | 75 | 6827 | 3000 |
| Pendant, 48 LED, Type V, Flat Glass - 86 lm/W | CXF1548-G2-5W7-16 | 103 | 8951 | 3000 |
| Pendant, 64 LED, Type II, Flat Glass - 97 lm/W | CXF1564-G2-2W3-16 | 68 | 6652 | 3000 |
| Pendant, 64 LED, Type II, Flat Glass - 94 lm/W | CXF1564-G2-2W5-16 | 99 | 9413 | 3000 |
| Pendant, 64 LED, Type II, Flat Glass - 90 lm/W | CXF1564-G2-2W7-16 | 137 | 12342 | 3000 |
| Pendant, 64 LED, Type III, Flat Glass - 94 lm/W | CXF1564-G2-3W3-16 | 68 | 6456 | 3000 |
| Pendant, 64 LED, Type III, Flat Glass - 92 lm/W | CXF1564-G2-3W5-16 | 99 | 9136 | 3000 |
| Pendant, 64 LED, Type III, Flat Glass - 87 lm/W | CXF1564-G2-3W7-16 | 137 | 11978 | 3000 |
| Pendant, 64 LED, Type IV, Flat Glass - 92 lm/W | CXF1564-G2-4W3-16 | 68 | 6296 | 3000 |
| Pendant, 64 LED, Type IV, Flat Glass - 89 lm/W | CXF1564-G2-4W5-16 | 99 | 8909 | 3000 |
| Pendant, 64 LED, Type IV, Flat Glass - 85 lm/W | CXF1564-G2-4W7-16 | 137 | 11681 | 3000 |
| Pendant, 64 LED, Type V, Flat Glass - 89 lm/W | CXF1564-G2-5W3-16 | 68 | 6118 | 3000 |
| Pendant, 64 LED, Type V, Flat Glass - 87 lm/W | CXF1564-G2-5W5-16 | 99 | 8658 | 3000 |
| Pendant, 64 LED, Type V, Flat Glass - 83 lm/W | CXF1564-G2-5W7-16 | 137 | 11352 | 3000 |
| Pendant, 80 LED, Type II, Flat Glass - 103 lm/W | CXF1580-G2-2W3-16 | 87 | 8937 | 3000 |
| Pendant, 80 LED, Type II, Flat Glass - 100 lm/W | CXF1580-G2-2W5-16 | 127 | 12647 | 3000 |
| Pendant, 80 LED, Type III, Flat Glass - 100 lm/W | CXF1580-G2-3W3-16 | 87 | 8673 | 3000 |
| Pendant, 80 LED, Type III, Flat Glass - 97 lm/W | CXF1580-G2-3W5-16 | 127 | 12274 | 3000 |
| Pendant, 80 LED, Type IV, Flat Glass - 97 lm/W | CXF1580-G2-4W3-16 | 87 | 8458 | 3000 |
| Pendant, 80 LED, Type IV, Flat Glass - 94 lm/W | CXF1580-G2-4W5-16 | 127 | 11969 | 3000 |
| Pendant, 80 LED, Type V, Flat Glass - 94 lm/W | CXF1580-G2-5W3-16 | 87 | 8220 | 3000 |
| Pendant, 80 LED, Type V, Flat Glass - 92 lm/W | CXF1580-G2-5W5-16 | 127 | 11632 | 3000 |
| Pendant, 32 LED, Type II, Flat Glass - 82 lm/W | CXF1532-G2-2W3-H-16 | 35 | 2920 | 3000 |
| Pendant, 32 LED, Type II, Flat Glass - 80 lm/W | CXF1532-G2-2W5-H-16 | 51 | 4132 | 3000 |
| Pendant, 32 LED, Type II, Flat Glass - 76 lm/W | CXF1532-G2-2W7-H-16 | 71 | 5417 | 3000 |
| Pendant, 32 LED, Type III, Flat Glass - 82 lm/W | CXF1532-G2-3W3-H-16 | 35 | 2904 | 3000 |
| Pendant, 32 LED, Type III, Flat Glass - 80 lm/W | CXF1532-G2-3W5-H-16 | 51 | 4110 | 3000 |
| Pendant, 32 LED, Type III, Flat Glass - 76 lm/W | CXF1532-G2-3W7-H-16 | 71 | 5388 | 3000 |
| Pendant, 32 LED, Type IV, Flat Glass - 79 lm/W | CXF1532-G2-4W3-H-16 | 35 | 2805 | 3000 |
| Pendant, 32 LED, Type IV, Flat Glass - 77 lm/W | CXF1532-G2-4W5-H-16 | 51 | 3969 | 3000 |
| Pendant, 32 LED, Type IV, Flat Glass - 73 lm/W | CXF1532-G2-4W7-H-16 | 71 | 5204 | 3000 |
| Pendant, 48 LED, Type II, Flat Glass - 82 lm/W | CXF1548-G2-2W3-H-16 | 52 | 4233 | 3000 |
| Pendant, 48 LED, Type II, Flat Glass - 79 lm/W | CXF1548-G2-2W5-H-16 | 75 | 5990 | 3000 |
| Pendant, 48 LED, Type II, Flat Glass - 76 lm/W | CXF1548-G2-2W7-H-16 | 103 | 7854 | 3000 |
| Pendant, 48 LED, Type III, Flat Glass - 81 lm/W | CXF1548-G2-3W3-H-16 | 52 | 4211 | 3000 |
| Pendant, 48 LED, Type III, Flat Glass - 79 lm/W | CXF1548-G2-3W5-H-16 | 75 | 5959 | 3000 |
| Pendant, 48 LED, Type III, Flat Glass - 75 lm/W | CXF1548-G2-3W7-H-16 | 103 | 7813 | 3000 |
| Pendant, 48 LED, Type IV, Flat Glass - 78 lm/W | CXF1548-G2-4W3-H-16 | 52 | 4067 | 3000 |
| Pendant, 48 LED, Type IV, Flat Glass - 76 lm/W | CXF1548-G2-4W5-H-16 | 75 | 5755 | 3000 |
| Pendant, 48 LED, Type IV, Flat Glass - 73 lm/W | CXF1548-G2-4W7-H-16 | 103 | 7545 | 3000 |
| Pendant, 64 LED, Type II, Flat Glass - 78 lm/W | CXF1564-G2-2W3-H-16 | 68 | 5369 | 3000 |
| Pendant, 64 LED, Type II, Flat Glass - 76 lm/W | CXF1564-G2-2W5-H-16 | 99 | 7597 | 3000 |
| Pendant, 64 LED, Type II, Flat Glass - 72 lm/W | CXF1564-G2-2W7-H-16 | 137 | 9961 | 3000 |
| Pendant, 64 LED, Type III, Flat Glass - 78 lm/W | CXF1564-G2-3W3-H-16 | 68 | 5340 | 3000 |
| Pendant, 64 LED, Type III, Flat Glass - 76 lm/W | CXF1564-G2-3W5-H-16 | 99 | 7557 | 3000 |
| Pendant, 64 LED, Type III, Flat Glass - 72 lm/W | CXF1564-G2-3W7-H-16 | 137 | 9909 | 3000 |
| Pendant, 64 LED, Type IV, Flat Glass - 75 lm/W | CXF1564-G2-4W3-H-16 | 68 | 5158 | 3000 |
| Pendant, 64 LED, Type IV, Flat Glass - 73 lm/W | CXF1564-G2-4W5-H-16 | 99 | 7298 | 3000 |
| Pendant, 64 LED, Type IV, Flat Glass - 70 lm/W | CXF1564-G2-4W7-H-16 | 137 | 9570 | 3000 |
| Pendant, 80 LED, Type II, Flat Glass - 82 lm/W | CXF1580-G2-2W3-H-16 | 87 | 7213 | 3000 |
| Pendant, 80 LED, Type II, Flat Glass - 80 lm/W | CXF1580-G2-2W5-H-16 | 127 | 10207 | 3000 |
| Pendant, 80 LED, Type III, Flat Glass - 82 lm/W | CXF1580-G2-3W3-H-16 | 87 | 7175 | 3000 |
| Pendant, 80 LED, Type III, Flat Glass - 80 lm/W | CXF1580-G2-3W5-H-16 | 127 | 10153 | 3000 |
| Pendant, 80 LED, Type IV, Flat Glass - 79 lm/W | CXF1580-G2-4W3-H-16 | 87 | 6929 | 3000 |
| Pendant, 80 LED, Type IV, Flat Glass - 77 lm/W | CXF1580-G2-4W5-H-16 | 127 | 9805 | 3000 |
Product Files
Click forWestbrooke LED Pendant (CXF14/CXF15) - Spec Sheet (G3)
Click forWestbrooke LED pendant (CF14, CF15, CXF14, CXF15) - Instructions
