Hunza Direct Burial Arch Bollard Square Light

Hunza LightingSKU: BOL/ARCSQ-R-EBK-TYP2-2

Select Material: Black
Select Beam Angle: Type 2 Optic
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

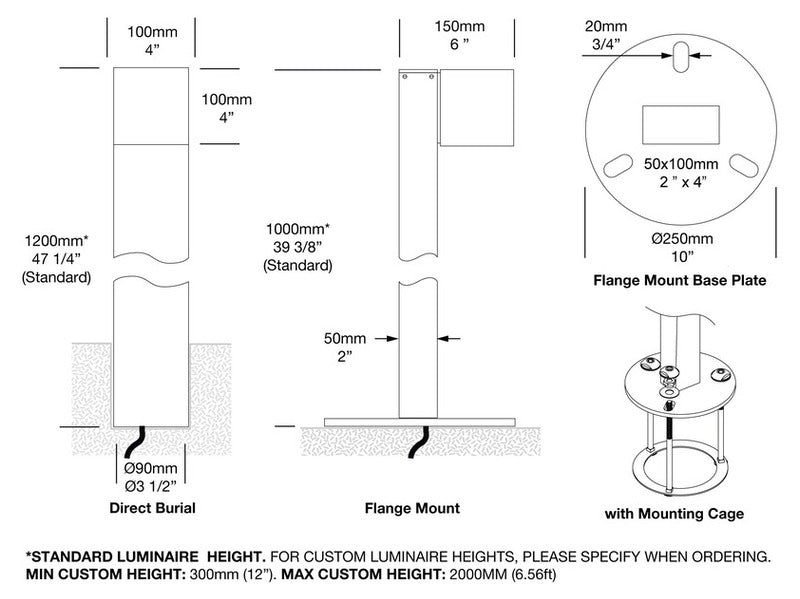

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Hunza Lighting Finishes

Description

Hunza Direct Burial Arch Bollard Square Light

The Arch Bollard is ideal for commercial application. Best suited for ground lighting on driveways and pathways. It has a minimal, contemporary aesthetic that will blend into any architectural setting. This luminaire features a Type II optic that casts a very long but narrow downwards illumination, or Type IV optic which gives a forward throw beam pattern. The result is an extremely low glare light fitting with precise light placement.

Product Specifications

Lumen Output*
  • 3000 lumens @ 700mA (26 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Luminaire Options
  • Arch Bollard Square - Direct Burial
Warranty
  • *Excludes third party lamps and power supplies*
  • Aluminium Components - 5 years
  • Electronics - 5 Years
Power Options
  • 700mA CC Input - Series Wired - Remote Driver 37Vf 25.9W
  • 24VDC Input - Parallel Wired 25.9W
  • 110-277 VAC - Retro Integral Driver 25.2W
Lens Options
  • with Clear Lens
Mounting Options
  • with Mounting Cage*
LED
  • Cree® CXB 1830 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 80 Optional
  • 90+ Standard
Ingress Protection
  • IP66
Impact Protection
  • IK10
Materials
  • Solid Powder Coated Aluminium
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • No Driver Required for Retro™ ‘R ( 120/240V Input )
Product Files

Click for Arch Bollard Square BOLARCSQ Specification Sheet

Click for Hunza ARCH Bollard Square - BOLARCSQ - Product Diagram

Click for Guide: Flange Mount Template and Mounting Cage

Click for Hunza ARCH Bollard Installation Instructions - USA

Click for Hunza ARCH Bollard Installation Instructions - INTERNATIONAL

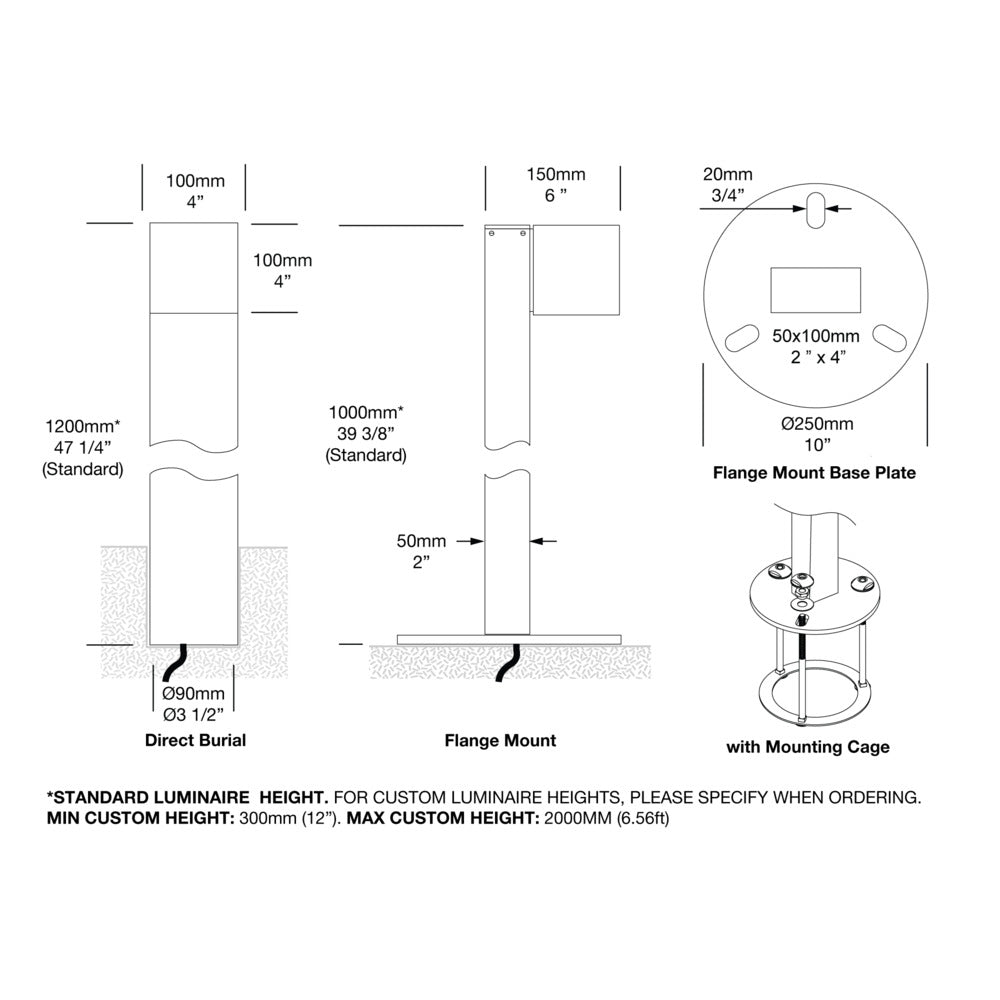

Diagram Image
