Hunza Arch Wall Square

Hunza LightingSKU: W/ARCSQ-R-EBK-TYP2-2-WBAP

Select Material: Black
Select Beam Angle: Type 2 Optic
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

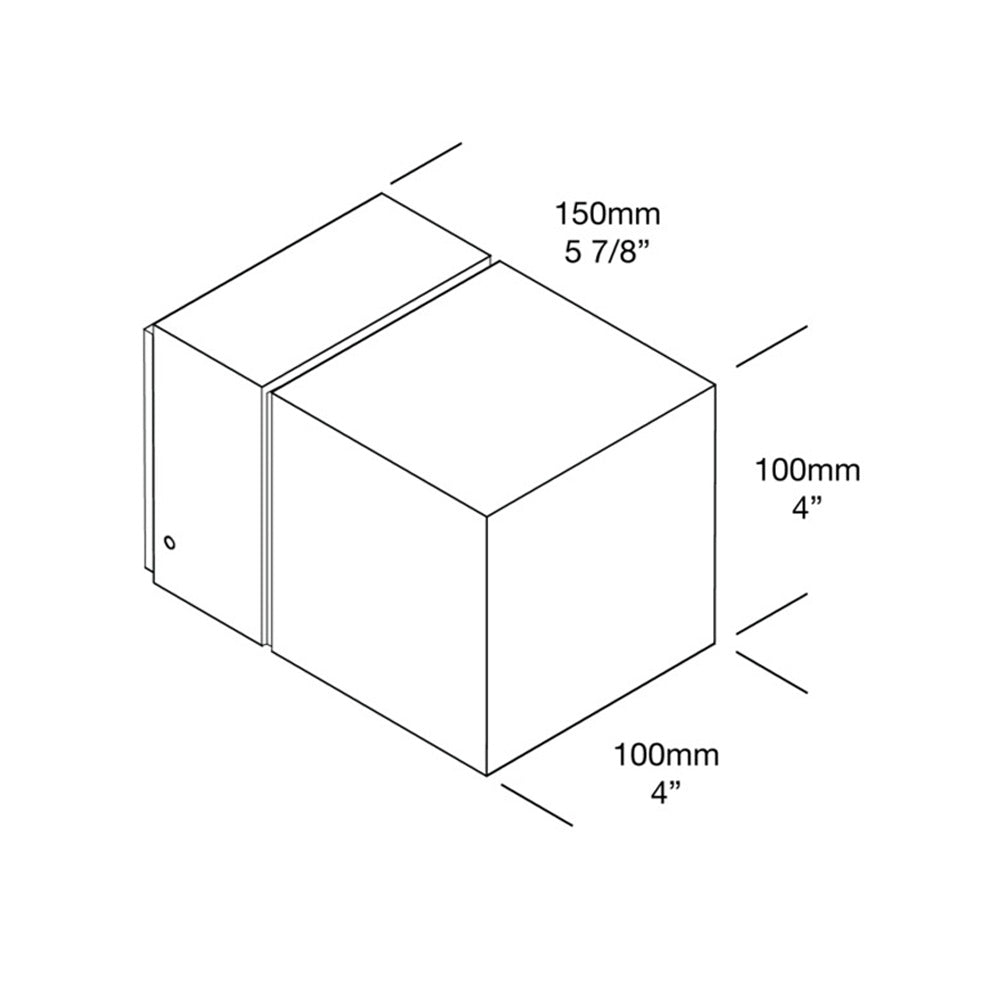

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

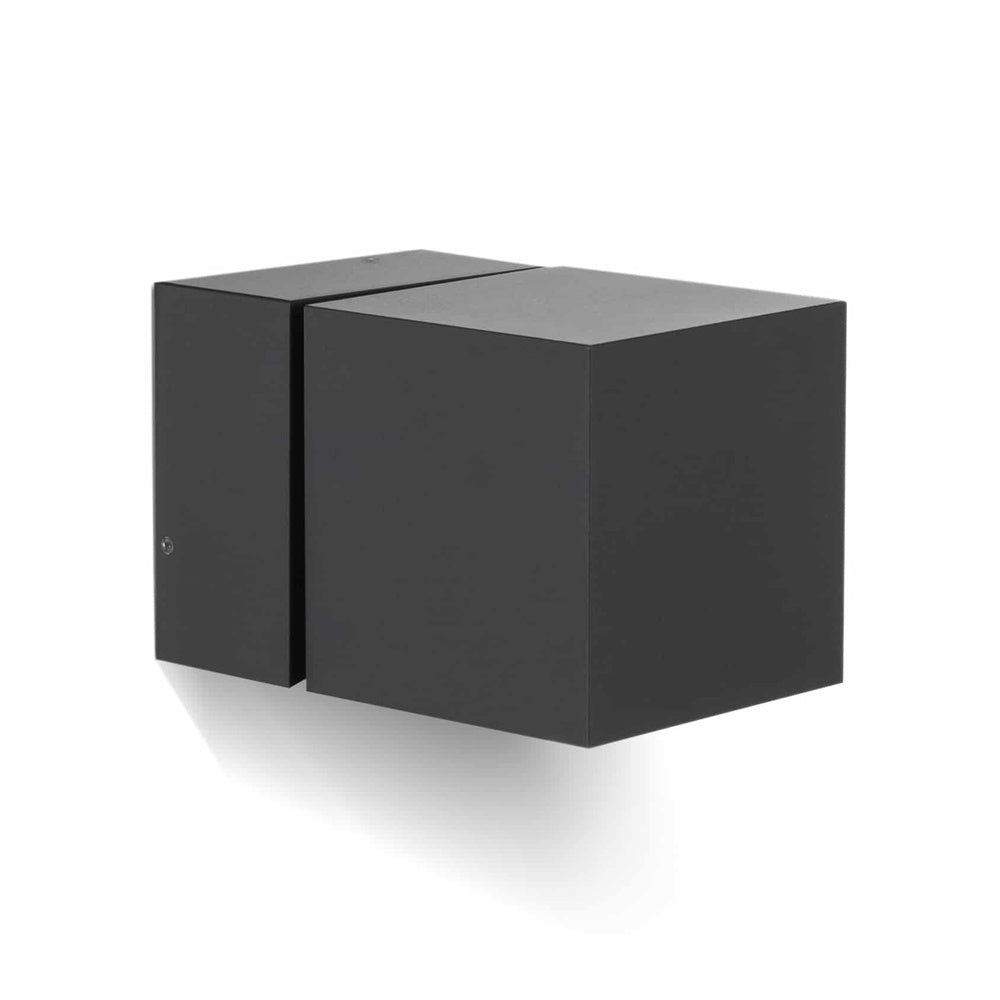

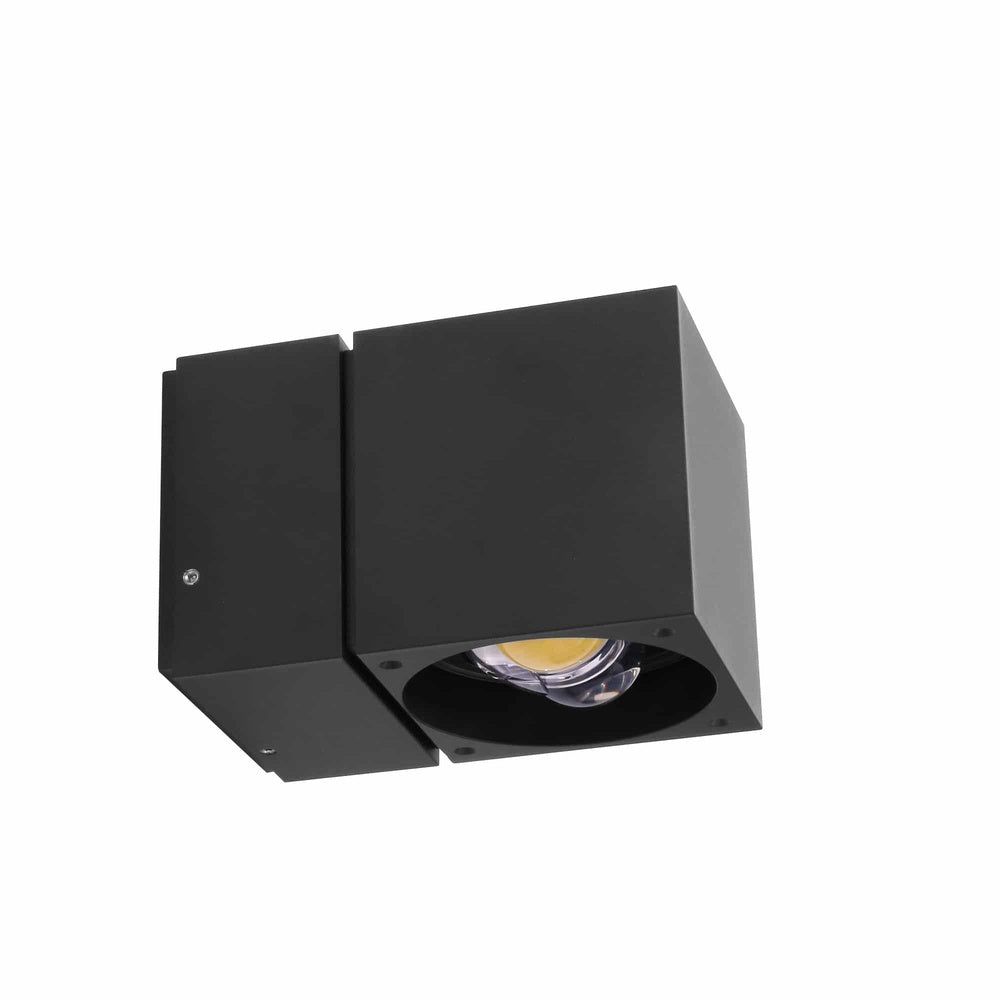

Hunza Arch Wall Square

The Arch Wall Square is a unique Wall mounted luminaire, It has a minimal, contemporary aesthetic that will blend into any architectural setting. It features 3 possible optic combinations: 90 degree symmetrical,  a type II for a very long but narrow downwards illumination for lighting path and perimeter applications, and an IV optic with further forward throw.

Product Specifications

Lumen Output*
  • 2700 lumens @ 700mA (26 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Warranty
  • *Excludes third party lamps and power supplies*
  • Aluminium Components - 5 years
  • Electronics - 5 Years
Power Options
  • 700mA CC Input - Series Wired - Remote Driver 37Vf 25.9W
  • 24VDC Input - Parallel Wired 25.9W
  • 110-277 VAC - Retro Integral Driver 25.2W
LED
  • Cree® CXB 1830 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 80 Optional
  • 90+ Standard
Ingress Protection
  • IP66
Impact Protection
  • IK10
Materials
  • Solid Powder Coated Aluminium
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • No Driver Required for Retro™ ‘R’ ( 120/240V Input )
Product Files

Click for Hunza Arch Wall Square - W-ARCSQ - Specification Sheet

Click for Hunza Arch Wall Square - W-ARCSQ - Product Diagram

Click for Arch Wall Square - W-ARCSQ - Installation Instructions USA

Click for Hunza Arch Wall Square - W-ARCSQ - Installation Instructions International

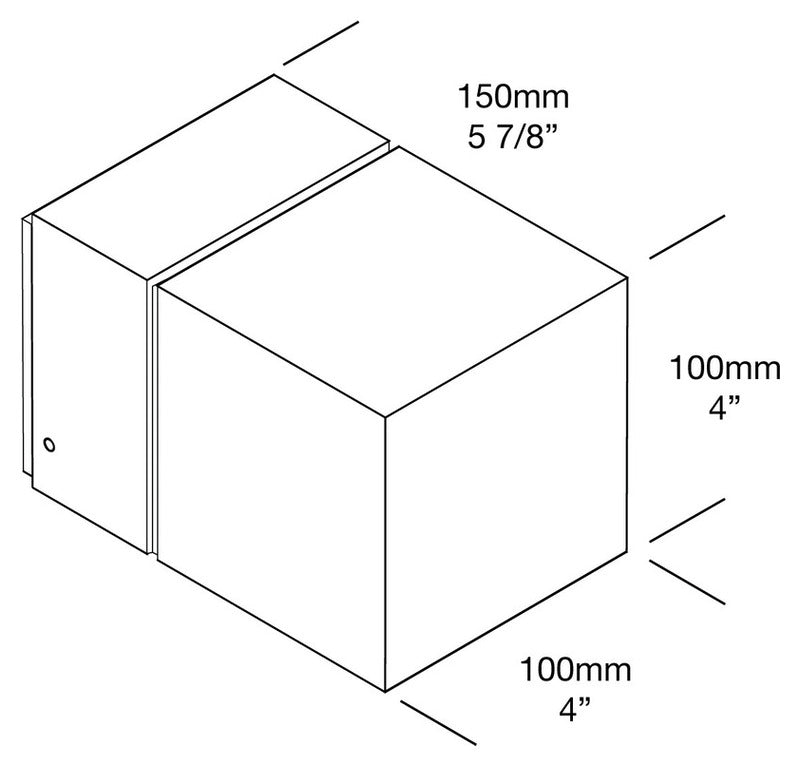

Diagram Image
