Hunza Mini Bollard Light

Hunza LightingSKU: BOLMINI/L-S-SS-2

Select Material: 316 Marine Grade Stainless Steel
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

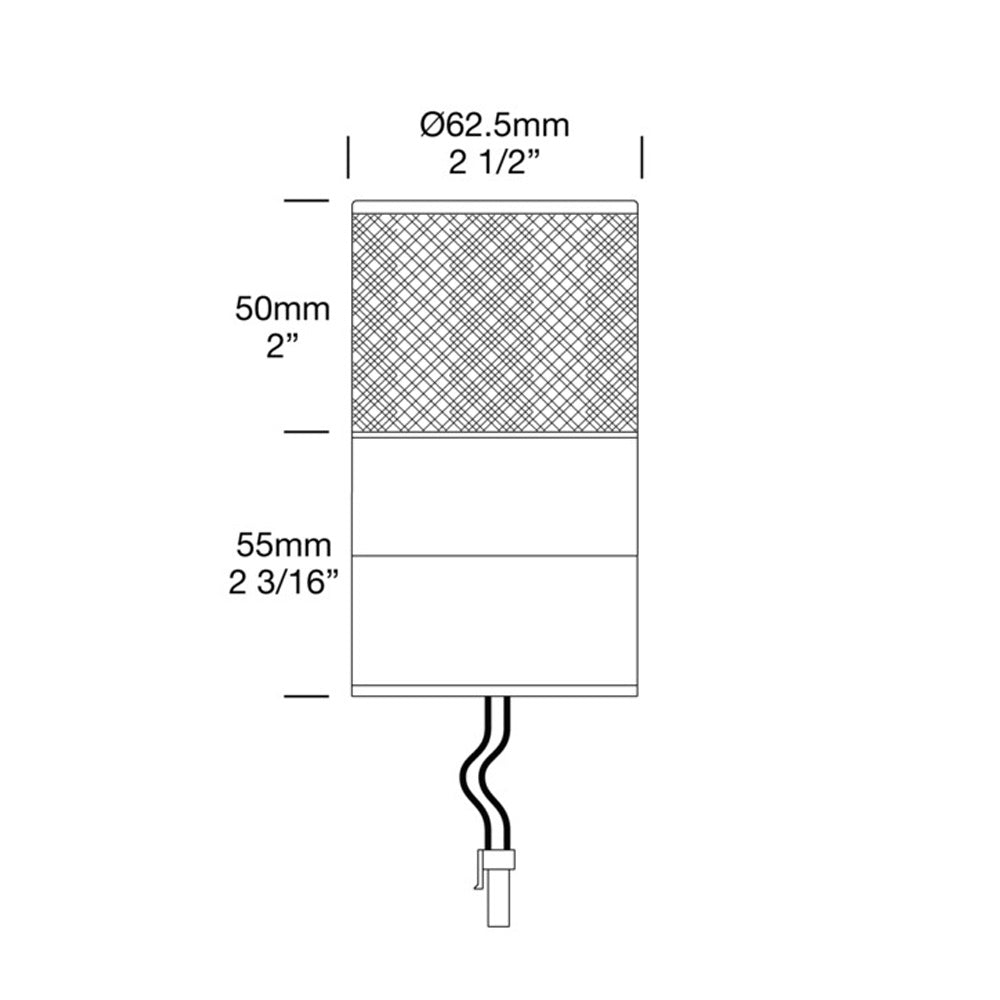

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Hunza Lighting Finishes

Description

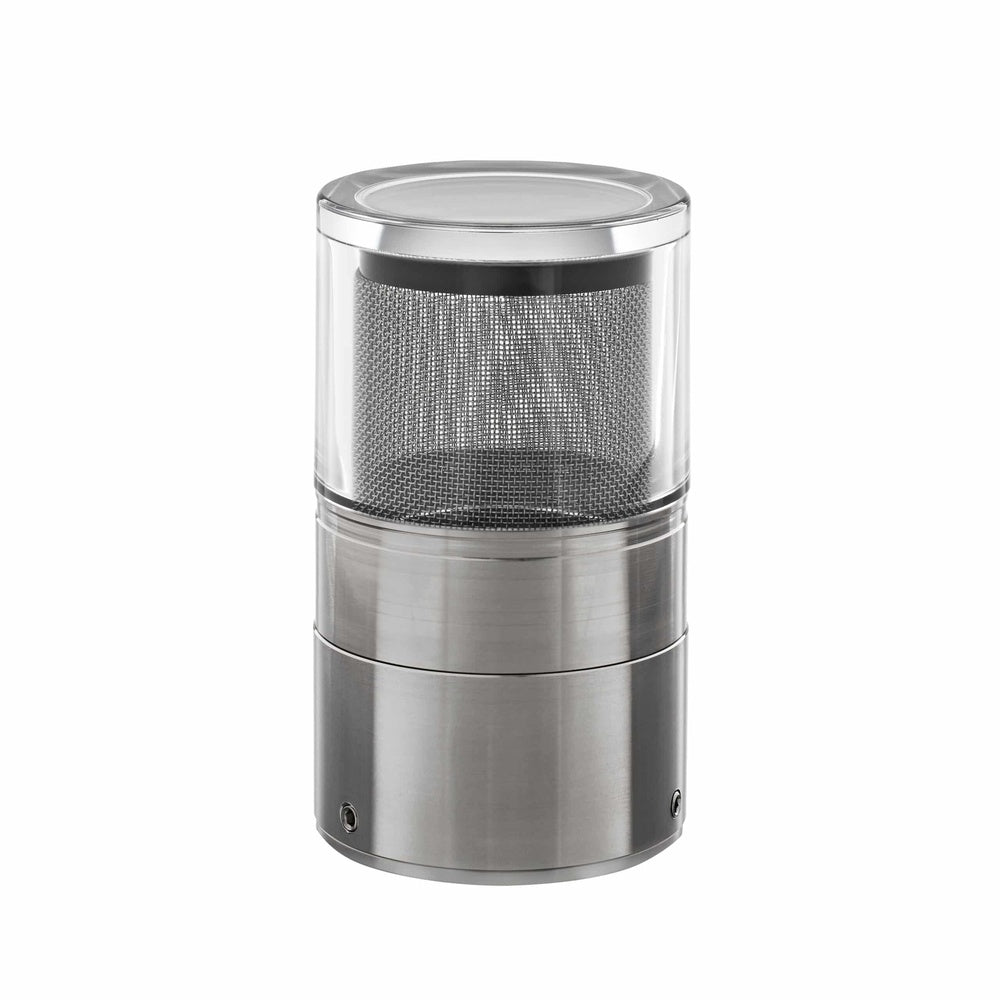

Hunza Mini Bollard Light

The Mini Bollard is an unobtrusive, low profile luminaire, that provides soft lighting effects on decks, railings and posts. The acrylic lens reflects light at two angles through an anti-glare mesh, directly onto the ground and horizontally to illuminate the surrounding landscape. Requires mounting onto a solid substrate such as timber or concrete.

Product Specifications

Lumen Output*
  • 120 lumens @ 700mA (2 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 60 lm/W
Luminaire Options
  • Mini Bollard - Deck Mount
Power Options
  • 700mA CC Input - Series Wired 3Vf 2.1W
Beam Angle Options
  • 360 Degree
Lens Options
  • with Clear Lens
  • with Frosted Lens
Accessories
  • Hood Contoured 140mm*
  • Hood Smooth 140mm*
LED
  • Cree® XPG-3 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
  • Solid Powder Coated Aluminium
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Aluminium Components - 5 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Mini Bollard - BOLMINI-L - Specification Sheet

Click for Mini Bollard - BOLMINI-L - Product Diagram

Click for Mini Bollard - BOLMINI-L - Installation Instructions International

Click for Mini Bollard - BOLMINI-L - Installation Instructions USA

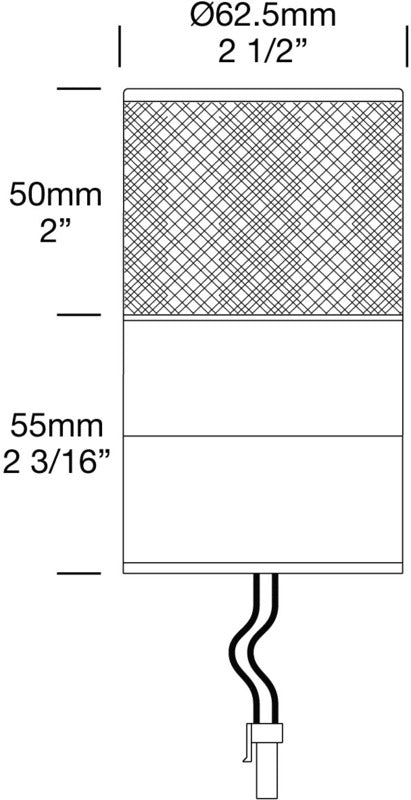

Diagram Image
