Hunza Cable - 8 Core RGBW

Hunza LightingSKU: 8CORE

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

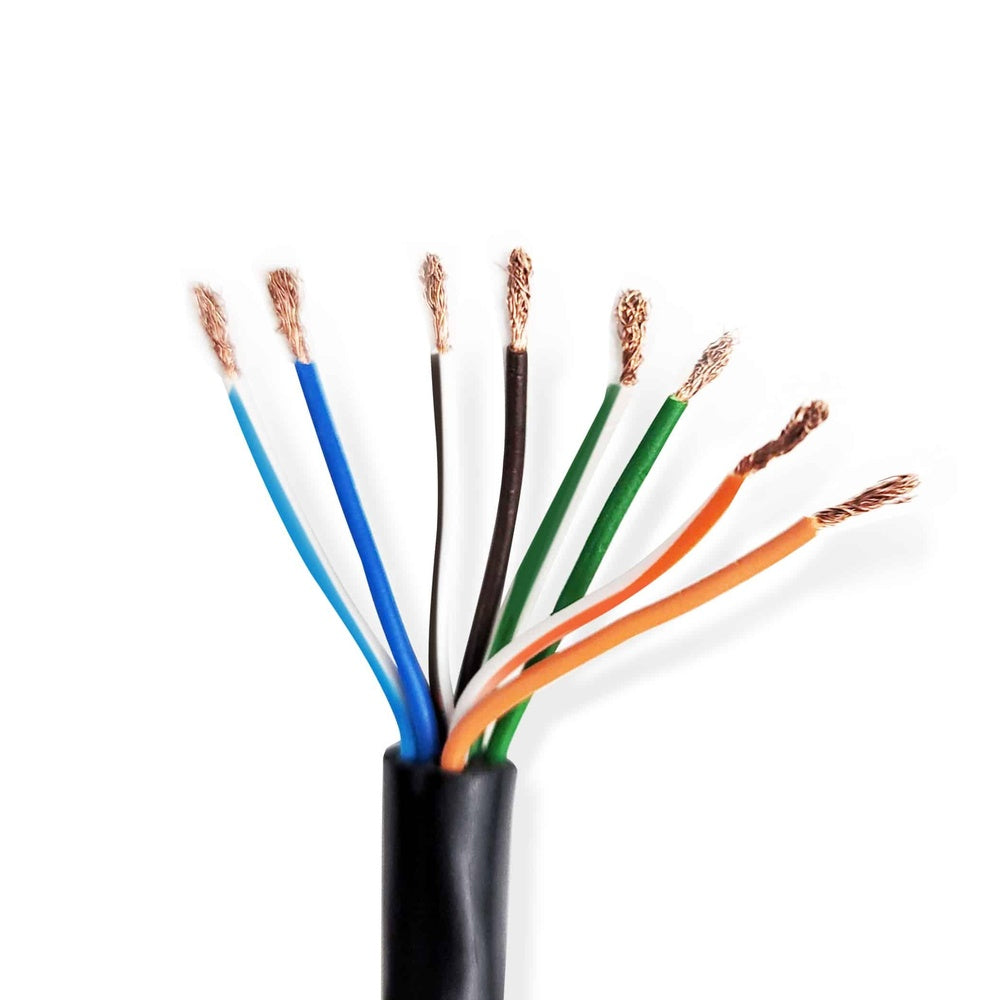

Hunza Cable - 8 Core RGBW

For LuxrR Integral RGBW products, this cable set features both positive and negative RGBW conductors.

Available for customization to any desired length.

Construction & Material:

Conductor Size: 22AWG or 0.65mm Material: Bare Copper
Jacket Material: PVC
Min Thickness: 0.69mmDiameter: Ø7.30mm (±0.20mm)Colours: Black, Semi-Matt
JacketMarking: E23326 AWM STYLE 2855
22AWG VW-1 60°C 30V AWM I/II A 60°C 30V
FT1 LF EVERLONG
Insulation

Material: 0.2mm Diameter: PVC

Min Thickness: Ø7.30mm (±0.20mm) Colours: E23326 AWM STYLE 2855 22AWG VW-1 60°C 30V AWM I/II A 60°C 30V FT1 LF EVERLONG

Electrical & Physical Properties:

Conductor Resistance 55.4 ?/KM (MAX) @ 20°C
Insulation Resistance 0.75 M?/KM (MIN) @ 20°C/DC 500V
Dielectric Withstand 500 VAC/MIN (No Breaking)
Flame Test FT1, VW-1 (PASS)
Heat Shock Test 121±1°C/1hr ( No Cracking)
Heat Bend Test -10±2°C/4hr ( No Cracking)
Temparature Resistance 85°C

Insulation Jacket

UN-AGED

Tensile Strength (CONTROL) 2400 PSI (MIN) 1500 PSI (MIN)
Elongation 300% (MIN) 100% (min)

AGED

Tensile Strength 75% (MIN) 70% (min)
Elongation 75% (MIN) 65% (min)
Deformation Test Max 50%

Management Standards for Environment-related Substance: EL-008-00

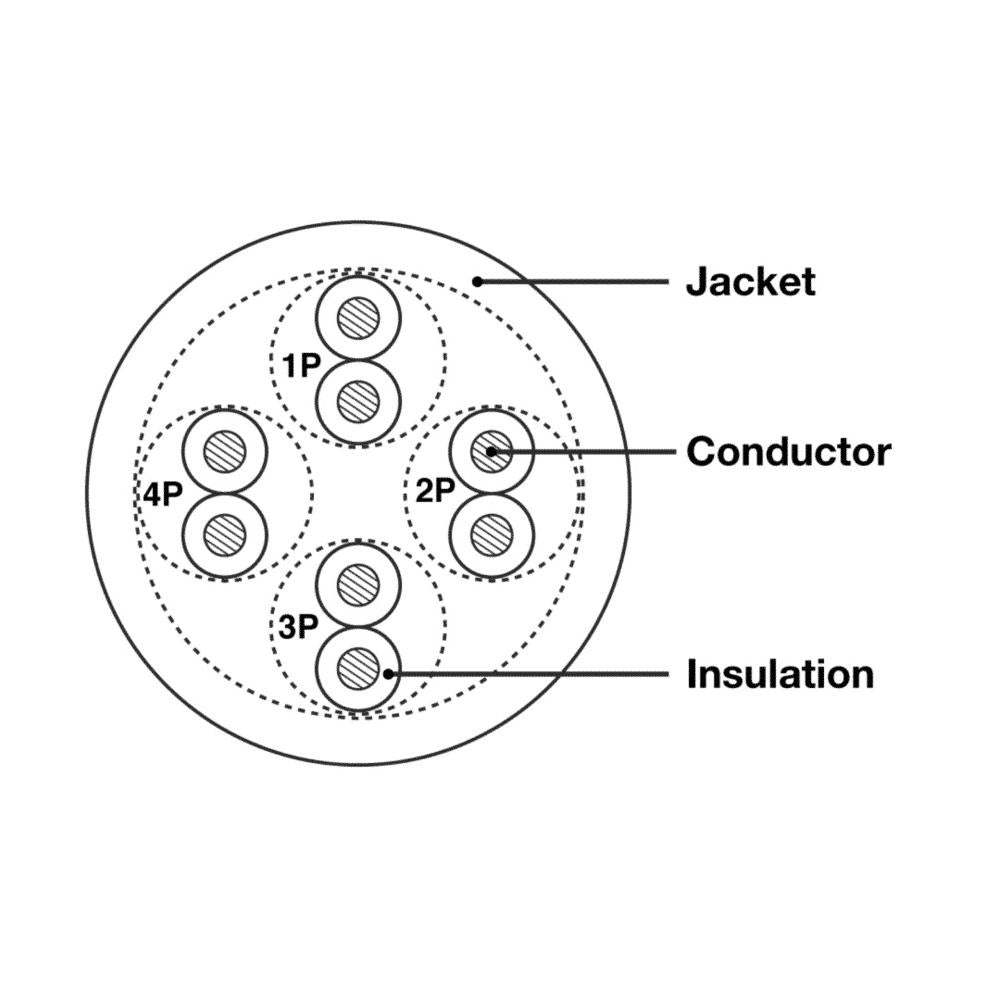

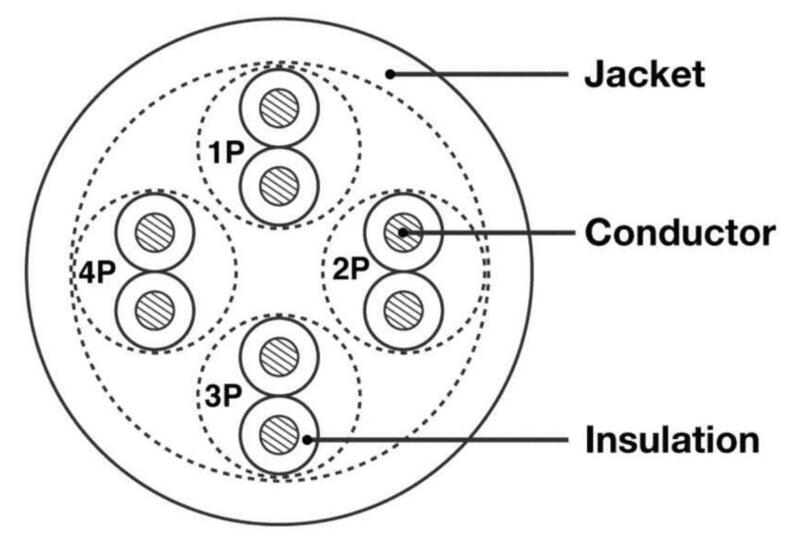

Diagram Image
