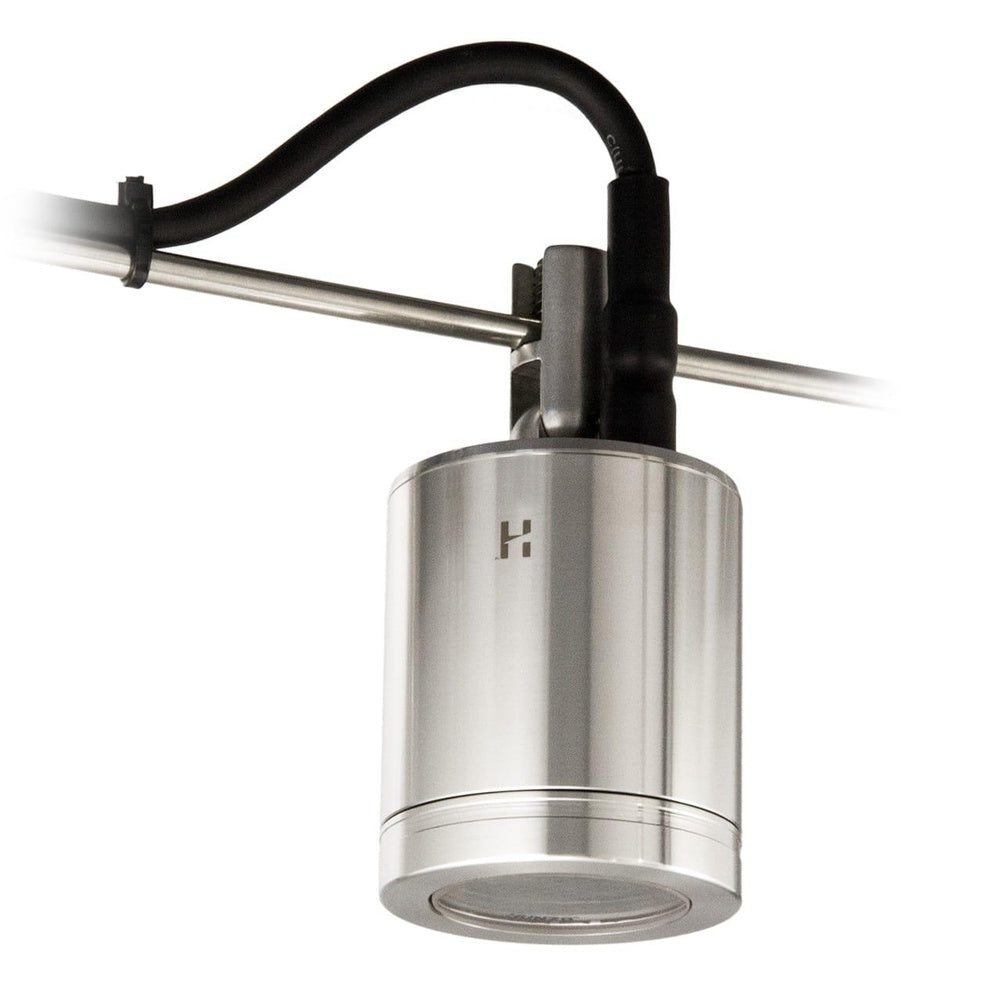

Hunza Catenary Mount

The Catenary Mount is a single spotlight that has been specially designed for transverse suspension lighting systems. This provides a dynamic moonlighting effect and can be used for illuminating pathways, streets and walkways.

Product Specifications

Lumen Output*	600 lumens @ 1050mA (6 Watts) 420 lumens @ 700mA (4 Watts) 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	100 lm/W
Lens Options	with Clear Lens with Frosted Lens with Clear Lens and Hex Cell Louvre
Accessories	Glare Guard Snoot
LED	Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
CRI	90+ Standard
Ingress Protection	IP66
Materials	316 Marine Grade Stainless Steel Solid Copper Solid Powder Coated Aluminium
Warranty	Excludes third party lamps and power supplies 316 Stainless Steel Components - 10 years Aluminium Components - 5 years Electronics - 5 Years Solid Copper Components - 10 Years
Standards	IEC/BS/AS/NZ 60598 UL 2108 UL 1838 CE
Recommended Power Supplies	Driver Supplied for Series Remote Wired (CC format) 24VDC Power Supply Required for 24VDC Input ( CV format ) Transformer Required for 12VAC Parallel Wired ( CV format )
Dimensions	6.2 x 6.2 x 11.9 cm ( 2.44" x 2.44" x 4.69" )
Weight	1.16 kg ( 2.56 lb )

Product Files

Click for Catenary Mount - CAT-L - Specification Sheet

Click for Catenary Mount - CAT-L - Product Diagram

Click for Catenary Mount - CAT-L - Installation Instructions International

Click for Catenary Mount - CAT-L - Installation Instructions USA

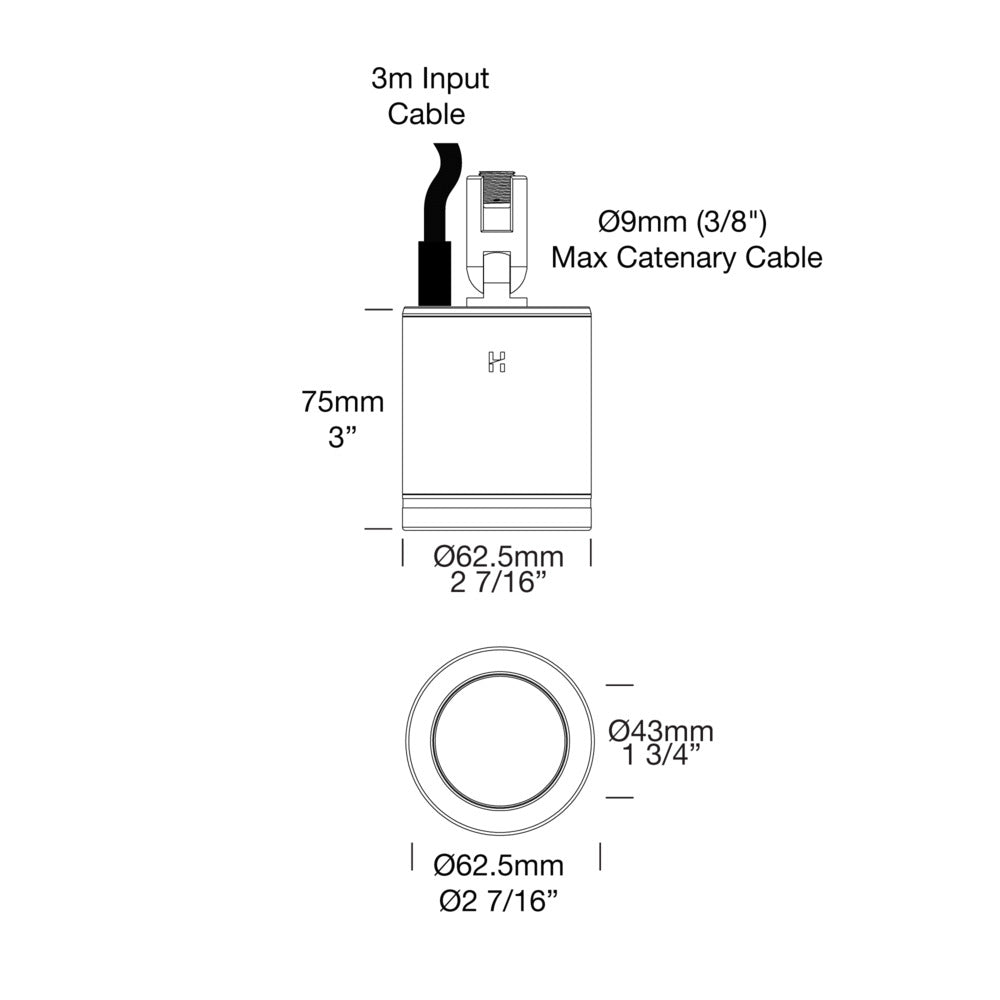

Diagram Image

Hunza Warranty

HUNZA LIGHTING BLACK LABEL WARRANTY

When you purchase or specify a Hunza luminaire, you get the benefit
of the legendary Hunza reputation for high quality and long life. We
back this up with extended warranty, offering up to 10 years on body
components and 5 years on the integral PURE LEDTM system. Warranty
on plug-in (drop-in) LED lamps is limited to 1 year. When installed and
maintained properly Hunza luminaires will last a lifetime so we keep
serviceability firmly in mind when designing the components and
system construction.

Hunza Five Year Warranty*
All Hunza aluminium luminaires with a UV stable powder-coat finish
have a five-year replacement warranty, subject to standard conditions
listed below. Integral PURE LEDTM components are limited to 5 year
warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.

Hunza Ten Year Warranty*
All Hunza stainless steel and copper luminaires have a ten-year
replacement warranty, subject to standard conditions listed below.
Integral PURE LEDTM components are limited to 5 year warranty.
Warranty on plug-in (drop-in) LED lamps is limited to 1 year.

Hunza Lifetime Warranty*
All glass lenses supplied with Hunza luminaires have a lifetime
warranty.

Standard Conditions:

1. The environment in which the fixture is to be installed must be
considered carefully when selecting the finish. Stainless steel
luminaires are recommended for high-risk environments such as near
salt water. Aluminium luminaires may not be covered by the full
warranty in these situations.
2. Stainless Steel requires regular cleaning with fresh water when installed
in salty environments. (Refer to instructions supplied with luminaire).
3. Hunza underwater fixtures are not be covered by warranty in situations
where there are chemical imbalances in the water.
4. Warranty excludes impact damage (except for glass lenses), incorrect
installation and incorrect re-assembly.
5. Fixtures must be kept properly maintained, including replacement of
gaskets and lenses when necessary.
6. Hunza, at its discretion, may replace components or the complete
fixture.
7. Hunza warranty is limited to the repair or replacement of products ONLY,
labour charges will not be accepted.
8. Hunza will not be liable for any labour charges for any repair or
replacement of defective drivers. Drivers have their own manufacturer
warranty and any faults will be at the responsibility of the manufacturer.
9. Polycarbonate and acrylic lenses are limited to 5 year warranty.
N.B. Acrylic lenses must NOT be cleaned with any petrochemical
substance, warranty will be void.
10. Warranty excludes halogen lamps and lamp holders, which are
consumable items.

For return policy please Go Here

Hunza Finishes

Hunza Catenary Mount

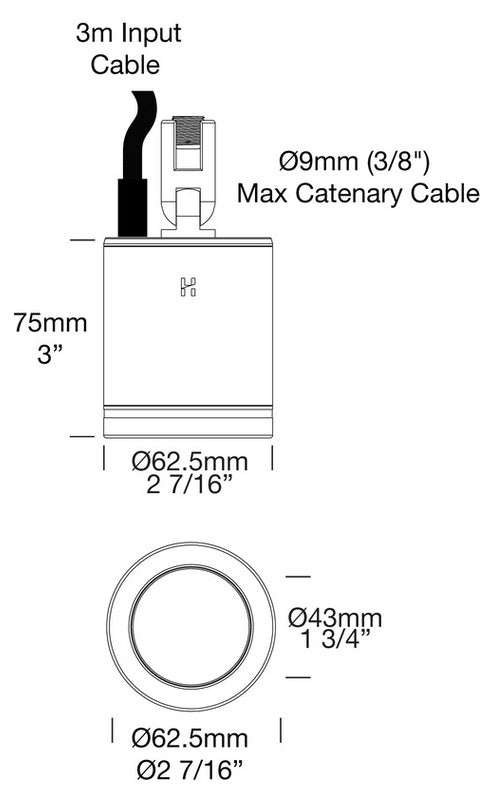

Dimensions Drawing
