Hunza Catenary Mount High Power RGBW

Hunza LightingSKU: CAT/HPRGBW-SR-EBK-15

Select Material: Black
Select Beam Angle: 15 Degree
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

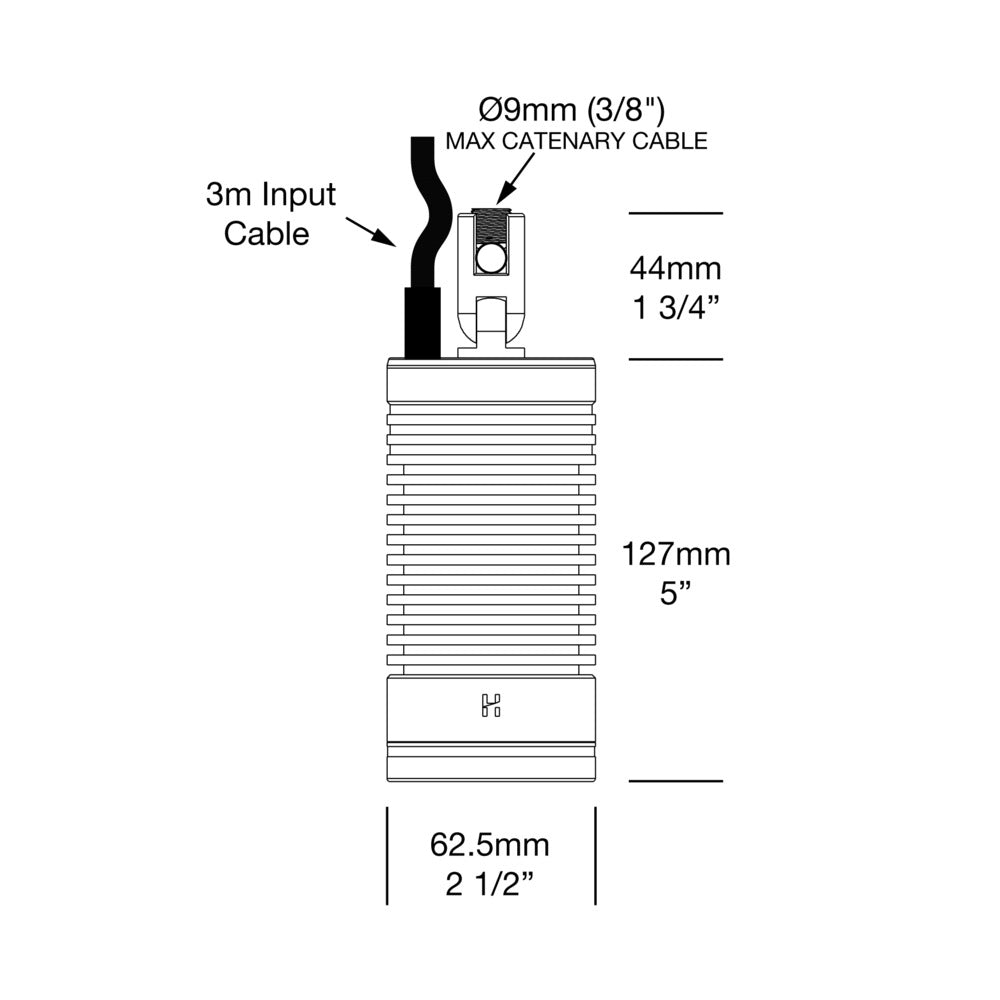

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

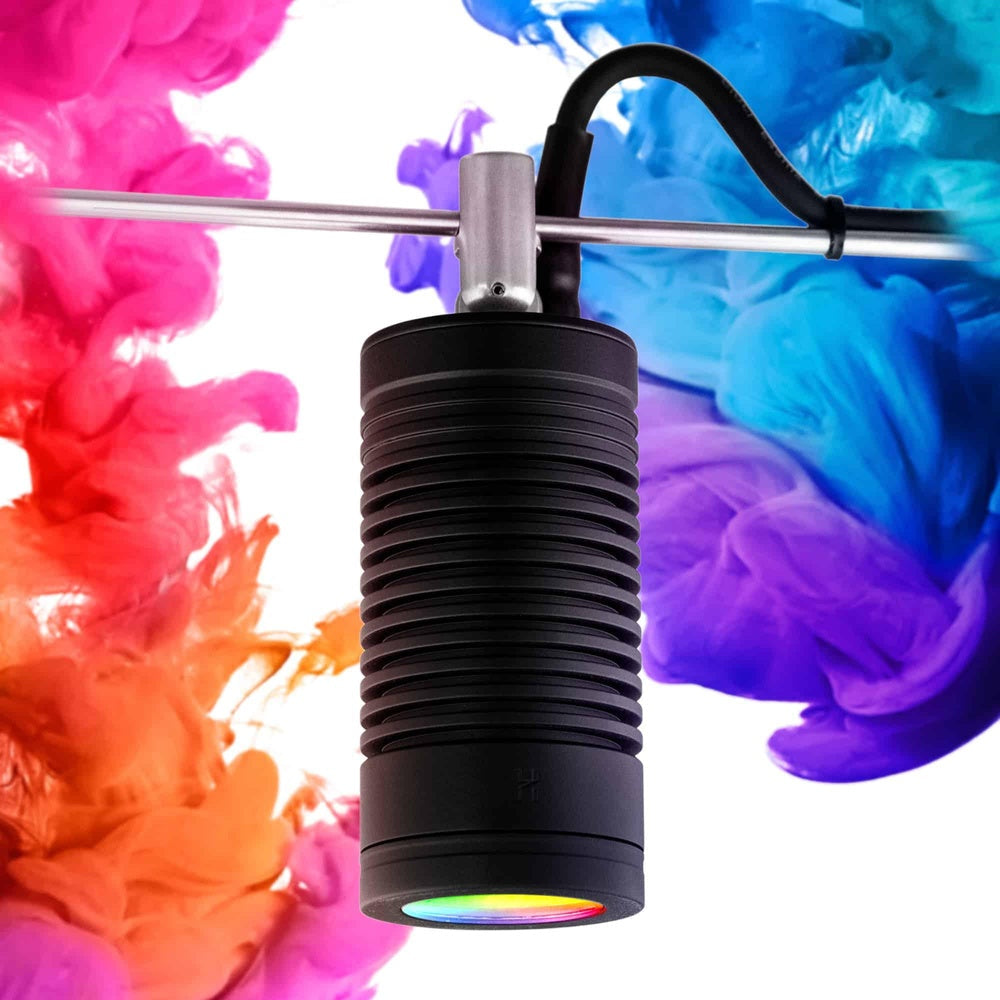

Hunza Catenary Mount High Power RGBW

The Catenary Mount High Power RGBW has been designed to add vitality and a POP of colour for transverse suspension lighting systems. This provides a dynamic moonlighting effect and can be used for illuminating pathways, streets, and walkways. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection.

Product Specifications

Lumen Output*
  • 1000 lumens @ 250mA (20 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 54 lm/W
Warranty
  • *Excludes third party lamps and power supplies*
  • Aluminium Components - 5 years
  • Electronics - 5 Years
Power Options
  • 250mA Input - Series Wired - DMX - 20W
Lens Options
  • with Clear Lens
  • with Frosted Lens
Accessories
  • Glare Guard
  • Snoot
LED
  • LED ENGIN LZP RGBW field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
Colour Temperature Options
  • 6500K White + Red Blue Green
CRI
  • RGBW (White 75) @ 6500K
Ingress Protection
  • IP66
Materials
  • Solid Powder Coated Aluminium
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • DMX Driver Supplied for High Power RGBW Range (DALI compatible drivers available)
Product Files

Click for High Power RGBW Catenary Mount - CAT-HPRGBW - Specification Sheet

Click for High Power Catenary Mount - CAT-HP - Product Diagram

Click for High Power RGBW Catenary Mount - CAT-HPRGBW - Installation Instructions

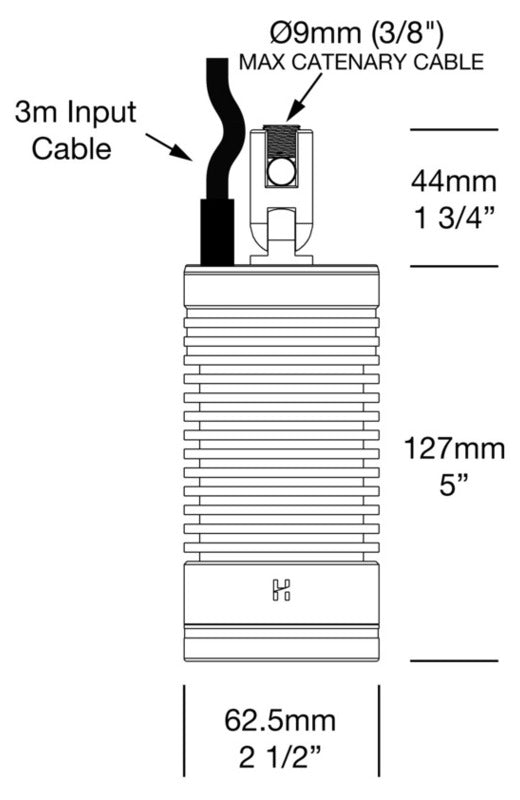

Diagram Image
