Hunza Cube Pole Spot Light

Description
Product Files
Diagram Image
Hunza Warranty
Hunza Finishes

Description

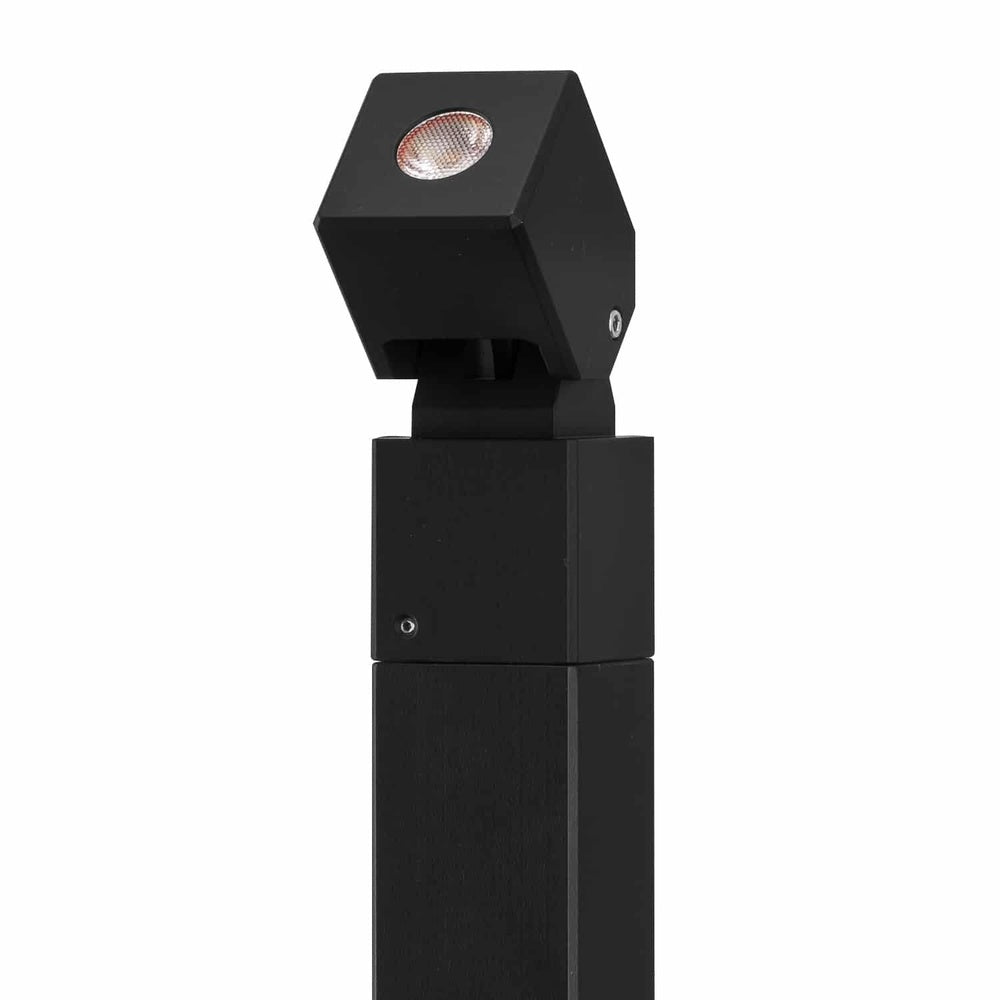

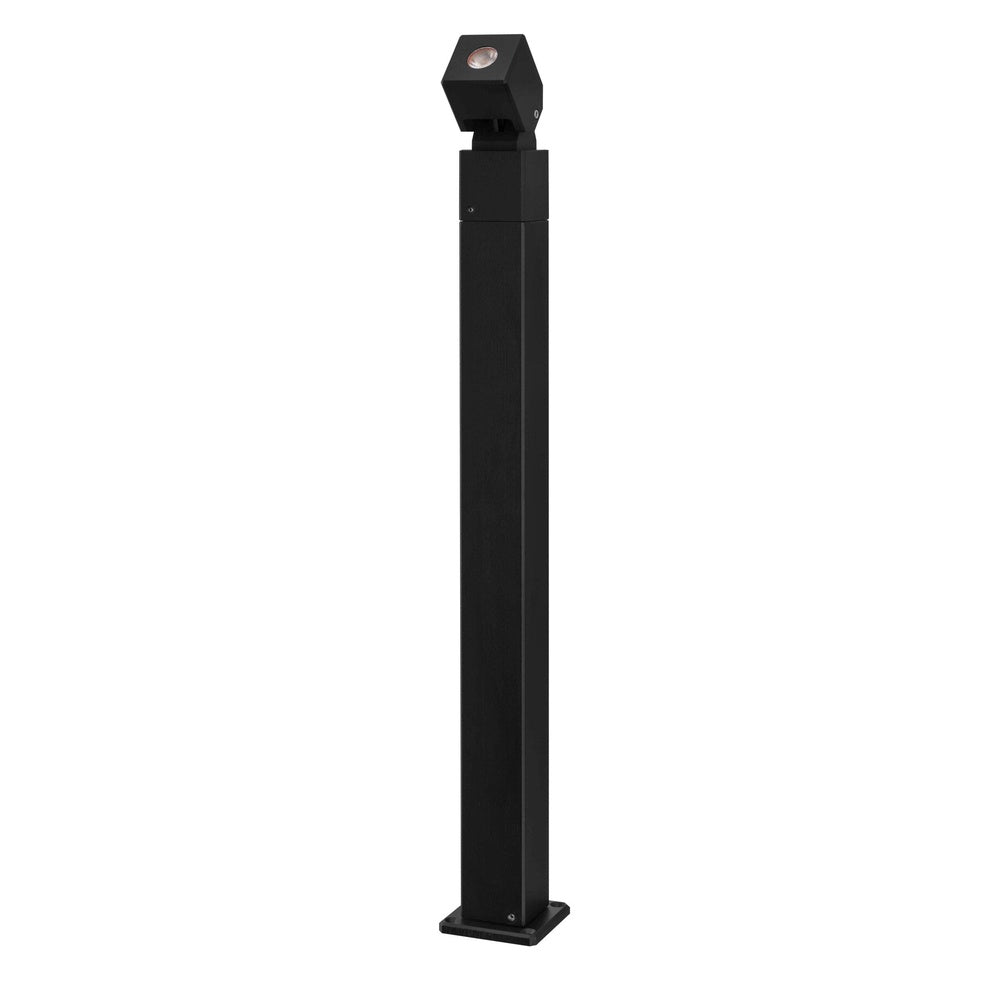

Hunza Cube Pole Spot Light

The Cube Pole Spot is ideal for path lighting or tree lighting. These innovative fittings have an adjustable head that tilts through 180 degrees and features the Cube range style of a simple yet bold design flair.

Product Specifications

Lumen Output*	210 lumens @ 1050mA (3 Watts) 140 lumens @ 700mA (2 Watts) 70 lumens @ 350mA (1 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	70 lm/W
Warranty	Excludes third party lamps and power supplies Aluminium Components - 5 years Electronics - 5 Years
Lens Options	with Clear Lens
Mounting Options	Flange Mount
LED	Cree® XPG-3 Plug and Play field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
CRI	90+ Standard
Ingress Protection	IP66
Materials	Solid Powder Coated Aluminium
Standards	IEC/BS/AS/NZ 60598 UL 2108 UL 1838 CE
Recommended Power Supplies	Driver Required for Series Wired (CC format) 24VDC Power Supply Required for 24VDC Input ( CV format ) Transformer Required for 12VAC Parallel Wired ( CV format )

Product Files

Click for Cube Pole Spot - CPS-L - Specification Sheet

Click for Cube Pole Spot - CPS-L - Product Diagram

Click for Cube Bollard-Pole - Installation Instructions USA

Click for Cube Bollard-Pole - Installation Instructions International

Diagram Image

Hunza Warranty

HUNZA LIGHTING BLACK LABEL WARRANTY

When you purchase or specify a Hunza luminaire, you get the benefit
of the legendary Hunza reputation for high quality and long life. We
back this up with extended warranty, offering up to 10 years on body
components and 5 years on the integral PURE LEDTM system. Warranty
on plug-in (drop-in) LED lamps is limited to 1 year. When installed and
maintained properly Hunza luminaires will last a lifetime so we keep
serviceability firmly in mind when designing the components and
system construction.

Hunza Five Year Warranty*
All Hunza aluminium luminaires with a UV stable powder-coat finish
have a five-year replacement warranty, subject to standard conditions
listed below. Integral PURE LEDTM components are limited to 5 year
warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.

Hunza Ten Year Warranty*
All Hunza stainless steel and copper luminaires have a ten-year
replacement warranty, subject to standard conditions listed below.
Integral PURE LEDTM components are limited to 5 year warranty.
Warranty on plug-in (drop-in) LED lamps is limited to 1 year.

Hunza Lifetime Warranty*
All glass lenses supplied with Hunza luminaires have a lifetime
warranty.

Standard Conditions:

1. The environment in which the fixture is to be installed must be
considered carefully when selecting the finish. Stainless steel
luminaires are recommended for high-risk environments such as near
salt water. Aluminium luminaires may not be covered by the full
warranty in these situations.
2. Stainless Steel requires regular cleaning with fresh water when installed
in salty environments. (Refer to instructions supplied with luminaire).
3. Hunza underwater fixtures are not be covered by warranty in situations
where there are chemical imbalances in the water.
4. Warranty excludes impact damage (except for glass lenses), incorrect
installation and incorrect re-assembly.
5. Fixtures must be kept properly maintained, including replacement of
gaskets and lenses when necessary.
6. Hunza, at its discretion, may replace components or the complete
fixture.
7. Hunza warranty is limited to the repair or replacement of products ONLY,
labour charges will not be accepted.
8. Hunza will not be liable for any labour charges for any repair or
replacement of defective drivers. Drivers have their own manufacturer
warranty and any faults will be at the responsibility of the manufacturer.
9. Polycarbonate and acrylic lenses are limited to 5 year warranty.
N.B. Acrylic lenses must NOT be cleaned with any petrochemical
substance, warranty will be void.
10. Warranty excludes halogen lamps and lamp holders, which are
consumable items.

For return policy please Go Here

Hunza Finishes

Hunza Cube Pole Spot Light

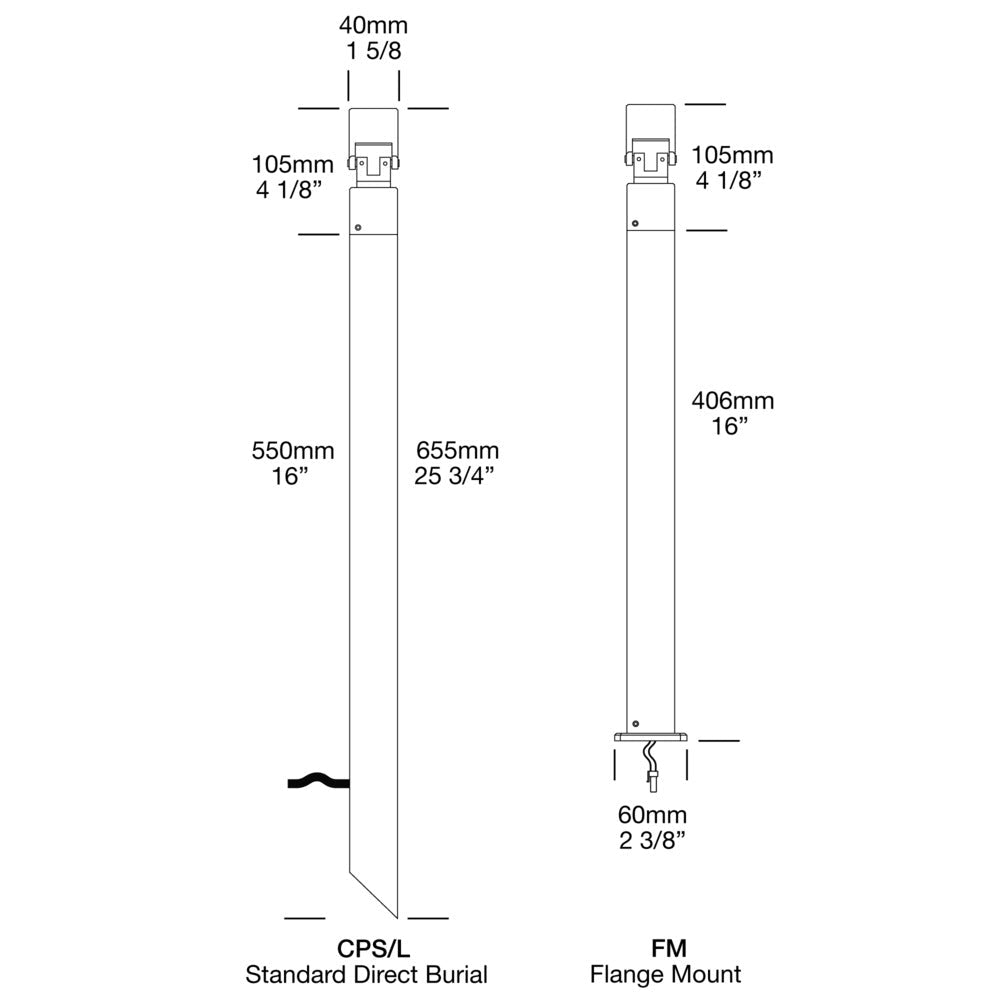

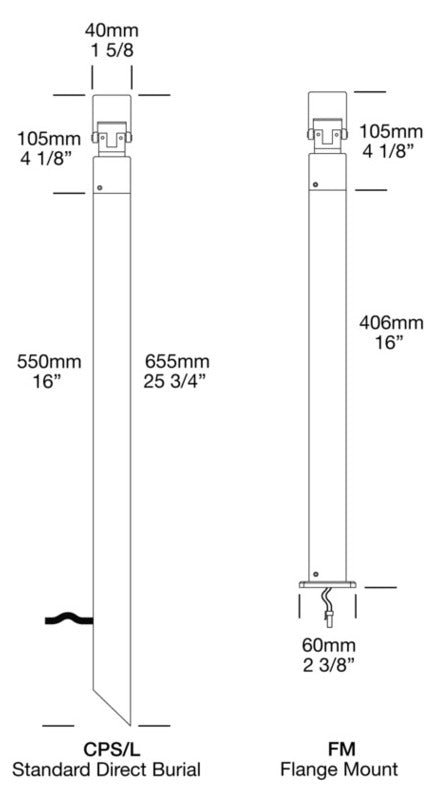

Dimensions Drawing
