Description

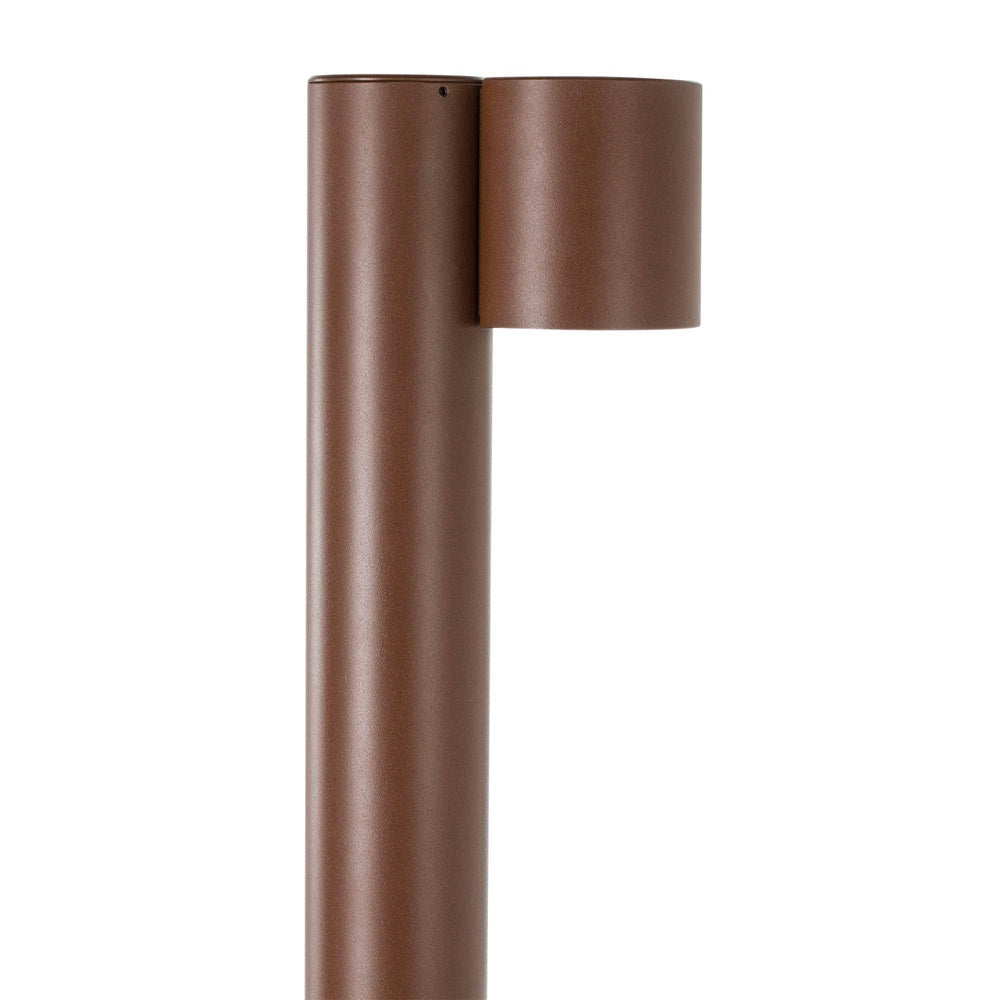

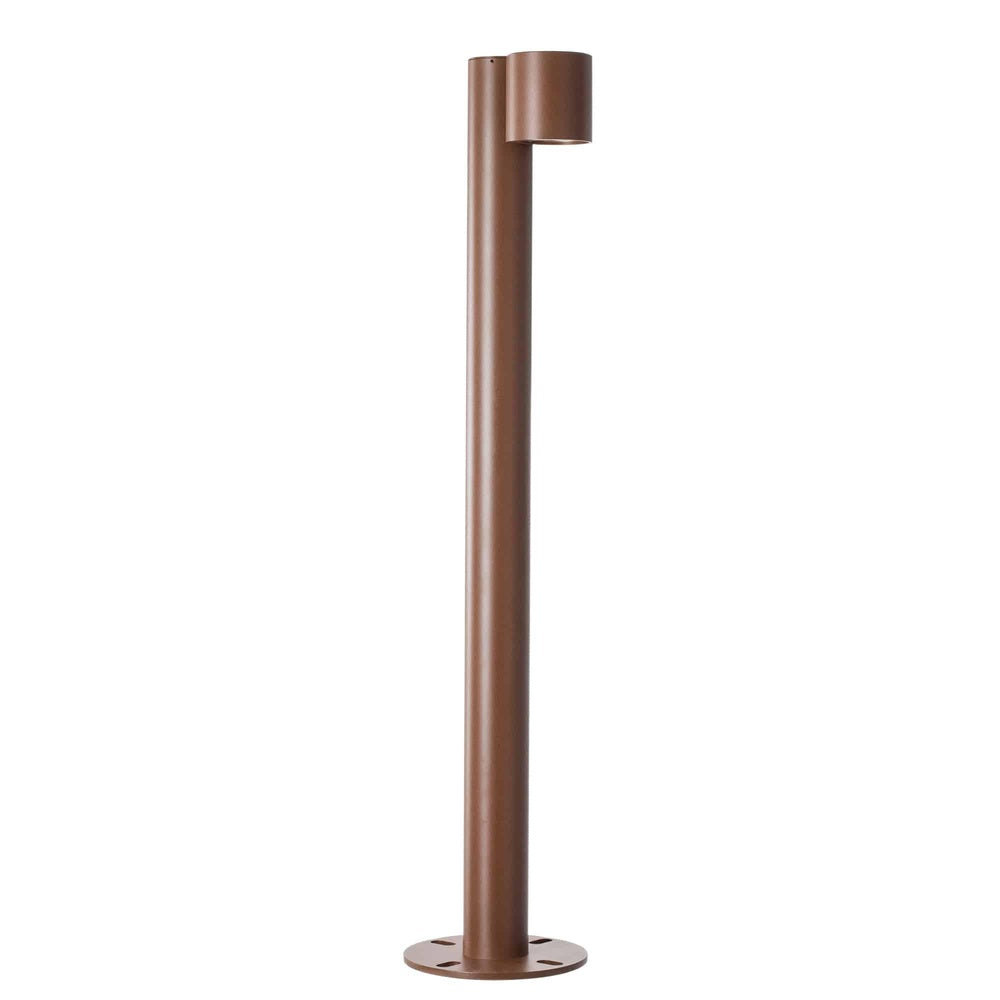

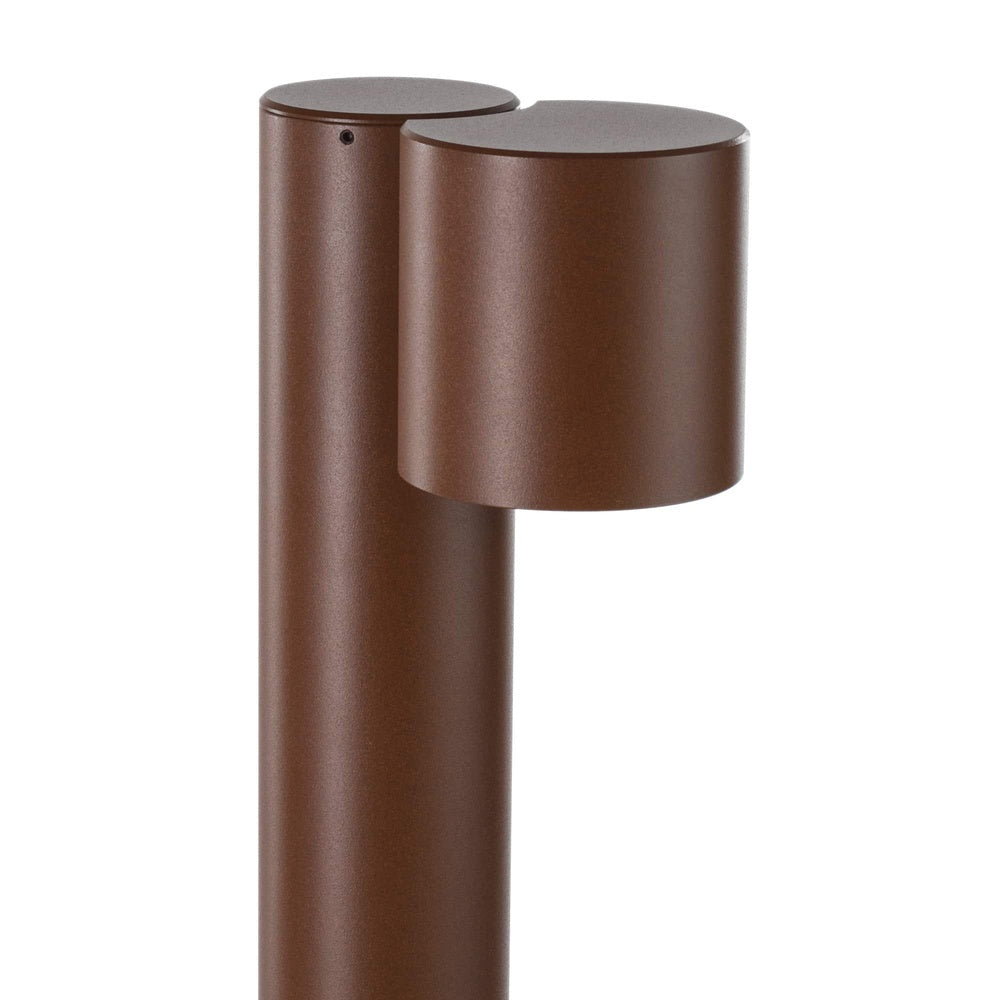

Hunza Direct Burial Arch Bollard Round Light

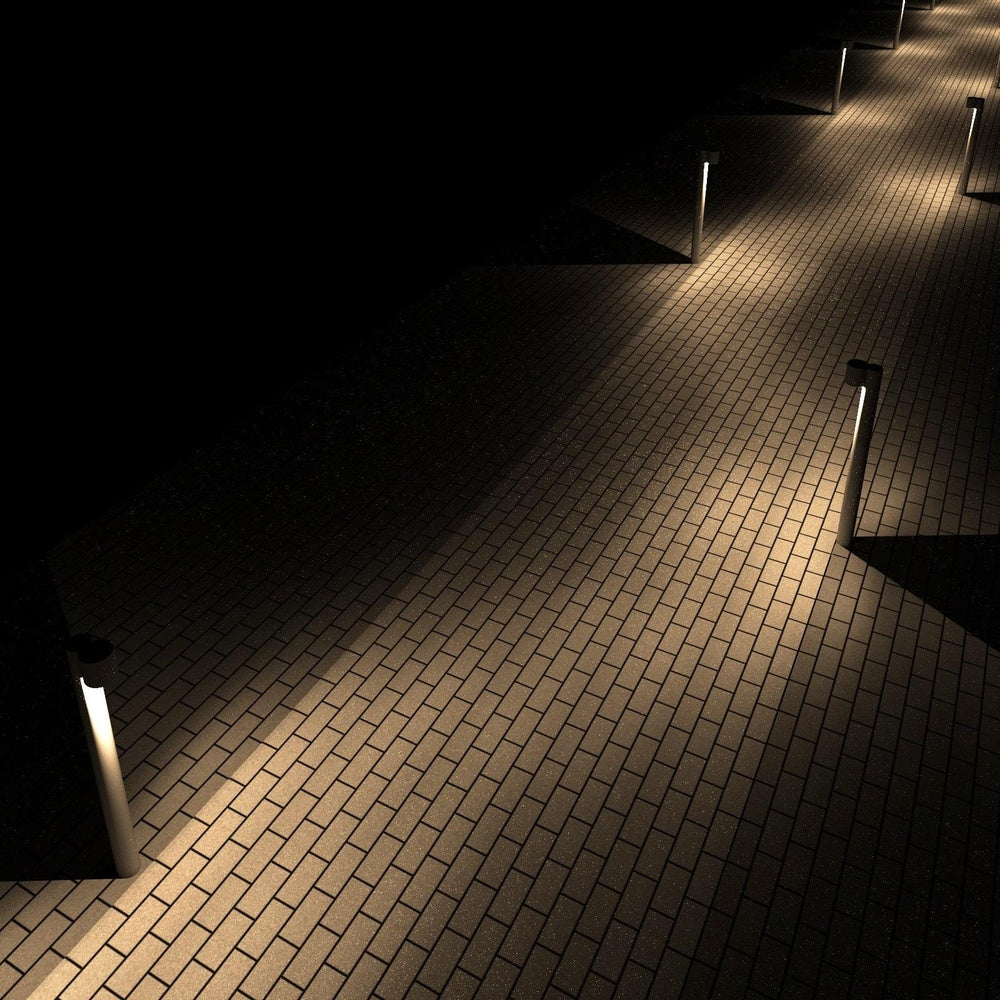

The Arch Bollard is ideal for commercial application. Best suited for ground lighting on driveways and pathways. It has a minimal, contemporary aesthetic that will blend into any architectural setting. This luminaire features a Type II optic that casts a very long but narrow downwards illumination, or Type IV optic which gives a forward throw beam pattern. The result is an extremely low glare light fitting with precise light placement.
Product Specifications
Lumen Output*
3000 lumens @ 700mA (26 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.
100 lm/W
Luminaire Options
Arch Bollard Round - Direct Burial
Warranty
*Excludes third party lamps and power supplies*
Aluminium Components - 5 years
Electronics - 5 Years

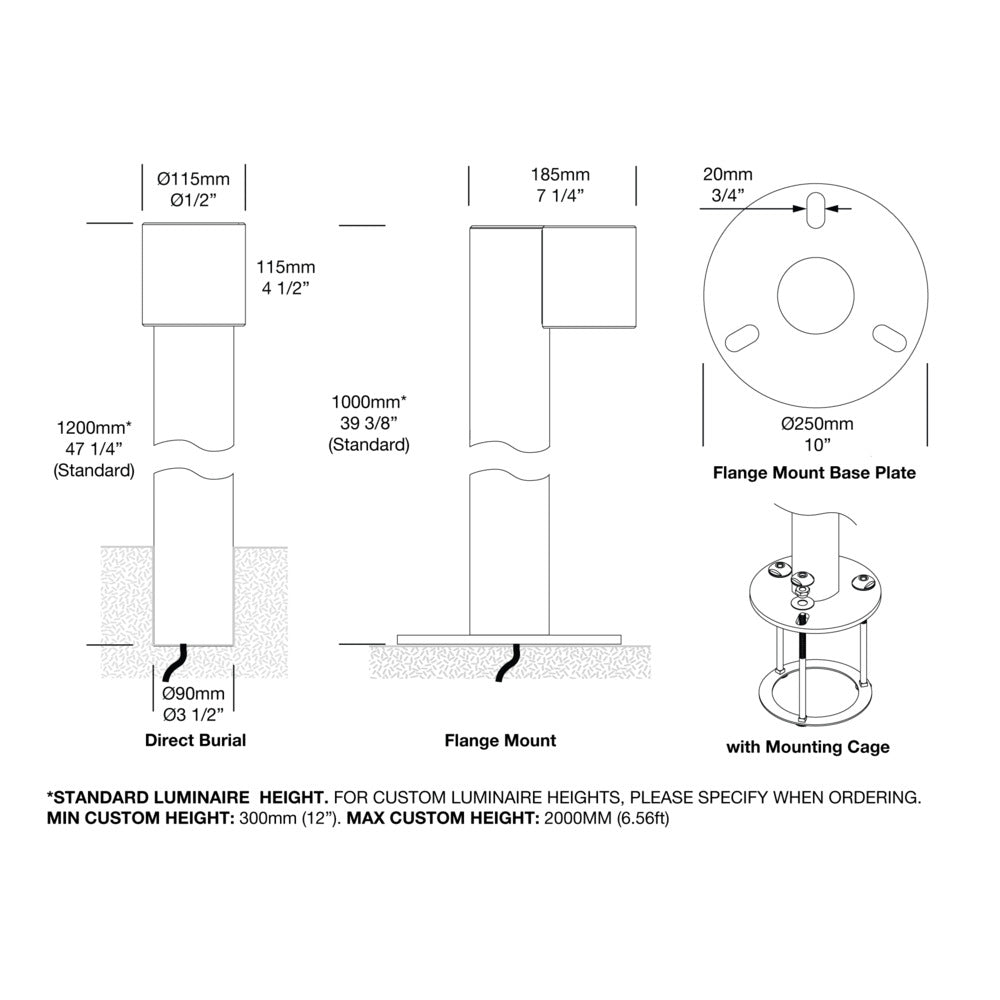

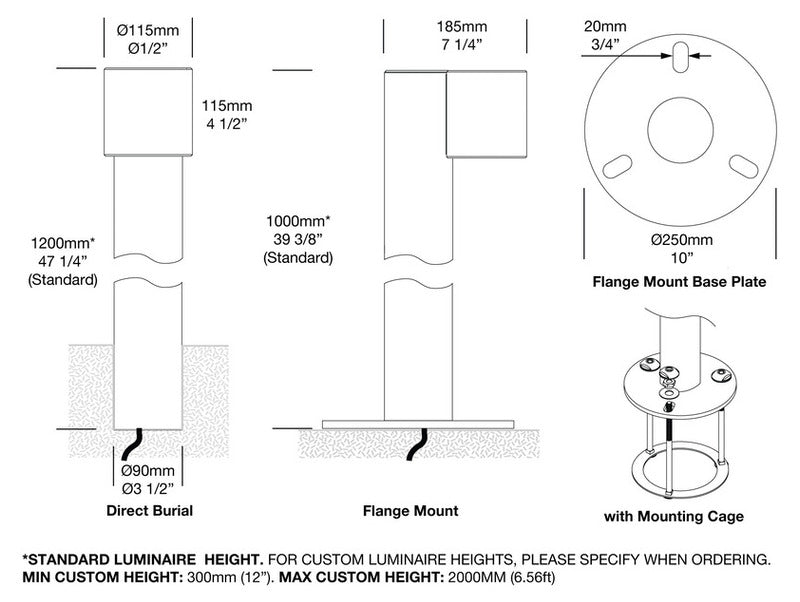

Mounting Options
with Mounting Cage*
LED
Cree® CXB 1830 Plug and Play field replaceable LED board
LED Life Expectancy
50,000 Hrs @ L70
CRI
80 Optional
90+ Standard
Ingress Protection
IP66
Impact Protection
IK10
Materials
Solid Powder Coated Aluminium
Standards
AS1939
UL 1598
UL 2108
UL 1838
CE
Recommended Power Supplies
Driver Supplied for Series Remote Wired (CC format)
24VDC Power Supply Required for 24VDC Input ( CV format )
No Driver Required for Retro™ 'R' ( 120/240V Input )
The Arch Bollard is ideal for commercial application. Best suited for ground lighting on driveways and pathways. It has a minimal, contemporary aesthetic that will blend into any architectural setting. This luminaire features a Type II optic that casts a very long but narrow downwards illumination, or Type IV optic which gives a forward throw beam pattern. The result is an extremely low glare light fitting with precise light placement.
Product Specifications
Lumen Output*
3000 lumens @ 700mA (26 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.
100 lm/W
Luminaire Options
Arch Bollard Round - Direct Burial
Warranty
*Excludes third party lamps and power supplies*
Aluminium Components - 5 years
Electronics - 5 Years
Mounting Options
with Mounting Cage*
LED
Cree® CXB 1830 Plug and Play field replaceable LED board
LED Life Expectancy
50,000 Hrs @ L70
CRI
80 Optional
90+ Standard
Ingress Protection
IP66
Impact Protection
IK10
Materials
Solid Powder Coated Aluminium
Standards
AS1939
UL 1598
UL 2108
UL 1838
CE
Recommended Power Supplies
Driver Supplied for Series Remote Wired (CC format)
24VDC Power Supply Required for 24VDC Input ( CV format )
No Driver Required for Retro™ 'R' ( 120/240V Input )
When you purchase or specify a Hunza luminaire, you get the benefit of the legendary Hunza reputation for high quality and long life. We back this up with extended warranty, offering up to 10 years on body components and 5 years on the integral PURE LEDTM system. Warranty on plug-in (drop-in) LED lamps is limited to 1 year. When installed and maintained properly Hunza luminaires will last a lifetime so we keep serviceability firmly in mind when designing the components and system construction.
Hunza Five Year Warranty* All Hunza aluminium luminaires with a UV stable powder-coat finish have a five-year replacement warranty, subject to standard conditions listed below. Integral PURE LEDTM components are limited to 5 year warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.
Hunza Ten Year Warranty* All Hunza stainless steel and copper luminaires have a ten-year replacement warranty, subject to standard conditions listed below. Integral PURE LEDTM components are limited to 5 year warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.
Hunza Lifetime Warranty* All glass lenses supplied with Hunza luminaires have a lifetime warranty.
Standard Conditions:
1. The environment in which the fixture is to be installed must be considered carefully when selecting the finish. Stainless steel luminaires are recommended for high-risk environments such as near salt water. Aluminium luminaires may not be covered by the full warranty in these situations. 2. Stainless Steel requires regular cleaning with fresh water when installed in salty environments. (Refer to instructions supplied with luminaire). 3. Hunza underwater fixtures are not be covered by warranty in situations where there are chemical imbalances in the water. 4. Warranty excludes impact damage (except for glass lenses), incorrect installation and incorrect re-assembly. 5. Fixtures must be kept properly maintained, including replacement of gaskets and lenses when necessary. 6. Hunza, at its discretion, may replace components or the complete fixture. 7. Hunza warranty is limited to the repair or replacement of products ONLY, labour charges will not be accepted. 8. Hunza will not be liable for any labour charges for any repair or replacement of defective drivers. Drivers have their own manufacturer warranty and any faults will be at the responsibility of the manufacturer. 9. Polycarbonate and acrylic lenses are limited to 5 year warranty. N.B. Acrylic lenses must NOT be cleaned with any petrochemical substance, warranty will be void. 10. Warranty excludes halogen lamps and lamp holders, which are consumable items.
