Hunza EPtronics 1000mA 12W 6-12VDC Constant Current Driver (Retro)

Hunza LightingSKU: LD12W-12-C1000

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

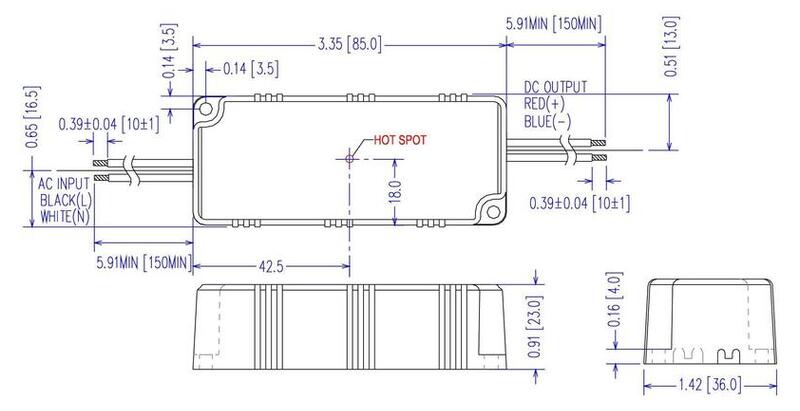

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

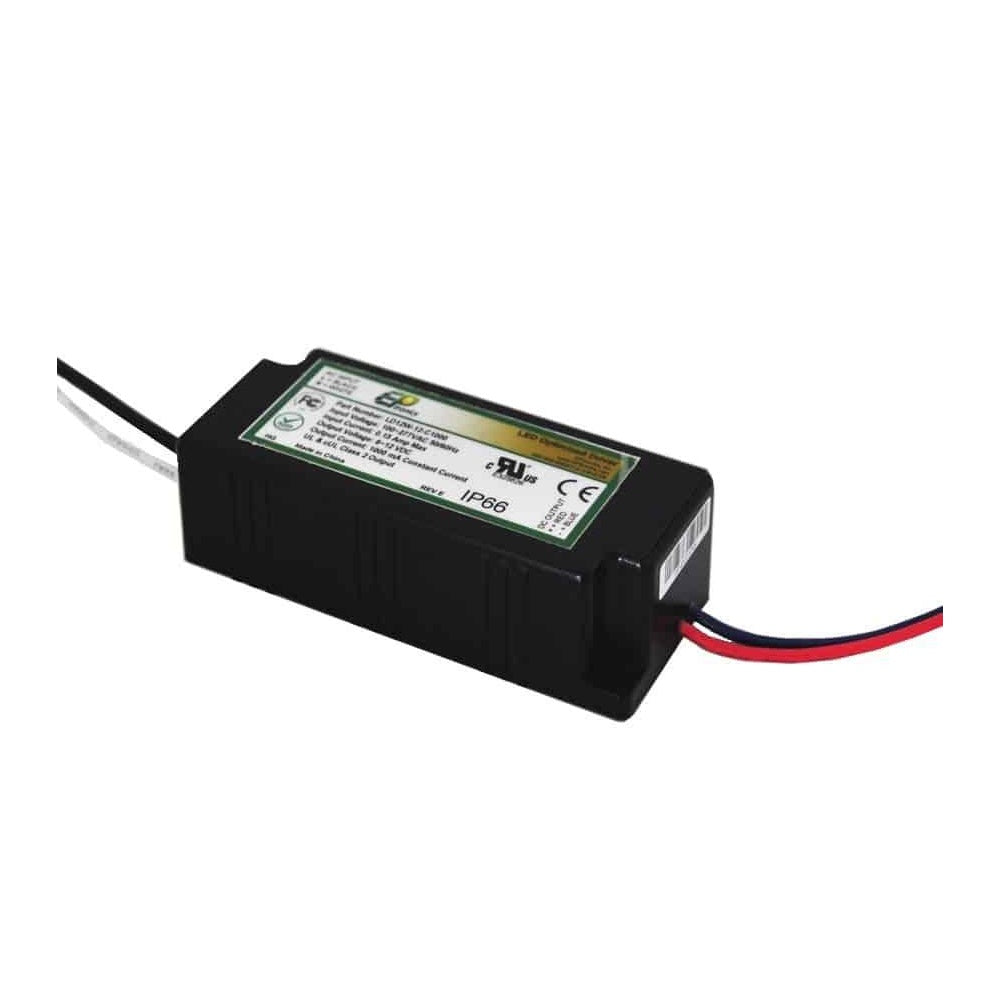

Hunza EPtronics 1000mA 12W 6-12VDC Constant Current Driver (Retro)

The EPTronics LD12W-12-C1000 is a 12 Watt electronic, constant current, Retro driver supplied with Hunza pole-mount Retro PureLED fixtures equipped with Cree XHP LED chips. It is non-dimmable.

Product Specifications

Driver Type
  • Constant Current
Input Voltage
  • 110-277VAC
Input Current
  • 0.15A
Inrush current
  • <10A
Frequency
  • 47/63Hz
Input Power (MAX)
  • 12W
Power Factor
  • >0.94
Output Voltage
  • 6-12V
Output Current
  • 1000mA
Output Power (W)
  • 12W
Ingress Protection
  • IP66
Case Temperature (tc)
  • 80°C MAX
Ambient/Operating Temperature (ta)
  • -30 …+60°C
Warranty
  • Third Party Warranty*
Standards
  • UL8750
  • EN61347
  • CSA 22.2
  • FCC
  • 47CFR Part 15 Class B compliant
  • EN61000-3-2 & EN61000-3-3 Class C
Additional Specs
  • Safety Isolation between Primary and Secondary
  • Humidity (non-condensing): 5% - 95%RH
  • Cooling: Convection
  • Vibration Frequency: 5-55Hz/2g - 30 minutes
  • Impact resistance: 1g/s
  • Leakage current: 300uA typical; Hold up time: half cycle
Dimensions
  • 8.5 x 3.6 x 2.3 cm ( 3.35" x 1.42" x 0.91" )
Weight
  • 0.128 kg ( 0.28 lb )
Product Files

Click for EPtronics 1000mA 12W 6-12VDC Constant Current Driver - LD12W-12-C1000 - Specification Sheet

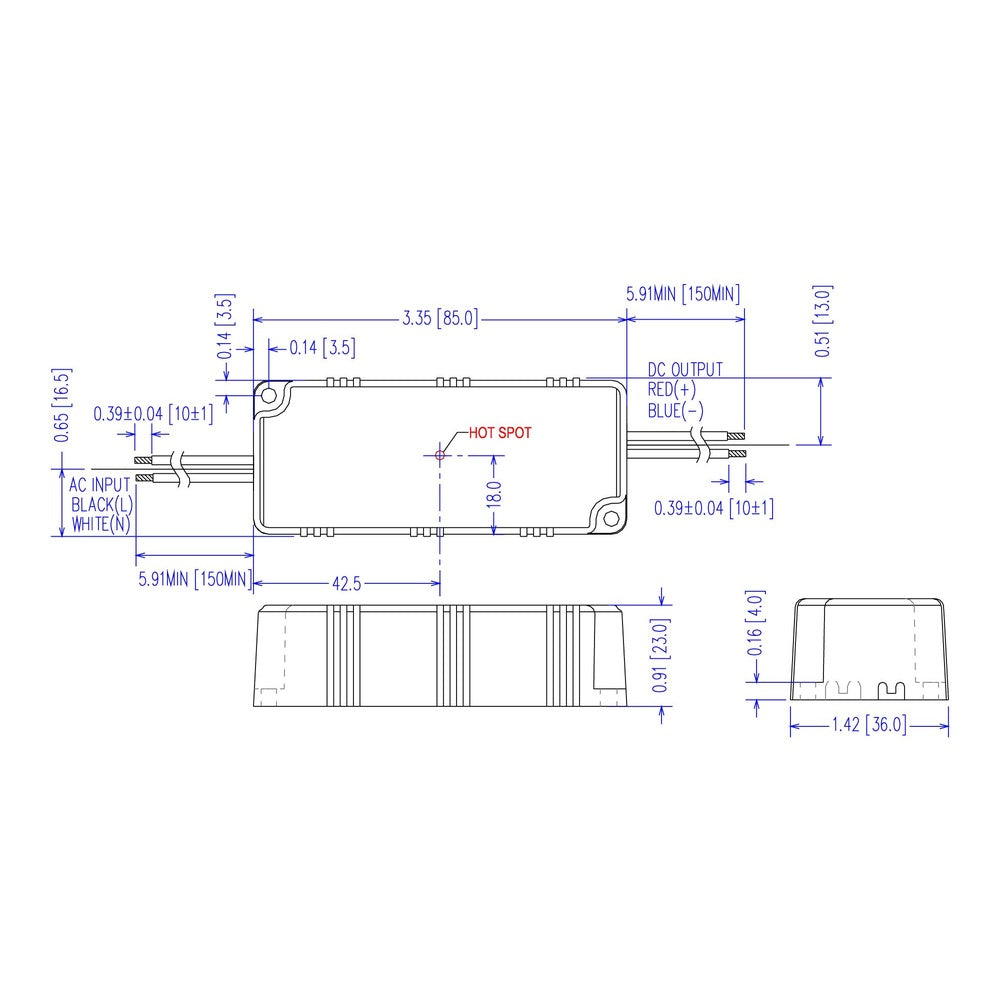

Click for EPtronics 1000mA 12W 6-12VDC Constant Current Driver (Retro) - LD12W-12-C1000 - Product Diagram

Diagram Image
