Hunza EPtronics 1040mA 25W 8-24VDC Constant Current Driver with Dimming

Hunza LightingSKU: LD25W-24-C1040

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

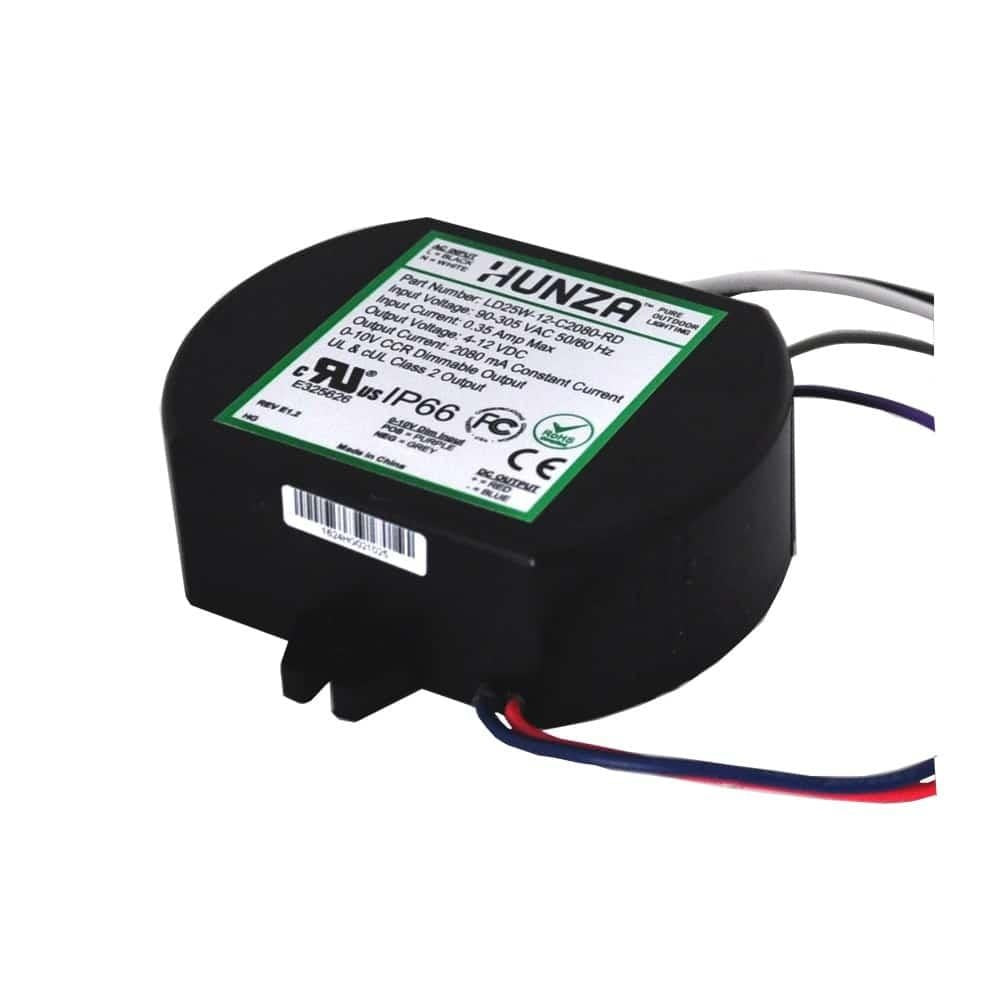

Hunza EPtronics 1040mA 25W 8-24VDC Constant Current Driver with Dimming

The EPTronics LD-25W-24-C1040 is a 25 Watt electronic, constant current, remote driver available to power Hunza series version PureLED fixtures in the USA market.

Product Specifications

Driver Type
  • Constant Current
Dimming
  • 0-10V Dimming
  • Leading Edge
  • Trailing Edge
Input Voltage
  • 90-305VAC
Frequency
  • 47/63Hz
Input Current
  • 0.25A
Power Factor
  • ?0.90C
Input Power (MAX)
  • 25W
Inrush current
  • <15A
Output Voltage
  • 8-24V
Output Current
  • 1040mA
Output Power (W)
  • 25W
Ambient/Operating Temperature (ta)
  • -30 …+60°C
Case Temperature (tc)
  • -30°C …+90°C
Ingress Protection
  • IP66
Standards
  • CE
  • UL Recognised
Warranty
  • Third Party Warranty*
Standards
  • UL8750
  • EN61347
  • CSA 22.2
  • FCC
  • 47CFR Part 15 Class B & EN55015
  • CE
  • EN61000-4-5
  • EN61000-3-2 & EN61000-3-3 Class C
  • RoHS
Additional Specs
  • Typical Efficiency: 86%
  • Humidity (non-condensing): 5% - 95%RH
  • Cooling: Convection
  • Vibration Frequency: 5-55Hz/2g 30 minutes
  • MTBF@ 40OC: 482,000 hours @ Full Load per MIL-217F Notice 2
  • Leakage current: 400uA typical; Hold up time: half cycle
  • Protection: output over-voltage - output over-current - output short circuit -auto-recovery. Storage Temperature (Ts): -40°C …+85°C
Weight
  • 0.198 kg ( 0.44 lb )
Product Files

Click for EPtronics 1040mA 25W 8-24VDC Constant Current Driver with Dimming - LD25W-24-C1040 - Specification Sheet

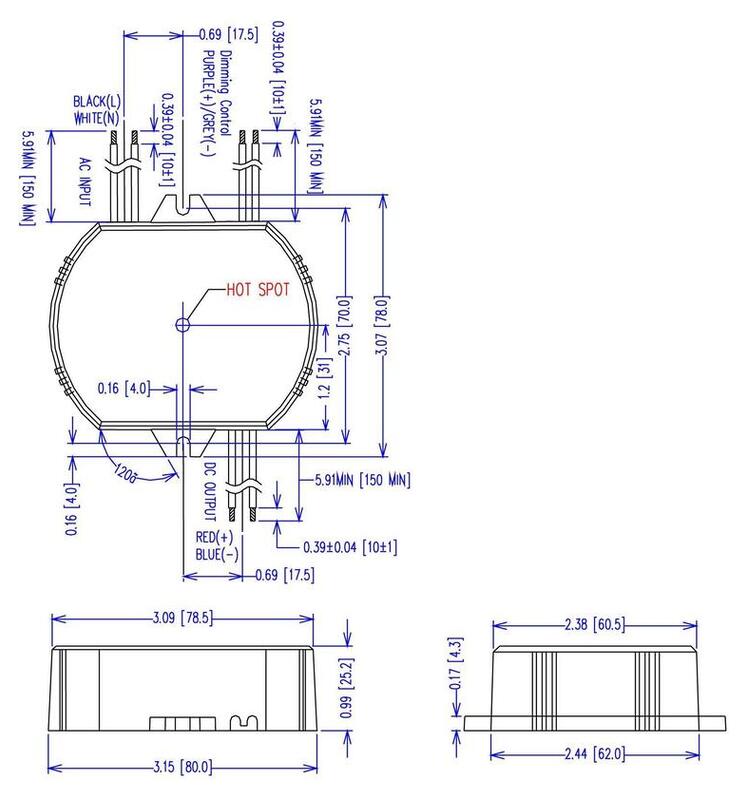

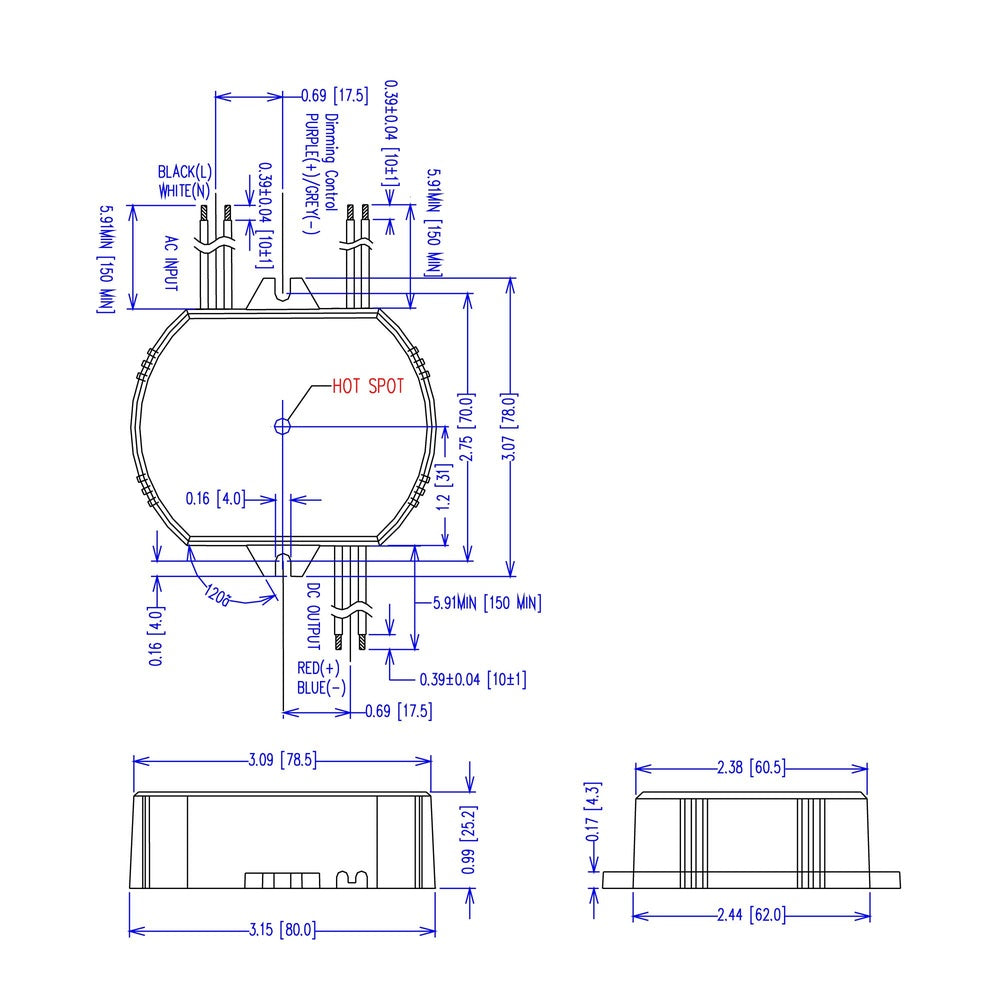

Click for EPtronics 350mA or 700mA or 1040mA 25W Constant Current Driver with Dimming - Product Diagram

Diagram Image
