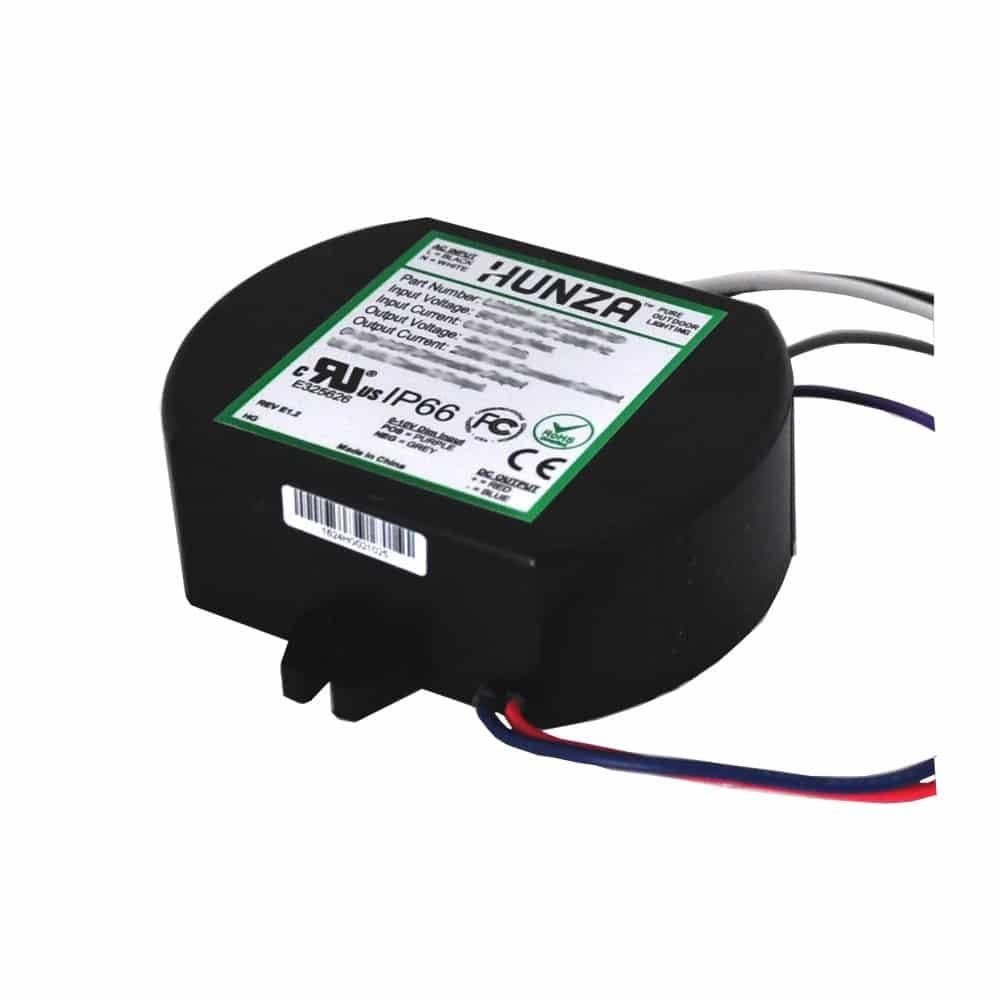

Hunza EPtronics 350mA 25W 24-72VDC Constant Current Driver with Dimming

Hunza LightingSKU: LD25W-72-C0350

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

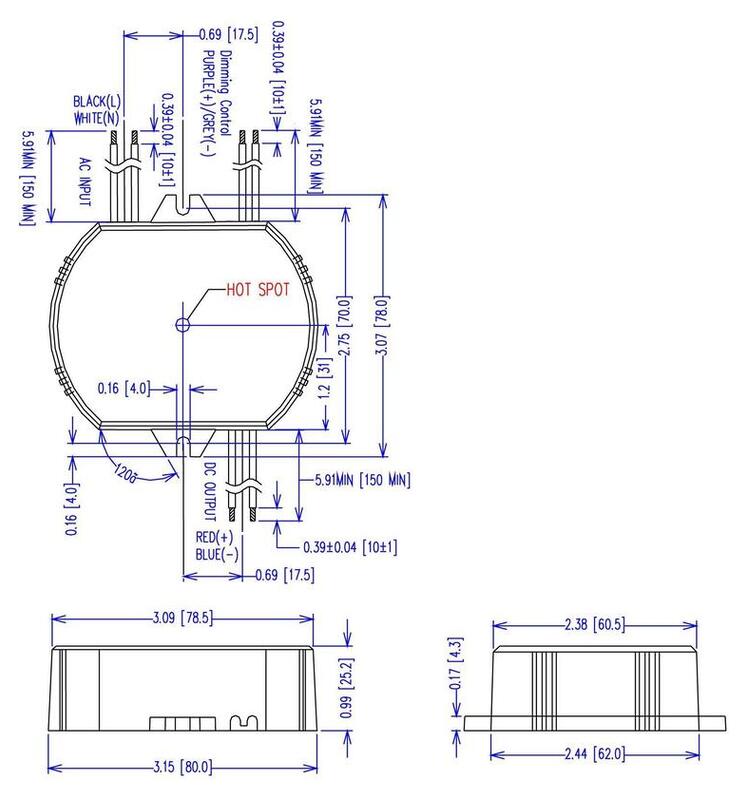

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Hunza EPtronics 350mA 25W 24-72VDC Constant Current Driver with Dimming

The EPTronics LD-25W-72-C0350 is a 25 Watt electronic, constant current, remote driver available to power Hunza series version PureLED fixtures in the USA market. It is designed to be used with Triac (-LE model), ELV (-TE model) or 0-10V dimmers (-RD Model). For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. The PC-17-02 weatherproof box is a requirement for UL compliance. When this driver is used as a remote power supply, series wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

  • Compact, Lightweight Design

This product is currently out of stock and unavailable.

Product Specifications

Driver Type
  • Constant Current
Dimming
  • 0-10V Dimming
  • ELV
  • TRIAC
Input Voltage
  • 90-305VAC
Frequency
  • 47/63Hz
Input Current
  • 0.25A
Input Power (MAX)
  • 25W
Inrush current
  • <15A
Power Factor
  • ?0.90C
Output Voltage
  • 24-72V
Output Power (W)
  • 25W
Output Current
  • 350mA
Ambient/Operating Temperature (ta)
  • -30 …+60°C
Case Temperature (tc)
  • -30°C …+90°C
Ingress Protection
  • IP66
Standards
  • UL8750
  • EN61347
  • CSA 22.2
  • FCC
  • 47CFR Part 15 Class B & EN55015
  • CE
  • EN61000-4-5
  • EN61000-3-2 & EN61000-3-3 Class C
  • RoHS
Additional Specs
  • AC input voltage range 180~295VAC; 254~417VDC
  • AC inrush current (Typ.) COLD START 20A(twidth=270?s measured at 50% Ipeak) at 230VAC; Per NEMA 410
  • Short circuit protection Constant current limiting recovers automatically after the fault condition is removed Over temperature protection Shut down o/p voltage
  • re-power on to recover Setup time 500ms / 230VAC Withstand voltage I/P-O/P:3.75KVAC Working temperature Tcase=-30 ~ +90? (Please refer to “ OUTPUT LOAD vs TEMPERATURE†section) Safety standards UL8750
  • CSA C22.2 No.250.13-12
  • ENEC BS EN/EN61347-1
  • BS EN/EN61347-2-13
  • BS EN/EN62384 independent
  • GB19510.14,GB19510.1,BIS IS15885
  • EAC TP TC 004 approved EMC standards EN55015
  • EN61000-3-2 class C
  • EN61000-3-3
  • EAC TP TC 020 Dimension (LxWxH)(mm) 123.5*81.5*23mm Packing 54pcs/15Kg
Dimensions
  • 3.07 x 3.15 x 1 cm ( 1.21" x 1.24" x 0.39" )
Weight
  • 0.198 kg ( 0.44 lb )
Product Files

Click for EPtronics 350mA 25W 24-72VDC Constant Current Driver with Dimming - LD25W-72-C0350 - Specification Sheet

Click for EPtronics 350mA or 700mA or 1040mA 25W Constant Current Driver with Dimming - Product Diagram

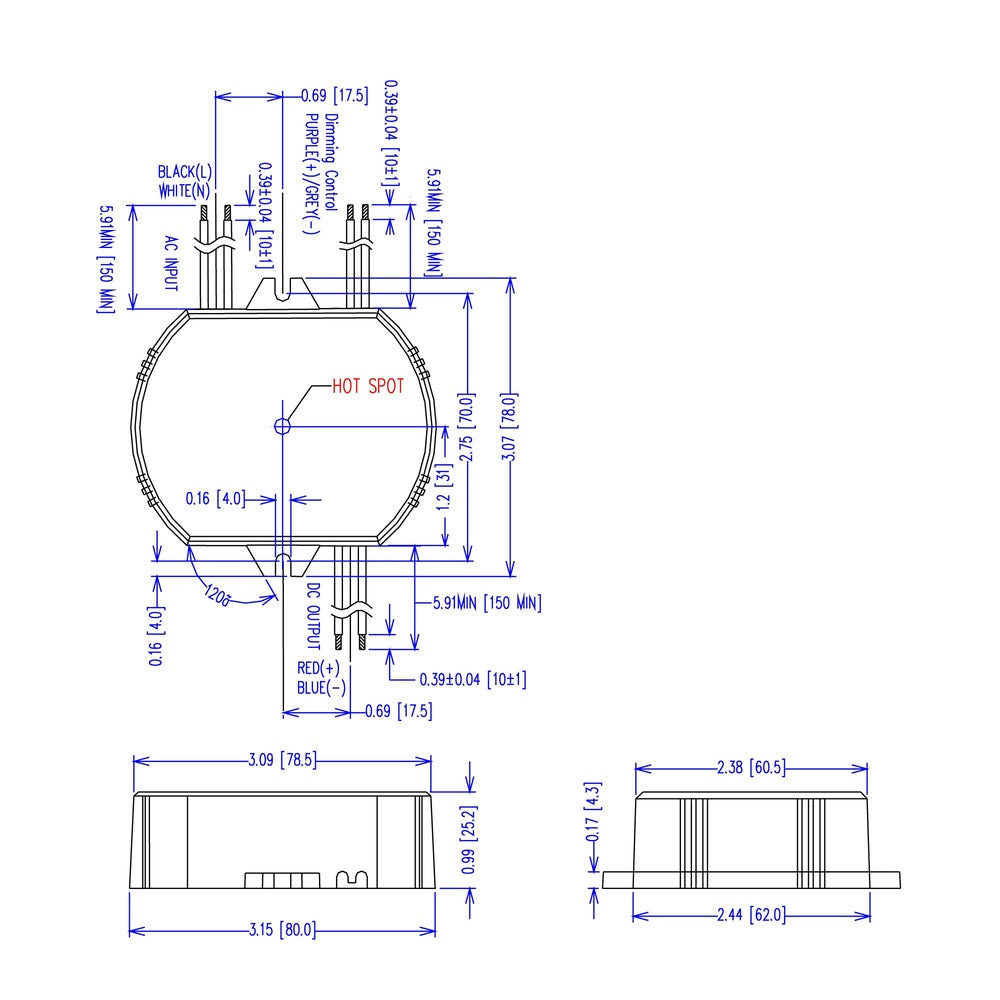

Diagram Image
