Hunza EPTRONICS 350mA Constant Current Driver 12W

Hunza LightingSKU: LD12W-36-C0350

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

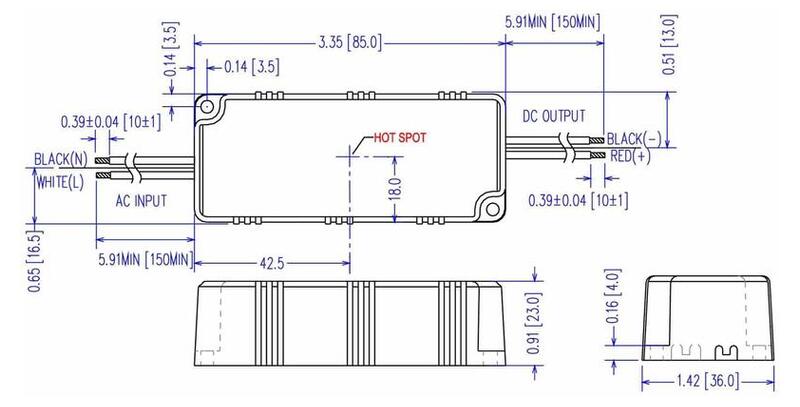

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Hunza EPTRONICS 350mA Constant Current Driver 12W

The EPTronics LD12W-36-C0350 is a 12 Watt electronic, constant current, remote driver available to power Hunza series version PureLED fixtures in the USA market. Non Dimmable. For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. The PC-17-02 weatherproof box is a requirement for UL compliance. When this driver is used as a remote power supply, series wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

Product Specifications

Driver Type
  • Constant Current
Output Voltage
  • 18-36V
Output Current
  • 350mA
Output Power (W)
  • 12W
Input Voltage
  • 100-277VAC
Input Current
  • 0.15A (120VAC)
Frequency
  • 50/60Hz
Ingress Protection
  • IP66
Standards
  • CE
  • RoHS
  • UL 8750
  • UL Recognised
Warranty
  • Third Party Warranty*
Dimensions
  • 8.5 x 3.6 x 2.3 cm ( 3.35" x 1.42" x 0.91" )
Weight
  • 0.3 kg ( 0.66 lb )
Product Files

Click for EPTRONICS 350mA Constant Current Driver | 12W - LD12W-36-C0350 - Specification Sheet

Click for EPtronics 1000mA 12W 6-12VDC Constant Current Driver (Retro) - LD12W-12-C1000 - Product Diagram

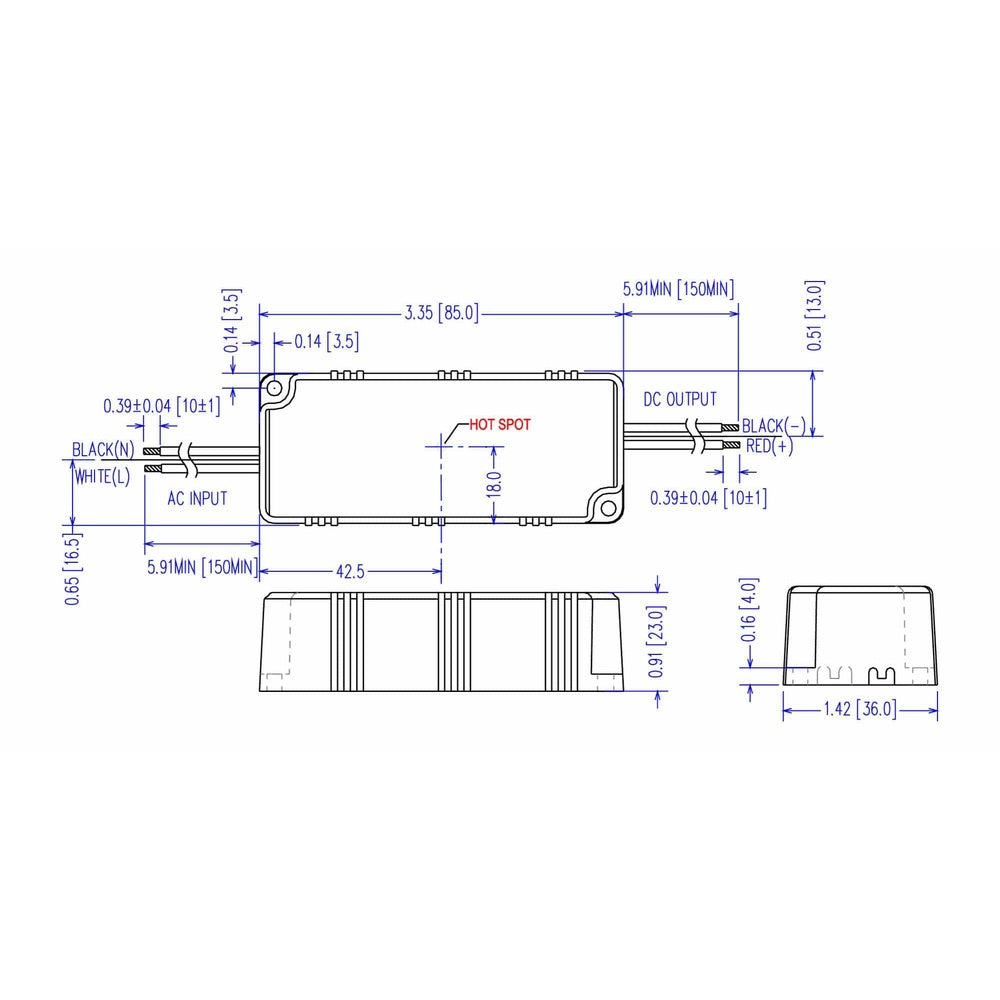

Diagram Image
