Hunza EPtronics 700mA 25W 12-36VDC Constant Current Driver with Dimming

Hunza LightingSKU: LD25W-36-C0700-0-10V-DIMMING

Select Dimming Option: 0-10V Dimming
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

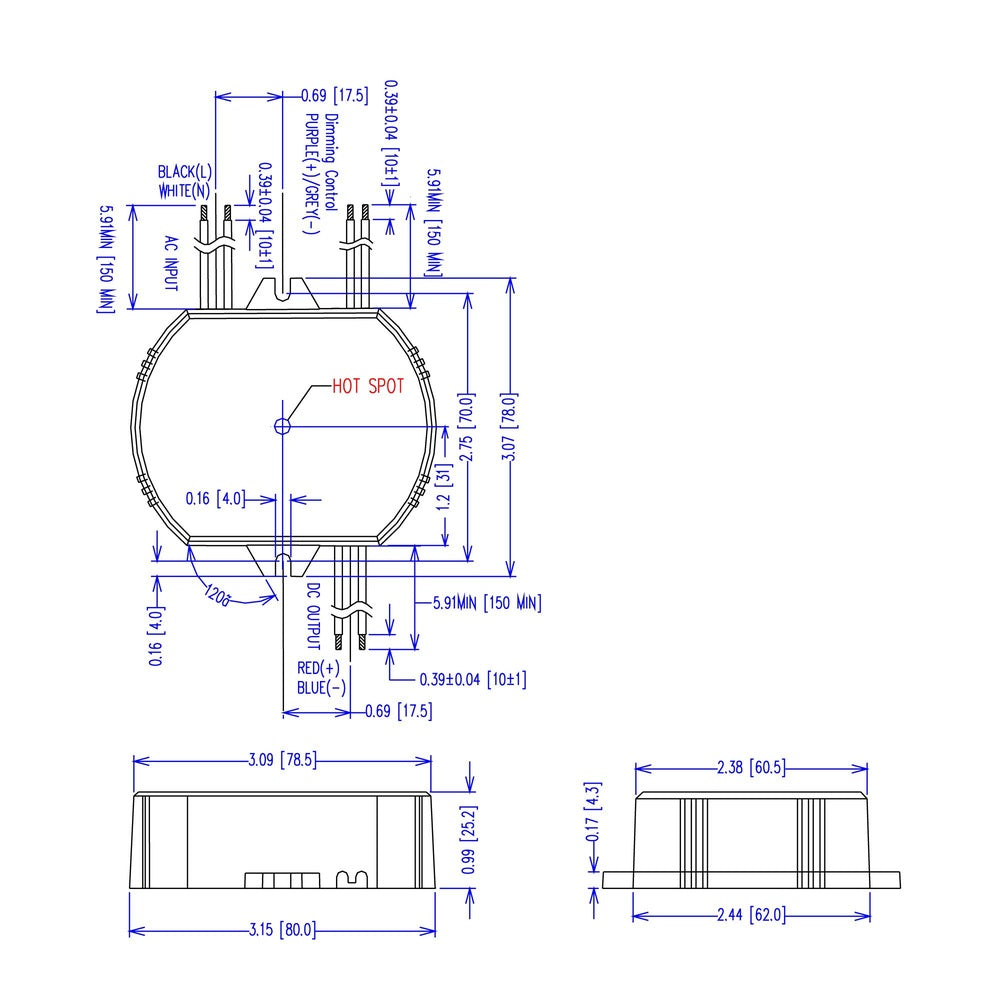

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Hunza EPtronics 700mA 25W 12-36VDC Constant Current Driver with Dimming

The EPTronics LD25W-36-C0700 is a 25 Watt electronic, constant current, remote driver available to power Hunza series version PureLED fixtures in the USA market. It is designed to be used with Triac (-LE model), ELV (-TE model) or 0-10V dimmers (-RD Model). For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. The PC-17-02 weatherproof box is a requirement for UL compliance. When this driver is used as a remote power supply, series wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

Product Specifications

Driver Type
  • Constant Current
Input Voltage
  • 90-305VAC
Frequency
  • 47/63Hz
Input Current
  • 0.25A
Power Factor
  • >0.90C
Input Power (MAX)
  • 25W
Inrush current
  • <15A
Output Voltage
  • 12-36VDC
Output Current
  • 700mA
Output Power (W)
  • 25W
Case Temperature (tc)
  • -30°C +90°C
Ambient/Operating Temperature (ta)
  • -30 +60°C
Ingress Protection
  • IP66
Warranty
  • Third Party Warranty*
Standards
  • UL8750
  • EN61347
  • CSA 22.2
  • FCC
  • 47CFR Part 15 Class B & EN55015
  • CE
  • EN61000-4-5
  • EN61000-3-2 & EN61000-3-3 Class C
  • RoHS
Additional Specs
  • Typical Efficiency: 86%
  • Humidity (non-condensing): 5% - 95%RH
  • Cooling: Convection
  • Vibration Frequency: 5-55Hz/2g 30 minutes
  • MTBF@ 40OC: 482,000 hours @ Full Load per MIL-217F Notice 2
  • Leakage current: 400uA typical; Hold up time: half cycle
  • Protection: output over-voltage - output over-current - output short circuit -auto-recovery. Storage Temperature (Ts): -40°C +85°C
Product Files

Click for EPtronics 700mA 25W 12-36VDC Constant Current Driver with Dimming - LD25W-36-C0700 - Specification Sheet

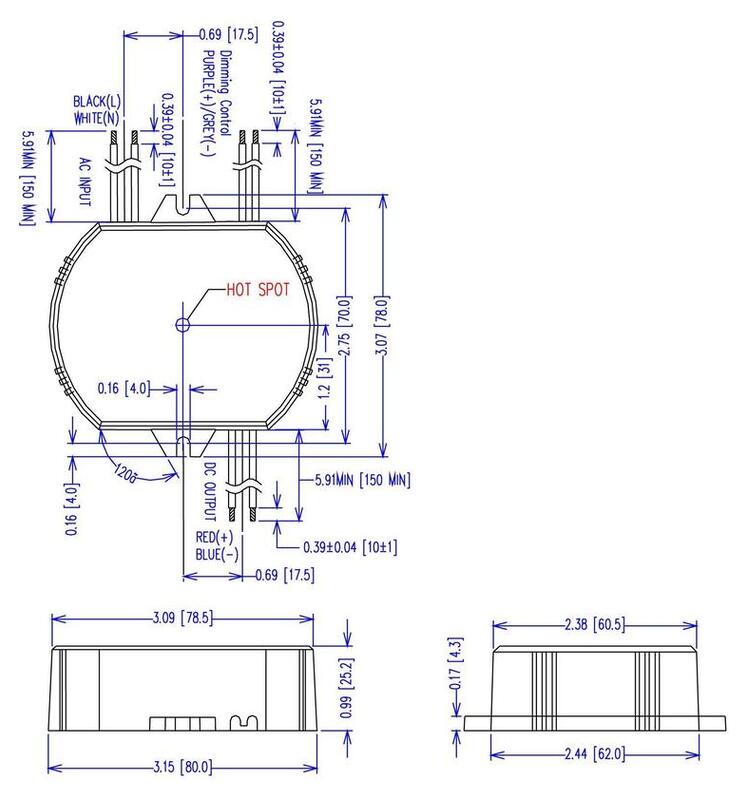

Click for EPtronics 350mA or 700mA or 1040mA 25W Constant Current Driver with Dimming - Product Diagram

Diagram Image
