Hunza HATCH 120V to 12VAC Retro Driver 60W

Hunza LightingSKU: RS12-60-LED

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

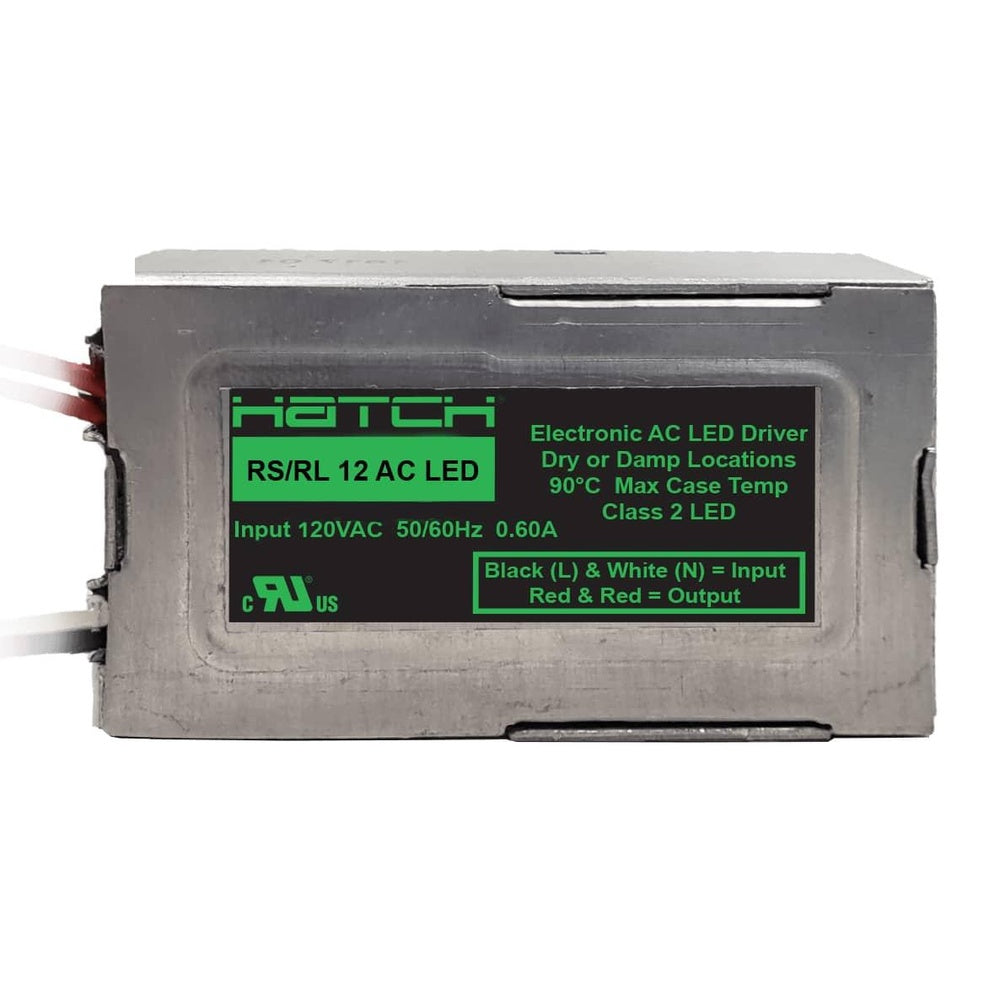

Hunza HATCH 120V to 12VAC Retro Driver 60W

The Hatch RS12-60M-LED is a 60 Watt electronic transformer supplied with Hunza 120 Volt Retro fixtures with Promus drop-in LED lamps. It includes overload protection, short-circuit protection, full range dimming, waterproof potting and aluminium casing.

  • No Minimum Load
  • Short circuit protection
  • Suitable for dry and damp locations
  • Withstanding voltage: I/P - O/P 2kVAC
  • Surge Rating: NEMA SSL1-2010 Non-roadway 2.5kV
  • Operating temperature range: -20°C to 90°C (measured at Tcase)
  • Wide Dimming Range
  • Recommended ELV Dimming
  • Suitable for AC LED or Halogen Loads

Product Specifications

Driver Type
  • 12VAC
Dimming
  • ELV
Output Voltage
  • 12VAC
Output Power (W)
  • 60W
Input Voltage
  • 120VAC
Input Current
  • 0.6A
Frequency
  • 50/60Hz
Ambient/Operating Temperature (ta)
  • -20 …+90°C
Standards
  • Class P
  • RoHS
  • Type1 Outdoor
  • UL 8750
  • UL Recognised
Warranty
  • Third Party Warranty*
Dimensions
  • 5.588 x 3.1242 x 1.905 cm ( 2.2" x 1.23" x 0.75" )
Weight
  • 0.08 kg ( 0.18 lb )
Product Files

Click for HATCH 120V Retro Driver | 60W - RS12-60 LED - Specification Sheet

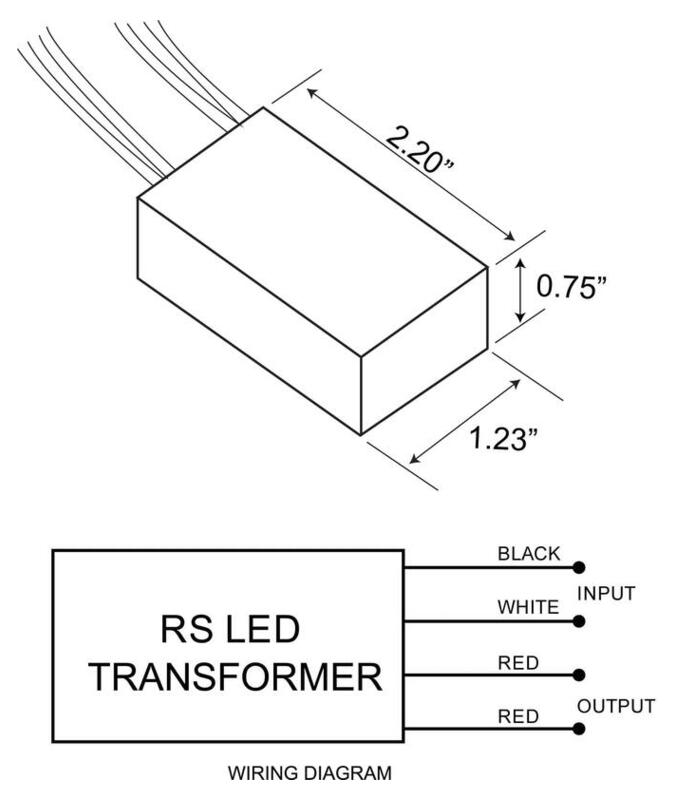

Click for HATCH 120V Retro Driver | 60W - RS12-60 LED - Product Diagram

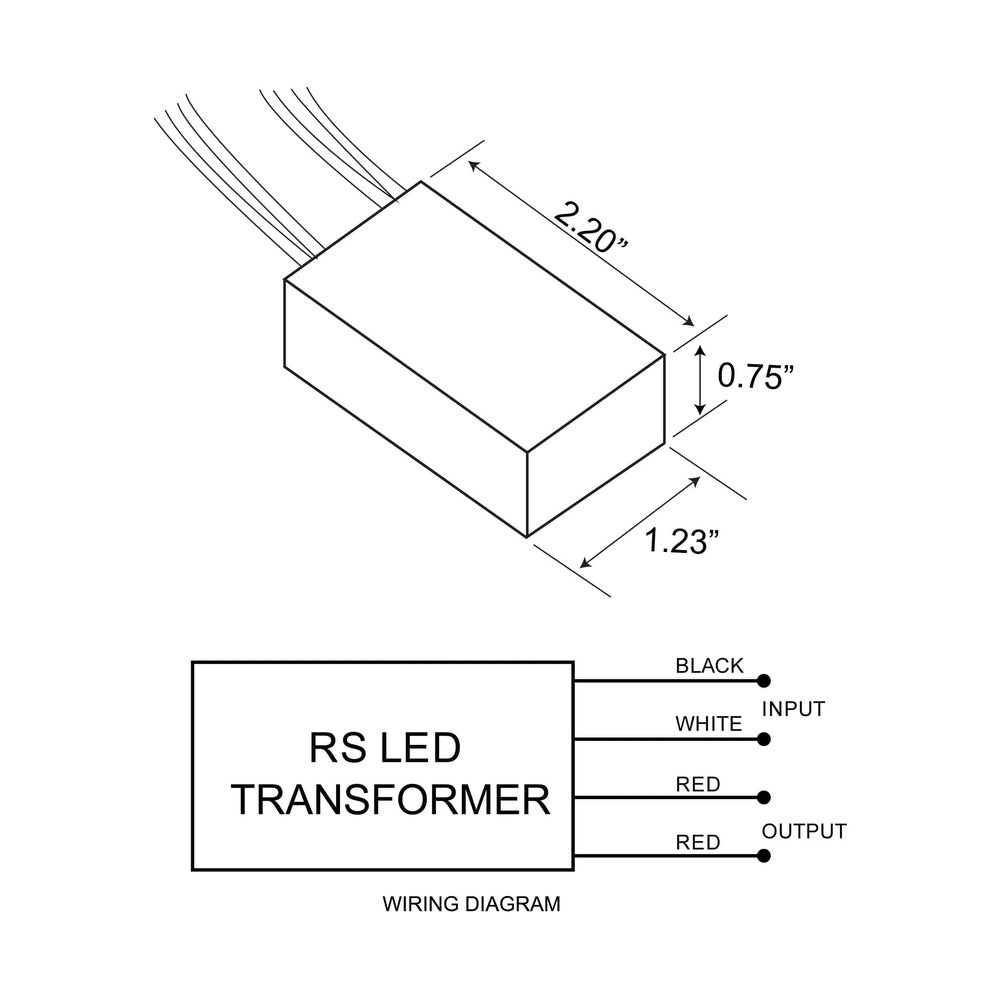

Diagram Image
