Hunza Hunza 220-240V Constant Current Driver 4W 6V

Hunza LightingSKU: DR-LDRTL700-4W-6V

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

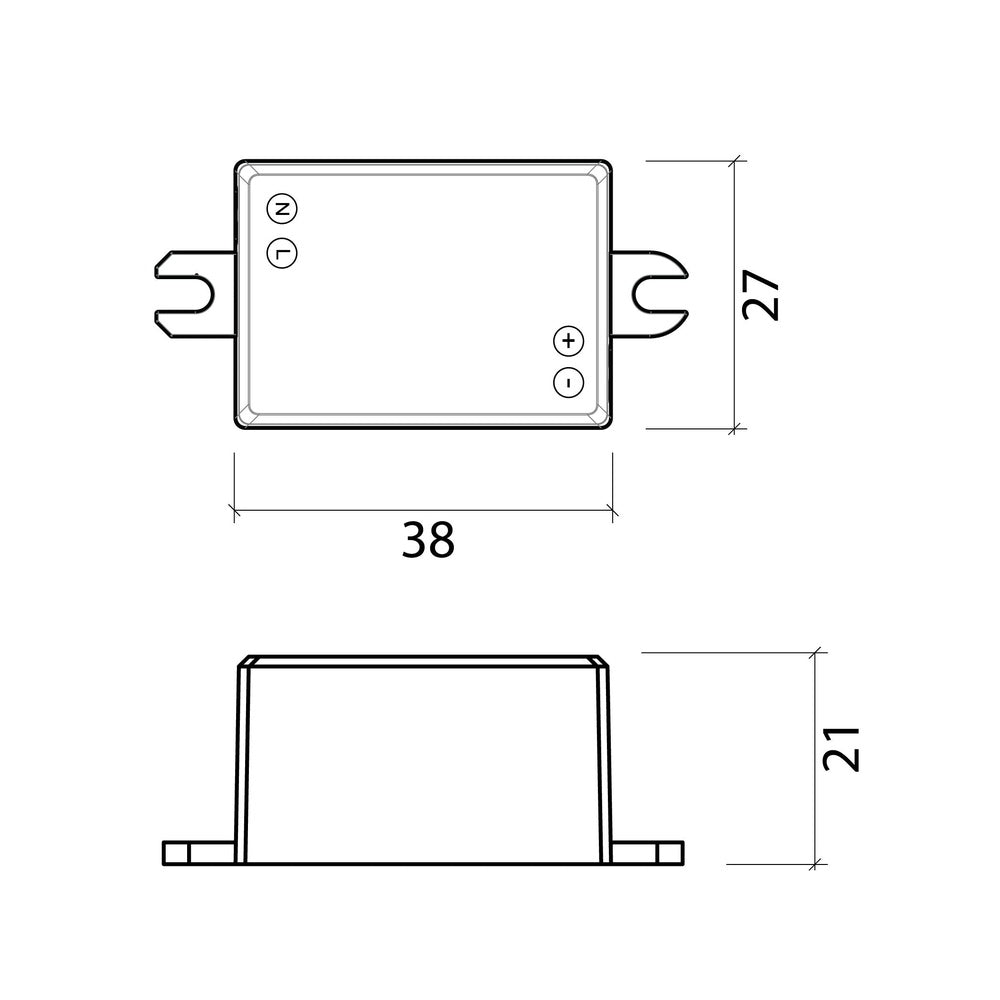

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

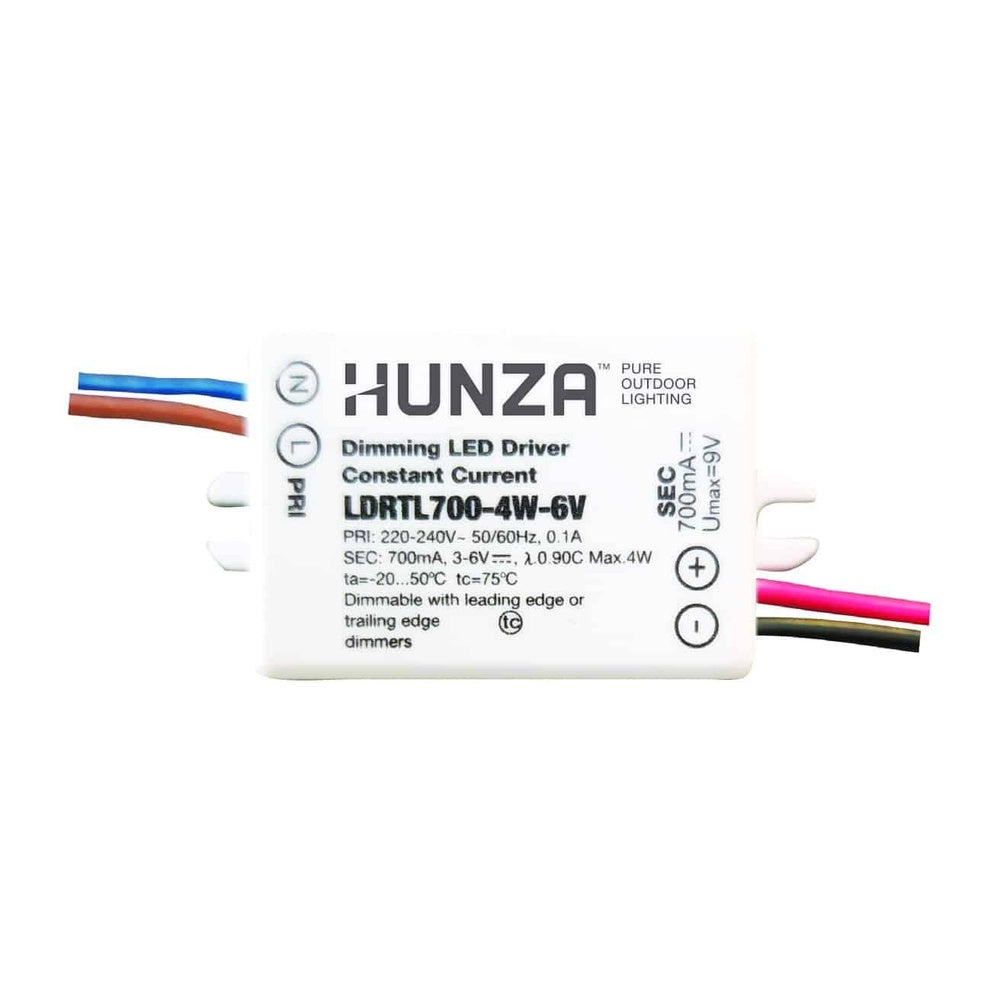

Hunza Hunza 220-240V Constant Current Driver 4W 6V

Product Specifications

Driver Type
  • Constant Current
Output Voltage
  • 3-6V
Output Power (W)
  • 4W
Output Current
  • 700mA
Input Voltage
  • 220-240VAC
Frequency
  • 50/60Hz
Input Power (MAX)
  • 6W
Input Current
  • 0.01A
Inrush current
  • ?5.0A
Power Factor
  • ?0.90C
Operating Frequency (Full load)
  • 60KHz
Ambient/Operating Temperature (ta)
  • -20 …+ 50°C
Case Temperature (tc)
  • 80°C
Dimming
  • Trailing Edge or Phase Dimmable
Ingress Protection
  • IP65
Protection
  • Auto-recovery if fault is removed (No Load - Over load - Short circuit)
Warranty
  • 2 year *third party warranty
Dimensions
  • 3.8 x 2.7 x 2.1 cm ( 1.5" x 1.06" x 0.83" )
Product Files

Click for Hunza 220-240V Constant Current Driver 4W - LDRTL700-4W-6V - Specification Sheet

Click for Hunza 220-240V Constant Current Driver 4W - LDRTL700-4W-6V - Product Diagram

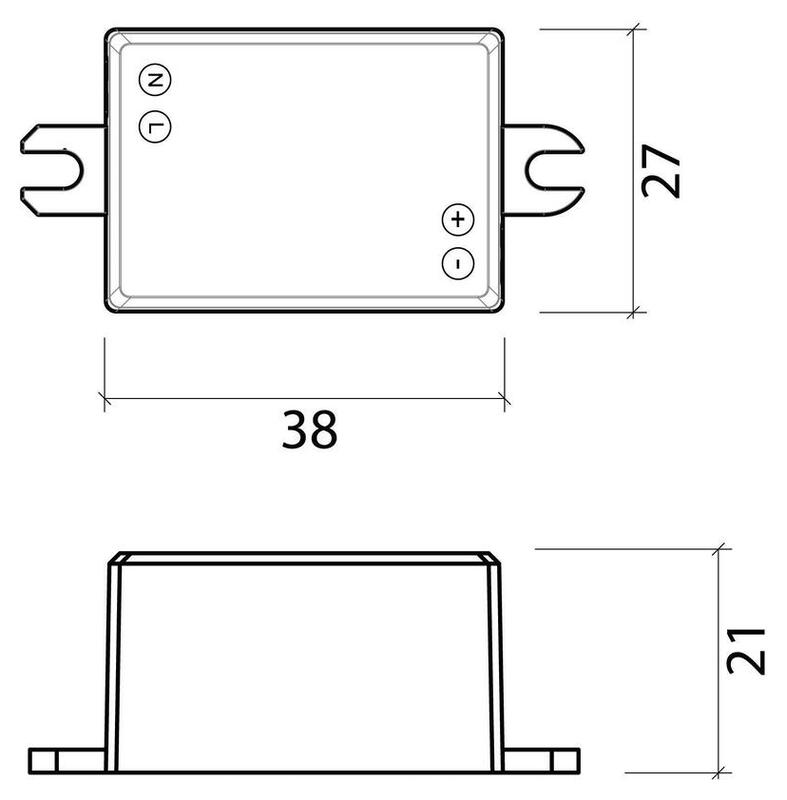

Diagram Image
