Hunza Lifud LED Driver LFGIR003YS700H 3W 700mA (2-4V) IP20

Hunza LightingSKU: DR-CC-LFGIR003YS700H

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

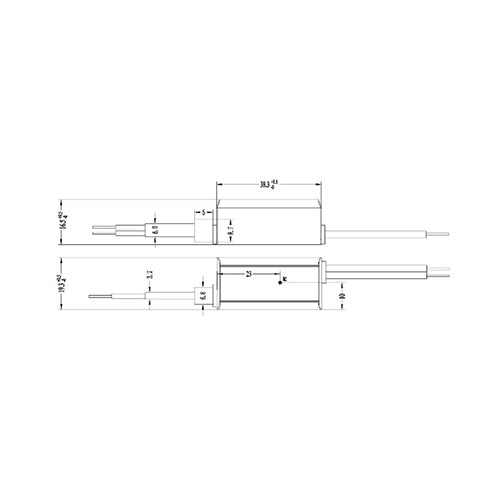

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

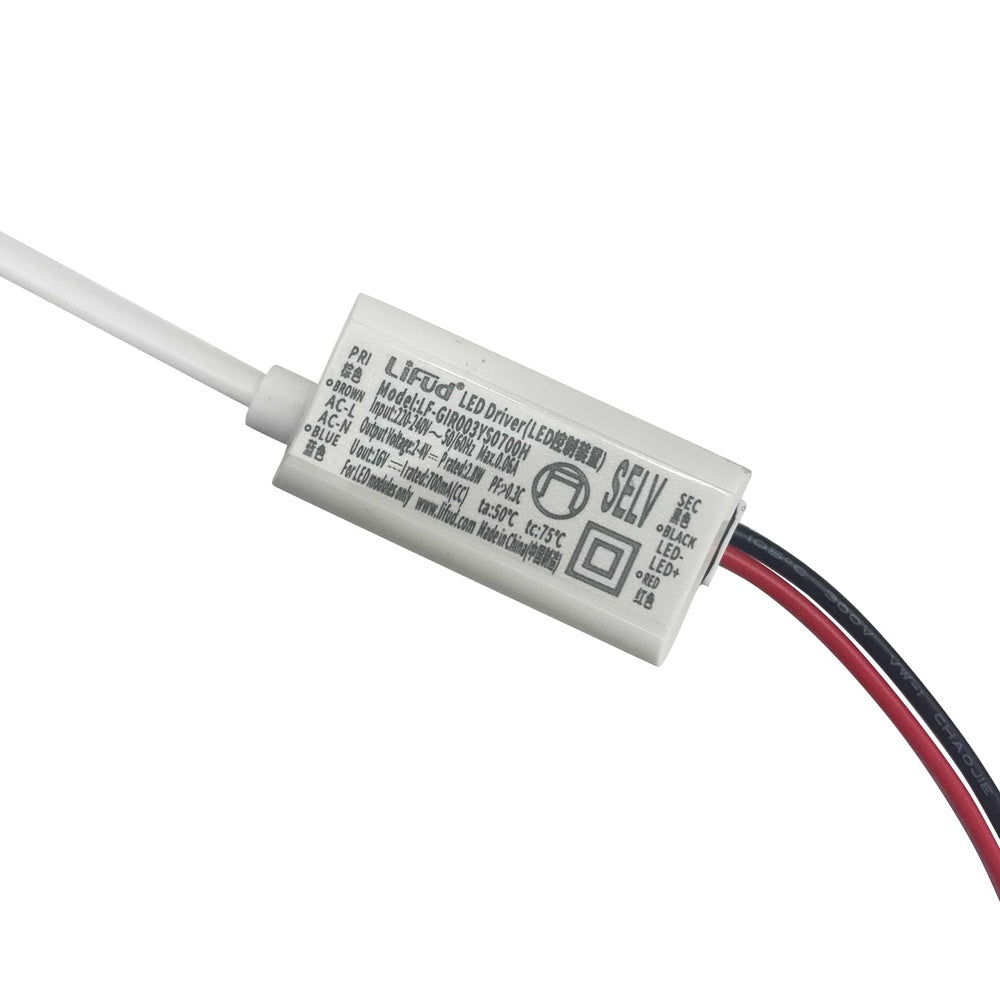

Hunza Lifud LED Driver LFGIR003YS700H 3W 700mA (2-4V) IP20

220-240VAC Flicker-Free LED Driver with a Plastic Casing

The Lifud LED Driver LF-GIR003YS700H is a 3W isolated constant current LED driver. It has a compact size with a plastic casing. Its rated input voltage ranges from 220VAC to 240VAC. It has an output voltage range of 2-4VDC with output currents of 700mA.

Features

  • Electrical type: isolated driver (suitable for Class II light fixtures)
  • Description: 220-240VAC flicker-free LED driver with a plastic casing
  • Product feature: percent flicker ? 0.9%
  • Certification: CE, CB, RCM, SAA, CCC

Product Specifications

Driver Type
  • Constant Current
Output Power (W)
  • 3W
Output Current
  • 700mA
Output Voltage
  • 2-4V
Frequency
  • 47/63Hz
Input Current
  • 0.06A Max
Input Voltage
  • 220-240VAC
Power Factor
  • ?0.37
Ambient/Operating Temperature (ta)
  • -20°C~50°C
Ingress Protection
  • IP20
Standards
  • CE
  • CB
  • RCM (C-Tick)
Warranty
  • 5 Year Third Party Warranty
Dimensions
  • 3.83 x 1.93 x 1.65 cm ( 1.51" x 0.76" x 0.65" )
Weight
  • 0.02 kg ( 0.04 lb )
Product Files

Click for Lifud LED Driver - LF-GIR003YS0700H - Specification Sheet

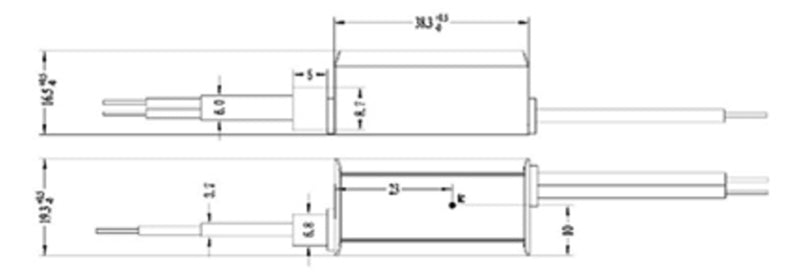

Diagram Image
