Hunza LUXR® LuxR 12V Buck Driver

Hunza LightingSKU: LBDXXX-3-12V-1050mA

Select Output Voltage: 3-12V
Select Output Current: 1050mA
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

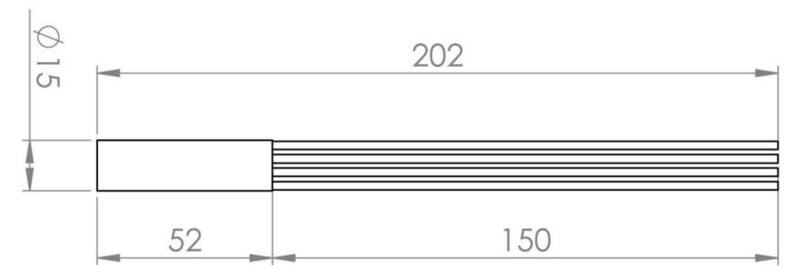

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

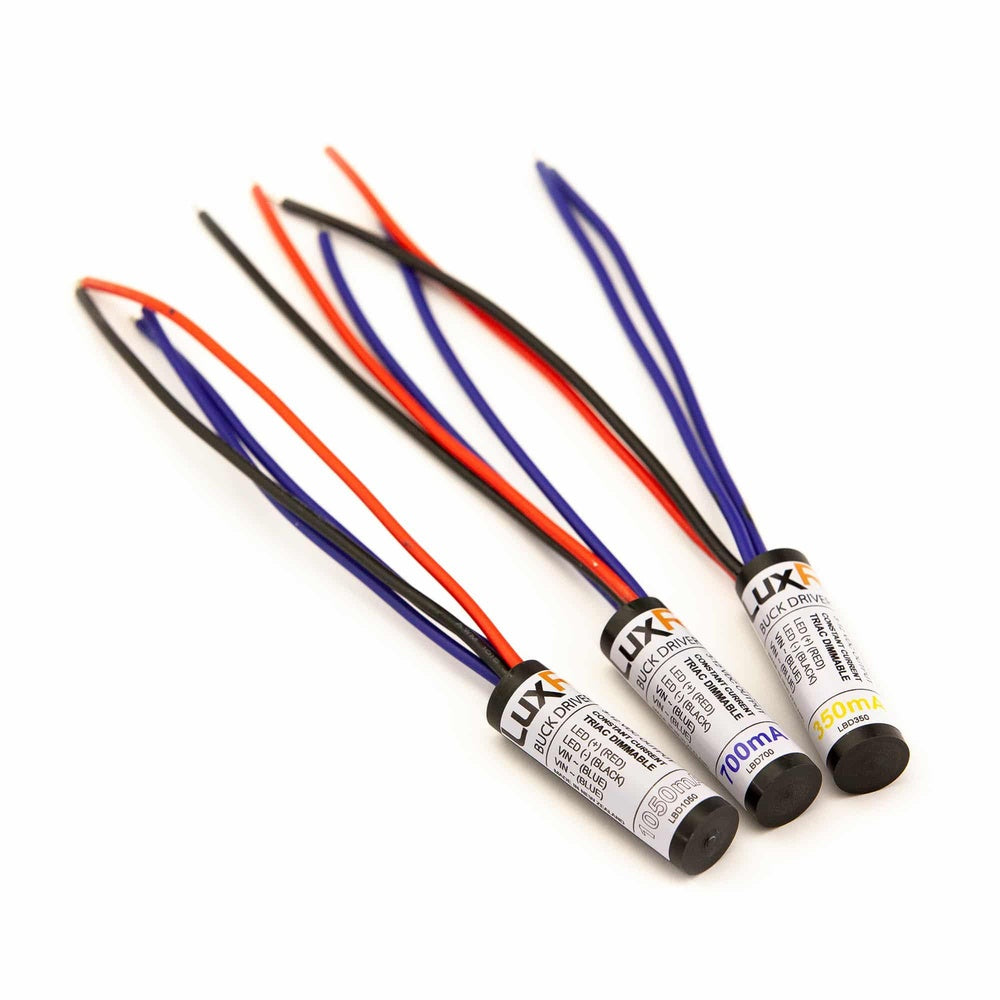

Hunza LUXR® LuxR 12V Buck Driver

The LuxR Buck Driver is a constant current device that operates from a 9-15 vac input. The LuxR Buck Driver has a forward voltage output range of 3-12 vdc. One of the main features of this product is that it is Triac/Phase dimmable. The second feature is it is available in a 1050mA variant. With a water resistant rating of IP66, the LuxR Buck Driver is suited for use in both landscape lighting and interior lighting applications. This product should only be used with a magnetic transformer for best performance and results.

TYPICAL APPLICATIONS:

- Landscape and Garden Lighting
- General Lighting
- Architectural Lighting
- Sign Lighting

Product Specifications

Driver Type
  • 12VAC
Input Voltage
  • 9-15 VAC
Frequency
  • 50/60Hz
Dimming
  • TRIAC or Phase Dimmable
Ambient/Operating Temperature (ta)
  • -20 + 50°C
Case Temperature (tc)
  • -20 +80°C Ambient
Ingress Protection
  • IP66
Warranty
  • Electronics - 5 Years
Dimensions
  • 1.5 x 1.5 x 5.2 cm ( 0.59" x 0.59" x 2.05" )
Weight
  • 0.1 kg ( 0.22 lb )
Product Files

Click for LuxR 12V Buck Driver - Specification Sheet

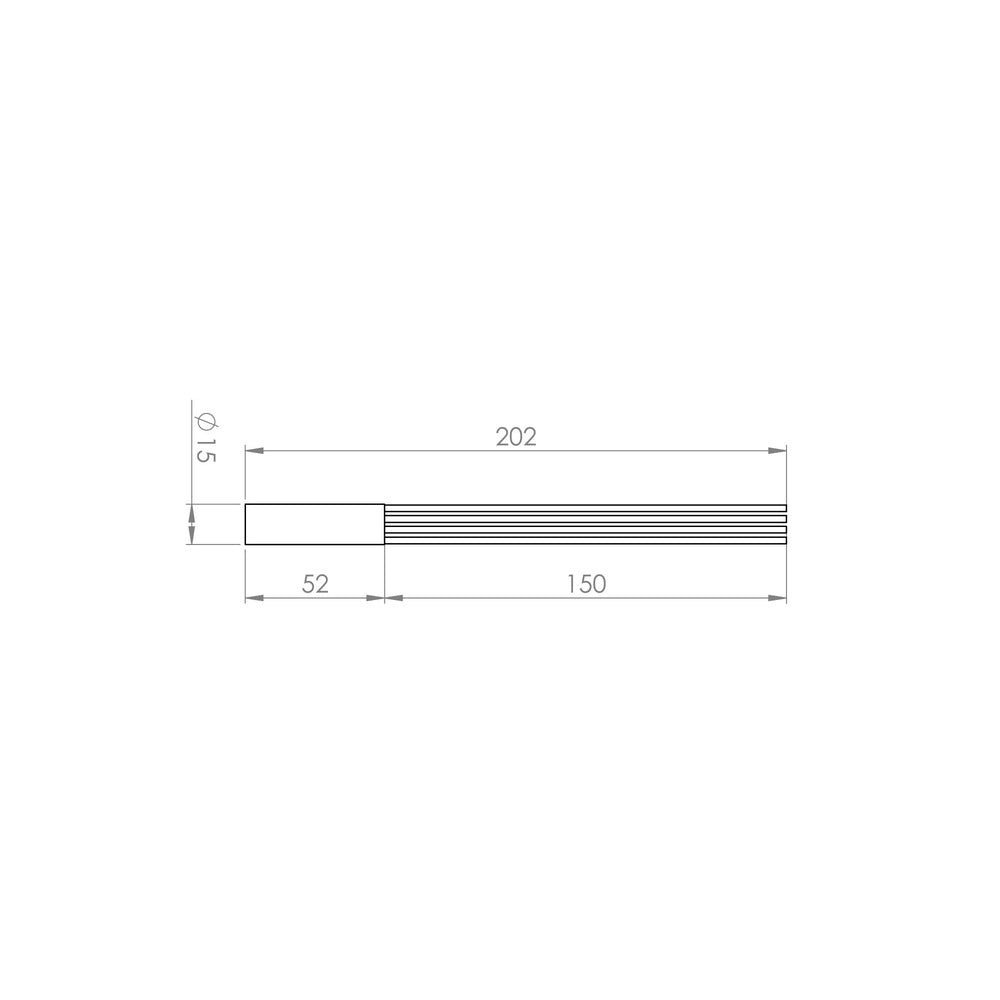

Click for LuxR 12V Buck Driver - Product Diagram

Diagram Image
