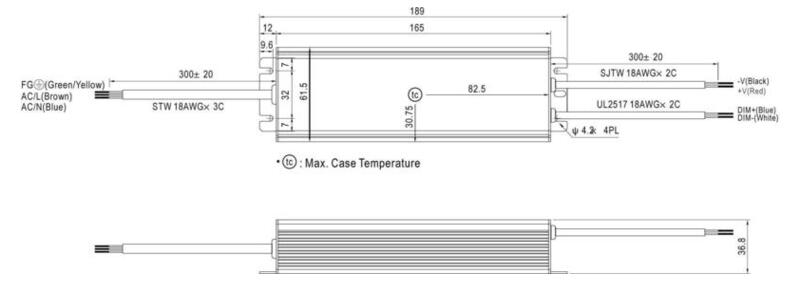

Dimensions Drawing
Fast & Easy Quote Request For Hunza Lighting
Description

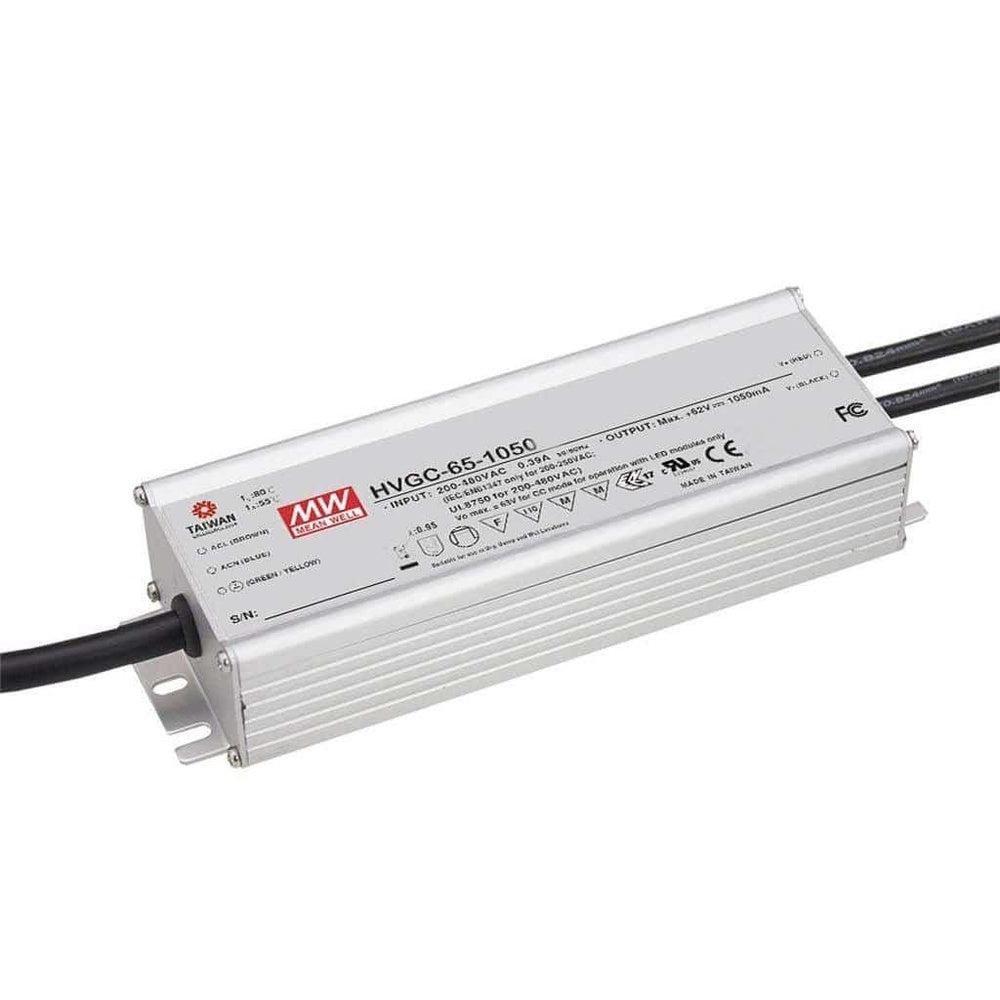

Hunza Mean Well 1050mA IP67 Constant Current Power Supply 65W - Dim-to-off
HVGC-65-1050B is a 65W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-65-1050B operates from 180-528VAC and offers models with a rated current of 350mA and 1050mA. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40°C~+80°C case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-65-1050B is equipped with Dim-to-off (0-10V, 10V PWM signal and resistive), so as to provide the optimal design flexibility for LED lighting system.
- Wide input range 180~ 528VAC
- Constant Current mode output
- Metal housing with Class I design
- Built-in active PFC function
- IP67 design for indoor or outdoor installations
- Dim-to-off (0-10V, 10V PWM signal and resistive)
- Typical lifetime>50000 hours
- 5 years warranty
Product Specifications
| Driver Type |
|
|---|---|
| Dimming |
|
| Output Voltage |
|
| Output Power (W) |
|
| Output Current |
|
| Ambient/Operating Temperature (ta) |
|
| Input Voltage |
|
| Input Current |
|
| Frequency |
|
| Ingress Protection |
|
| Standards |
|
| Warranty |
|
| Dimensions |
|
| Weight |
|
Product Files
Click for Mean Well Constant Current Power Supply - HVGC-65 - Specification Sheet
Click for Mean Well Constant Current Power Supply - HVGC-65 - Product Diagram

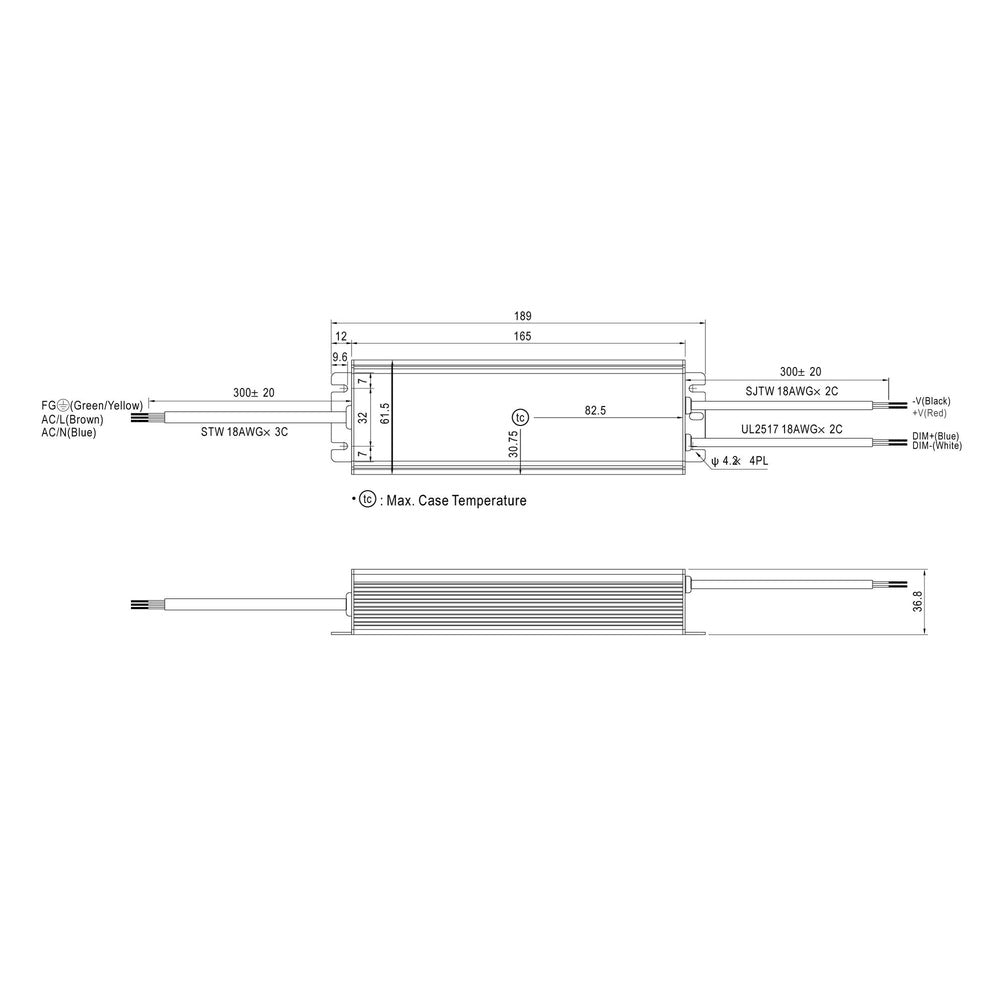

Diagram Image
