Hunza Mean Well LED Driver LPC-35-1050 1050mA (9-30v) IP67 (Scotty)

Hunza LightingSKU: DR-CC-LPC-35-1050

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

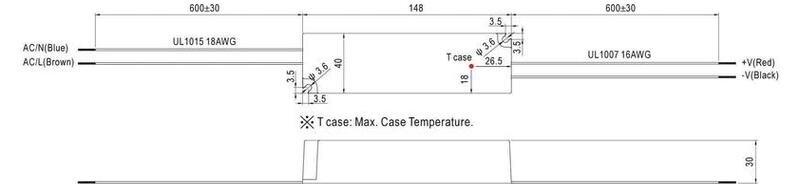

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

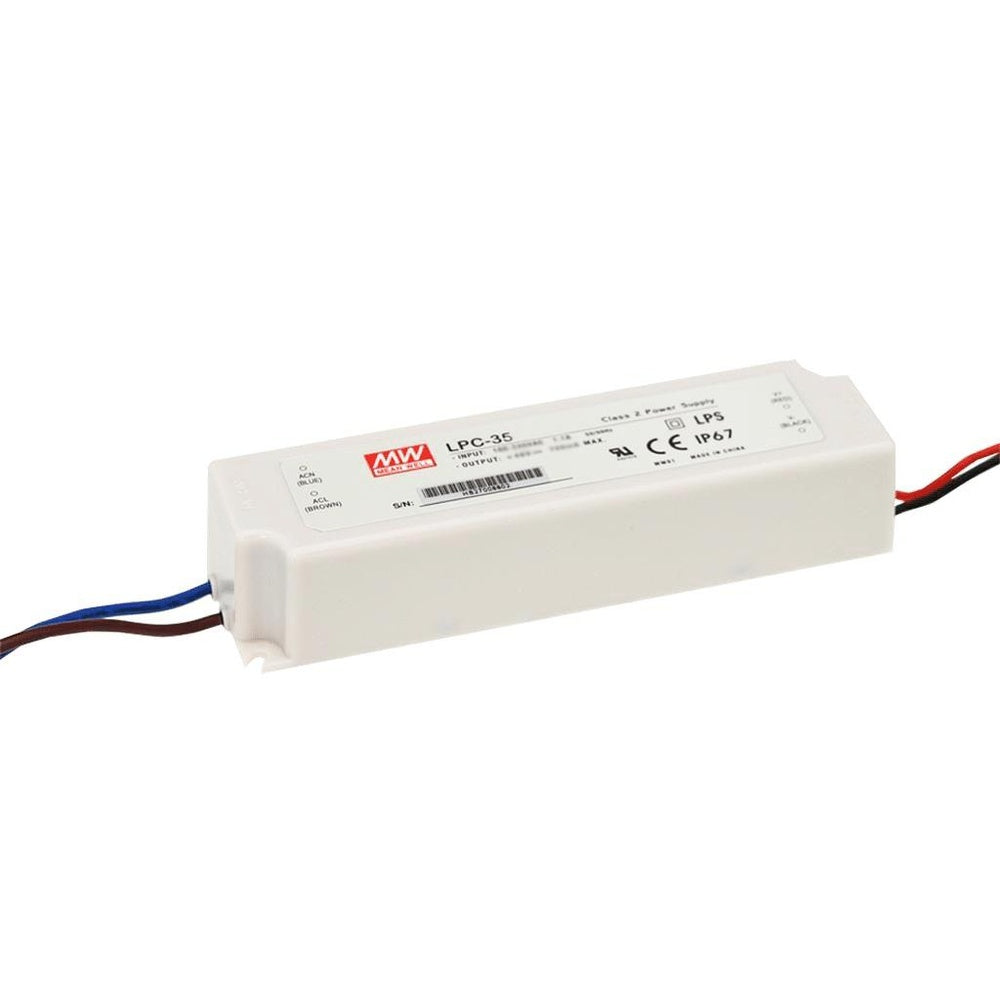

Hunza Mean Well LED Driver LPC-35-1050 1050mA (9-30v) IP67 (Scotty)

The Mean Well LED Driver LPC-35-1050 is a 35 Watt, 1050mA constant current driver 9-30V.

  • 90~264VAC input
  • Fully encapsulated with IP67 level
  • Protections: Short circuit / Over voltage
  • Constant current design (C.C. mode)
  • Withstand 300VAC surge input for 5 seconds
  • Class 2 power unit / Pass LPS
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
  • 2 years warranty

Product Specifications

Driver Type
  • Constant Current
Output Voltage
  • 9-30V
Output Current
  • 1050mA
Output Power (W)
  • 35W
Input Voltage
  • 90-264VAC
Input Current
  • 1.1A MAX
Frequency
  • 47/63Hz
Ambient/Operating Temperature (ta)
  • -30°C~70°C
Ingress Protection
  • IP67
Standards
  • CE
Warranty
  • 2 year *third party warranty
Dimensions
  • 14.8 x 4 x 5 cm ( 5.83" x 1.57" x 1.97" )
Weight
  • 0.34 kg ( 0.75 lb )
Product Files

Click for Mean Well LED Driver LPC-35 - Specification Sheet

Click for Mean Well LED Driver LPC-35 - Product Diagram

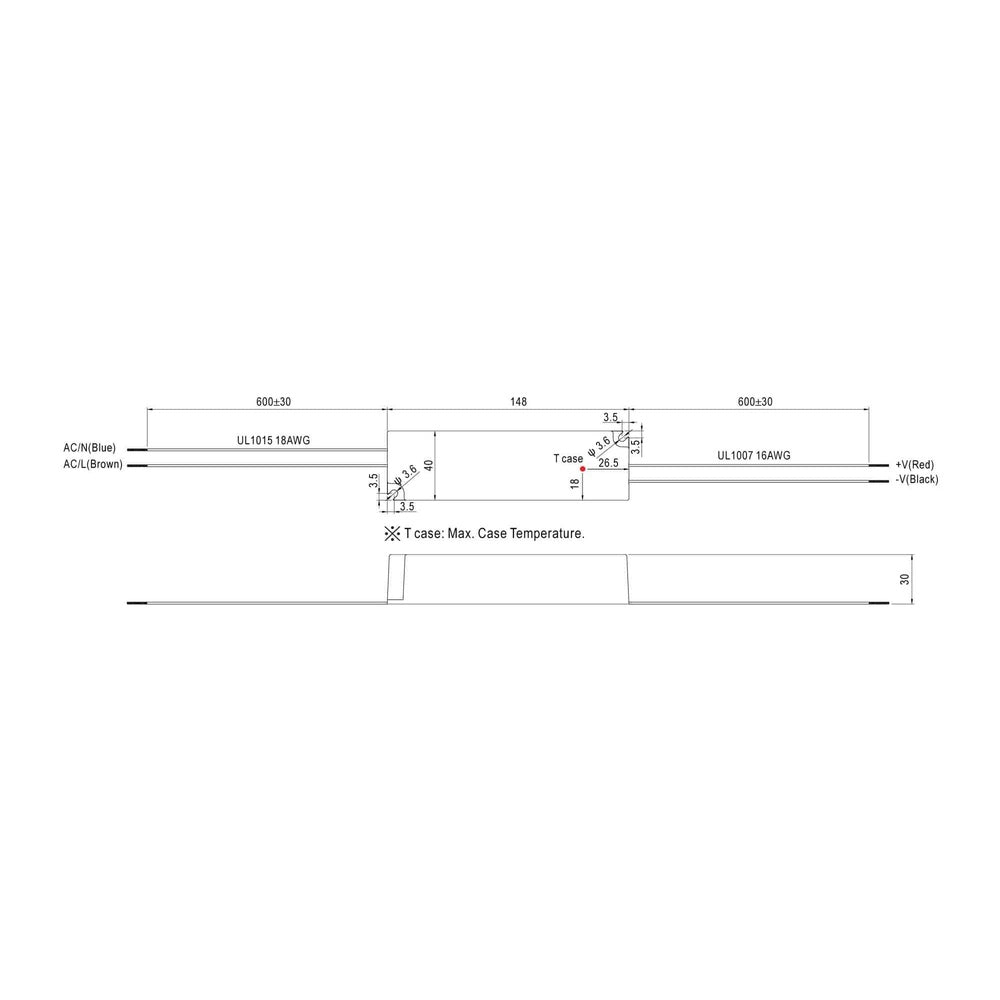

Diagram Image
