Hunza Mean Well LED Driver LPHC-18-350 350mA (6-48v) IP67 (Henry)

Hunza LightingSKU: DR-CC-LPHC-18-350

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

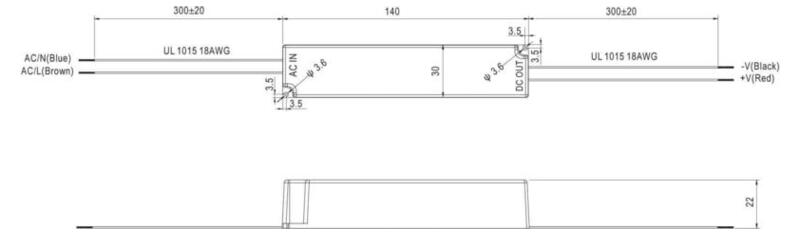

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

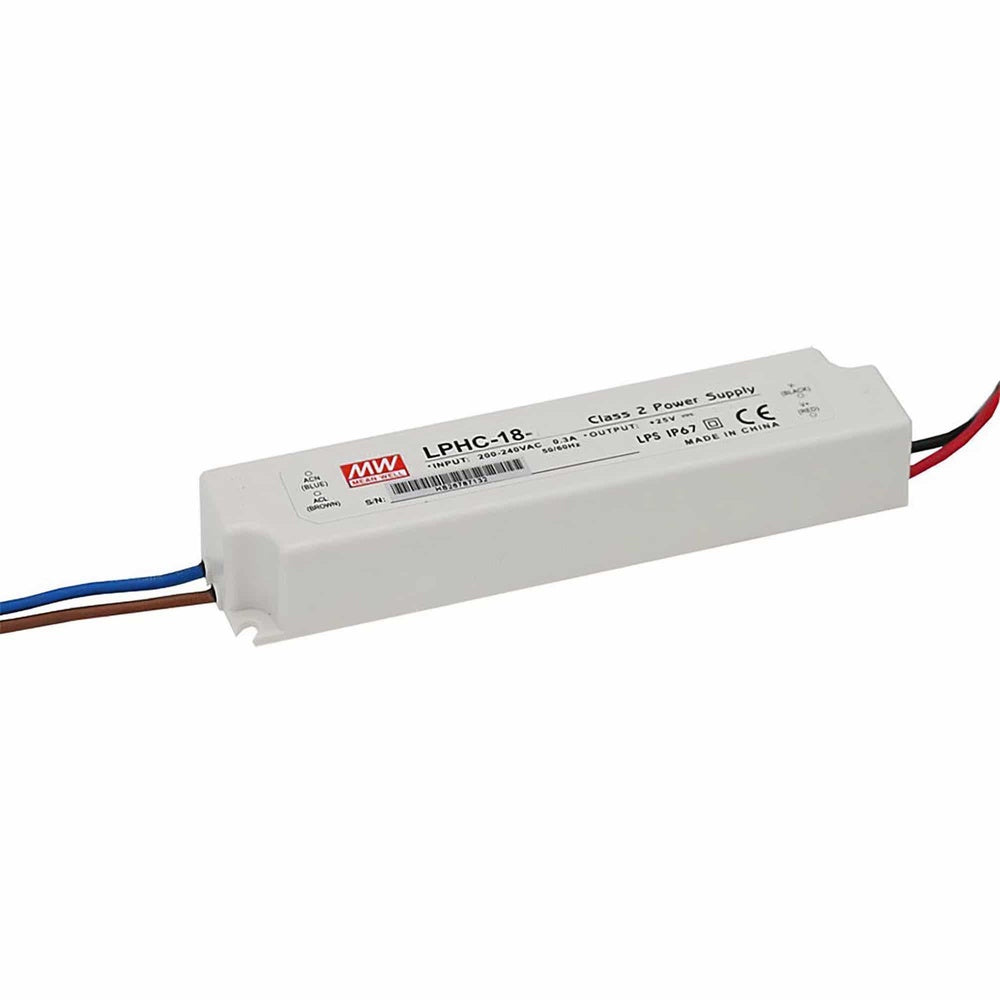

Hunza Mean Well LED Driver LPHC-18-350 350mA (6-48v) IP67 (Henry)

The Mean Well LED Driver LPHC-18-350 is a 18 Watt, 350mA constant current driver 6-48V.

  • 180~264VAC input only (Not for USA)
  • Fully encapsulated with IP67 level
  • Protections: Short circuit / Over voltage / Over temp.
  • Constant current design (C.C. mode)
  • Class 2 power unit / Pass LPS
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
  • 2 years warranty

Product Specifications

Driver Type
  • Constant Current
Output Voltage
  • 6-48V
Output Current
  • 350mA
Output Power (W)
  • 16.8W
Input Voltage
  • 180-264VAC
Input Current
  • 0.3A (MAX)
Frequency
  • 47/63Hz
Ambient/Operating Temperature (ta)
  • -30°C~70°C
Ingress Protection
  • IP67
Standards
  • CE
  • CSA
  • UL
Warranty
  • 2 year *third party warranty
Dimensions
  • 14 x 3 x 2.2 cm ( 5.51" x 1.18" x 0.87" )
Weight
  • 0.175 kg ( 0.39 lb )
Product Files

Click for Mean Well LED Driver LPHC-18 18W Specification Sheet

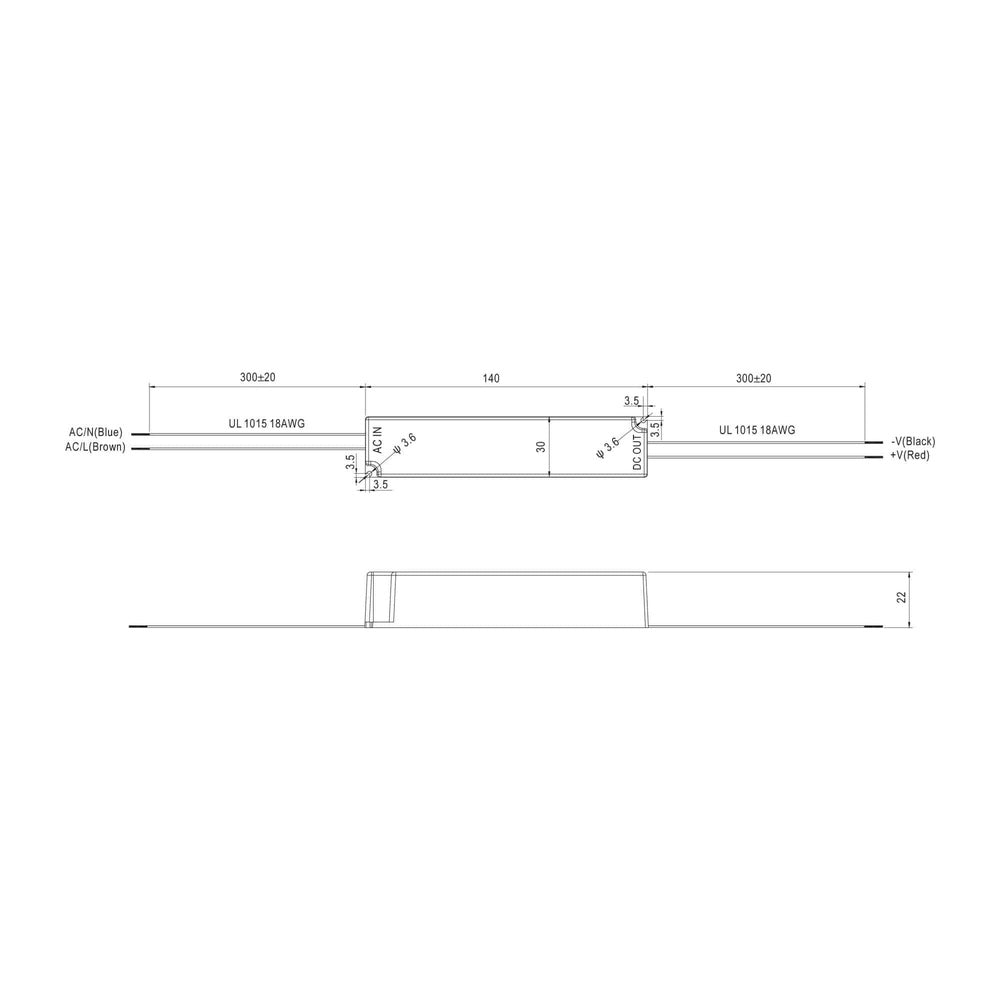

Click for Mean Well LED Driver LPHC-18 18W - Product Diagram

Diagram Image
