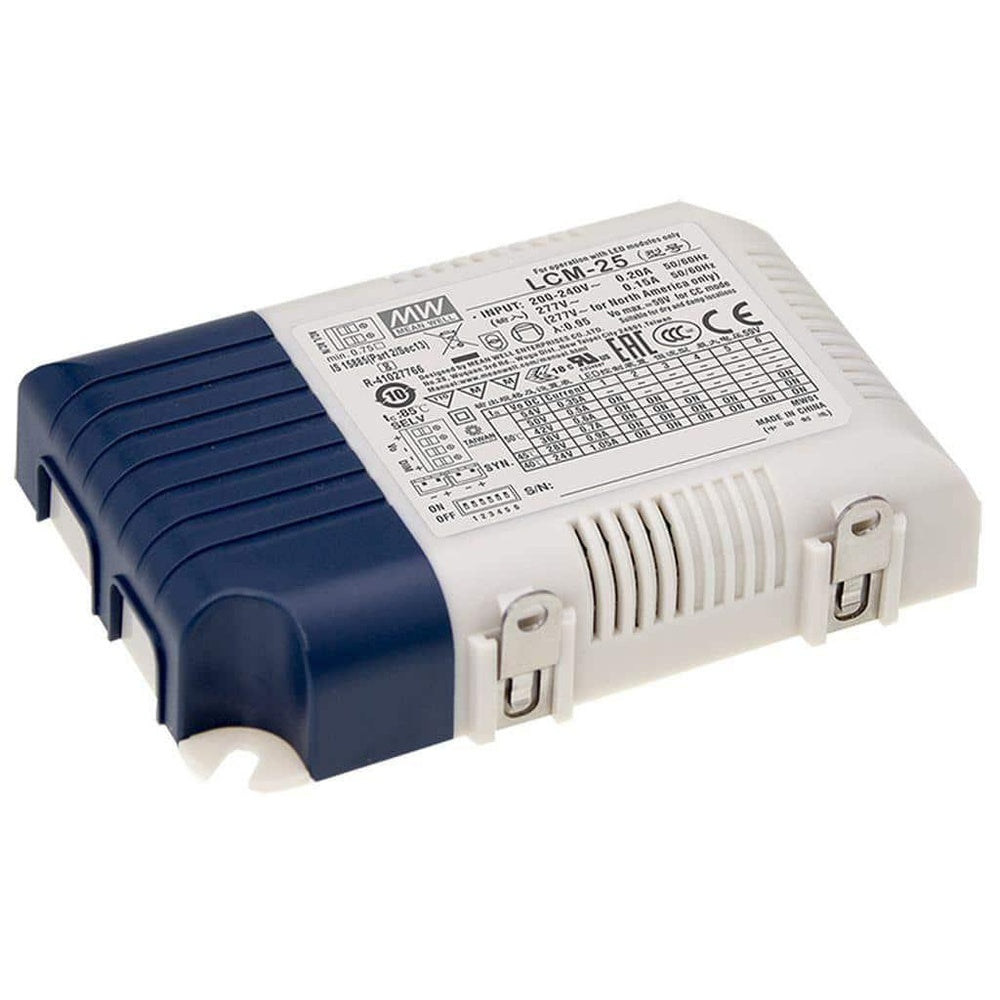

Hunza Meanwell LCM25 25W 500-1050mA LED Driver - Dimmable

Hunza LightingSKU: LCM25

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

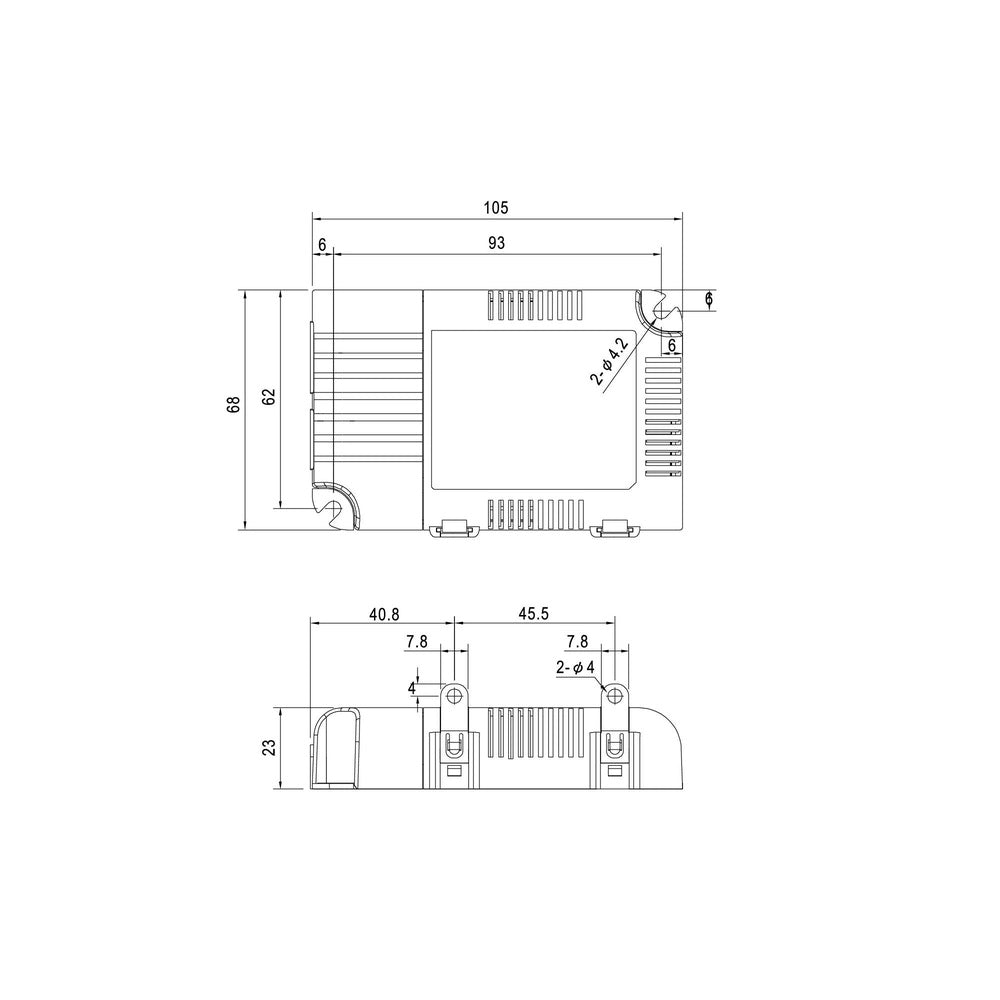

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Hunza Meanwell LCM25 25W 500-1050mA LED Driver - Dimmable

Not available for USA or Australian market.

For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. When this driver is used as a remote power supply, Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver

  • Constant Current mode output with multiple levels selectable by dip switch
  • Plastic housing with class II design
  • Built-in active PFC function
  • Standby power consumption <0.5W
  • Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming, synchronization up to 10units
  • 3 years warranty

Product Specifications

Driver Type
  • Constant Current
Dimming
  • Dim-to-off (0-10V or 10V PWN Signal or Resistive)
Output Voltage
  • 41V
Output Current
  • 500-1050mA
Frequency
  • 50/60Hz
Input Voltage
  • 180-295VAC
  • 254-417VDC
Input Current
  • 0.07A
Output Power (W)
  • 25W
Ambient/Operating Temperature (ta)
  • -30°C~85°C
Ingress Protection
  • IP20
Standards
  • CE
  • UL
Warranty
  • 3 Year Third Party Warranty
Dimensions
  • 10.5 x 6.8 x 2.3 cm ( 4.13" x 2.68" x 0.91" )
Weight
  • 0.17 kg ( 0.37 lb )
Product Files

Click for Mean Well LCM-25 25W 350mA-1050mA - Dimmable - Specification Sheet

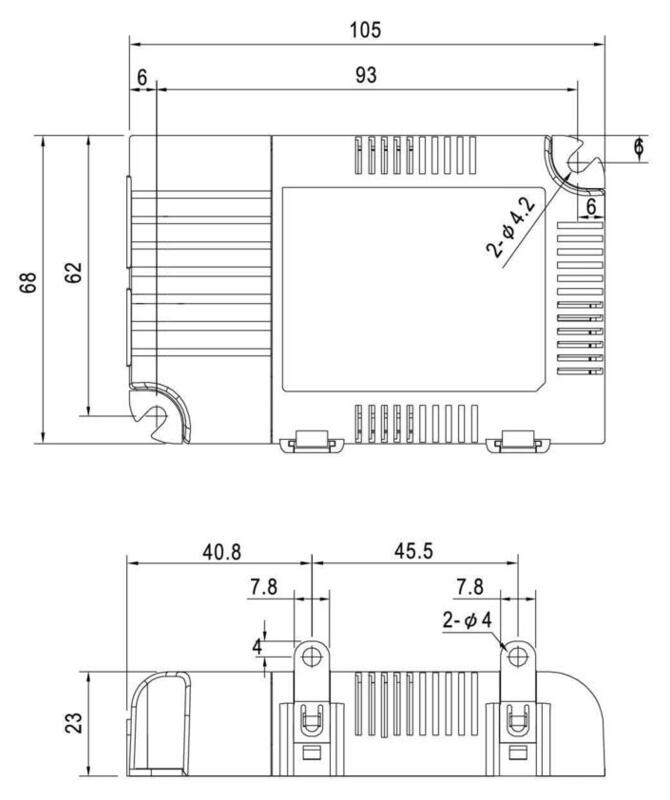

Click for Meanwell LCM25 - Product Diagram

Diagram Image
