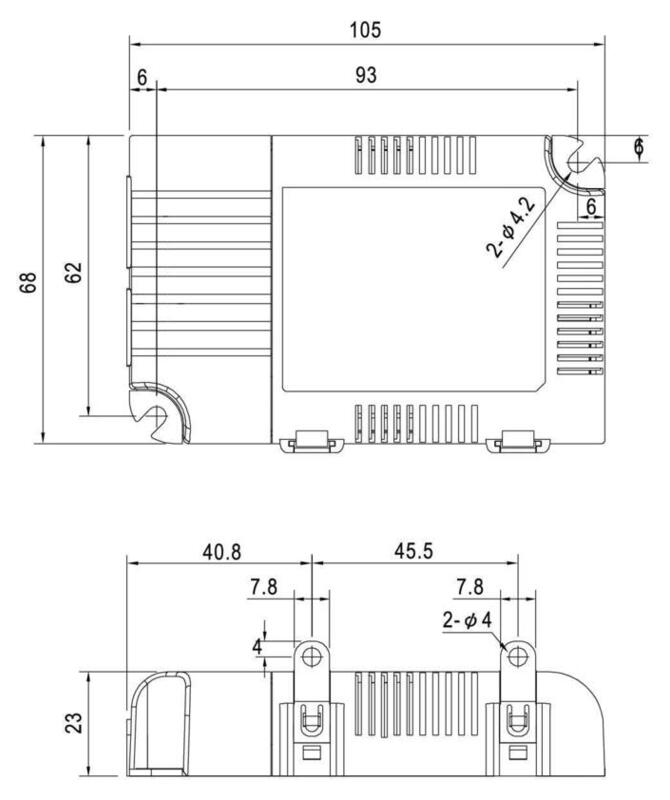

Dimensions Drawing
Fast & Easy Quote Request For Hunza Lighting
Description

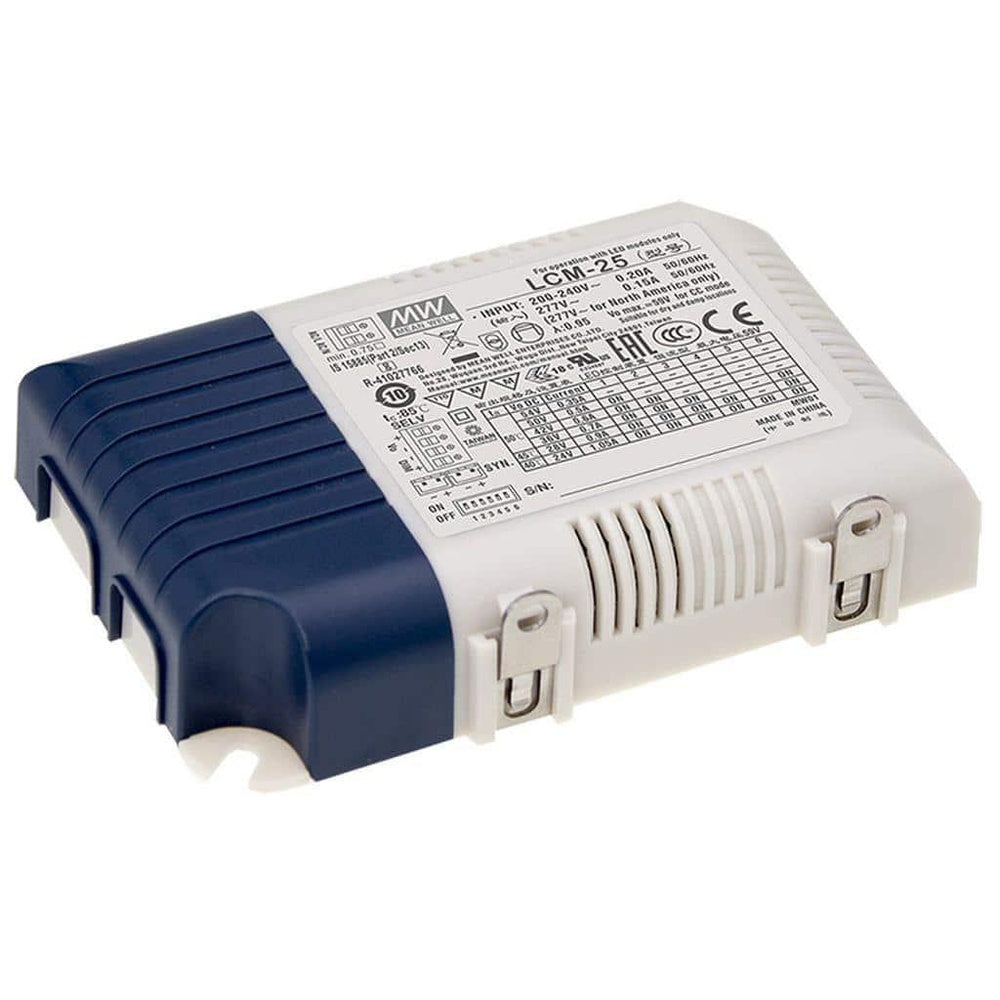

Hunza Meanwell LCM25DA 25W 500-1050mA LED Driver - DALI and Push
Not available for USA or Australian market.
LCM-25DA series is a 25W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALI interface with the compliance to IEC62386-207. LCM-25DA operates from 180-277VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -30°C~+85°C case temperature under free air convection. In addition, LCM-25DA is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system.
For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. When this driver is used as a remote power supply, Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver
- Constant Current mode output with multiple levels selectable by dip switch
- Plastic housing with class II design
- Built-in active PFC function
- Standby power consumption <0.5W
- Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming, synchronization up to 10units
- 3 years warranty
Product Specifications
| Driver Type |
|
|---|---|
| Dimming |
|
| Output Voltage |
|
| Output Current |
|
| Frequency |
|
| Input Voltage |
|
| Input Current |
|
| Output Power (W) |
|
| Ambient/Operating Temperature (ta) |
|
| Ingress Protection |
|
| Standards |
|
| Warranty |
|
| Dimensions |
|
| Weight |
|
Product Files
Click for Meanwell LCM25DA 25W 500-1050mA LED Driver - DALI and Push - Specification Sheet
Click for Meanwell LCM25 - Product Diagram

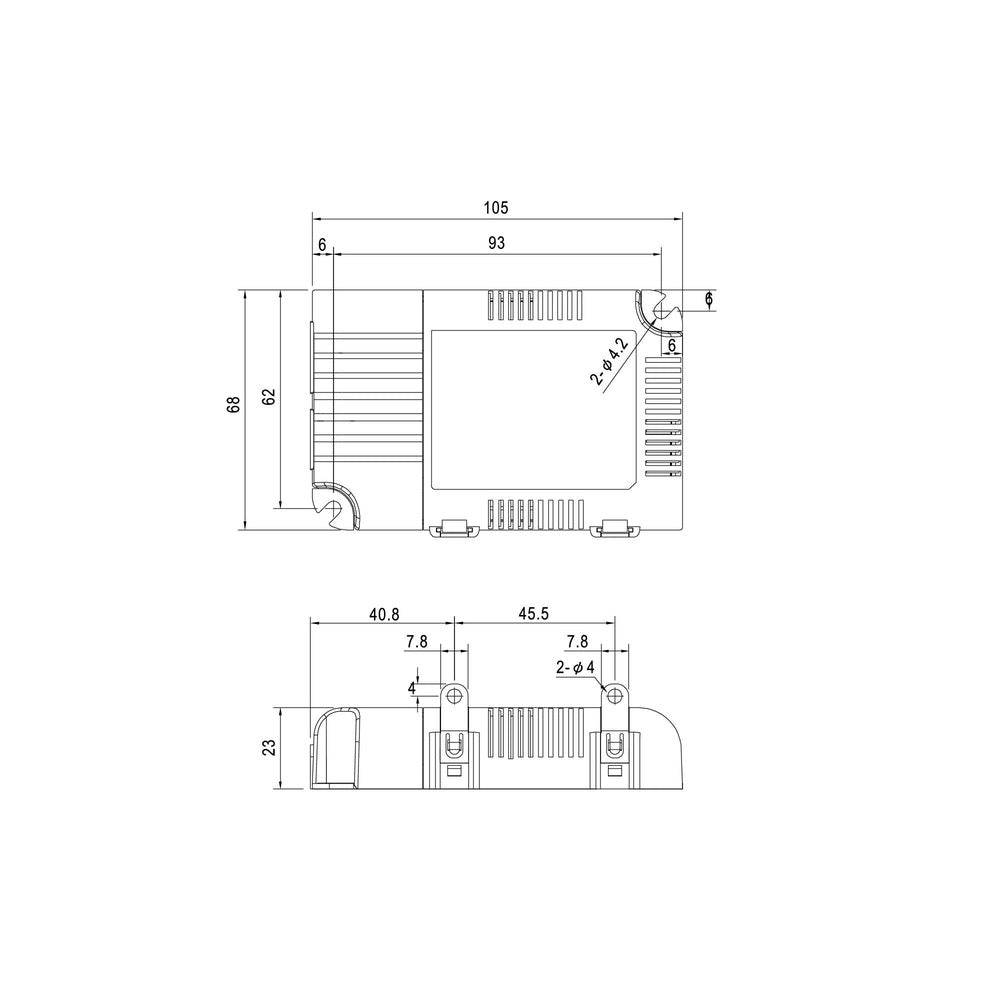

Diagram Image
