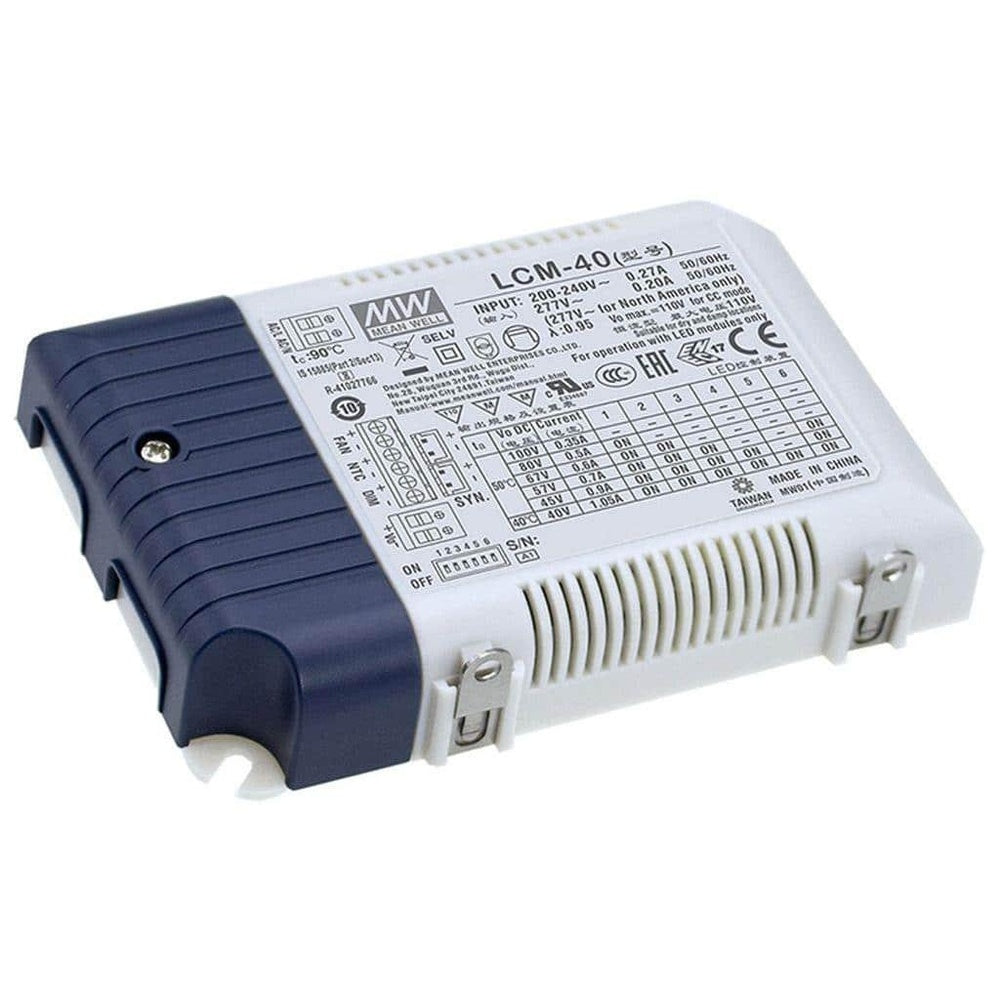

Hunza Meanwell LCM40DA 42W 500-1050mA LED Driver - DALI and Push

Hunza Meanwell LCM40DA 42W 500-1050mA LED Driver - DALI and Push

Not available for USA or Australian market.

LCM-40DA series is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALI interface with the compliance to IEC62386-207. LCM-40DA operates from 180-295VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -30°C~+90°C case temperature under free air convection. In addition, LCM-40DA is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system. For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. When this driver is used as a remote power supply, Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

• Plastic housing with class II design
• Built-in active PFC function
• Standby power consumption <0.5W
• Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming, synchronization up to 10units
• 3 years warranty

Product Specifications

Driver Type	Constant Current
Dimming	DALI and Push
Output Voltage	65V
Output Current	500-1400mA
Frequency	50/60Hz
Input Voltage	180-295VAC 254-417VDC
Input Current	0.07A
Output Power (W)	42W
Ambient/Operating Temperature (ta)	-30°C~90°C
Ingress Protection	IP20
Standards	CE BSI CB EAC EN ENEC Approved RCM (C-Tick) UL
Warranty	3 Year Third Party Warranty
Dimensions	12.35 x 8.15 x 2.3 cm ( 4.86" x 3.21" x 0.91" )
Weight	0.2 kg ( 0.44 lb )

Product Files

Click for Meanwell LCM40DA 42W 500-1050mA LED Driver - DALI and Push - Specification Sheet

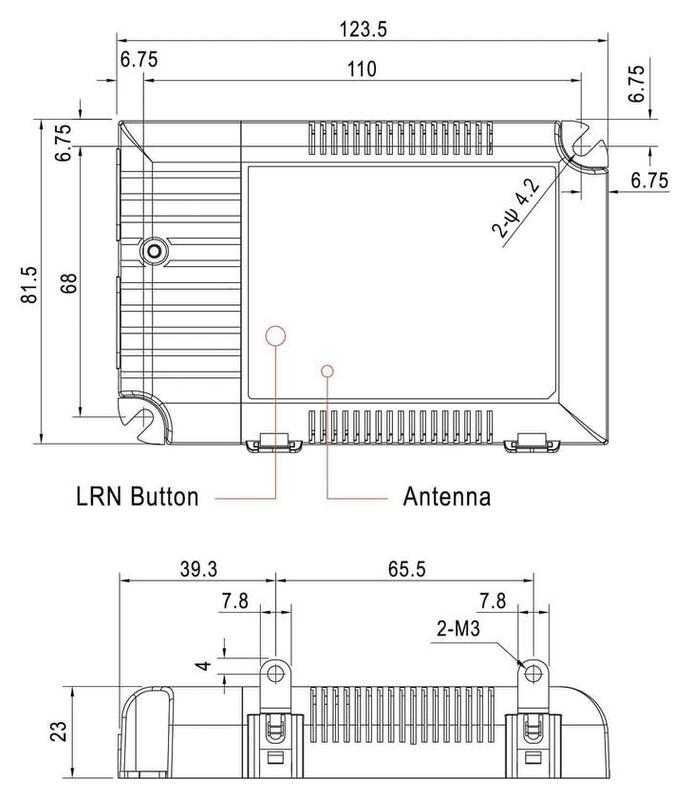

Click for Mean Well LCM-40 Series - Product Diagram

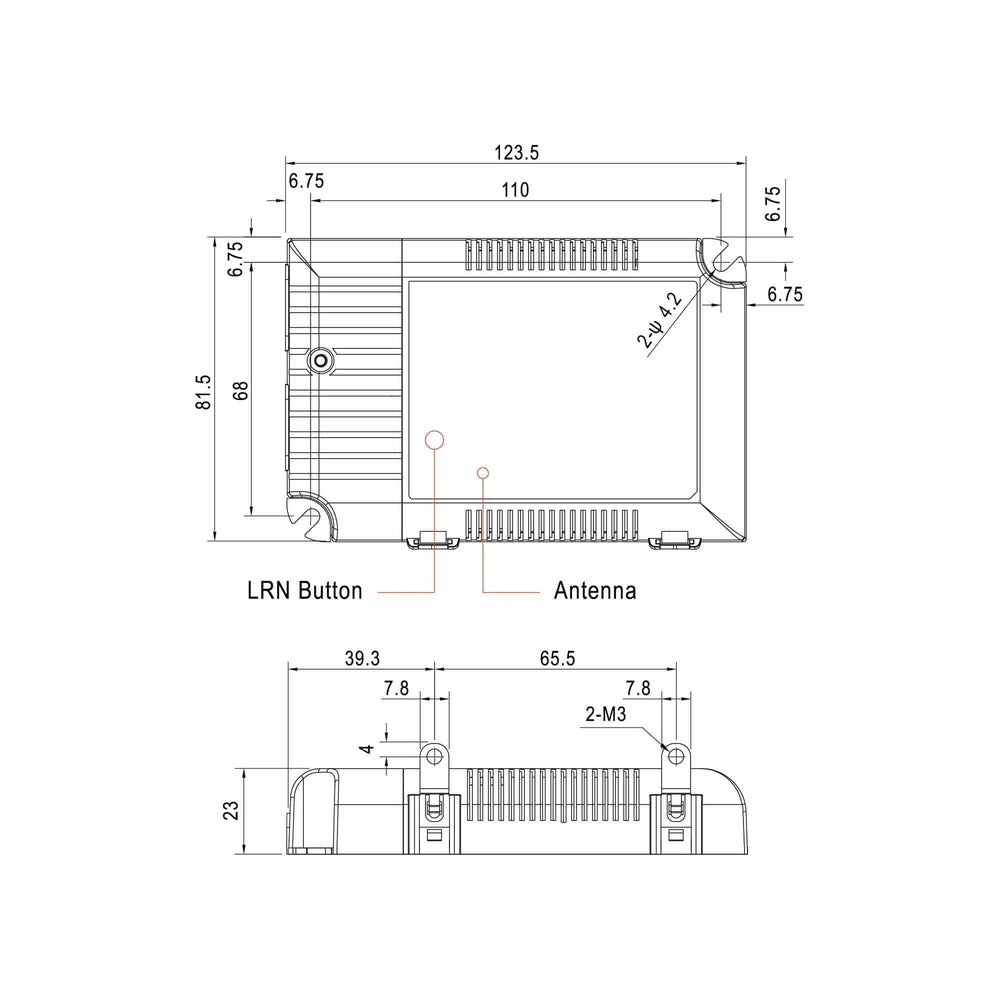

Diagram Image
